ONECNA GT9 7000W Electric Scooter User Manual

1. Introduction

Thank you for choosing the ONECNA GT9 7000W Electric Scooter. This manual provides essential information for the safe operation, maintenance, and troubleshooting of your new electric scooter. Please read this manual thoroughly before your first ride to ensure proper usage and to maximize the lifespan of your device.

The ONECNA GT9 is a high-performance electric scooter designed for adults, featuring a powerful dual motor system, a long-range battery, and a foldable design for convenient storage and transport. It is equipped with advanced safety features and a comfortable riding experience.

Image: The ONECNA GT9 Electric Scooter being ridden at night, showcasing its vibrant LED lights and powerful front headlight.

2. Safety Information

Riding an electric scooter carries inherent risks. To minimize these risks, always adhere to the following safety guidelines:

• Always wear a helmet and appropriate protective gear (knee pads, elbow pads, gloves) when riding.
• Familiarize yourself with local laws and regulations regarding electric scooter usage.
• Do not ride under the influence of alcohol or drugs.
• Avoid riding in heavy rain, snow, or icy conditions. The scooter has IP65 waterproof protection, but extreme conditions can still be hazardous.
• Maintain a safe speed and distance from other vehicles and pedestrians.
• Perform a pre-ride inspection before each use, checking brakes, tires, and battery level.
• Do not exceed the maximum weight limit of 500 pounds.
• Be aware of your surroundings and potential hazards such as potholes, uneven surfaces, and obstacles.
• Use the integrated lights and turn signals for visibility, especially during night rides.

Image: The ONECNA GT9 Electric Scooter illuminated by its colorful ambient lights and bright headlights during a night ride, enhancing visibility.

3. Package Contents

Upon opening your ONECNA GT9 Electric Scooter package, please verify that all the following items are included:

• ONECNA GT9 Electric Scooter (Main Unit)
• Removable Seat
• Front Bag
• 2 x Chargers
• 2 x NFC Keys
• Tools Kit
• User Manual (this document)

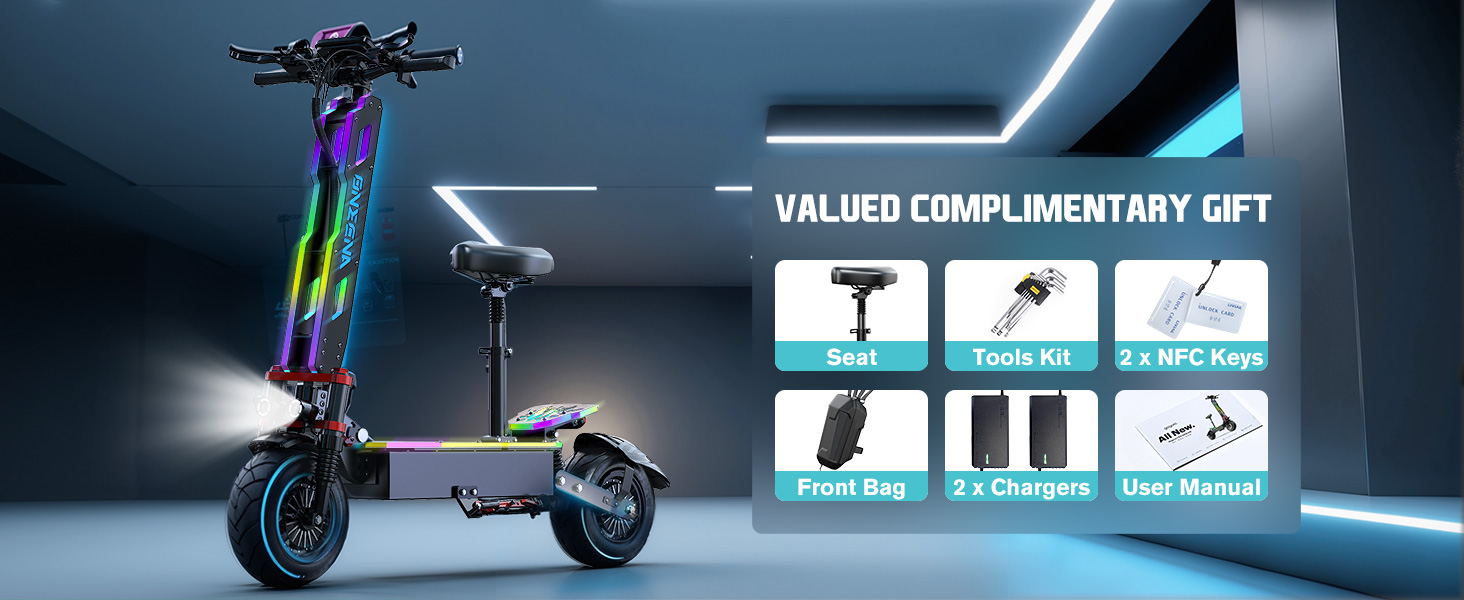

Image: A visual representation of the ONECNA GT9 Electric Scooter along with its included accessories: seat, tools kit, NFC keys, front bag, chargers, and user manual.

4. Setup

4.1 Unfolding the Scooter

1. Place the scooter on a flat, stable surface.
2. Locate the folding mechanism near the base of the steering column.
3. Release the locking latch and carefully lift the steering column until it clicks into place, indicating it is fully upright and locked.
4. Ensure all locking mechanisms are securely engaged before riding.

4.2 Attaching the Seat and Front Bag

• Seat: Insert the seat post into the designated slot on the scooter's deck. Adjust the height to your preference and secure it with the quick-release clamp.
• Front Bag: Attach the front bag to the handlebars using the provided straps. Ensure it is securely fastened and does not obstruct your view or control.

4.3 Initial Charging

Before your first ride, fully charge the scooter's battery. This helps to condition the battery for optimal performance and longevity.

1. Ensure the scooter is powered off.
2. Locate the charging port, typically covered by a rubber flap, on the side of the scooter's deck.
3. Connect the charger to the charging port, then plug the charger into a standard wall outlet.
4. The charging indicator on the charger will change (e.g., from red to green) when charging is complete. A full charge takes approximately 8 hours.
5. Disconnect the charger once charging is complete and securely close the charging port cover.

Image: A detailed view of the 60V 38Ah lithium battery compartment, highlighting its capacity and fast charging capability.

5. Operating Instructions

5.1 Powering On/Off and NFC Key Usage

• To power on the scooter, tap one of the provided NFC keys to the designated NFC reader area on the display.
• To power off, tap the NFC key again or hold the power button (if available) on the display.

5.2 Understanding the LCD Display

The clear LCD display provides real-time information:

• Speed Display: Shows current riding speed.
• Battery Indicator: Displays remaining battery level.
• Riding Mileage: Tracks total distance traveled.
• Gear/Mode: Indicates the current riding mode (e.g., Sport).
• Bluetooth Connection: Shows if the scooter is connected to a mobile app.
• Cruise Control: Indicates if cruise control is active.

Image: A detailed view of the scooter's handlebars and large LED display, showing various indicators like speed, battery, mileage, and NFC key area.

5.3 Riding the Scooter

1. Starting: With the scooter powered on, gently push off with one foot while simultaneously pressing the throttle.
2. Acceleration: Use the throttle lever on the handlebar to control your speed. The 7000W dual motor provides rapid acceleration.
3. Braking: The scooter is equipped with front and rear braking systems. Apply both brakes smoothly and gradually to slow down or stop. Avoid sudden braking, especially at high speeds.
4. Lights and Signals: Activate the dual LED headlights, turn signals, and brake lights as needed for visibility and to signal your intentions to others.

Image: The ONECNA GT9 Electric Scooter showcasing its vibrant colorful ambient lights and bright high-brightness headlight, essential for night riding.

5.4 Folding the Scooter

To fold the scooter for storage or transport:

1. Ensure the scooter is powered off.
2. Locate the folding latch at the base of the steering column.
3. Release the latch and carefully fold the steering column downwards until it locks into its folded position.
4. The quick-fold mechanism allows for collapse in seconds, making it easy to store in cars, offices, or apartments.

Image: The ONECNA GT9 Electric Scooter shown both in its upright, ready-to-ride position and its compact, folded state, demonstrating its space-saving design.

5.5 Official Product Video

6. Maintenance

Regular maintenance ensures the longevity and safe operation of your scooter.

• Battery Care:
  • Charge the battery fully after each use, especially if storing for extended periods.
  • Avoid completely draining the battery.
  • Store the scooter in a cool, dry place, away from direct sunlight and extreme temperatures.
• Tire Pressure: Check the pressure of the 12-inch pneumatic tires regularly. Maintain recommended pressure for optimal ride quality and range.
• Brake System: Periodically inspect the front and rear braking systems for wear and tear. Ensure brake levers are responsive and brake pads are not excessively worn. Adjust or replace as needed.
• Cleaning: Wipe down the scooter with a damp cloth. Do not use high-pressure water jets or corrosive cleaners. Ensure the charging port cover is closed during cleaning.
• General Inspection: Regularly check all screws, bolts, and connections to ensure they are tight. Inspect the frame for any signs of damage.

Image: A close-up view of the dual suspension system and 12-inch high-speed tires, illustrating features that contribute to a comfortable ride and require periodic inspection.

7. Troubleshooting

If you encounter issues with your ONECNA GT9 Electric Scooter, refer to the following common problems and solutions:

If the issue persists after attempting these solutions, please contact ONECNA customer support for further assistance.

8. Specifications

Key technical specifications for the ONECNA GT9 7000W Electric Scooter:

9. Warranty and Support

The ONECNA GT9 Electric Scooter is backed by a 180-day warranty for replacement of parts due to quality problems. This warranty ensures worry-free ownership.

For any questions, concerns, or assistance with your premium electric scooter, our dedicated service team is available to provide lifetime customer support. Please refer to the contact information provided on the product packaging or the official ONECNA website for support channels.
