HUIWOSEN CUT80 CNC Plasma Cutter User Manual

1. Introduction

This manual provides essential information for the safe and efficient operation, setup, and maintenance of your HUIWOSEN CUT80 CNC Plasma Cutter. The CUT80CNC is an IGBT Non-HF arc plasma cutting machine designed for precision metal cutting, featuring a heavy-duty digital controller and CNC system compatibility. Please read this manual thoroughly before operating the machine.

2. Safety Information

WARNING: Plasma cutting involves high voltage, high temperatures, and intense light. Failure to follow safety precautions can result in serious injury or death.

• Personal Protective Equipment (PPE): Always wear appropriate PPE, including a welding helmet with a suitable shade, flame-resistant clothing, heavy-duty gloves, and safety glasses.
• Ventilation: Ensure adequate ventilation to remove fumes and gases produced during cutting. Work in a well-ventilated area or use a fume extractor.
• Electrical Safety: Ensure the machine is properly grounded. Do not operate in wet conditions. Inspect cables and connections for damage before each use.
• Fire Prevention: Keep flammable materials away from the cutting area. Have a fire extinguisher readily available.
• Work Area: Keep the work area clean and free of clutter. Ensure stable footing.
• Children and Bystanders: Keep children and unauthorized personnel away from the operating machine.

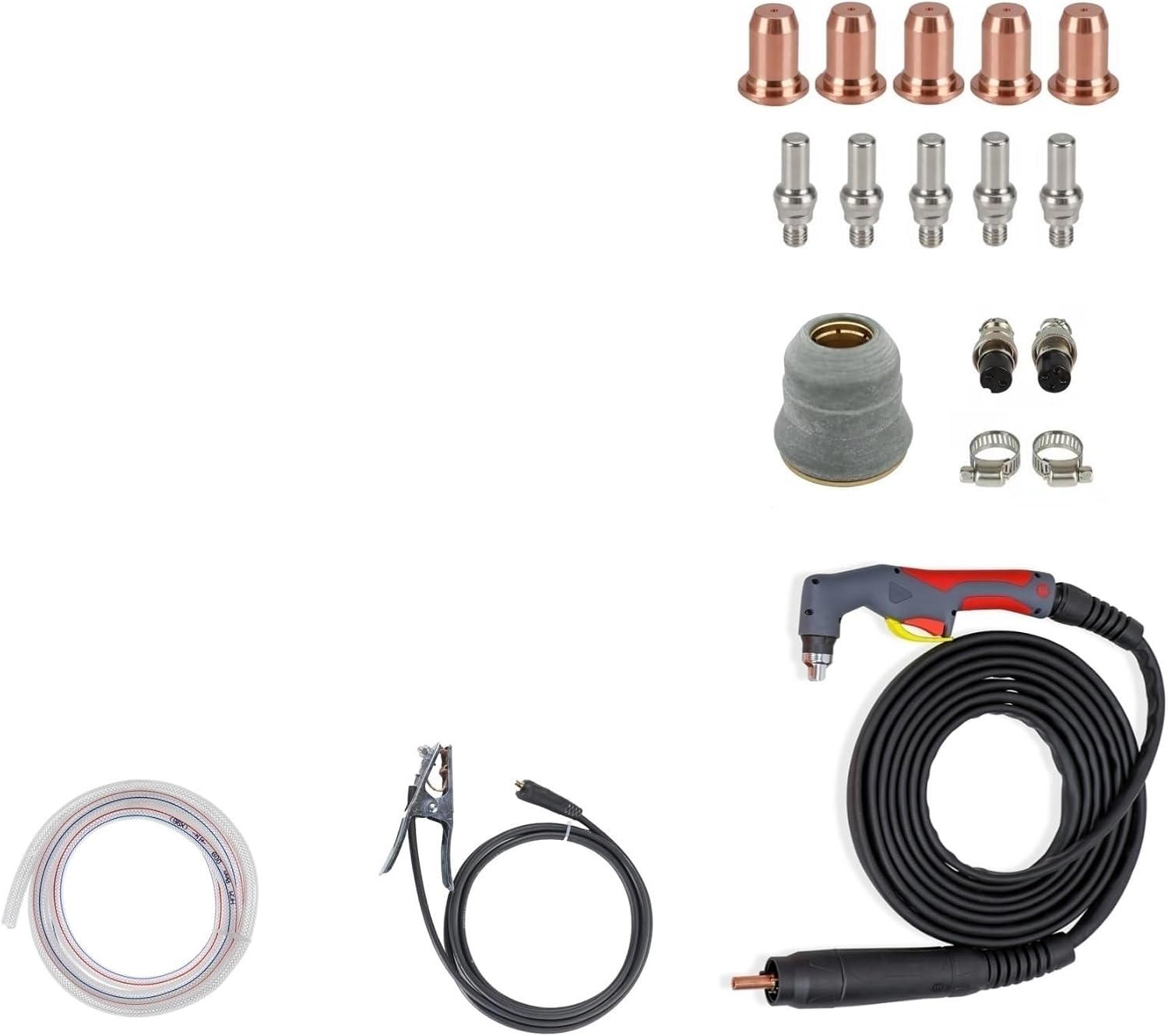

3. Package Contents

Verify that all items listed below are present in your package:

• HUIWOSEN CUT80 CNC Plasma Cutter Unit
• 1.5m PT80 or CNC Straight 6m/10m PTM80 Non-HF Arc Cutting Torch
• Earth Clamp with 3-meter Cable
• 2-meter Air Hose
• 2 pcs Hose Clamps
• 5 pcs Tips
• 5 pcs Electrodes
• 1 pc Shield Cup
• 2 pcs CNC Connectors
• Torch Standoff

4. Setup

1. Unpacking: Carefully remove the plasma cutter and all accessories from the packaging. Inspect for any shipping damage.
2. Power Connection: Connect the machine to a suitable 110V or 220V power supply. Ensure the power source matches the machine's requirements.
3. Air Compressor Connection: Connect the 2-meter air hose to the air inlet on the plasma cutter and to your air compressor. Secure with the provided hose clamps. Ensure your air compressor can provide at least 70 PSI for optimal performance.
4. Torch Connection: Connect the PT80 or PTM80 cutting torch to the designated plasma plug on the machine. Ensure it is securely fastened.
5. Earth Clamp Connection: Attach the earth clamp cable to the appropriate terminal on the machine. Secure the earth clamp to the workpiece or a clean, bare metal part of the work table to ensure a good electrical connection.
6. CNC System Connection (Optional): If integrating with a CNC system, connect the CNC connectors to the CNC port located on the rear of the machine. Refer to your CNC system's manual for specific connection details.

5. Operating Instructions

1. Power On: Turn on the main power switch on the plasma cutter. The digital display will illuminate.
2. Air Pressure Check: Use the 'Air Check' function to verify proper air pressure. The display will show the current air pressure. Adjust your air compressor regulator to achieve the recommended 70 PSI for optimal cutting.
3. Current Adjustment: Use the control knob to adjust the cutting amperage. The digital display shows the selected amps. Adjust the current based on the material type and thickness.
4. 2T/4T Mode Selection:
   • 2T (Two-Touch) Mode: Press and hold the torch trigger to start the arc; release to stop. Suitable for short cuts.
   • 4T (Four-Touch) Mode: Press and release the trigger to start the arc; press and release again to stop. Ideal for longer cuts, reducing hand fatigue.
5. Cutting Process:
   • Ensure the earth clamp is securely attached to the workpiece.
   • Position the torch standoff on the workpiece.
   • Press the torch trigger to initiate the arc.
   • Move the torch steadily along the desired cut line. Maintain a consistent speed for a clean cut.
   • Release the trigger (2T) or press and release again (4T) to stop cutting.
6. Cutting Thickness: The machine offers good performance for cutting up to 20mm at 70 PSI. The maximum cutting thickness can reach 25mm for short runs.

6. Maintenance

Regular maintenance ensures the longevity and optimal performance of your plasma cutter.

• Consumables: Regularly inspect and replace worn tips, electrodes, and shield cups. Worn consumables negatively impact cut quality and arc stability.
• Torch Cleaning: Keep the torch head clean and free of spatter.
• Air Filter: Check and clean or replace the air filter element periodically to ensure clean, dry air supply to the torch. Moisture and contaminants in the air can damage consumables and the machine.
• General Cleaning: Keep the machine's exterior clean. Ensure cooling vents are unobstructed.
• Cable Inspection: Periodically inspect all cables (power, torch, earth clamp) for cuts, abrasions, or loose connections.

7. Troubleshooting

If you encounter issues, refer to the following common troubleshooting steps:

If the problem persists after attempting these solutions, please contact HUIWOSEN customer support.

8. Specifications

9. Warranty Information

Specific warranty details for the HUIWOSEN CUT80 CNC Plasma Cutter may vary. Please refer to the warranty card included with your product or contact HUIWOSEN customer support for detailed information regarding warranty coverage and terms.

10. Customer Support

For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact HUIWOSEN customer support. Have your product model and serial number ready when contacting support.

You may find contact information on the manufacturer's official website or on the product packaging.
