1. Introduction
This manual provides detailed instructions for the safe operation, assembly, maintenance, and troubleshooting of your M YUME SCOOTER Y11+ 6000W Dual Motor Electric Scooter. Please read this manual thoroughly before operating the scooter to ensure proper use and to maximize your riding experience.
Image 1.1: M YUME SCOOTER Y11+ Electric Scooter.
2. Safety Information
Your safety is paramount. Always adhere to the following guidelines:
- UL2272 Certified: This scooter is UL2272 safety certified, ensuring compliance with electrical safety standards.
- Protective Gear: Always wear a helmet, knee pads, elbow pads, and appropriate footwear when riding.
- Local Laws: Obey all local traffic laws and regulations regarding electric scooter use.
- Pre-Ride Check: Before each ride, inspect the brakes, tires, and all fasteners to ensure they are in good working order.
- Riding Conditions: Avoid riding in heavy rain, on icy surfaces, or in conditions with poor visibility.
- Weight Limit: Do not exceed the maximum weight limit of 440 pounds.
- Age Range: This scooter is designed for adult use.
3. Product Overview
The M YUME SCOOTER Y11+ is a high-performance electric scooter featuring a dual motor system and robust construction for various terrains.
3.1 Key Features
- Dual Motor System: Equipped with two 3000W motors for a total of 6000W, providing a top speed of 50 MPH.
- Long Range Battery: A 60V 31.5Ah lithium-ion battery offers up to 60 miles per charge.
- Smart Lock System: Patented Safe Lock technology with NFC tags for convenient locking and unlocking.
- Waterproof Color Display: Provides real-time riding data and is designed for all-weather visibility.
- Enhanced Night Riding Safety: Features 'Angel Eyes' LED headlights, taillights, brake lights, and handlebar-controlled turn signals.
- All-Terrain Tires: 11-inch military-grade tubeless tires with deep tread for superior grip on various surfaces.
- Full Suspension: Front fork hydraulic shock and full suspension system for a comfortable ride.
Image 3.1: Scooter and included accessories.
Image 3.2: Suspension, Brakes, and Tires.
4. Setup
4.1 Unpacking and Initial Assembly
Your Y11+ scooter comes with a pre-assembled chassis. Minor assembly may be required for handlebars, seat (if included), and other accessories.
- Carefully remove all components from the packaging.
- Refer to the included toolkit for necessary tools.
- Attach the handlebars, ensuring all cables are properly connected and secured.
- Install the seat (if desired) according to the separate seat instructions.
- Check all bolts and fasteners for tightness before first use.
Image 4.1: What's in the Box.
4.2 Initial Charging
Before your first ride, fully charge the scooter's battery.
- Locate the charging ports on the scooter. The Y11+ features dual charging ports.
- Connect the provided chargers to the ports and then to a standard power outlet.
- The charging indicator on the charger will typically turn green when fully charged.
- Charging time is approximately 7-8 hours for a full charge.
Image 4.2: Battery and Charging Information.
5. Operating Instructions
5.1 Controls and Display
Familiarize yourself with the handlebar controls and the waterproof color display.

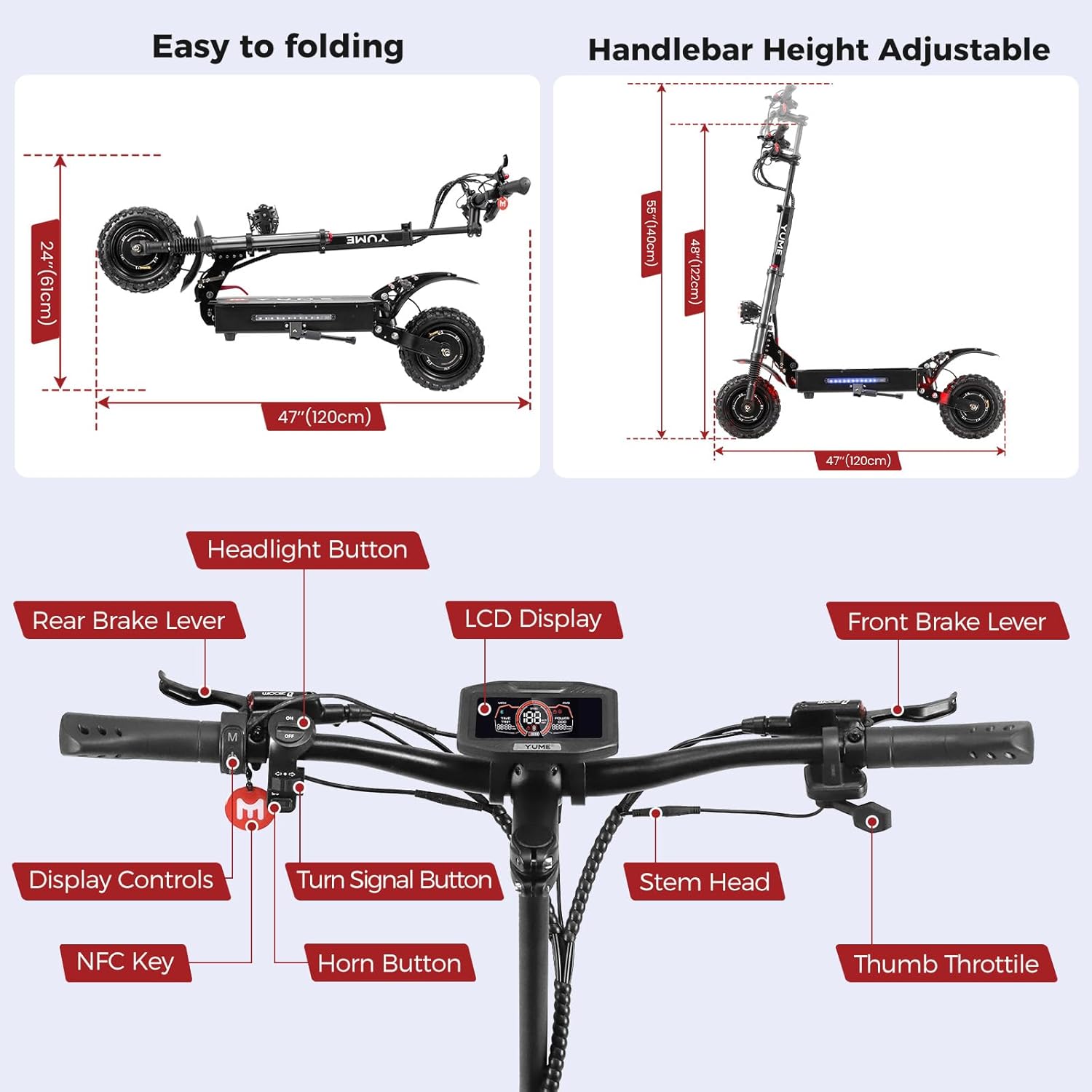

Image 5.1: Handlebar Controls and LCD Display.
- LCD Display: Shows speedometer (0-50MPH), odometer, battery level, and gear mode.
- Power Button: Typically integrated with the display controls to turn the scooter on/off.
- Throttle: Use the thumb throttle to accelerate.
- Brake Levers: Front and rear brake levers control the hydraulic disc brakes.
- Headlight Button: Activates the 'Angel Eyes' LED headlights.
- Turn Signal Button: Engages the integrated turn signals.
- Horn Button: Activates the scooter's horn.
5.2 Smart Lock System (NFC)
The Y11+ features a patented Safe Lock system using NFC tags for security.
- To lock/unlock, tap one of the included NFC tags against the designated area on the display.
- Ensure the scooter is powered off before locking.
5.3 Riding Modes and Dual Motor Control
The scooter offers multiple riding modes and the ability to switch between single and dual motor drive.
Image 5.2: Dual Motor System and Performance.
- Speed Modes: The scooter typically has 3 speed modes, selectable via the display controls.
- Single/Dual Drive: Use the dedicated button (often labeled 'SINGLE/DUAL' or similar) to switch between single motor (for efficiency) and dual motor (for maximum power and speed) operation.
5.4 Folding Mechanism and Handlebar Adjustment
The Y11+ is designed for portability with an easy folding mechanism and adjustable handlebars.
Image 5.3: Folding and Handlebar Adjustment.
- Folding: Follow the visual guide in Image 5.3 to fold the scooter for storage or transport. Ensure the locking mechanism is securely engaged.
- Handlebar Height: Adjust the handlebar height to a comfortable position using the quick-release lever on the stem.
5.5 Smart App Control
The Y11+ can be connected to a smart application for additional control and information.

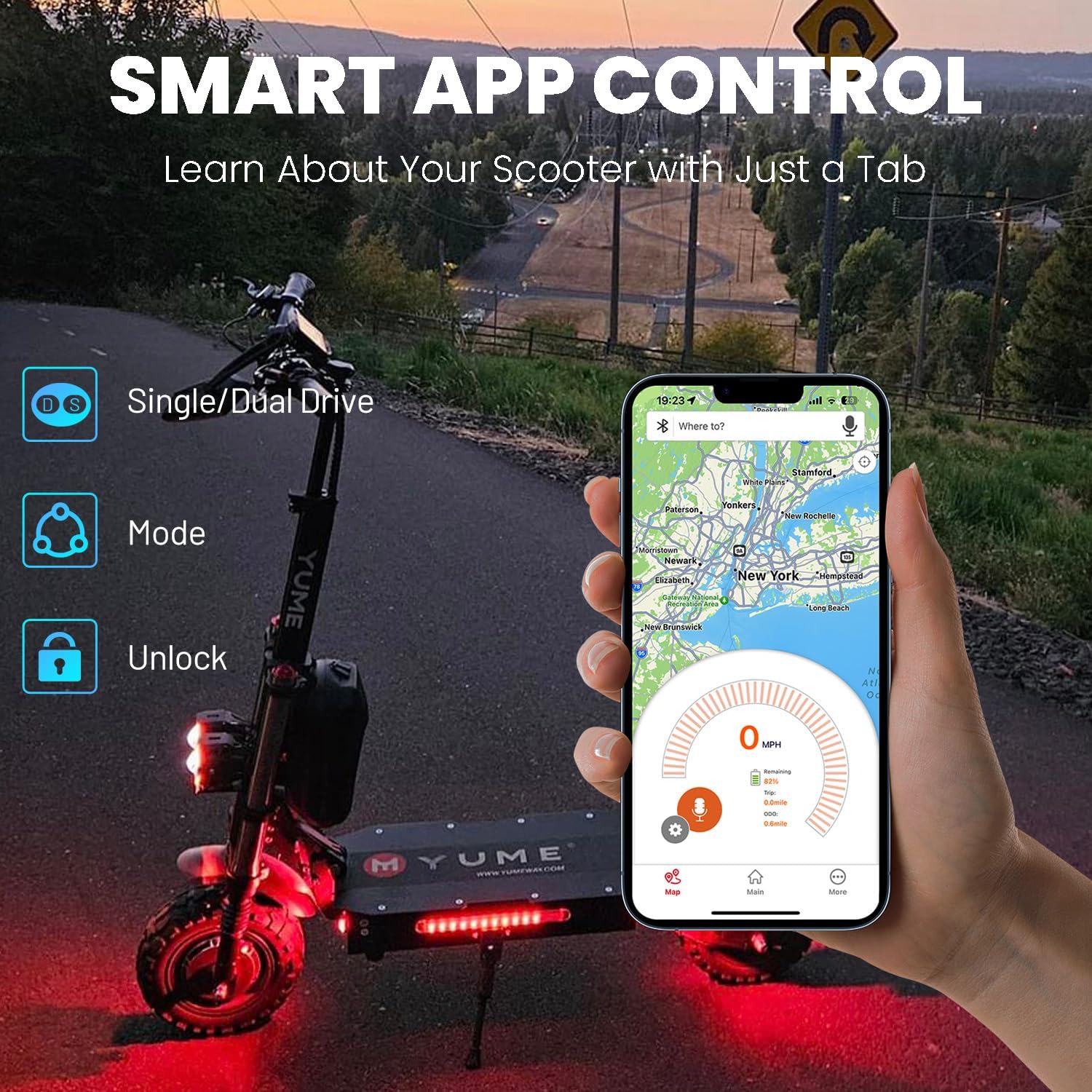

Image 5.4: Smart App Control Interface.
- Download the official YUME app from your smartphone's app store.
- Pair your scooter via Bluetooth as per the app's instructions.
- The app may offer features such as single/dual drive mode selection, riding mode adjustments, and unlocking functions.
6. Maintenance
Regular maintenance ensures the longevity and safe operation of your scooter.
6.1 Tire Care
The Y11+ features 11-inch military-grade tubeless tires.
Image 6.1: All-Terrain Tubeless Tires.
- Tire Pressure: Check tire pressure regularly (refer to the tire sidewall for recommended PSI). Proper inflation improves ride quality and prevents punctures.
- Inspection: Inspect tires for wear, cuts, or embedded objects before each ride.
6.2 Brake System
The scooter is equipped with hydraulic disc brakes.
- Brake Check: Ensure brake levers engage smoothly and provide adequate stopping power.
- Brake Pads: Periodically check brake pads for wear and replace them when necessary.
- Hydraulic Fluid: If brake performance degrades, consult a professional for hydraulic fluid inspection and bleeding.
6.3 Battery Care
- Charging: Always use the original chargers. Do not overcharge or completely drain the battery.
- Storage: If storing the scooter for an extended period, charge the battery to approximately 50-70% and store in a cool, dry place. Recharge every 1-2 months.
- Temperature: Avoid exposing the battery to extreme temperatures.
6.4 General Cleaning and Waterproofing
The scooter features IP54 water resistance and waterproof cables.
Image 6.2: Waterproof Cable Design.
- Cleaning: Use a damp cloth to wipe down the scooter. Avoid using high-pressure water jets directly on electrical components.
- Water Resistance: While IP54 rated, avoid submerging the scooter or riding in heavy downpours to prevent water damage.
7. Troubleshooting
This section addresses common issues you might encounter.
| Problem | Possible Cause | Solution |
|---|---|---|
| Scooter does not power on | Low battery; Loose connections; Faulty power button | Charge battery; Check all cable connections; Contact support if issue persists |
| Reduced range or speed | Low tire pressure; Battery degradation; Riding uphill/heavy load | Check tire pressure; Ensure full charge; Adjust riding style or load |
| Brakes feel weak | Worn brake pads; Low hydraulic fluid; Air in brake lines | Inspect/replace brake pads; Consult professional for brake system service |
| Unusual noises | Loose components; Debris in wheels/brakes; Motor issue | Inspect scooter for loose parts; Clean wheels/brakes; Contact support |
If you encounter issues not listed here or if solutions do not resolve the problem, please contact customer support.
8. Specifications
Detailed technical specifications for the M YUME SCOOTER Y11+.
| Feature | Specification |
|---|---|
| Brand | M YUME SCOOTER |
| Model Name | Y11PRO (Y11+) |
| Motor Power | 6000W (2 x 3000W Dual Motor) |
| Battery | 60V 31.5Ah Lithium-ion |
| Max Speed | 50 MPH |
| Max Range | 60 Miles (varies by terrain/rider weight) |
| Charging Time | 7-8 Hours |
| Weight Limit | 440 Pounds |
| Wheel Size | 11 Inches |
| Wheel Type | Tubeless, All-terrain |
| Brake Style | Front and Rear Hydraulic Disc Braking |
| Suspension Type | Full Suspension, Front Fork Hydraulic Shock |
| Frame Material | Aluminum |
| Special Feature | Digital Display, Smart Lock (NFC), Foldable |
| Safety Certification | UL2272 Certified |
9. Warranty and Support
M YUME SCOOTER is committed to providing excellent customer service and support for your Y11+ electric scooter.
9.1 Warranty Information
- Your Y11+ scooter comes with a 180-day limited warranty from the date of purchase.
- This warranty covers manufacturing defects. Please refer to the warranty card included with your product for full terms and conditions.
9.2 Technical Support
- We offer 24/7 technical support to assist you with any questions or issues.
- For support, please visit the official M YUME SCOOTER website or contact our customer service team directly.
9.3 Authorized Service Centers
M YUME SCOOTER has authorized service centers across the U.S. to provide fast and reliable service and repairs.
Image 9.1: Authorized Service Center Locations.
Image 9.2: After-Sales Service.
