Introduction
This manual provides essential instructions for the proper installation, use, and maintenance of your KidsEmbrace Nickelodeon PAW Patrol Skye 2-in-1 Car Seat. Please read all instructions carefully before using the car seat and keep this manual for future reference. Proper use ensures the safety and comfort of your child.
Image: Front view of the KidsEmbrace Nickelodeon PAW Patrol Skye 2-in-1 Car Seat, featuring the Skye character design.
Safety Information
Your child's safety is paramount. This car seat is designed and tested to meet or exceed Federal Motor Vehicle Safety Standards (FMVSS 213).
Key Safety Features:
- 5-Point Harness Security: Features two position points at each shoulder, two at the child's hips, and one point where the harness buckles between the legs. This system provides optimal protection by distributing crash forces across the strongest parts of the child's body.
- Side Impact Tested: The seat has undergone side impact testing when used with the 5-point harness, providing enhanced protection in side-impact collisions.
- Adjustable Headrest with EPS Foam: The three-position adjustable height headrest is equipped with energy-absorbing EPS foam to protect your child's head and neck.
- Insurance Institute for Highway Safety (IIHS) Rating: Achieved a "Best Bet" rating when used as a belt-positioning booster, indicating good belt fit for most children in most vehicles.
Image: Icons representing Side Impact Tested and 5-Point Harness features.
Components
Familiarize yourself with the main components of your car seat:
- Headrest: Adjustable for height, with EPS foam.
- Harness System: 5-point harness with shoulder straps, buckle, and crotch strap.
- LATCH Connectors: For secure installation in vehicles equipped with LATCH anchors.
- Cup Holders: Two integrated cup holders for convenience.
- Seat Pad: Removable and washable fabric cover.
Image: Close-up view of the 5-point harness buckle and chest clip.

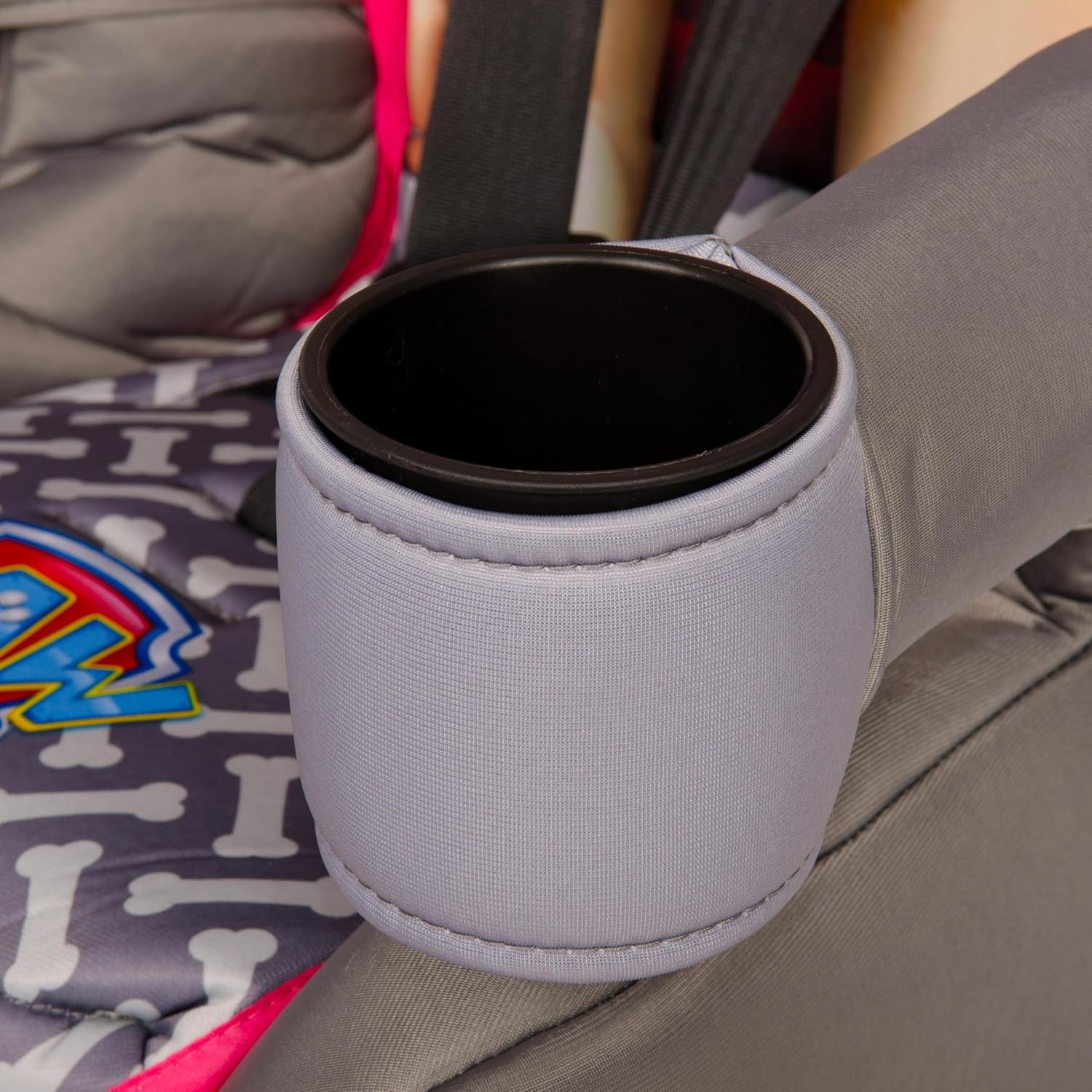

Image: Close-up view of an integrated cup holder on the car seat.
Setup and Installation
The KidsEmbrace Skye 2-in-1 Car Seat can be installed using either the vehicle's LATCH system or the vehicle's seat belt. Always refer to your vehicle's owner's manual for specific car seat installation instructions and LATCH anchor locations.
LATCH Installation:
- Locate the lower LATCH anchors in your vehicle's back seat.
- Attach the car seat's LATCH connectors to the vehicle's lower anchors. Ensure both connectors are securely latched.
- Press down firmly on the car seat while pulling the LATCH strap to tighten the connection. The car seat should not move more than one inch side-to-side or front-to-back at the belt path.
- Attach the top tether strap to the vehicle's top tether anchor and tighten.
Vehicle Seat Belt Installation:
- Route the vehicle's lap and shoulder belt through the designated belt path on the car seat.
- Buckle the vehicle's seat belt and remove all slack. Ensure the seat belt is locked according to your vehicle's manual (usually by pulling the shoulder belt all the way out and letting it retract).
- Press down firmly on the car seat while tightening the vehicle's seat belt. The car seat should not move more than one inch side-to-side or front-to-back at the belt path.
- Attach the top tether strap to the vehicle's top tether anchor and tighten.
Image: Rear view of the car seat, illustrating the LATCH attachment straps.
Image: Icon representing the LATCH installation system.
Operating Modes
This 2-in-1 car seat offers two modes of use to accommodate your child's growth:
1. Forward-Facing with 5-Point Harness
- Weight Range: 26.5 to 65 pounds
- Height Range: 29 to 49 inches
- Description: In this mode, the child is secured by the car seat's internal 5-point harness system. The shoulder straps should be positioned at or just above the child's shoulders.
2. Belt-Positioning Booster
- Weight Range: 40 to 100 pounds
- Height Range: 38 to 57 inches
- Description: For older children, the internal harness is removed, and the child is secured by the vehicle's lap and shoulder belt. The car seat helps position the vehicle's seat belt correctly across the child's body. It is recommended to use the 5-point harness to its maximum weight and height limits before transitioning to booster mode.
Image: Angled view of the car seat in forward-facing harness mode.
Image: Front view of the car seat with the headrest extended, demonstrating adjustability for taller children.
Adjustments
Harness Position Adjustment:
The car seat features three slots for positioning the harness shoulder straps. Always ensure the shoulder straps are at or just above the child's shoulders when using the forward-facing harness.
Headrest Height Adjustment:
The headrest can be adjusted to three different height positions. To adjust, locate the adjustment lever or button, typically at the top or back of the headrest, and move it up or down to the desired position. Ensure the headrest is properly locked into place after adjustment.
Maintenance
Cleaning Instructions:
- Fabric Cover: The fabric seat pad is removable and can be machine washed on a gentle cycle with mild detergent. Air dry only; do not use a dryer.
- Harness Straps: Wipe harness straps with a damp cloth. Do not machine wash or submerge harness straps in water, as this can weaken the webbing.
- Buckle: Clean the buckle by rinsing it under warm water. Do not use soaps or detergents.
- Plastic and Metal Parts: Wipe plastic and metal parts with a soft, damp cloth and mild soap.
Always refer to the care labels on the car seat for specific cleaning instructions.
Troubleshooting
If you encounter any issues with your car seat, please review the following common concerns:
- Car Seat Feels Loose After Installation: Ensure the LATCH connectors or vehicle seat belt are routed correctly and tightened fully. Push down on the car seat while tightening to remove slack. The car seat should not move more than one inch at the belt path.
- Harness Straps Are Difficult to Adjust: Check for any twists in the harness webbing. Ensure the harness adjuster strap is pulled smoothly and directly.
- Buckle Is Sticking: Clean the buckle by rinsing it under warm water. Avoid using lubricants or harsh chemicals.
For further assistance, please contact KidsEmbrace customer support.
Specifications
| Feature | Detail |
|---|---|
| Product Dimensions | 19 x 20 x 30 inches |
| Minimum Weight Recommendation (Forward-Facing) | 26.5 Pounds |
| Maximum Weight Recommendation (Harness Mode) | 65 Pounds |
| Minimum Height Recommendation (Forward-Facing) | 29 Inches |
| Maximum Height Recommendation (Harness Mode) | 49 Inches |
| Minimum Weight Recommendation (Booster Mode) | 40 Pounds |
| Maximum Weight Recommendation (Booster Mode) | 100 Pounds |
| Minimum Height Recommendation (Booster Mode) | 38 Inches |
| Maximum Height Recommendation (Booster Mode) | 57 Inches |
| Material Type | Polyester |
| Number of Reclining Positions | 3 |
| Orientation | Forward Facing |
| Harness Type | 5-Point |
| Item Weight | 15 pounds |
| Installation Type | Latch |
Warranty and Support
For warranty information and customer support, please refer to the official KidsEmbrace website or the warranty card included with your product. You can also contact KidsEmbrace directly for assistance with product registration, parts, or any operational questions.
Visit the KidsEmbrace Store: KidsEmbrace Official Store
Additional Information
No official product videos from the seller were available for embedding based on the provided data.
