1. Introduction
This manual provides essential instructions for the safe and correct installation and use of the Fricpart-125836 replacement washer lid lock latch. This component is designed for specific Maytag washing machine models, including MVW7232HC2, to ensure proper lid security during operation. Please read this manual thoroughly before proceeding with installation or maintenance.
2. Safety Information
WARNING: Always disconnect power to the appliance before attempting any service or installation. Failure to do so can result in serious injury or death from electrical shock.
- Ensure the washing machine is unplugged from the electrical outlet before beginning any work.
- Wear appropriate personal protective equipment, such as gloves and eye protection.
- If you are unsure about any step, consult a qualified appliance technician.
- Keep children and pets away from the work area.
3. Package Contents
Verify that all components are present and undamaged before beginning installation.
- 1 x Fricpart-125836 Washer Lid Lock Latch Assembly
4. Setup and Installation
This section outlines the general steps for replacing the washer lid lock latch. Specific disassembly procedures may vary by washing machine model. Refer to your washing machine's service manual for detailed instructions if needed.
- Disconnect Power: Unplug the washing machine from the electrical outlet. Turn off the water supply to the washer.
- Access the Latch: Depending on your washer model, you may need to remove the top panel, control panel, or front panel to access the lid lock latch assembly. This typically involves removing screws or clips.
- Disconnect Wiring: Carefully disconnect the electrical connector(s) from the old lid lock latch. Note the orientation of the wires if there are multiple connections.
- Remove Old Latch: Unscrew or unclip the old lid lock latch from its mounting position.
- Install New Latch: Position the new Fricpart-125836 lid lock latch in the same location as the old one. Secure it with the original screws or clips.
- Connect Wiring: Reconnect the electrical connector(s) to the new lid lock latch, ensuring a secure connection.
- Reassemble Washer: Reattach any panels or components that were removed during disassembly. Ensure all screws and clips are securely fastened.
- Restore Power: Plug the washing machine back into the electrical outlet and turn on the water supply.

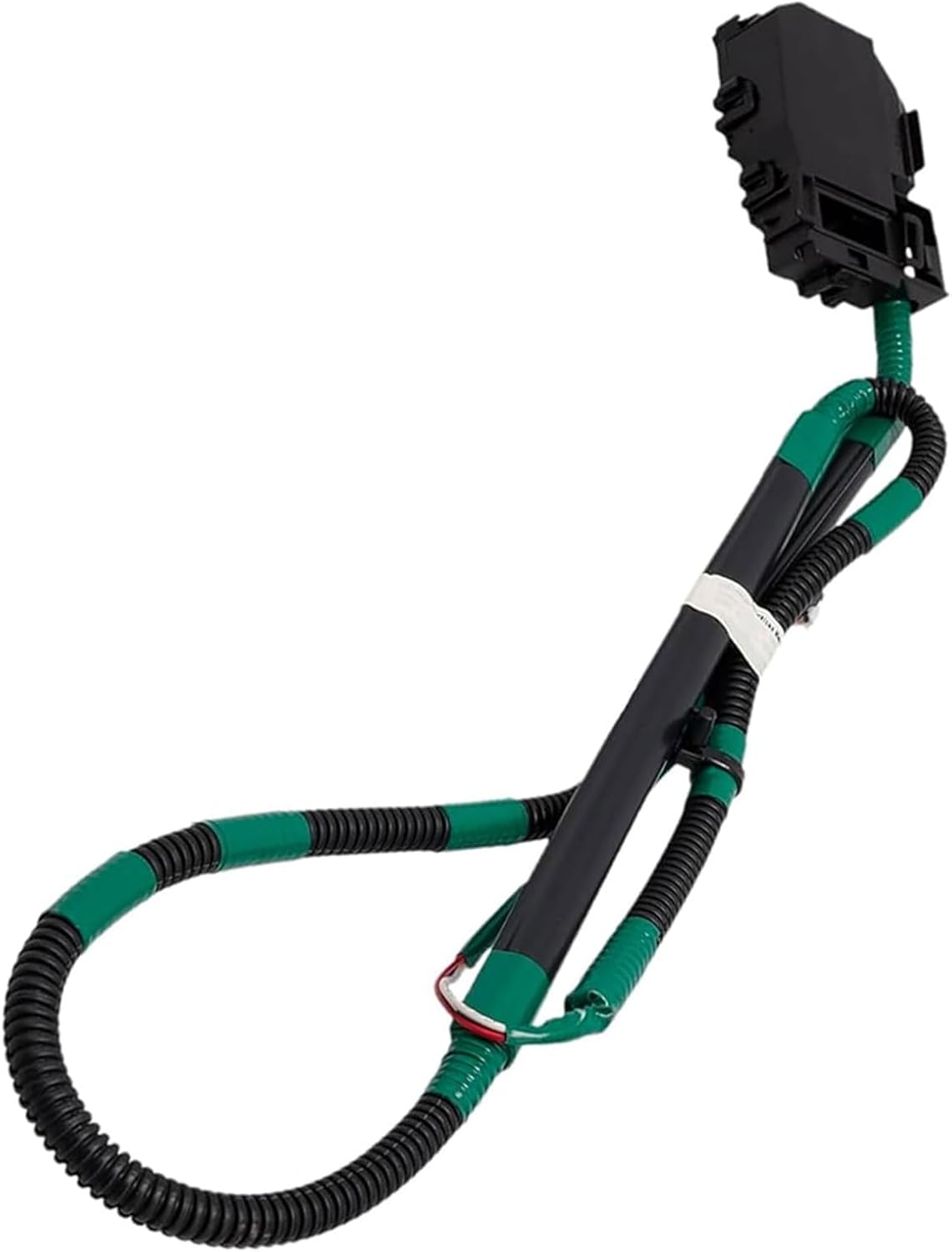

Figure 4.1: The Fricpart-125836 replacement lid lock latch. This image displays the Fricpart-125836 replacement lid lock latch. It features a black plastic housing for the latch mechanism, connected to a wiring harness. The wiring is encased in black corrugated tubing, with sections wrapped in green electrical tape, and includes a small red and white wire visible near a connection point. The overall assembly is designed for integration into a washing machine.
5. Operating Instructions
After successful installation, the washing machine should operate as normal. The lid lock latch is an automatic safety feature. When the washer starts a cycle, the lid will lock to prevent opening during high-speed agitation or spin cycles. Ensure the lid closes completely before starting a wash cycle.
- Close the washer lid firmly before selecting a wash cycle.
- Initiate a test cycle (e.g., a quick wash or rinse and spin) to confirm the lid locks and unlocks correctly.
- If the lid does not lock or the washer displays an error code related to the lid, refer to the Troubleshooting section.
6. Maintenance
The lid lock latch is a sealed unit and generally requires no routine maintenance. However, regular inspection can help identify potential issues early.
- Periodically inspect the latch mechanism for any visible damage or obstructions.
- Ensure the wiring harness is not pinched or frayed.
- Keep the area around the lid lock clean and free of debris.
7. Troubleshooting
If you encounter issues after installing the new lid lock latch, consider the following:
| Problem | Possible Cause | Solution |
|---|---|---|
| Washer lid does not lock. | Lid not fully closed; wiring connection loose; faulty new latch. | Ensure lid is fully closed. Check all wiring connections. If problem persists, the new latch may be defective or incompatible. |
| Washer displays a lid lock error code. | Wiring issue; faulty latch; control board issue. | Verify wiring connections. Consult your washer's user manual for specific error code meanings. If wiring is correct, the latch or main control board may need further inspection by a technician. |
| Lid locks but does not unlock. | Faulty latch; control board issue. | Disconnect power for 5 minutes and reconnect. If the issue persists, the latch may be faulty or there could be a problem with the washer's control board. |
If troubleshooting steps do not resolve the issue, it is recommended to contact a qualified appliance repair technician.
8. Specifications
| Feature | Detail |
|---|---|
| Model Number | Fricpart-125836 |
| Part Number | FRIC-PL-APP-TP-22052025-100724 |
| Manufacturer | Fricparts |
| Compatible Washer Model | Maytag MVW7232HC2 |
| Item Package Quantity | 1 |
| Color | Black/White |
| ASIN | B0FDH62W7D |
9. Warranty Information
Specific warranty details for this replacement part are typically provided by the retailer or manufacturer at the time of purchase. Please retain your proof of purchase for any warranty claims. For information regarding the warranty period and terms, refer to the documentation included with your purchase or contact the seller directly.
10. Support
For technical assistance, installation guidance, or to report a defective part, please contact the seller or manufacturer. When contacting support, please have your product model number (Fricpart-125836) and proof of purchase readily available.
