yiqianba 592968 Camshaft Replacement Part for Briggs & Stratton Instruction Manual

Introduction

This instruction manual provides essential information for the proper installation, function, and maintenance of the yiqianba 592968 Camshaft Replacement Part. This camshaft is designed for use in compatible Briggs & Stratton engines. Please read this manual thoroughly before proceeding with installation or operation to ensure correct procedure and optimal engine performance.

Setup and Pre-Installation

Compatibility Check

Before installation, verify that the part number 592968 matches the required camshaft for your specific Briggs & Stratton engine model. Refer to your engine's service manual for exact specifications. Incorrect part usage can lead to engine damage.

Required Tools

Ensure you have the necessary tools for engine disassembly and reassembly, which may include:

• Socket wrench set
• Torque wrench
• Feeler gauges
• Gasket scraper
• New engine gaskets and seals (as required)
• Engine oil

Engine Preparation

1. Safety First: Disconnect the spark plug wire to prevent accidental engine starting.
2. Drain the engine oil.
3. Remove engine components as necessary to access the camshaft, following your engine's service manual. This typically includes the cylinder head, pushrods, and crankcase cover.
4. Carefully remove the old camshaft. Note the orientation of the timing marks.

Camshaft Inspection

Inspect the new 592968 camshaft for any visible damage or manufacturing defects before installation.

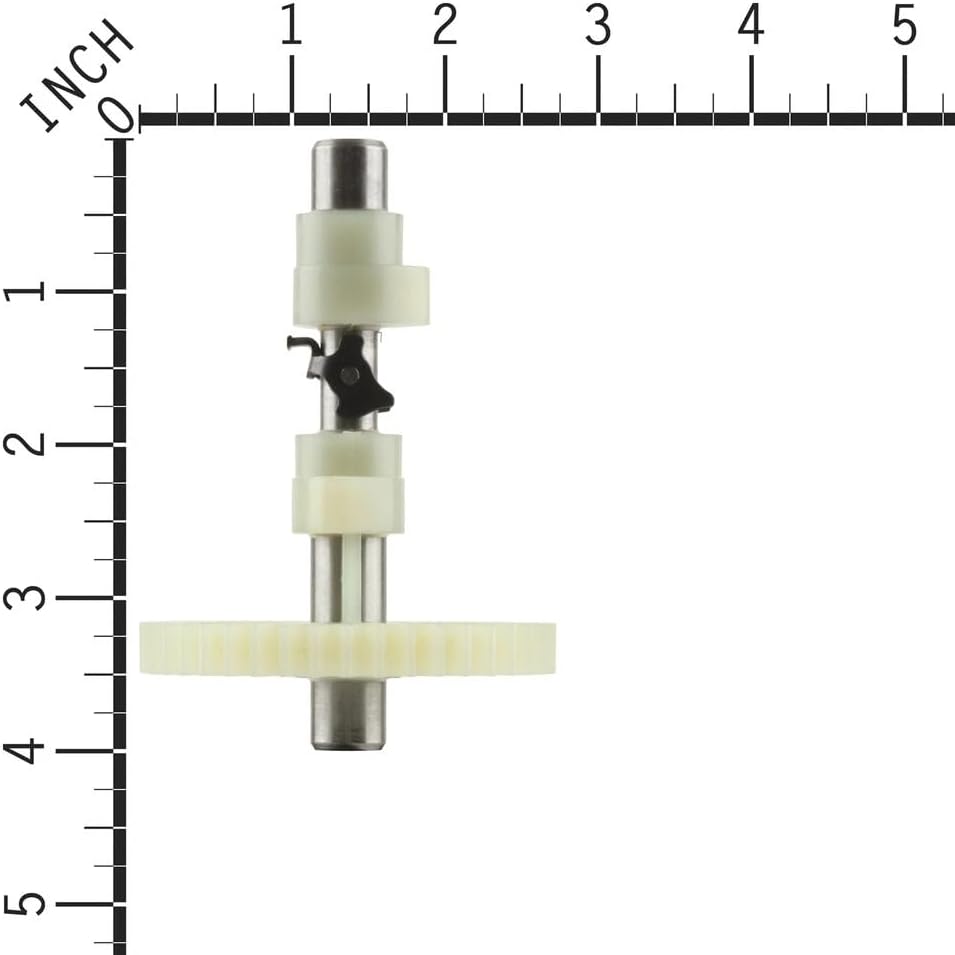

Image: The yiqianba 592968 Camshaft Replacement Part, shown with measurement markings indicating its approximate dimensions. The camshaft features a central shaft with two lobes and a gear at one end.

Installation and Operation

Installation Procedure

1. Lubricate the camshaft lobes and journals with clean engine oil.
2. Carefully insert the new camshaft into the engine block, aligning the timing marks on the camshaft gear with the timing marks on the crankshaft gear. This step is critical for correct engine timing.
3. Reinstall the crankcase cover, ensuring new gaskets are used and bolts are torqued to the manufacturer's specifications.
4. Reinstall pushrods, cylinder head, and other removed components, following the engine service manual for proper torque specifications and valve lash adjustments.
5. Refill the engine with the recommended type and amount of engine oil.
6. Reconnect the spark plug wire.

Function of the Camshaft

The camshaft is a critical component in a four-stroke engine, responsible for controlling the opening and closing of the engine's intake and exhaust valves. Its lobes are precisely shaped to push the lifters (tappets) and pushrods, which in turn operate the rocker arms and valves. Proper camshaft function ensures the correct timing of air-fuel mixture intake and exhaust gas expulsion, which is essential for engine performance and efficiency.

Maintenance Guidelines

While the camshaft itself typically requires no direct maintenance, its longevity and proper function are heavily dependent on overall engine health and regular maintenance practices. Adhere to the following:

• Regular Oil Changes: Use the recommended engine oil and change it at the intervals specified by your engine manufacturer. Clean oil ensures proper lubrication of the camshaft lobes and bearings, preventing premature wear.
• Maintain Proper Oil Level: Always ensure the engine oil level is within the recommended range. Low oil levels can lead to insufficient lubrication and accelerated wear.
• Use Quality Fuel: Using clean, appropriate fuel helps prevent engine issues that could indirectly affect camshaft operation.
• Engine Cleanliness: Keep the engine exterior clean to prevent debris from entering critical areas during maintenance or operation.

Troubleshooting Common Issues

If you experience engine problems after camshaft replacement, consider the following:

• Engine Not Starting or Running Poorly: This often indicates incorrect valve timing. Recheck the alignment of the camshaft and crankshaft timing marks.
• Excessive Engine Noise (Ticking/Tapping): Could be due to improper valve lash adjustment or insufficient lubrication. Verify valve clearances and oil level.
• Loss of Power: Incorrect timing or worn camshaft lobes (though unlikely with a new part) can lead to reduced engine power. Ensure timing is correct.
• Oil Leaks: Check for proper installation of gaskets and seals, especially around the crankcase cover.

If issues persist, consult a qualified engine technician or refer to your engine's comprehensive service manual.

Specifications

Warranty and Support

For information regarding warranty coverage or technical support, please refer to the documentation provided with your purchase or contact the retailer/manufacturer directly. Ensure you retain your proof of purchase for any warranty claims.
