Introduction
Thank you for choosing the GarveeHome Portable Air Conditioner. This manual provides essential information for the safe operation, installation, maintenance, and troubleshooting of your unit. Please read it thoroughly before use and retain it for future reference.
Safety Information
Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, or injury.
- Ensure the power supply matches the voltage specified on the unit's rating label.
- Do not operate the unit with a damaged cord or plug.
- Keep the unit away from heat sources and direct sunlight.
- Do not block air inlets or outlets. Maintain at least 20 inches (50 cm) clearance around the unit.
- Always unplug the unit before cleaning or servicing.
- Do not use the unit in wet environments or near water.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Package Contents
Verify that all components are present upon unpacking:
- Portable Air Conditioner Unit
- Remote Control
- Exhaust Hose
- Window Sealing Plate Kit (Adjustable)
- Hose Adapter
- Drain Hose
- User Manual
Product Overview
The GarveeHome Portable Air Conditioner is designed for efficient cooling, dehumidification, and air circulation in various indoor spaces. It features a user-friendly control panel and a remote for convenient operation.
Setup
1. Placement
Place the air conditioner on a flat, stable surface. Ensure there is at least 20 inches (50 cm) of clearance around the unit for proper airflow. Position the unit near a window for exhaust hose installation.
2. Window Kit Installation
The adjustable window sealing plate kit is designed to fit most standard vertical and horizontal sliding windows. Extend the window kit to the length of your window opening and secure it. Attach the exhaust hose adapter to the window kit.
3. Exhaust Hose Connection
Connect one end of the exhaust hose to the unit's exhaust outlet and the other end to the adapter in the window kit. Ensure a secure fit to prevent air leakage.
4. Drainage Setup (Dehumidify Mode)
For continuous drainage in Dehumidify mode, connect the provided drain hose to the continuous drain port on the back of the unit and direct it to a floor drain or suitable container. In Cool mode, internal condensation is typically evaporated, but manual drainage may be required if the tank fills.
Operating Instructions

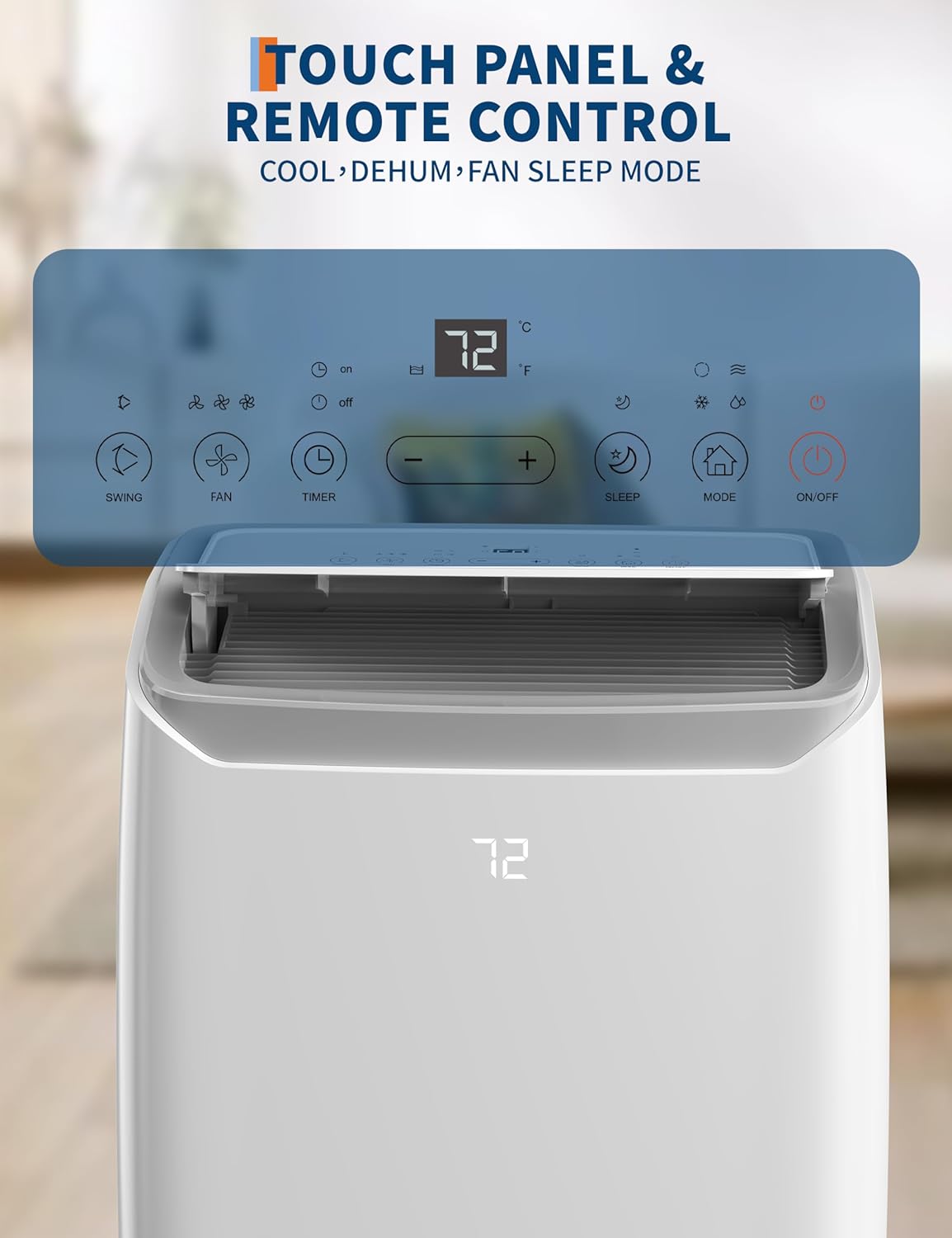

Control Panel and Remote Control
The unit can be operated using the touch control panel on the top of the unit or the included remote control.
1. Power On/Off
Press the Power button (⏻) on the control panel or remote to turn the unit on or off.

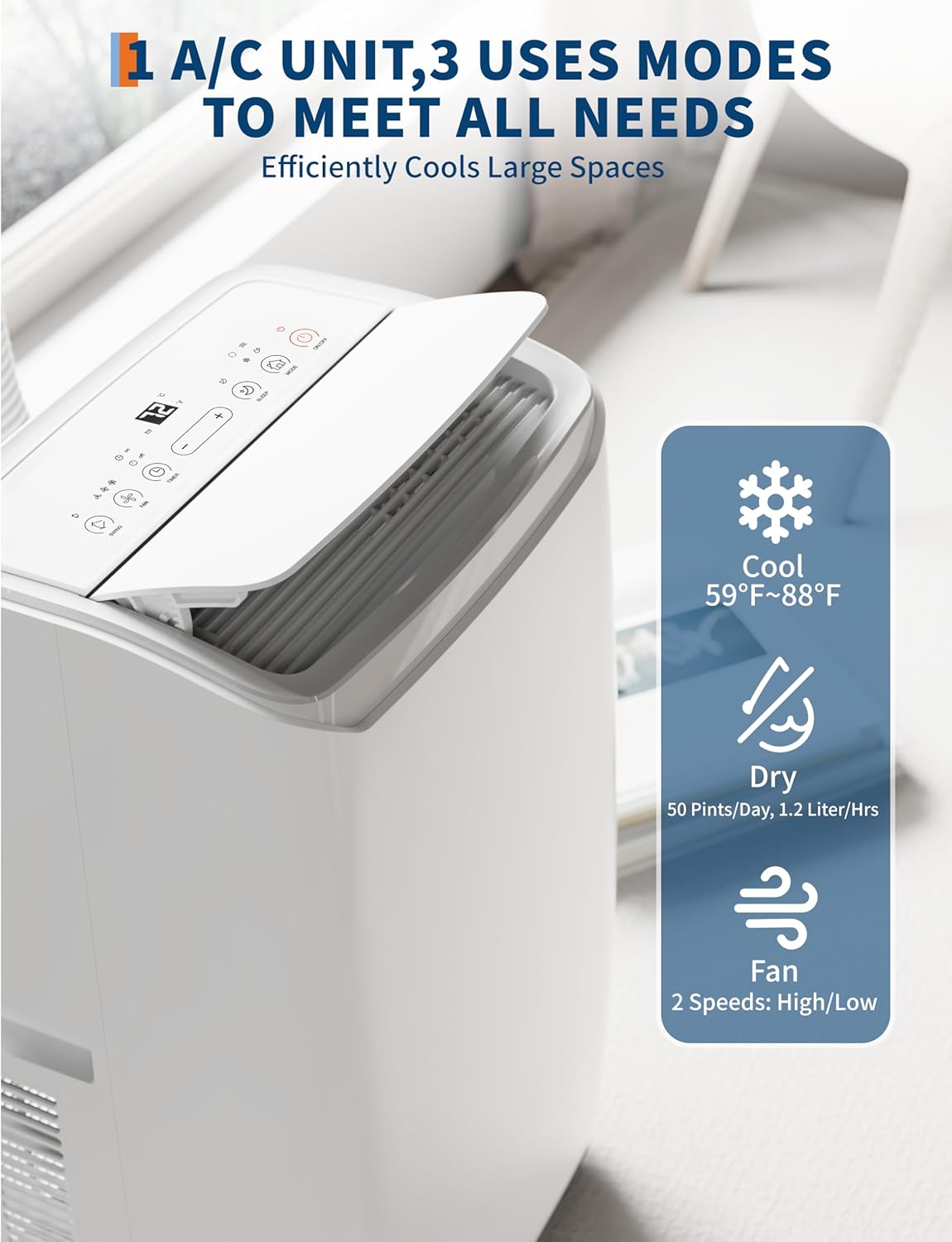

2. Mode Selection
Press the Mode button to cycle through the available modes: Cool, Fan, Dehumidify, and Sleep.
- Cool Mode: Provides cooling. Adjust temperature using ▲ / ▼ buttons.
- Fan Mode: Circulates air without cooling. Adjust fan speed.
- Dehumidify Mode: Removes moisture from the air. Fan speed is fixed to low.
- Sleep Mode: Operates quietly with gradual temperature adjustments for comfortable sleep.
3. Temperature Adjustment
In Cool mode, use the ▲ (Up) and ▼ (Down) buttons to set the desired temperature. The temperature range is typically 59°F to 88°F (15°C to 31°C).
4. Fan Speed
Press the Fan Speed button to select between Low, Medium, and High fan speeds. This function is available in Cool and Fan modes.
5. Timer Function
Press the Timer button to set a delay for the unit to turn on or off. Use the ▲ / ▼ buttons to adjust the desired time in hours.
Choosing the Right Size
Selecting the correct BTU capacity for your room size is crucial for efficient cooling. Refer to the table below for guidance. Factors like room occupancy, sunlight exposure, and insulation can affect the required BTU capacity.
Maintenance
Regular maintenance ensures optimal performance and extends the lifespan of your air conditioner.
1. Air Filter Cleaning
The air filter should be cleaned every two weeks or more frequently depending on usage. A dirty filter reduces cooling efficiency.
- Turn off and unplug the unit.
- Remove the filter from the back of the unit.
- Wash the filter with warm, soapy water. Rinse thoroughly.
- Allow the filter to air dry completely before reinstalling.
2. Drainage
Periodically check the drain pan for accumulated water, especially if not using continuous drainage. Drain the water by removing the drain plug and tilting the unit slightly if necessary.
3. Storage
Before storing the unit for an extended period:
- Drain all water from the unit.
- Clean the air filter.
- Run the unit in Fan mode for a few hours to dry the interior.
- Unplug the power cord and store it securely.
- Cover the unit to protect it from dust.
Troubleshooting
If you encounter issues with your air conditioner, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit does not turn on | No power; Power cord not plugged in; Circuit breaker tripped | Check power outlet; Ensure plug is secure; Reset circuit breaker |
| No cooling or insufficient cooling | Air filter dirty; Exhaust hose blocked/disconnected; Room too large; Doors/windows open | Clean air filter; Check exhaust hose connection; Close doors/windows; Ensure room size is within unit's capacity |
| Unit is noisy | Unit not on a level surface; Fan obstruction | Place on a level surface; Check for obstructions in fan area |
| Water leakage | Drain plug loose; Drain hose clogged; Water tank full | Ensure drain plug is secure; Clear drain hose; Empty water tank |
If the problem persists after attempting these solutions, please contact customer support.
Specifications
| Feature | Specification |
|---|---|
| Brand | GarveeHome |
| Model Name | FDP41-3034ZPR3 |
| Cooling Power | 14000 British Thermal Units |
| Coverage Area | Up to 750 Sq.Ft |
| Modes | Cool, Fan, Dehumidify, Sleep |
| Voltage | 110 Volts |
| Noise Level | 50 dB |
| Product Dimensions | 18.5"D x 15.16"W x 35.24"H |
| Item Weight | 76 Pounds |
| Capacity (Dehumidify) | 75 Pints |
| Included Components | Installation Kit |
Warranty and Support
Warranty Information
This GarveeHome Portable Air Conditioner comes with a 1 Year Manufacturer Warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from misuse, accident, alteration, or unauthorized repair.
Customer Support
For technical assistance, warranty claims, or any questions regarding your product, please contact GarveeHome customer support. Refer to your purchase documentation for specific contact details or visit the official GarveeHome website.
