1. Introduction
This manual provides instructions for the safe and effective use of your Straxelle MH2025-002 Mini Cordless 2-in-1 Hair Straightener and Curler. This device is designed for portable hair styling, offering both straightening and curling functions with cordless convenience. Please read this manual thoroughly before first use and retain it for future reference.
2. Safety Information
WARNING: To reduce the risk of burns, electrocution, fire, or injury to persons:
- Burn Hazard: Surfaces become extremely hot during use. Avoid direct contact with skin, especially the scalp, ears, and neck. Use caution when handling the device.
- Electric Shock Risk: Keep the device away from water. Do not use it near bathtubs, sinks, showers, or other water sources. If the device falls into water, do not reach for it. Unplug immediately.
- Fire Risk: Unplug the device when not in use. Do not leave it unattended when plugged in or while charging. Keep away from flammable materials.
- Children: Keep out of reach of children. This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Do not operate the device with a damaged cord or plug, or if it malfunctions or has been dropped or damaged.
- Do not wrap the charging cable around the appliance.
- Ensure the safety lock is engaged when storing or transporting the device to prevent accidental activation.
3. Package Contents
Verify that all items are present in the package:
- Straxelle Cordless Hair Straightener
- Flannel Storage Bag
- Bobby Pins (Hair Clips)
- Comb
- USB-C Charging Cable
Image 3.1: Contents of the Straxelle Mini Cordless Hair Straightener package.
4. Product Overview
The Straxelle MH2025-002 is a compact and portable hair styling tool featuring ceramic heating plates and a rechargeable battery for cordless operation.
Key Components:
- Ceramic Heating Plates: Designed to distribute heat evenly and reduce hair damage.
- LED Display Screen: Shows current temperature and battery level.
- Power On/Off Switch Button: Controls device power.
- Temperature Setting Buttons: Adjusts heat levels.
- Safety Lock: Prevents accidental activation and keeps plates closed for storage.
- USB-C Charging Port: For recharging the internal battery.
Image 4.1: Labeled components of the Straxelle Mini Cordless Hair Straightener.
5. Setup
5.1 Initial Charging
Before first use, fully charge the device. Connect the provided USB-C cable to the charging port on the straightener and plug the other end into a compatible USB power adapter (not included). Ensure the power adapter wattage is 35W or higher for normal charging. The LED display will indicate charging status. A full charge typically takes approximately 2 hours.
5.2 Unlocking the Device
The device features a safety lock to prevent accidental activation and keep the plates closed. Before use, slide the side-mounted child lock button to the "unlocked" position. The device cannot be powered on or used while in the locked state.
Image 5.1: Detail of the safety lock mechanism.
6. Operating Instructions
6.1 Power On/Off
- To power on, ensure the safety lock is in the "unlocked" position. Press and hold the Power On/Off button until the LED display illuminates.
- To power off, press and hold the Power On/Off button until the LED display turns off.
- The device features an automatic shut-off after 20 minutes of inactivity for safety.
6.2 Temperature Settings
The device offers three temperature settings. Press the temperature setting buttons to cycle through the options. The LED display will show the selected temperature.
- 350°F (175°C): Recommended for thin, fine, bleached, or damaged hair.
- 385°F (195°C): Recommended for normal or slightly coarse hair.
- 420°F (215°C): Recommended for medium to thick hair.
The device heats up to 350°F in approximately 60 seconds and to 420°F in about 2.5 minutes.
Image 6.1: Temperature settings guide for different hair types.
6.3 Styling Hair
Ensure your hair is clean, dry, and detangled before styling. For best results, work with small sections of hair.
- For Straightening: Place a section of hair between the heating plates, close the plates gently, and glide the straightener slowly from roots to ends.
- For Curling: Clamp a section of hair near the roots, rotate the straightener 180 degrees, and slowly pull it through the hair, allowing the hair to wrap around the barrel.
The 3D floating ceramic plates are designed to prevent hair tangling and provide smooth styling.

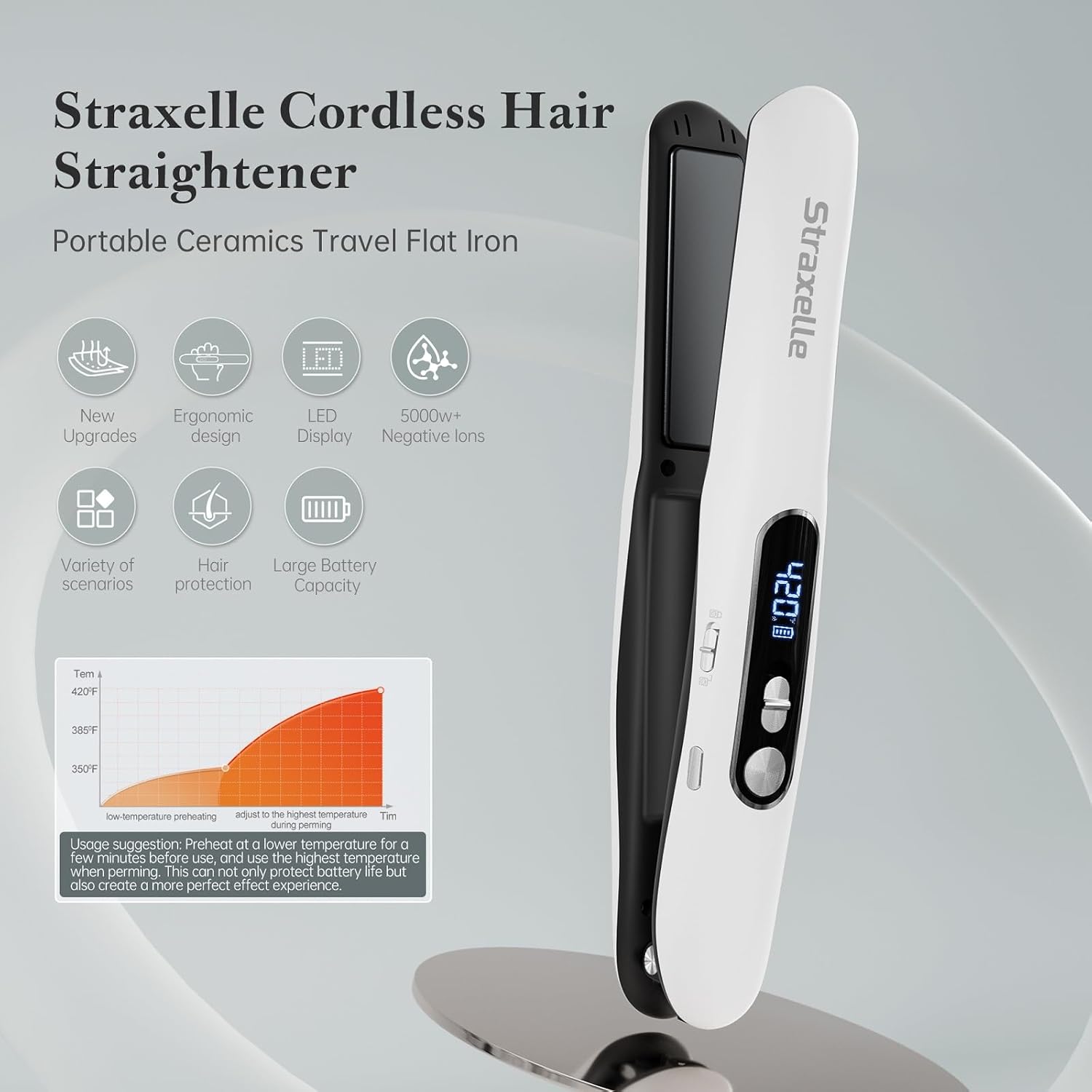

Image 6.2: Demonstrating the curling function of the device.
Image 6.3: Examples of hairstyles achievable with the device.
7. Charging
The device is powered by a 5000mAh rechargeable Lithium-Ion battery. When the battery is low, the LED display will indicate a low battery status. To recharge:
- Connect the USB-C charging cable to the device's charging port.
- Plug the other end into a USB power source (e.g., wall adapter, power bank, laptop).
- Ensure the charging plug provides at least 35W for optimal charging.
- The device cannot be used while charging.
A full charge takes approximately 2 hours and provides up to 40 minutes of cordless use, depending on the temperature setting (e.g., approximately 25 minutes at 420°F).
Image 7.1: USB-C charging port and charging specifications.
8. Safety Lock Operation
The safety lock is crucial for preventing accidental power-on and for safe storage.
- To Unlock: Slide the button on the side of the device to the position indicated by the "unlocked" symbol. The device can now be opened and powered on.
- To Lock: First, ensure the heating plates are fully closed. Then, slide the button to the position indicated by the "locked" symbol. This will keep the plates closed and prevent the device from powering on.
- Important Note: If the device is not closed when attempting to lock, do not force it. Simply slide the button back to the "unlocked" position, close the device, and then slide to "lock."
9. Maintenance
- Cleaning: Ensure the device is powered off, unplugged, and completely cool before cleaning. Wipe the exterior with a soft, damp cloth. Do not use abrasive cleaners or immerse the device in water.
- Storage: Store the device in a cool, dry place, away from moisture and direct sunlight. Engage the safety lock and use the provided flannel storage bag to protect the plates.
- Battery Care: To prolong battery life, avoid fully discharging the battery frequently. Recharge the device regularly, even if not in use for extended periods.
10. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Device does not turn on. | Safety lock engaged. Battery is depleted. | Slide the safety lock to the "unlocked" position. Charge the device fully. |
| Device does not heat up. | Device not powered on. Incorrect temperature setting. | Ensure the device is powered on. Adjust to a desired temperature setting. |
| Short battery life. | High temperature setting used. Battery not fully charged. Aging battery. | Lower temperature setting if possible. Ensure full charge before use. Battery performance may decrease over time. |
| Charging is slow or not working. | Low wattage charger. Damaged USB-C cable. | Use a USB power adapter with 35W or higher output. Try a different USB-C cable. |
11. Specifications
- Model Number: MH2025-002
- Product Dimensions: 9.06 x 1.26 x 1.26 inches
- Weight: 8.82 ounces (approximately 250g)
- Battery: 1 Lithium Ion battery (included), 5000mAh capacity
- Rated Voltage: 3.6V
- Power: 35W
- Charging Time: Approximately 2 hours (with 35W+ adapter)
- Usage Time: 30-40 minutes (depending on temperature setting)
- Temperature Settings: 350°F (175°C), 385°F (195°C), 420°F (215°C)
- Heating Plate Material: Ceramic
- Negative Ions: Over 50 million/second
- Color: White
Image 11.1: Product dimensions and key specifications.
12. Warranty and Support
Your Straxelle MH2025-002 Mini Cordless 2-in-1 Hair Straightener and Curler is backed by a 60-day refund policy and a 1-year warranty from the date of purchase. For warranty claims, technical support, or any product-related inquiries, please contact Straxelle customer service through your original point of purchase or visit the official Straxelle website for contact information.
