Broobey 20-inch Folding Electric Tricycle User Manual

Introduction

Thank you for choosing the Broobey 20-inch Folding Electric Tricycle. This manual provides essential information for the safe assembly, operation, and maintenance of your new electric tricycle. Please read this manual thoroughly before your first ride to ensure optimal performance and safety. Keep this manual for future reference.

Image: The Broobey 20-inch Folding Electric Tricycle, showcasing its design with front and rear baskets, three wheels, and a comfortable seat with backrest.

Safety Information

Your safety is paramount. Always adhere to the following guidelines:

• Always wear a helmet and appropriate safety gear when riding.
• Familiarize yourself with local traffic laws and regulations.
• Perform a pre-ride inspection before each use, checking brakes, tires, battery, and lights.
• Do not ride under the influence of alcohol or drugs.
• Avoid riding in adverse weather conditions or on slippery surfaces.
• Ensure the battery is securely locked in place before riding.
• Do not exceed the maximum weight recommendation of 330 pounds.

Components Overview

Understanding the parts of your tricycle is crucial for proper operation and maintenance.

Image: A detailed side view of the electric tricycle with key components labeled, including the adjustable seat, 15Ah Lithium Battery, Rear Basket, Carbon Steel Frame, Aluminum Footrest, Front Light, Shock Absorbing Fork, 500W Motor, and 20"x4" Wide Tires.

Handlebar Controls

Image: A close-up view of the tricycle's handlebars, clearly labeling the LCD Display, Brake levers, S Brand Shifter, Throttle, On/Off button, Speed adjustment buttons, Light switch, and Horn button.

• LCD Display: Shows power, speed, gear, and mileage.
• Brake Levers: Control the front and rear mechanical disc brakes.
• S Brand Shifter: For changing between 7-speed gears.
• Throttle: Engages electric motor for power-on-demand.
• On/Off Button: Powers the electric system.
• Speed +/- Buttons: Adjust pedal assist levels or electric speed.
• Light Switch: Activates the front light.
• Horn Button: For signaling.

Setup and Assembly

Your Broobey Electric Tricycle arrives 85% pre-assembled. The remaining installation steps are straightforward and typically take 2-3 hours. Please refer to the included installation accessories and video instructions manual for detailed guidance.

Key Assembly Steps (General Overview):

1. Unpack all components and verify against the packing list.
2. Attach the front wheel and fender.
3. Install the handlebars and adjust their position.
4. Mount the seat and backrest, adjusting for comfort.
5. Install the pedals.
6. Attach the front and rear cargo baskets.
7. Connect any remaining electrical cables securely.
8. Perform a thorough safety check before the first ride.

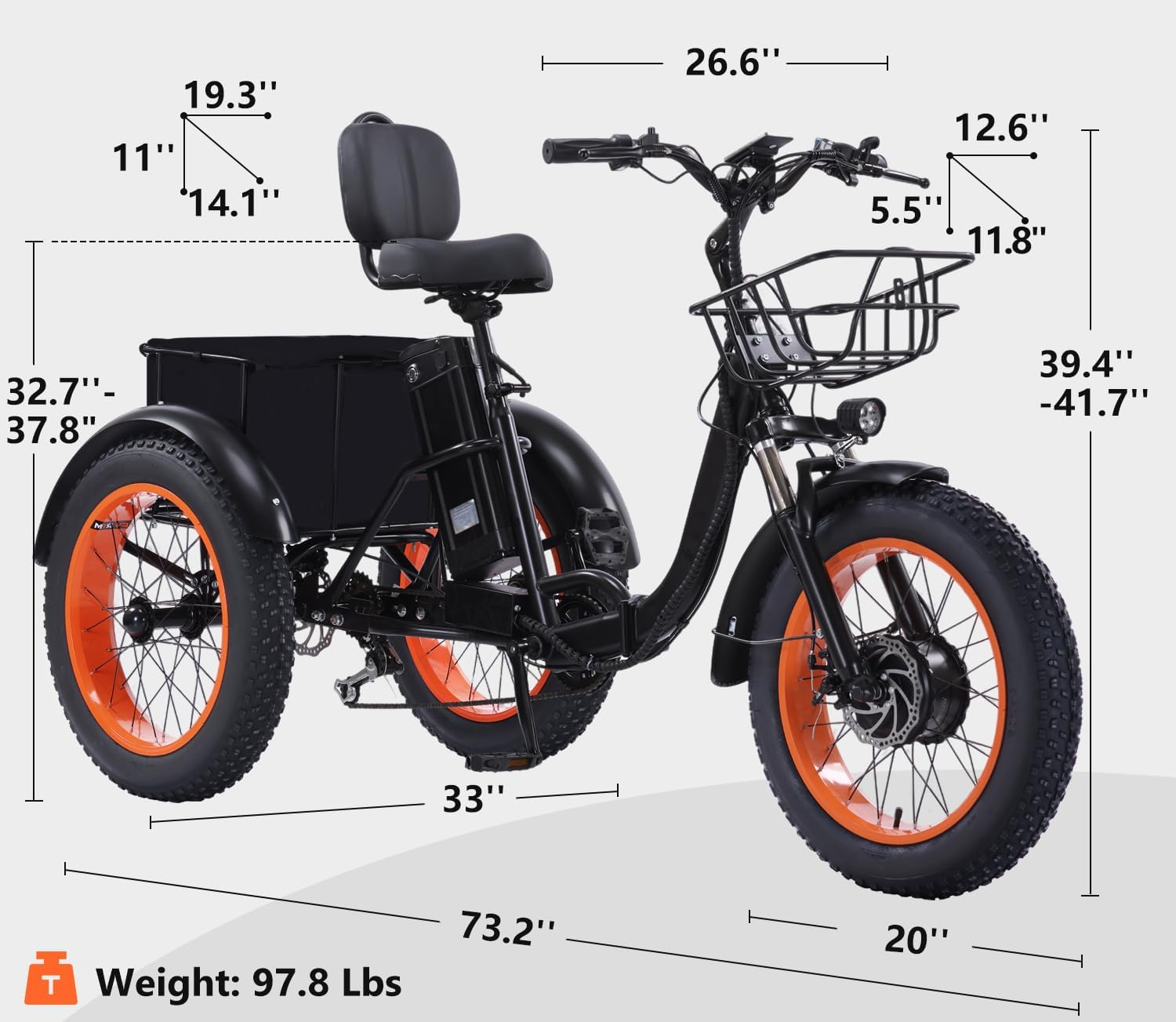

Image: A side view of the electric tricycle with various dimensions indicated, such as overall length (73.2"), wheel size (20"), and height ranges, which are helpful during assembly and adjustment.

Operating Instructions

Battery Operation and Charging

The tricycle is equipped with a certified 48V 15Ah Lithium-Ion battery, offering protection against over-temperature, over-voltage, and over-charging.

• Installation: Ensure the battery is fully inserted and locked into its compartment.
• Charging: Connect the charger to the battery and a standard wall outlet. A full charge typically takes 6-8 hours. The battery can be charged on or off the tricycle.
• Range: Expect up to 50+ miles in pedal-assist mode on a single charge.

Image: A close-up of the 48V 15Ah battery pack, highlighting its capacity and estimated range of 40-50+ miles and 6-8 hours charging time.

Image: Illustrates the safe charging process of the removable battery, emphasizing features like overcharge protection, temperature protection, short circuit protection, and BMS intelligent safety.

Motor and Speed

The tricycle features a 500W brushless front hub motor, providing reliable and efficient performance with a top speed of 20 MPH.

Image: An exploded view diagram of the powerful brushless motor, highlighting its internal components and capabilities such as 18+ MPH max speed, 750W peak motor power, 7-speed transmission, and 12° uphill climbing ability.

Riding Modes and Gears

Choose from three riding options and seven-speed gears to adapt to various terrains and preferences:

• Throttle Mode: Provides electric power on demand without pedaling.
• Pedal Assist Mode (PAS): The motor assists your pedaling effort, with adjustable levels via the speed buttons.
• Manual Mode: Ride like a traditional tricycle using pedal power only.
• 7-Speed Gears: Use the shifter to change gears for easier pedaling on inclines or higher speeds on flat terrain.

LCD Display Functions

The multi-function LCD display provides real-time riding information:

• Energy Bar: Indicates remaining battery charge.
• Speed: Displays current riding speed.
• Gear Display: Shows the current pedal assist level (PAS) or gear.
• Mileage: Tracks total distance traveled.

Image: A close-up of the LCD display mounted on the handlebars, showing indicators for energy bar, speed, gear display (PAS/Manual), and mileage.

Braking System

The tricycle is equipped with mechanical dual disc brakes for reliable stopping power in various conditions.

• Apply both brake levers simultaneously for balanced and effective braking.
• Regularly check brake pads and cables for wear and proper adjustment.

Image: A detailed view of the mechanical dual disc brakes, highlighting their placement on the wheels for fast and stable braking on all types of terrain.

Folding Functionality

The tricycle features a convenient folding design for easy storage and transport.

• Follow the specific folding instructions provided in the video manual.
• Once folded, the tricycle can be stored in an SUV trunk or other compact spaces.

Image: The electric tricycle shown in its folded configuration, demonstrating its compact size for storage.

Image: An adult loading the folded electric tricycle into the trunk of an SUV, illustrating its portability for travel and adventures.

Tires and Baskets

• 20"x4" Fat Tires: Designed for all-terrain use, providing stability and a smoother ride on various surfaces including city roads, dirt roads, mountain roads, sand, and snow.
• Cargo Baskets: The tricycle includes large detachable cargo baskets at the front and rear, suitable for carrying groceries, picnic items, or personal belongings.

Image: A close-up of the 20"x4" fat tire, with icons indicating its suitability for city, mountain, sand, and snow roads, emphasizing its all-terrain capability.

Image: A person placing items into the large rear basket of the tricycle, demonstrating its practical use for carrying groceries or other goods.

Maintenance

Regular maintenance ensures the longevity and safe operation of your electric tricycle.

• Cleaning: Wipe down the frame and components with a damp cloth. Avoid high-pressure washing directly on electrical parts.
• Tires: Check tire pressure regularly and inflate to the recommended PSI. Inspect for wear and punctures.
• Brakes: Periodically inspect brake pads for wear and ensure brake levers are responsive. Adjust as needed.
• Chain: Keep the chain clean and lubricated for smooth gear changes.
• Battery: Store the battery in a cool, dry place and charge it regularly, even if not in use, to maintain its health. Avoid fully discharging the battery.
• Fasteners: Check all bolts and nuts for tightness periodically.

Troubleshooting

This section addresses common issues you might encounter.

If you encounter issues not listed here or require further assistance, please contact customer service.

Specifications

Warranty and Support

Broobey stands behind the quality of its products. Your electric tricycle comes with the following warranty:

• Battery: 6-month warranty for non-human damage.
• Tricycle Frame: 12-month warranty for non-human damage.

For any questions regarding installation, operation, maintenance, or warranty claims, please contact our customer service team on the Amazon Platform. We are available to assist you 24 hours by email.
