Generic Lawn Mower Spindle Assembly Replacement Part Instruction Manual

Introduction

This instruction manual provides essential information for the installation, maintenance, and troubleshooting of your Generic Lawn Mower Spindle Assembly replacement part. Please read this manual thoroughly before attempting installation or use to ensure proper function and safety.

Safety Information

• Always wear appropriate personal protective equipment (PPE), including safety glasses and gloves, when working on lawn mowers.
• Ensure the lawn mower engine is turned off and the spark plug wire is disconnected before beginning any maintenance or installation.
• Refer to your lawn mower's original manufacturer manual for specific safety procedures and warnings.
• Keep children and pets away from the work area.
• If you are unsure about any step, consult a qualified technician.

Package Contents

The package includes:

• 1 x Generic Lawn Mower Spindle Assembly (Model: Spindlepart#614153)

Note: Additional hardware (e.g., mounting bolts, blade bolts) may be required for installation and is typically reused from the original assembly or purchased separately.

Compatibility

This replacement spindle assembly is designed for use with various lawn mower models. Please verify compatibility with your existing part before installation. This part is known to be compatible with the following OEM part numbers:

• AYP: 187292
• Dixon: 532192870
• Husqvarna: Spindlepart#614264

Always compare the physical appearance and specifications of this replacement part with your original spindle assembly to ensure a correct fit.

Setup and Installation

Follow these general steps for replacing a lawn mower spindle assembly. Specific steps may vary depending on your lawn mower model. Always refer to your mower's service manual for detailed instructions.

1. Prepare the Mower: Park the lawn mower on a flat, stable surface. Turn off the engine, remove the ignition key, and disconnect the spark plug wire to prevent accidental starting.
2. Access the Deck: If necessary, remove the mower deck from the tractor or lift the mower to access the underside of the deck.
3. Remove the Blade: Secure the blade to prevent it from turning, then carefully remove the blade bolt and the blade. Note the orientation of the blade for correct reinstallation.
4. Remove the Old Spindle: Locate the mounting bolts that secure the spindle assembly to the mower deck. Remove these bolts and carefully lift the old spindle assembly from the deck.
5. Clean the Mounting Area: Clean any debris, rust, or old gasket material from the spindle mounting area on the mower deck.
6. Install the New Spindle: Position the new Generic Spindle Assembly onto the mower deck, aligning the mounting holes. Secure it with the mounting bolts. Ensure all bolts are tightened to the manufacturer's recommended torque specifications.
7. Reinstall the Blade: Attach the blade to the new spindle, ensuring it is oriented correctly. Secure it with the blade bolt, tightening it to the recommended torque.
8. Reassemble and Test: Reattach the mower deck (if removed) and reconnect the spark plug wire. Perform a visual inspection to ensure all components are securely fastened. Test the mower in a safe area.

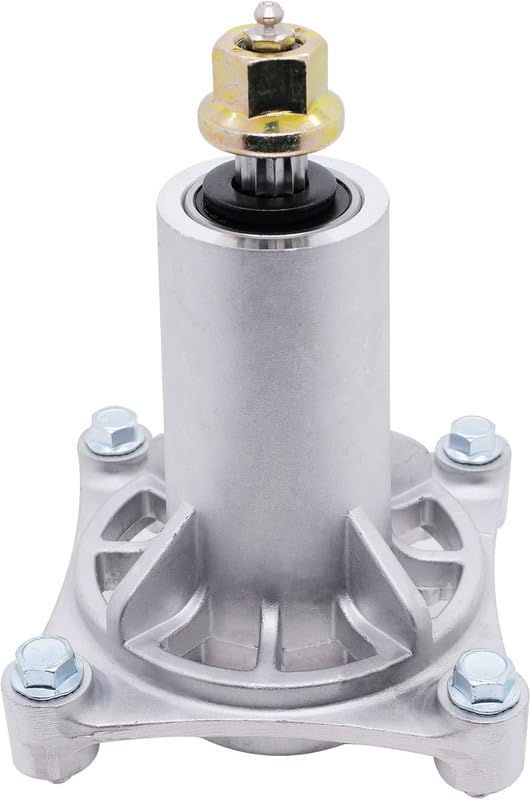

Figure 1: The Generic Lawn Mower Spindle Assembly. This image displays the complete spindle unit, including the housing, shaft, and mounting base with four bolt holes, ready for installation on a mower deck.

Operating Considerations (Post-Installation)

After installing the new spindle assembly, observe the following:

• Vibration Check: Operate the mower briefly and listen for unusual noises or excessive vibration. A properly installed spindle should run smoothly.
• Blade Performance: Ensure the blade spins freely and cuts evenly. An improperly installed spindle or blade can lead to uneven cuts or damage.
• Belt Alignment: If applicable, check the drive belt alignment and tension to the spindle pulley (pulley not included with this part).

Maintenance

Regular maintenance helps extend the life of your spindle assembly and ensures optimal mower performance:

• Clean Regularly: Keep the mower deck and spindle area free of grass clippings and debris. Accumulation can cause imbalance and premature wear.
• Inspect for Damage: Periodically inspect the spindle assembly for signs of wear, cracks, or damage, especially after hitting obstacles.
• Check Fasteners: Ensure all mounting bolts and blade bolts remain tight. Loose fasteners can lead to vibration and damage.
• Lubrication: If your spindle assembly has grease fittings (zerks), lubricate them according to your mower's manufacturer recommendations. This specific replacement part may or may not include grease fittings; inspect your unit.

Troubleshooting

If you encounter issues after installing the spindle assembly, consider the following:

• Excessive Vibration:
  • Check if the blade is bent or unbalanced.
  • Ensure the blade bolt is tightened correctly.
  • Verify that the spindle mounting bolts are secure.
  • Inspect for debris caught in the spindle housing.
• Unusual Noises (Grinding, Squealing):
  • Indicates potential bearing failure. The spindle may need replacement if bearings are sealed and not serviceable.
  • Check for foreign objects interfering with the blade or spindle.
• Uneven Cut:
  • Ensure the blade is sharp and not bent.
  • Verify the spindle is securely mounted and not loose.
  • Check for proper deck leveling.

If problems persist, discontinue use and consult a qualified service technician.

Specifications

Warranty Information

Specific warranty details for this Generic replacement part are not provided in the product information. Please refer to the seller's return policy or contact the seller directly for warranty inquiries.

Support

For further assistance or technical support regarding this product, please contact the seller through the platform where the purchase was made. Ensure you have your purchase details and product model number (Spindlepart#614153) available.
