VELOCAVA Twin Size Hydraulic Lift-Up Storage Bed Instruction Manual

1. Product Overview

The VELOCAVA Twin Size Hydraulic Lift-Up Storage Bed is designed to maximize space and provide comfort. This upholstered platform bed features a wingback headboard, a sturdy wooden slat system, and a hydraulic lifting mechanism for convenient under-bed storage. It is suitable for a twin-size mattress and does not require a box spring.

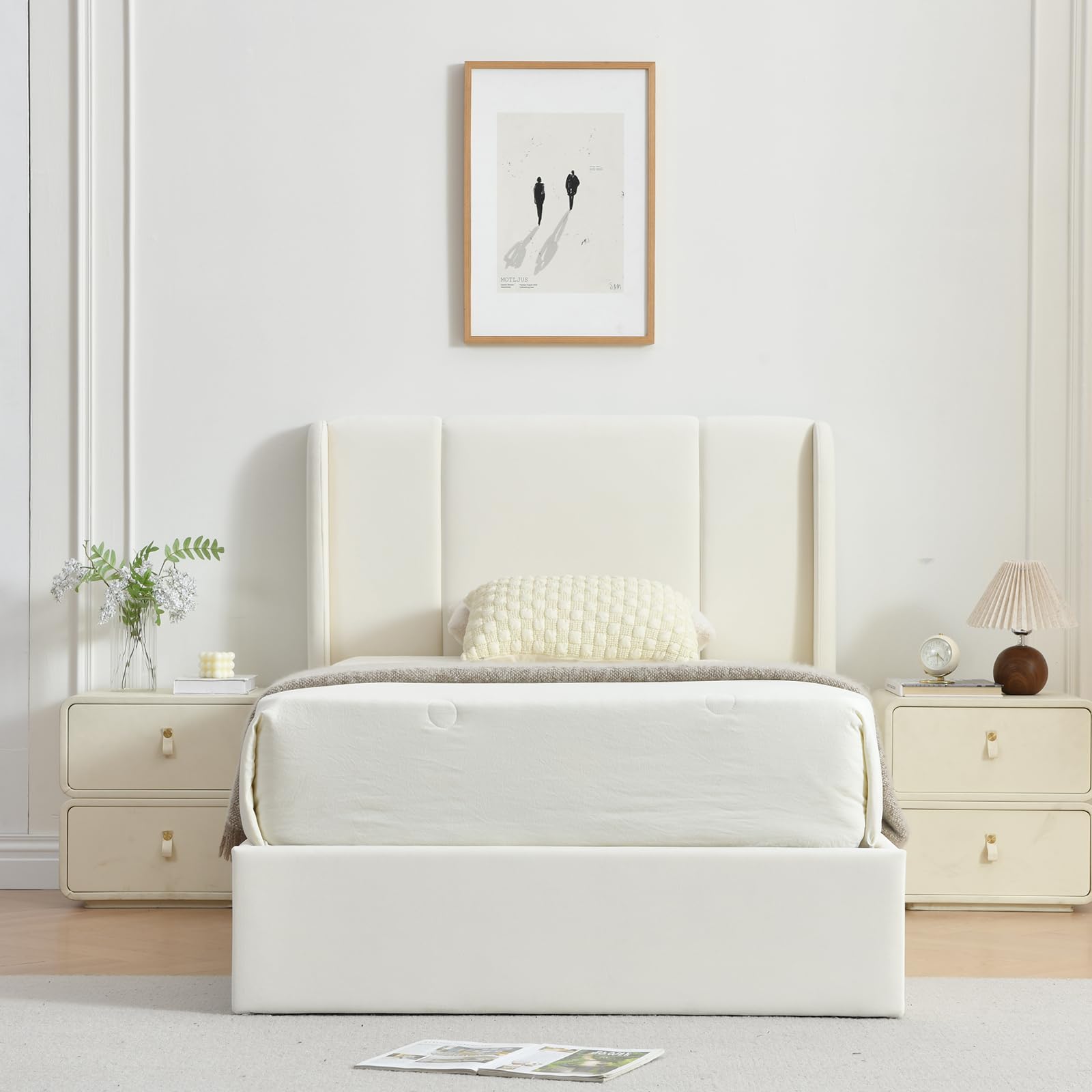

Figure 1: VELOCAVA Twin Size Hydraulic Lift-Up Storage Bed (White Velvet)

2. Important Safety Information

• Do not exceed the weight capacity of 700 pounds.
• Be cautious when operating the hydraulic lifting mechanism.
• Always follow the assembly instructions carefully to prevent instability or collapse.
• Keep children and pets away from the bed during assembly and operation of the lift mechanism.

3. Setup and Assembly

Your VELOCAVA bed frame comes with all necessary hardware and clear instructions for assembly. We recommend two people for assembly to ensure safety and ease.

3.1. Pre-Assembly Checklist

• Unpack all components and verify against the parts list in your included manual.
• Ensure you have the provided tools (Allen wrench, spanner) and any additional tools you might find helpful (e.g., screwdriver).
• Clear a spacious area for assembly.

3.2. Assembly Steps (General Overview)

The assembly process typically involves connecting the headboard, side rails, footboard, and then installing the hydraulic lift mechanism and slats. Refer to the detailed instructions provided in your product packaging for specific steps and diagrams.

4. Operating Instructions

4.1. Hydraulic Lifting Mechanism

The bed features a hydraulic lifting mechanism for easy access to the under-bed storage. To operate:

1. Ensure there is no excessive weight on the mattress platform. The recommended mattress weight for Twin size is ≤ 99 lbs.
2. Locate the fabric pull handle, typically at the foot of the bed.
3. Firmly grasp the handle and lift the mattress platform upwards. The hydraulic system will assist in lifting and holding the platform in an open position.
4. To close, gently pull the platform downwards. The hydraulic system will provide resistance for a controlled descent.
5. A metal stopper is integrated to keep the mattress securely in place when the platform is lifted.

Figure 2: Hydraulic Gas Lifting System

5. Maintenance

5.1. General Care

• Regularly dust the upholstered surfaces with a soft, dry cloth.
• For spills, blot immediately with a clean, absorbent cloth. Avoid rubbing.
• Periodically check all bolts and screws to ensure they are tight. Retighten if necessary.
• Keep the bed away from direct sunlight and heat sources to prevent fading and material degradation.

5.2. Hydraulic System Care

• Do not apply excessive force when lifting or lowering the platform. Allow the hydraulic system to do its work.
• Keep the hydraulic pistons clean and free from dust or debris.
• If the hydraulic system becomes difficult to operate or makes unusual noises, contact customer support. Do not attempt to repair it yourself.

6. Troubleshooting

6.1. Assembly Difficulties

• Problem: Parts do not align or fit together.
• Solution: Double-check the instruction manual diagrams. Ensure you are using the correct hardware for each step and that parts are oriented correctly. Loosen all screws slightly, adjust alignment, and then retighten.

6.2. Hydraulic Lift Issues

• Problem: Platform is difficult to lift or does not stay up.
• Solution: Verify that the mattress weight is within the recommended limits. Ensure the hydraulic pistons are correctly installed and securely fastened. If the issue persists, contact customer support.

6.3. Squeaking Noises

• Problem: The bed frame makes squeaking noises.
• Solution: Tighten all bolts and screws on the frame and slats. Ensure the slats are properly seated in their holders.

7. Specifications

8. Warranty and Support

VELOCAVA is committed to customer satisfaction. For any questions, assistance with installation, or after-sales support, please feel free to contact our dedicated customer service team. We aim to respond to your inquiries within 24 hours.

Please refer to your purchase documentation for specific warranty details.
