Ravinte 5-in-1 Food Vacuum Sealer Instruction Manual

1. Introduction

Welcome to your new Ravinte 5-in-1 Food Vacuum Sealer. This appliance is designed to preserve food freshness by efficiently removing air from specially designed bags and sealing them, thereby extending the shelf life of various food items. Please read this manual thoroughly before first use to ensure safe and optimal operation.

2. Important Safety Instructions

To reduce the risk of fire, electric shock, or injury, always follow these basic safety precautions:

• Read all instructions before using the appliance.
• Do not operate the appliance with a damaged power cord or plug. If the appliance malfunctions or has been damaged in any manner, contact customer service.
• Do not immerse the appliance, power cord, or plug in water or other liquids.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Unplug from outlet when not in use and before cleaning.
• Use only vacuum sealer bags and accessories specifically designed for this appliance.
• Do not use the appliance on wet or hot surfaces.
• Avoid touching hot surfaces. The sealing strip becomes hot during operation.
• Ensure the appliance is placed on a stable, flat, heat-resistant surface.

3. Product Overview

3.1 Components

Familiarize yourself with the main parts of your vacuum sealer:

• Control Panel: Features touch-sensitive buttons for various functions (Vac, Seal, Rice, Wet, Dry, Stop).
• Sealing Strip: Heats up to create an airtight seal on bags.
• Vacuum Chamber: Area where air is extracted from the bag.
• Vacuum Cabin Gasket: Ensures a tight seal during vacuuming to prevent air leakage.
• High Temperature Tape: Provides thermal insulation for safety.
• Non-slip Mats: Located on the base for stable operation.
• Removable Drip Tray: Collects any liquids during vacuuming for easy cleaning.

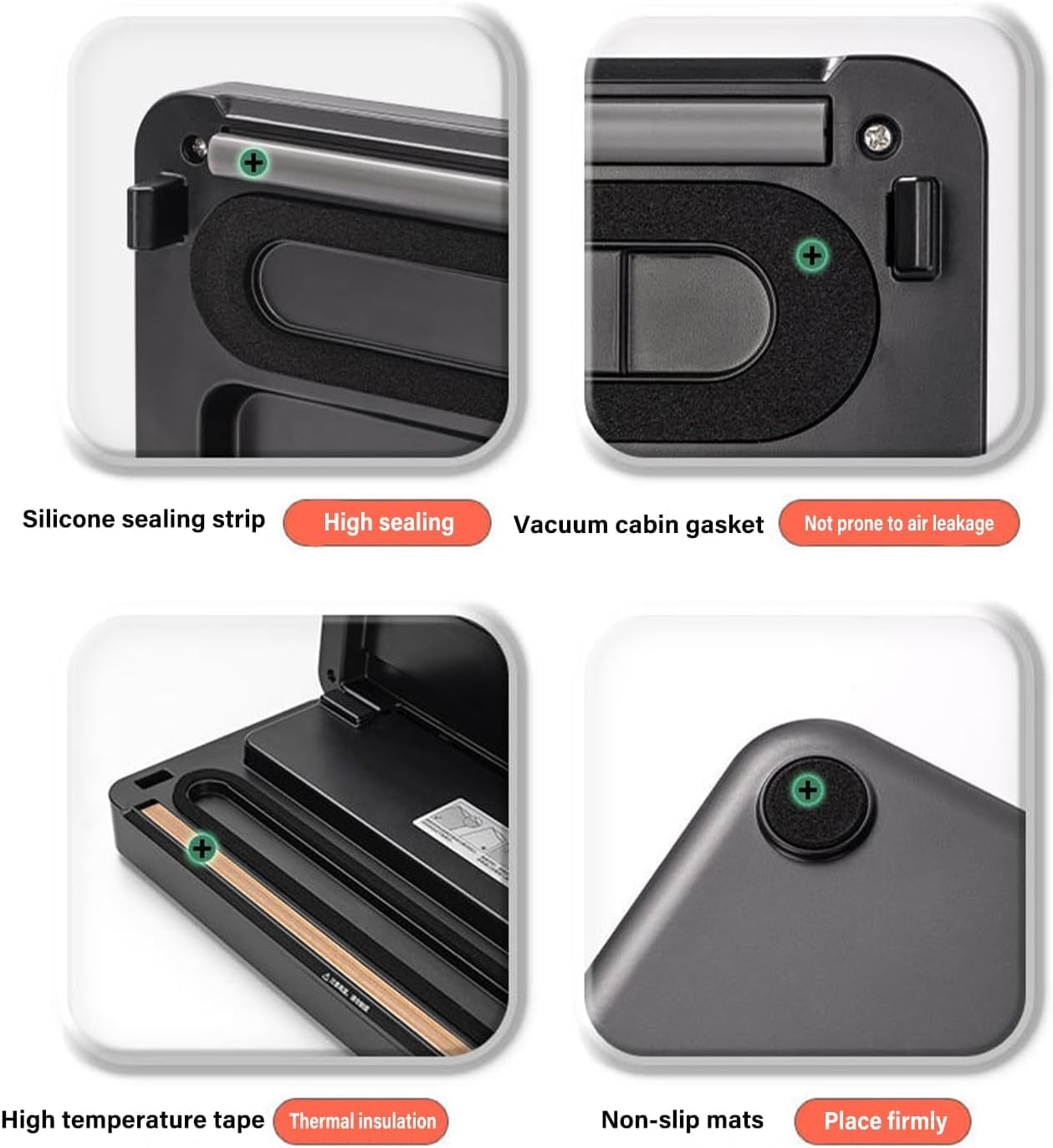

This image provides close-up views of essential parts: the silicone sealing strip for high sealing, the vacuum cabin gasket to prevent air leakage, high-temperature tape for thermal insulation, and non-slip mats for stable placement.

This image shows the touch-sensitive control panel, with a finger interacting with the 'Dry' mode button, indicating simple single-finger operation.

4. Setup

4.1 Unpacking

1. Carefully remove the vacuum sealer from its packaging.
2. Remove any protective materials or stickers.
3. Inspect the appliance for any damage. Do not use if damaged.

4.2 Initial Preparation

1. Place the vacuum sealer on a clean, dry, and flat surface.
2. Ensure the power cord is easily accessible and not obstructed.
3. Plug the power cord into a grounded electrical outlet. The indicator lights may flash briefly.

5. Operating Instructions

5.1 General Operation

The Ravinte 5-in-1 Food Vacuum Sealer offers multiple modes for various food types and sealing needs.

This image shows the Ravinte vacuum sealer with a bag of salmon being sealed. The control panel with 'Vac', 'Seal', 'Rice', 'Wet', 'Dry', and 'Stop' buttons is visible.

5.2 Vacuum Sealing Dry Food (Dry Mode)

1. Place the dry food item into a vacuum sealer bag, leaving at least 2-3 inches of space from the top edge.
2. Open the lid of the vacuum sealer.
3. Place the open end of the bag into the vacuum chamber, ensuring it lies flat across the sealing strip.
4. Close the lid firmly until you hear a click, indicating it is locked.
5. Press the Dry button. The appliance will automatically vacuum the air and then seal the bag.
6. Once the process is complete, the indicator light will turn off. Press the release buttons (if present) or lift the lid to retrieve the sealed bag.

5.3 Vacuum Sealing Moist Food (Wet Mode)

1. For moist foods, follow steps 1-4 from the Dry Mode instructions.
2. Press the Wet button. This mode is designed to handle foods with some moisture, preventing liquids from being drawn into the vacuum pump.
3. The appliance will automatically vacuum and seal.
4. Retrieve the sealed bag once the indicator light turns off.

5.4 Sealing Only Function

This function is used to create a seal without vacuuming, useful for making custom-sized bags from rolls or sealing delicate items.

1. Place the open end of the bag onto the sealing strip.
2. Close the lid firmly.
3. Press the Seal button. The appliance will only heat and seal the bag.
4. Retrieve the sealed bag once the indicator light turns off.

5.5 Pulse Vacuum Function

The Vac button can be used for manual control of the vacuum process, ideal for delicate items like bread or chips that could be crushed by full vacuuming.

1. Place the food in the bag and position it in the vacuum chamber as described in step 3 of Dry Mode.
2. Close the lid firmly.
3. Press and hold the Vac button to start vacuuming. Release the button when the desired vacuum level is reached.
4. Immediately press the Seal button to seal the bag.
5. Retrieve the sealed bag once the indicator light turns off.

5.6 External Vacuuming (Accessory Port)

This appliance supports external vacuuming for containers, jars, wine bottles, and sous vide bags using an accessory hose (sold separately).

1. Connect one end of the accessory hose to the appliance's accessory port and the other end to the container/jar valve.
2. Select the appropriate vacuum mode (e.g., Vac or a dedicated accessory button if available).
3. The appliance will vacuum the air from the container. Follow the container's instructions for sealing.

This diagram explains the various functions of the appliance, including sealing only, vacuum and sealing, pulse vacuum for delicate items, and using accessories for jars or wine bottles.

6. Food Preservation Tips

Proper preparation and vacuum sealing can significantly extend food freshness.

• Dry Ingredients: Ideal for nuts, grains, dried fruits, and coffee beans. Vacuum sealing protects against moisture and oxidation.
• Wet Ingredients: Use the 'Wet' mode for marinated meats, fish, or blanched vegetables. Ensure excess liquid is minimized before sealing.
• Soft Ingredients: For delicate items like bread, pastries, or chips, use the 'Pulse Vac' function to control the vacuum level and prevent crushing.
• Powdered Ingredients: Flour, spices, or powdered milk can be vacuum sealed. Ensure no powder gets into the sealing area to prevent poor seals.
• Pre-freeze Liquids: For soups or sauces, pre-freeze them in a container until solid, then vacuum seal the frozen block to prevent liquid from being drawn into the machine.

This image displays different categories of food items, such as dried sausages, fish, octopus, and grains, indicating their suitability for vacuum sealing.

A visual guide categorizing different food types, such as dried fruit, fish, meat, and powdered ingredients, demonstrating the versatility of the vacuum sealer.

7. Maintenance and Cleaning

Regular cleaning ensures optimal performance and extends the life of your vacuum sealer.

7.1 Cleaning the Sealing Strip and Vacuum Chamber

1. Always unplug the appliance before cleaning.
2. Allow the sealing strip to cool down completely.
3. Wipe the sealing strip and vacuum chamber with a soft, damp cloth. For stubborn residue, use a mild dish soap solution.
4. Ensure all parts are completely dry before closing the lid or plugging in the appliance.

7.2 Cleaning the Removable Drip Tray

The removable drip tray can be detached for easy cleaning.

1. Open the lid and carefully remove the drip tray.
2. Wash the drip tray with warm, soapy water. It is waterproof and high-temperature resistant.
3. Rinse thoroughly and dry completely before reattaching it to the appliance.

The image shows the vacuum sealer with its removable lower part, indicating ease of cleaning and maintenance.

This image illustrates the waterproof and high-temperature resistant design of the removable tray, making it safe for washing.

8. Troubleshooting

If you encounter issues with your vacuum sealer, refer to the following table for common problems and solutions.

9. Specifications

Product specifications for the Ravinte 5-in-1 Food Vacuum Sealer:

10. Warranty and Support

For warranty information, please refer to the documentation provided at the time of purchase or contact your retailer. If you have any questions or require technical assistance, please contact Ravinte customer support through the retailer's platform or the official brand website.
