Introduction
This manual provides instructions for the AULCMEET RC813A Replacement Voice Remote Control. This remote is designed to be compatible with specific TCL QM6K and QM7K Series QD-Mini LED 4K UHD Google Smart TV models. Please read this manual carefully before using your new remote control.
Compatible TV Models:
- TCL QM7K Series: 55QM7K, 65QM7K, 75QM7K, 85QM7K, 98QM7K
- TCL QM6K Series: 50QM6K, 55QM6K, 65QM6K, 75QM6K, 85QM6K, 98QM6K

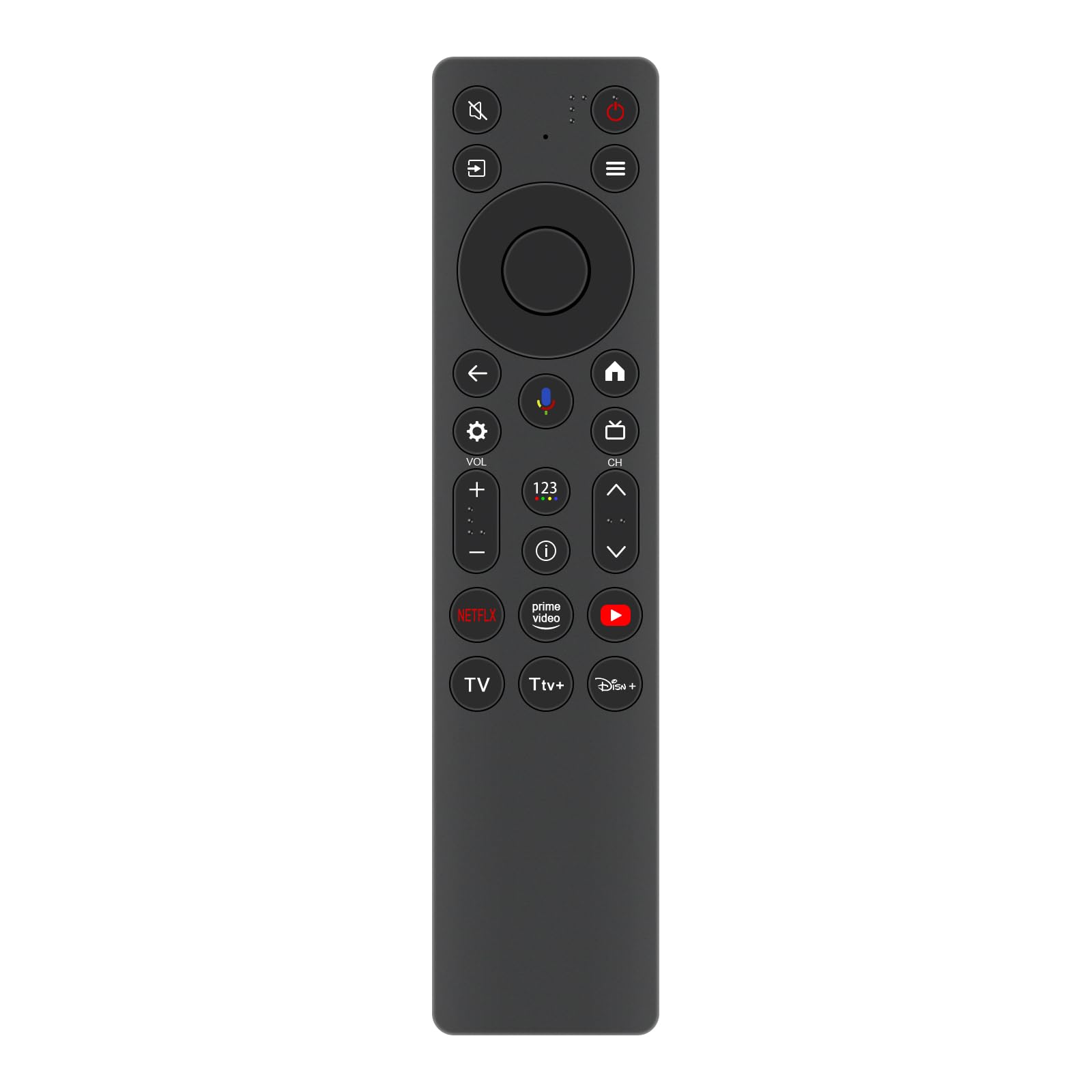

Image: Top-down view of the AULCMEET RC813A Replacement Voice Remote Control, showcasing its ergonomic design.
Setup
1. Battery Installation
The RC813A remote control requires two (2) AAA batteries for operation. Follow these steps to install the batteries:
- Locate the battery compartment cover on the back of the remote control.
- Slide the cover downwards or press the latch (if present) to open the compartment.
- Insert two AAA batteries, ensuring the positive (+) and negative (-) terminals align correctly with the markings inside the compartment.
- Close the battery compartment cover by sliding it back into place until it clicks securely.

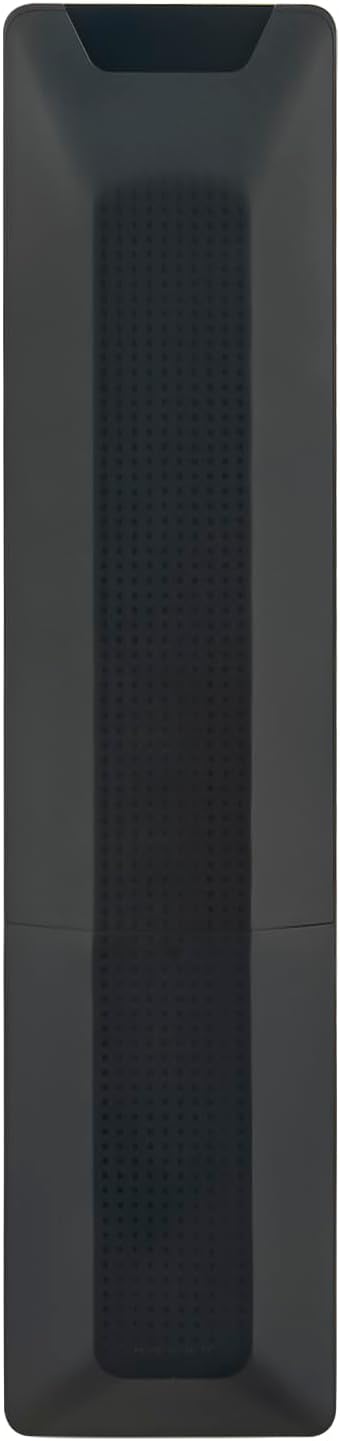

Image: Rear view of the remote control, indicating the location of the battery compartment.
2. Initial Pairing
This replacement remote control is designed to function with compatible TCL Google Smart TVs without complex setup. In most cases, it will pair automatically upon battery installation and initial use. If the remote does not respond immediately, ensure the batteries are correctly installed and try pressing any button to activate it.
For voice control functionality, the remote typically pairs automatically with your Google Smart TV. If voice commands are not working, refer to your TV's settings for Bluetooth device pairing or remote control setup options.
Operating Instructions
The RC813A remote control provides full functionality for your compatible TCL Google Smart TV. Below are key features and their usage:
Basic TV Control
- Power Button (●): Turns the TV on or off.
- Volume Up/Down (VOL +/-): Adjusts the TV's volume level.
- Channel Up/Down (CH +/-): Changes TV channels.
- Navigation Pad (Circular D-pad): Use the directional arrows to navigate menus and the central button to select items.
- Back Button (←): Returns to the previous screen or menu.
- Home Button (⌂): Accesses the TV's home screen or main menu.
Voice Control Functionality
The remote features integrated voice control, allowing you to use Google Assistant for commands. To activate voice control:
- Press and hold the Voice Assistant button (typically marked with a microphone icon, often colored).
- Speak your command clearly into the remote control.
- Release the button once you have finished speaking.
Image: The remote control with the Google Assistant voice button clearly indicated.
Quick Access Buttons
Dedicated buttons provide direct access to popular streaming services and TV functions:
- Netflix: Launches the Netflix application.
- Prime Video: Launches the Amazon Prime Video application.
- YouTube: Launches the YouTube application.
- TV: Switches to live TV input.
- Ttv+: Accesses TCL TV+ services.
- Disney+: Launches the Disney+ application.

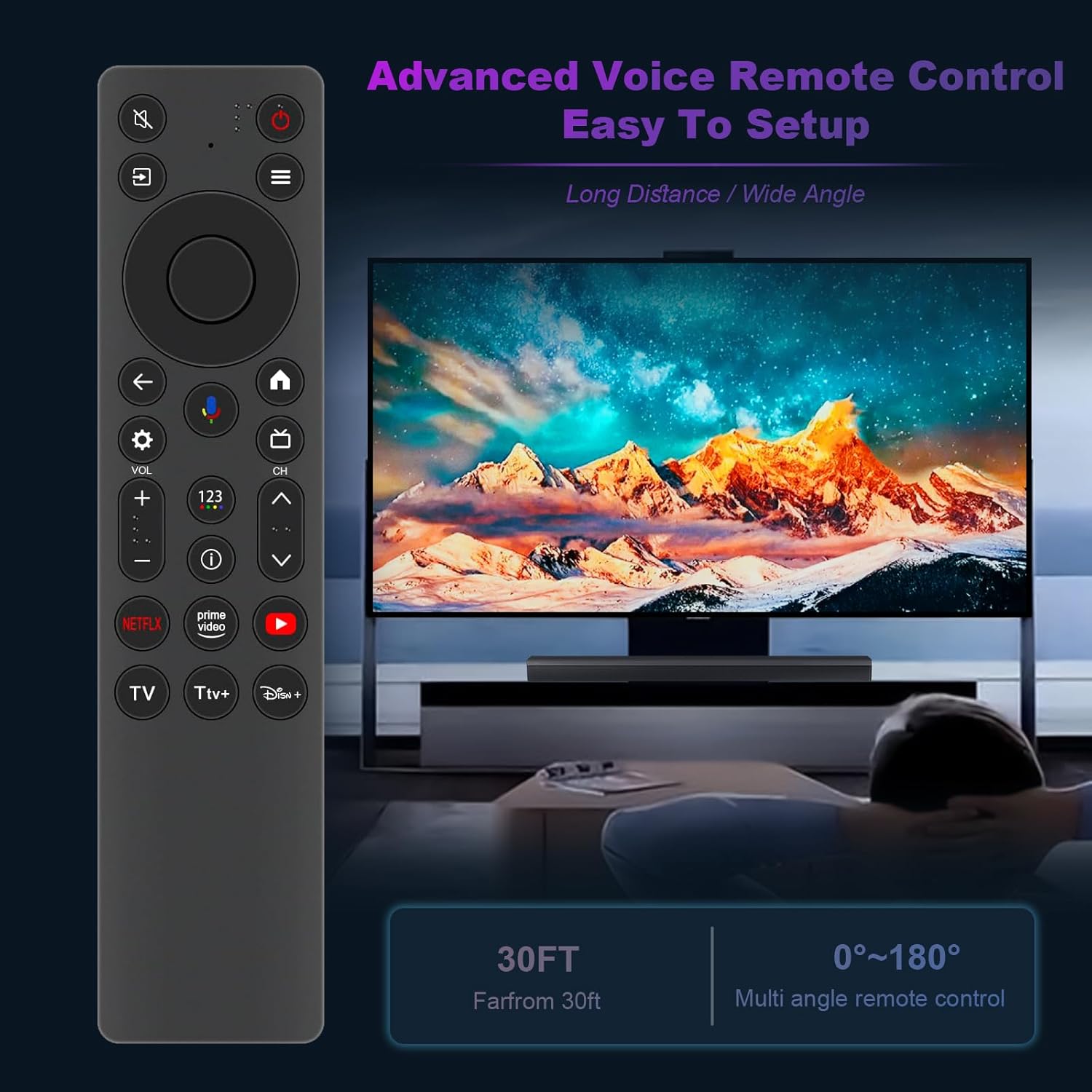

Image: The remote control positioned next to a television, illustrating its effective operating range and wide angle functionality.
Maintenance
Battery Replacement
When the remote control's performance degrades or it stops responding, it is likely time to replace the batteries. Always replace both AAA batteries simultaneously with new ones. Do not mix old and new batteries, or different types of batteries.
Cleaning
To clean the remote control, use a soft, dry cloth. For stubborn dirt, slightly dampen the cloth with water or a mild, non-abrasive cleaner. Avoid using harsh chemicals or abrasive materials, as these can damage the remote's surface or internal components.
Storage
Store the remote control in a dry place, away from direct sunlight and extreme temperatures. If the remote will not be used for an extended period, it is recommended to remove the batteries to prevent leakage.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Remote not responding to TV. |
|
|
| Voice control not working. |
|
|
| Remote feels unresponsive or delayed. |
|
|
| Remote is not backlit. | This model does not feature backlighting. | This is normal operation for the RC813A replacement remote. |
Specifications
| Feature | Detail |
|---|---|
| Model Number | RC813A |
| Brand | AULCMEET |
| Compatibility | TCL QM6K & QM7K Series QD-Mini LED 4K UHD Google Smart TVs |
| Power Source | 2 x AAA Batteries (not included) |
| Dimensions (L x W x H) | Approximately 5 x 1 x 0.5 inches (12.7 x 2.54 x 1.27 cm) |
| Weight | Approximately 1.9 ounces (53.8 grams) |
| Special Feature | Ergonomic design, Voice Control |
| Color | Black |
Image: Dimensions of the remote control, showing approximate length and width.
Warranty and Support
For warranty information or technical support regarding your AULCMEET RC813A Replacement Voice Remote Control, please refer to the seller or retailer from whom the product was purchased. Keep your purchase receipt as proof of purchase.
For general inquiries or further assistance, you may also consult the official support resources for your TCL Google Smart TV model, as remote control functionality is often integrated with the TV's operating system.
