Introduction
Thank you for choosing the BEWISHOME SYQ02Y Automatic Double Watch Winder. This manual provides detailed instructions for the proper setup, operation, and maintenance of your new watch winder. Please read this manual thoroughly before use to ensure optimal performance and longevity of your device.

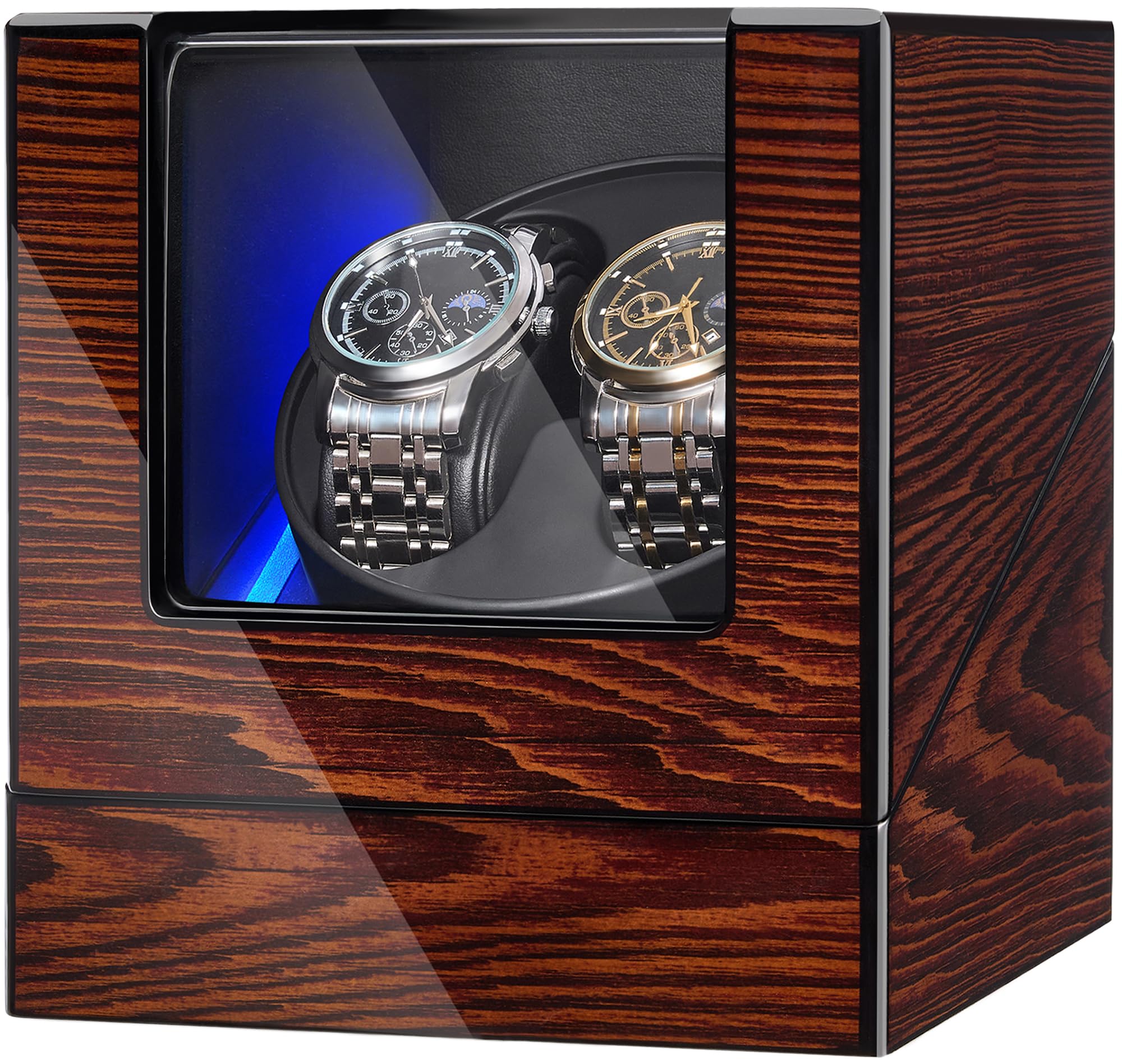

Front view of the BEWISHOME SYQ02Y Automatic Double Watch Winder, showcasing its elegant design with two watches illuminated by a blue LED light.
Product Overview
Key Features
- Premium Materials: Features a high-gloss wood finish, an oversized transparent window, and built-in blue LED lights. The interior is crafted from premium synthetic leather and soft sponge padding for protection.
- Ultra-Quiet Motor: Equipped with a premium silent Mabuchi motor, operating at less than 5dB, ensuring quiet operation.
- Multiple Rotation Modes: Offers five distinct rotation modes to cater to various automatic watch requirements.
- Dual Power Supply: Can be powered by the included Type-C AC adapter or 2xAA batteries (not included).
- Watch Capacity: Designed to accommodate two automatic watches, with adjustable watch pillows suitable for various watch sizes.
Components Included
- BEWISHOME SYQ02Y Watch Winder
- Type-C AC Power Adapter
- Cleaning Cloth
- Instruction Manual
Visual representation of the watch winder's main features and components.
Setup
- Unpack the Winder: Carefully remove the watch winder and all accessories from its packaging.
- Prepare Watch Pillows: Gently compress the adjustable watch pillows to fit your watches. Place your automatic watches securely onto the pillows.
- Insert Watches: Place the watch-mounted pillows into the designated slots within the winder. Ensure they are seated properly.
- Power Connection:
- AC Power: Connect the Type-C AC adapter to the DC-IN port on the back of the winder and plug it into a wall outlet.
- Battery Power: Open the battery compartment on the bottom of the winder and insert two (2) AA batteries (not included), ensuring correct polarity.
Illustration of the watch winder's power input options.
Operating Instructions
The BEWISHOME SYQ02Y watch winder features a control knob on the back to select different rotation modes and a separate button for the LED light.
Rotation Modes
Turn the control knob to select one of the five available modes:
| Mode | Description |
|---|---|
| Mode 1 | Off |
| Mode 2 | Rotates clockwise for 2 minutes, stops for 6 minutes, then recycles. |
| Mode 3 | Rotates counter-clockwise for 2 minutes, stops for 6 minutes, then recycles. |
| Mode 4 | Rotates clockwise for 2 minutes, stops for 6 minutes; then rotates counter-clockwise for 2 minutes, stops for 6 minutes, then recycles. |
| Mode 5 | Rotates clockwise for 5 minutes, then counter-clockwise for 5 minutes. This cycle works for 3 hours and then stops for 9 hours, before repeating. |
Visual guide to the watch winder's rotation modes and control knob.
LED Light Operation
Press the dedicated button on the back panel to turn the blue LED interior light on or off. This feature allows for elegant display of your watches.
Official video demonstrating the BEWISHOME Double Watch Winder in operation, showcasing its rotation and design.
Watch Compatibility
The BEWISHOME SYQ02Y watch winder is designed to accommodate a wide range of automatic watches. The adjustable watch pillows ensure a snug fit for various wrist sizes and watch dimensions.
- Maximum Watch Diameter: 54mm (2.12 inches)
- Maximum Watch Size with Crown: 57mm (2.24 inches)
- Maximum Watch Thickness: 14mm (0.55 inches)
Detailed dimensions of the watch winder and watch compatibility.
Maintenance
To ensure your BEWISHOME watch winder remains in excellent condition, follow these simple maintenance guidelines:
- Cleaning: Use the provided soft cleaning cloth to gently wipe the exterior and transparent window. Avoid abrasive cleaners or solvents that could damage the finish.
- Placement: Place the winder on a stable, flat surface away from direct sunlight, extreme temperatures, and high humidity.
- Handling: Handle the winder with care to prevent scratches or damage to the high-gloss finish.
- Battery Care: If using batteries, replace them when the motor performance diminishes. Remove batteries if the winder will not be used for an extended period.
Troubleshooting
If you encounter any issues with your watch winder, please refer to the following common solutions:
- Winder Not Rotating:
- Ensure the power adapter is securely plugged into both the winder and a working electrical outlet.
- If using batteries, check if they are inserted correctly and have sufficient charge. Replace if necessary.
- Verify that the mode selector knob is not set to "Off" (Mode 1).
- Excessive Noise:
- Ensure the winder is placed on a flat, stable surface.
- Check that watches are securely seated on the pillows and not touching the winder's interior.
- The Mabuchi motor is designed for quiet operation (under 5dB). If noise persists, contact customer service.
- LED Light Not Working:
- Press the LED light button to toggle it on/off.
- Ensure the winder is receiving power (either via AC adapter or fresh batteries).
If these steps do not resolve the issue, please contact BEWISHOME customer service for further assistance.
Specifications
| Feature | Detail |
|---|---|
| Brand | BEWISHOME |
| Model Number | SYQ02Y |
| Color | Brown |
| Material | Engineered Wood, Synthetic Leather (interior) |
| Product Dimensions | 6.3"D x 6.3"W x 7.09"H |
| Item Weight | 2.64 Pounds |
| Motor Type | Ultra-quiet Mabuchi Motor (<5dB) |
| Rotation Modes | 5 Modes (CW, CCW, Bi-directional, Intermittent) |
| Power Supply | Type-C AC Adapter (included) or 2xAA Batteries (not included) |
| Special Features | Display Window, Open lid Self-stop Function, Soft Cushions, Blue LED Light |
Warranty and Support
BEWISHOME offers a 2-year quality assurance for your watch winder. If you encounter any issues or have questions regarding your product, please do not hesitate to contact our customer service team. We provide 24-hour email customer service to ensure your satisfaction.
For support, please refer to the contact information provided with your purchase or visit the official BEWISHOME website.
