1. Introduction
This manual provides essential instructions for the safe and efficient operation, installation, and maintenance of your KEYAYEYA compatible SHIMGE Vertical Multi-Stage Centrifugal Pump, model BLT2-2. Please read this manual thoroughly before installation and operation to ensure proper use and to prevent damage or injury.
2. Safety Information
WARNING: Failure to follow these safety instructions could result in serious injury or death.
- Always disconnect power before performing any installation, maintenance, or repair work.
- Ensure all electrical connections are made by a qualified electrician and comply with local codes.
- Do not operate the pump dry. Ensure the pump is primed before starting.
- Wear appropriate personal protective equipment (PPE) during installation and maintenance.
- Keep children and unauthorized personnel away from the pump during operation.
3. Product Overview

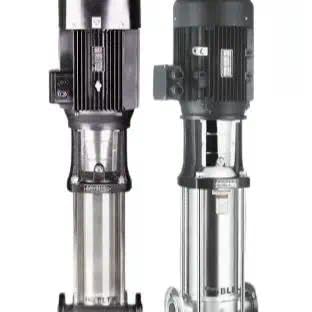

The KEYAYEYA BLT2-2 is a vertical multi-stage centrifugal pump designed for various industrial and domestic applications requiring reliable fluid transfer. It is compatible with SHIMGE pump systems.
4. Setup and Installation
Proper installation is crucial for the pump's performance and longevity. Consult a qualified professional for complex installations.
- Mounting: Securely mount the pump on a stable, level surface capable of supporting its weight when full of fluid. Ensure adequate ventilation around the pump.
- Piping: Connect the inlet and outlet pipes. Use appropriate pipe sizes to minimize friction loss. Ensure all connections are watertight and free of leaks. Avoid putting strain on the pump casing from piping.
- Electrical Connection: Connect the pump to a suitable power supply according to local electrical codes. Ensure the voltage and frequency match the pump's specifications. A qualified electrician must perform this step.
- Priming: Before initial startup, fill the pump casing and suction line with the fluid to be pumped. This prevents dry running and potential damage.
5. Operating Instructions
Follow these steps for safe and effective operation of your pump.
- Pre-Operation Check: Verify all connections are secure, the pump is primed, and there are no obstructions in the suction or discharge lines.
- Starting the Pump: Turn on the power supply. The pump should start smoothly. Monitor for unusual noises or vibrations.
- Monitoring Operation: Observe the pressure gauges (if installed) and flow rate. Ensure the pump operates within its specified parameters.
- Stopping the Pump: Turn off the power supply. If the pump will be idle for an extended period, drain the fluid to prevent freezing or stagnation.
6. Maintenance
Regular maintenance extends the life of your pump and ensures optimal performance.
- Routine Inspection: Periodically check for leaks, unusual noises, vibrations, and signs of wear on seals or bearings.
- Cleaning: Keep the pump exterior clean and free of debris. Ensure cooling fins (if present) are not obstructed.
- Seal Replacement: If leaks are detected around the shaft, the mechanical seal may need replacement. This should be done by a qualified technician.
- Winterization: In cold climates, drain the pump and associated piping completely to prevent damage from freezing.
7. Troubleshooting
This section addresses common issues you might encounter. For problems not listed, contact technical support.
| Problem | Possible Cause | Solution |
|---|---|---|
| Pump does not start | No power, motor fault, seized impeller | Check power supply, inspect motor, clear impeller |
| Low flow or pressure | Air in system, clogged impeller, worn components | Re-prime pump, clean impeller, inspect for wear |
| Excessive noise/vibration | Cavitation, bearing wear, misalignment | Check suction conditions, inspect bearings, verify alignment |
| Pump leaks | Loose connections, worn mechanical seal | Tighten connections, replace mechanical seal |
8. Specifications
- Manufacturer: original manufacturer
- Item Model Number: BLT2-2
- Item Weight: 2 pounds
- Product Dimensions: 1 x 1 x 1 inches
- ASIN: B0FCYDPM5C
- Date First Available: June 12, 2025
9. Warranty and Support
For technical guidance or questions regarding your pump, please contact the merchant, KEYAYEYA Parts factory, directly. They can be reached via their seller page on Amazon: KEYAYEYA Parts factory.
This product is subject to a return policy allowing for refund or replacement within 30 days of purchase, as per Amazon's standard return policy.
