PVWIIK Queen Size Murphy Bed with Desk & Charging Station User Manual

1. Introduction

This manual provides essential information for the safe and efficient use of your PVWIIK Queen Size Murphy Bed with Desk & Charging Station. Please read this manual thoroughly before assembly and operation, and retain it for future reference.

The PVWIIK Murphy bed is designed to optimize living space, transforming from a compact cabinet with an integrated desk and charging station into a comfortable queen-size bed. It features a durable solid wood construction and a hydraulic folding mechanism for smooth operation.

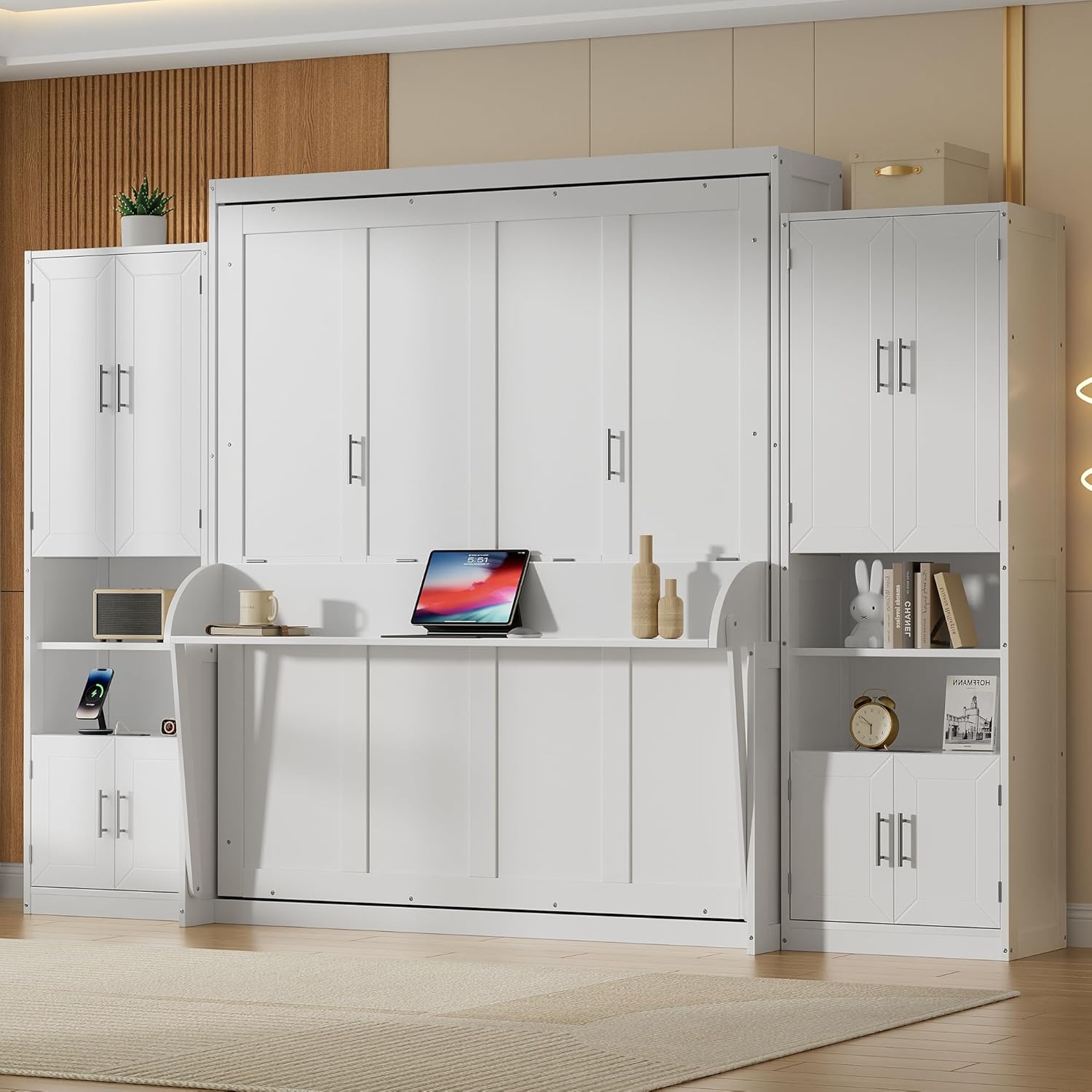

PVWIIK Queen Size Murphy Bed in cabinet configuration with desk and charging station, flanked by two storage cabinets.

Figure 1.1: PVWIIK Queen Size Murphy Bed in its closed, cabinet configuration, featuring a central desk area and integrated charging station. Two side storage cabinets are also visible.

2. Safety Information

Adherence to the following safety guidelines is crucial for preventing injury and damage to the product.

Always ensure the bed is securely attached to the wall before use. This is a critical step for stability and safety.
Exercise caution around sharp edges during the assembly process.
Do not overload the bed beyond its specified weight limit of 132 pounds (for the bed frame itself, not including mattress). Refer to the specifications section for mattress weight limits.
Keep the integrated charging station dry and do not insert any foreign objects into the ports.
Always unplug the charging station from the wall outlet when not in use or during maintenance.
Keep children and pets away from the bed during folding and unfolding operations.
Ensure no objects are on the bed or desk surface before folding or unfolding to prevent damage or injury.

3. Setup and Assembly

Assembly of the PVWIIK Murphy Bed requires two adults and basic tools (not included). Follow the included assembly instructions carefully. This section provides a general overview of the process.

3.1. Unpacking and Part Identification

Carefully unpack all components and verify against the parts list provided in your separate assembly guide.
Lay out all hardware and components in an organized manner to facilitate assembly.
Inspect all parts for any damage. Contact customer support immediately if any parts are missing or damaged.

3.2. Main Cabinet Assembly

Assemble the main cabinet structure according to the step-by-step instructions. This typically involves:

Attaching side panels to the base and top panels.
Installing internal shelving and partitions.
Mounting the hydraulic lifting mechanism components.

3.3. Bed Frame Assembly and Integration

Assemble the queen-size bed frame and integrate it into the main cabinet.

Construct the bed frame, including the slat support system.
Attach the bed frame to the hydraulic mechanism within the main cabinet.
Ensure the bed frame moves smoothly and locks securely in both the upright and deployed positions.

Internal view of the Murphy bed cabinet with the bed frame partially extended, showing the slat support system and side storage cabinets.

Figure 3.1: Internal view of the Murphy bed cabinet with the bed frame partially extended, illustrating the slat support system and the interior of the side storage cabinets.

3.4. Wall Mounting

Securely mount the assembled Murphy bed unit to a sturdy wall. This step is critical for safety and stability.

Locate wall studs using a stud finder.
Use appropriate wall anchors and screws (provided) for your wall type.
Ensure the unit is level and plumb before tightening all mounting hardware.

3.5. Side Cabinet and Desk Installation

Attach the two side storage cabinets and the integrated desk surface.

Assemble the side cabinets and attach them to the main Murphy bed unit.
Install the desk surface, ensuring it is level and securely fastened.
Connect the charging station's power cable to a wall outlet.

PVWIIK Queen Size Murphy Bed fully deployed with a mattress and bedding, flanked by two storage cabinets.

Figure 3.2: The PVWIIK Queen Size Murphy Bed in its fully deployed position, ready for use as a bed. The integrated desk is hidden, and the side storage cabinets are visible.

4. Operating Instructions

4.1. Folding the Bed (Cabinet Configuration)

Remove all bedding, pillows, and the mattress from the bed frame. Ensure the bed frame is clear of any obstructions.
Grasp the foot of the bed frame firmly with both hands.
Lift the bed frame upwards, guiding it smoothly into the cabinet. The hydraulic mechanism will assist in the lifting.
Ensure the bed frame locks securely into the upright position. The desk surface will become accessible.

4.2. Unfolding the Bed (Sleeping Configuration)

Ensure the area in front of the cabinet is clear of any obstructions.
Locate the handle or release mechanism at the top of the bed frame (when in cabinet position).
Gently pull the bed frame downwards. The hydraulic mechanism will control the descent.
Continue lowering the bed frame until it rests fully on the floor supports.
Place your mattress and bedding onto the deployed bed frame.

4.3. Using the Desk and Charging Station

The desk surface is accessible when the bed is in its folded (cabinet) configuration.
To use the charging station, ensure the unit is plugged into a wall outlet.
Insert your devices' USB cables into the USB ports or power adapters into the AC outlets.
Do not exceed the maximum power output of the charging station (refer to specifications or labels on the unit).

5. Maintenance

Regular maintenance will ensure the longevity and proper functioning of your Murphy bed.

Cleaning: Wipe surfaces with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners that could damage the wood finish.
Hardware Check: Periodically check all screws, bolts, and connections to ensure they are tight. Retighten as necessary.
Hydraulic Mechanism: The hydraulic system is designed for long-term use and typically requires no maintenance. If you notice any unusual resistance or noise during folding/unfolding, contact customer support. Do not attempt to lubricate or disassemble the hydraulic cylinders.
Wall Mount: Regularly inspect the wall mounting points for any signs of loosening or damage.
Charging Station: Keep the charging ports free of dust and debris. Do not expose to liquids.

6. Troubleshooting

This section addresses common issues you might encounter with your Murphy bed.

Problem	Possible Cause	Solution
Bed is difficult to fold or unfold.	Obstruction, misaligned components, or hydraulic mechanism issue.	Ensure no items are on the bed frame or in the cabinet's path. Check that all assembly hardware is tight and components are aligned. If the issue persists and there are no obstructions, contact customer support for hydraulic mechanism inspection.
Charging station not working.	Not plugged in, power outage, or faulty device/cable.	Verify the unit is securely plugged into a live wall outlet. Check if the wall outlet is functioning by plugging in another device. Test with a different device and charging cable. If still not working, contact customer support.
Bed unit feels unstable or wobbly.	Improper wall mounting or loose connections.	Re-check all wall mounting hardware to ensure it is securely fastened to wall studs. Verify all internal assembly screws are tight. Ensure the unit is on a level surface.

7. Specifications

Key specifications for the PVWIIK Queen Size Murphy Bed with Desk & Charging Station:

Model: PVWIIK
ASIN: B0FCYDB7HL
Size: Queen
Color: White
Finish Type: Wood
Special Feature: No Box Spring Needed (Slat support system)
Included Components: Murphy Bed Unit, Integrated Desk, Two Side Storage Cabinets
Unit Weight: Approximately 132 Pounds
Assembly Required: Yes (Two adults recommended)
Manufacturer: PVWIIK
UPC: 742937023904
Integrated Charging Station: Features AC outlets and USB ports.
Dimensions:
- Overall Dimensions (Closed, including side cabinets): 116.69" (Width) x 80.31" (Height) x 24.33" (Depth of main unit) / 16.14" (Depth of side cabinets)
- Main Murphy Bed Unit Dimensions (Closed): 68.03" (Width) x 80.31" (Height) x 24.33" (Depth)
- Side Storage Cabinet Dimensions (each): 24.33" (Width) x 80.31" (Height) x 16.14" (Depth)
- Bed Frame Length (Deployed): Approximately 87.03"
- Bed Frame Height from Floor (Deployed): Approximately 9.9"
- Overall Footprint (Bed Deployed): Approximately 116.69" (Total Width) x 87.28" (Total Depth from wall) x 88.54" (Max Height)

Detailed dimensions of the PVWIIK Queen Size Murphy Bed in its closed configuration, showing overall width, height, and depth of main and side units.

Figure 7.1: Detailed dimensions of the PVWIIK Queen Size Murphy Bed in its closed configuration, including the main unit and side cabinets.

Detailed dimensions of the PVWIIK Queen Size Murphy Bed with the bed frame partially extended, showing bed height and depth.

Figure 7.2: Detailed dimensions of the PVWIIK Queen Size Murphy Bed with the bed frame partially extended, indicating bed height from floor and overall depth when extended.

8. Warranty and Support

For warranty information, please refer to the documentation included with your product packaging or contact PVWIIK customer support directly. PVWIIK is committed to providing quality products and support.

Customer Support:

If you have any questions, require assistance with assembly, or need to report missing/damaged parts, please contact PVWIIK customer support. Contact details are typically found on the product packaging or the manufacturer's official website.

For general inquiries or to explore other products, you may visit the PVWIIK brand page on Amazon.

PVWIIK PVWIIK
