XenonLab W750 Cordless Stick Vacuum Cleaner User Manual

Introduction

Thank you for choosing the XenonLab W750 Cordless Stick Vacuum Cleaner. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new vacuum cleaner. Please read it thoroughly before first use and keep it for future reference.

Important Safety Instructions

When using an electrical appliance, basic precautions should always be followed, including the following:

• Read all instructions before using this appliance.
• Do not use outdoors or on wet surfaces.
• Do not allow to be used as a toy. Close attention is necessary when used by or near children.
• Use only as described in this manual. Use only manufacturer's recommended attachments.
• Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center.
• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not handle plug or appliance with wet hands.
• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce airflow.
• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
• Do not pick up toxic material (e.g., chlorine bleach, ammonia, drain cleaner).
• Do not use without dust bag and/or filters in place.
• Turn off all controls before unplugging.
• Use extra care when cleaning on stairs.
• Store indoors.
• Do not charge the unit outdoors.
• Use only the charger specified by the manufacturer.

Package Contents

Please check the package contents to ensure all items are present and in good condition:

• Main Vacuum Unit
• Extension Wand
• Motorized Floor Brush with Green LED Light
• 2-in-1 Brush Tool
• Crevice Tool
• Wall-Mounted Charging Dock
• Power Adapter
• HEPA Filter (pre-installed)
• Extra Replacement HEPA Filter
• User Manual (this document)

Image: All components of the XenonLab W750 Cordless Stick Vacuum Cleaner, including the main unit, various attachments, and filters.

Product Overview

The XenonLab W750 is a versatile cordless stick vacuum cleaner designed for efficient home cleaning. It features powerful suction, a multi-stage filtration system, and various attachments for different cleaning needs.

Key Features:

• 45KPA Suction Power: Provides strong suction for deep cleaning carpets and hard floors, effectively removing pet hair and debris.
• Lightweight Design: Weighing 5.84 lbs, it is easy to maneuver for extended cleaning sessions without strain.
• Green LED Floor Brush: A 520nm green LED light on the floor brush illuminates hidden dust and debris, enhancing cleaning visibility. The brush head is 90° bendable and 180° adjustable for reaching tight spaces.
• 6-Stage Filtration System: Captures 99.9% of micro-dust, including a HEPA filter, cone filter, debris secondary filter, dust cup filter, and stainless steel filter, ensuring clean air output.
• Long Runtime: Up to 35 minutes of continuous cleaning on a single charge, suitable for whole-house cleaning.
• Versatile Attachments: Includes a 2-in-1 brush, crevice tool, and motorized floor brush for various cleaning tasks.
• Anti-Tangle V-Roller Brush: Designed to reduce hair tangles by up to 99%, making maintenance easier.

Image: Detailed diagram illustrating the 6-stage filtration system of the vacuum cleaner, including the post-motor filter, debris secondary filter, cone filter, dust cup filter, HEPA filter, and stainless steel filter.

Image: Close-up of the motorized floor brush showing the integrated green LED light, designed to reveal hidden dust. Also highlights 90° bendable and 180° adjustable features.

Image: Comparison showing the anti-tangle V-roller brush design versus a tangled brush, emphasizing 99% hair-tangle reduction.

Setup and Assembly

Follow these steps to assemble your XenonLab W750 Cordless Stick Vacuum Cleaner:

1. Attach the Extension Wand: Insert the extension wand into the main vacuum unit until it clicks securely into place.
2. Connect the Floor Brush: Attach the motorized floor brush to the other end of the extension wand, ensuring it locks firmly.
3. Install Wall-Mounted Charging Dock: Choose a suitable location near a power outlet. Secure the charging dock to the wall using the provided screws and anchors.
4. Charge the Battery: Before first use, fully charge the vacuum cleaner. Connect the power adapter to the charging dock or directly to the main unit, then plug it into a power outlet. The battery indicator will show charging status.
5. Attach Accessories: For handheld use, detach the extension wand and attach the 2-in-1 brush or crevice tool directly to the main unit.

Image: An exploded view showing the main vacuum unit, extension wand, floor brush, and various attachments, illustrating how they connect for assembly.

Operating Instructions

Powering On/Off and Suction Modes:

• Press the power button to turn the vacuum cleaner on or off.
• Use the mode selection button to switch between different suction power levels (e.g., Eco, Standard, Max). The current mode and battery level will be displayed on the digital screen.

Cleaning Surfaces:

• Hard Floors and Carpets: Use the motorized floor brush for effective cleaning on both hard floors and carpets. The green LED light will help reveal hidden dust.
• Pet Hair: The 45KPA suction power and anti-tangle V-roller brush are optimized for picking up pet hair from various surfaces.
• Tight Spaces and Upholstery: Use the crevice tool for narrow gaps and corners. The 2-in-1 brush tool is ideal for upholstery, curtains, and delicate surfaces.

Image: A woman using the XenonLab W750 vacuum cleaner on a carpeted floor, demonstrating its powerful suction for pet hair and debris.

Image: A woman easily lifting and using the 5.84 lbs lightweight XenonLab W750 vacuum cleaner to clean high areas, such as curtains.

Image: Multiple individuals cleaning different areas of a home with the XenonLab W750, illustrating its capability to clean an entire house on one charge (up to 35 minutes runtime).

Maintenance

Regular maintenance ensures optimal performance and extends the lifespan of your vacuum cleaner.

Emptying the Dustbin:

Empty the dustbin after each use or when the MAX fill line is reached. Press the dustbin release button to detach it from the main unit, then open the bottom flap to dispose of debris.

Cleaning Filters:

The HEPA filter and other internal filters are removable and washable. It is recommended to clean them regularly (e.g., monthly) and replace the HEPA filter every 3 months, depending on usage. An extra replacement HEPA filter is included with your purchase.

1. Remove the dustbin and detach the filters.
2. Tap off loose dirt, then rinse the filters under cold running water until the water runs clear.
3. Allow filters to air dry completely for at least 24 hours before reassembling. Do not use a dryer or other heating devices.

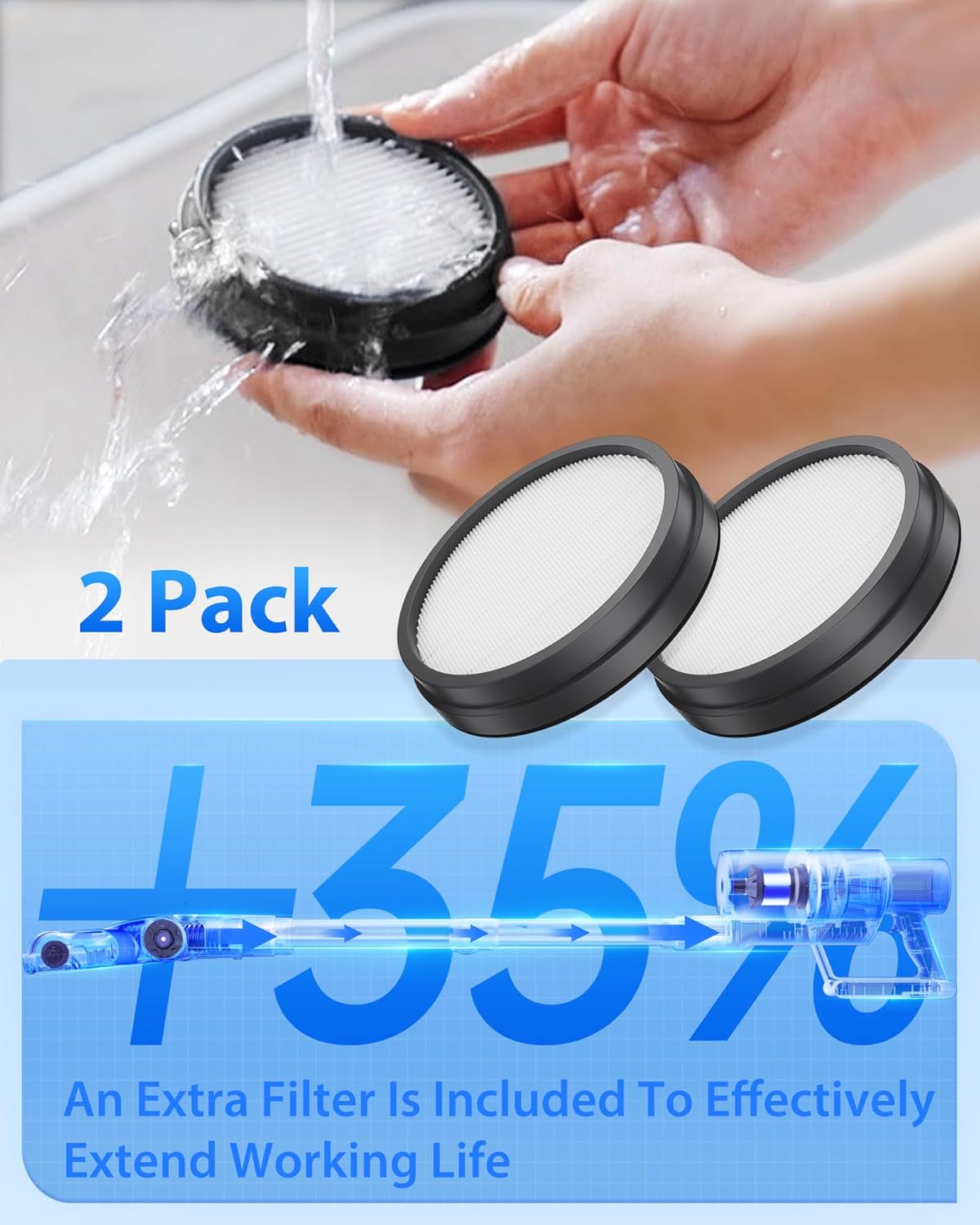

Image: Hands rinsing the removable and washable HEPA filters under running water, demonstrating the cleaning process. Highlights the inclusion of an extra filter.

Cleaning the Roller Brush:

Periodically check the motorized floor brush for tangled hair or debris. Remove the roller brush from the head and use scissors or a cleaning tool to cut and remove any tangled hair. Reinsert the brush securely.

Troubleshooting

If you encounter issues with your XenonLab W750, please refer to the following common problems and solutions:

Specifications

Warranty and Support

For warranty information, technical support, or customer service inquiries, please refer to the contact information provided on the product packaging or visit the official XenonLab website. Please retain your proof of purchase for warranty claims.
