Introduction
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your MRCOOL Easy Pro Series 9000 BTU Ductless Inverter Mini Split Air Conditioner and Heat Pump System. Please read this manual thoroughly before using the product and retain it for future reference.
Safety Information
Always adhere to basic safety precautions to reduce the risk of fire, electric shock, or injury. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Ensure the unit is properly grounded.
- Do not operate the unit with wet hands.
- Do not block air inlets or outlets.
- Turn off power before cleaning or performing maintenance.
- Keep children away from the unit.
Setup and Installation
The MRCOOL Easy Pro Series is designed for DIY installation, featuring a 16-foot pre-charged line set. However, proper installation requires specific tools and adherence to guidelines to ensure optimal performance and safety.
Image: Two individuals measuring a wall, illustrating the initial steps for mini split installation. The system comes with a 16-foot pre-charged line for DIY installation, though a vacuum pump and gauges are required for proper setup.
Included Components
The system typically arrives in two boxes. Verify all components are present before beginning installation:

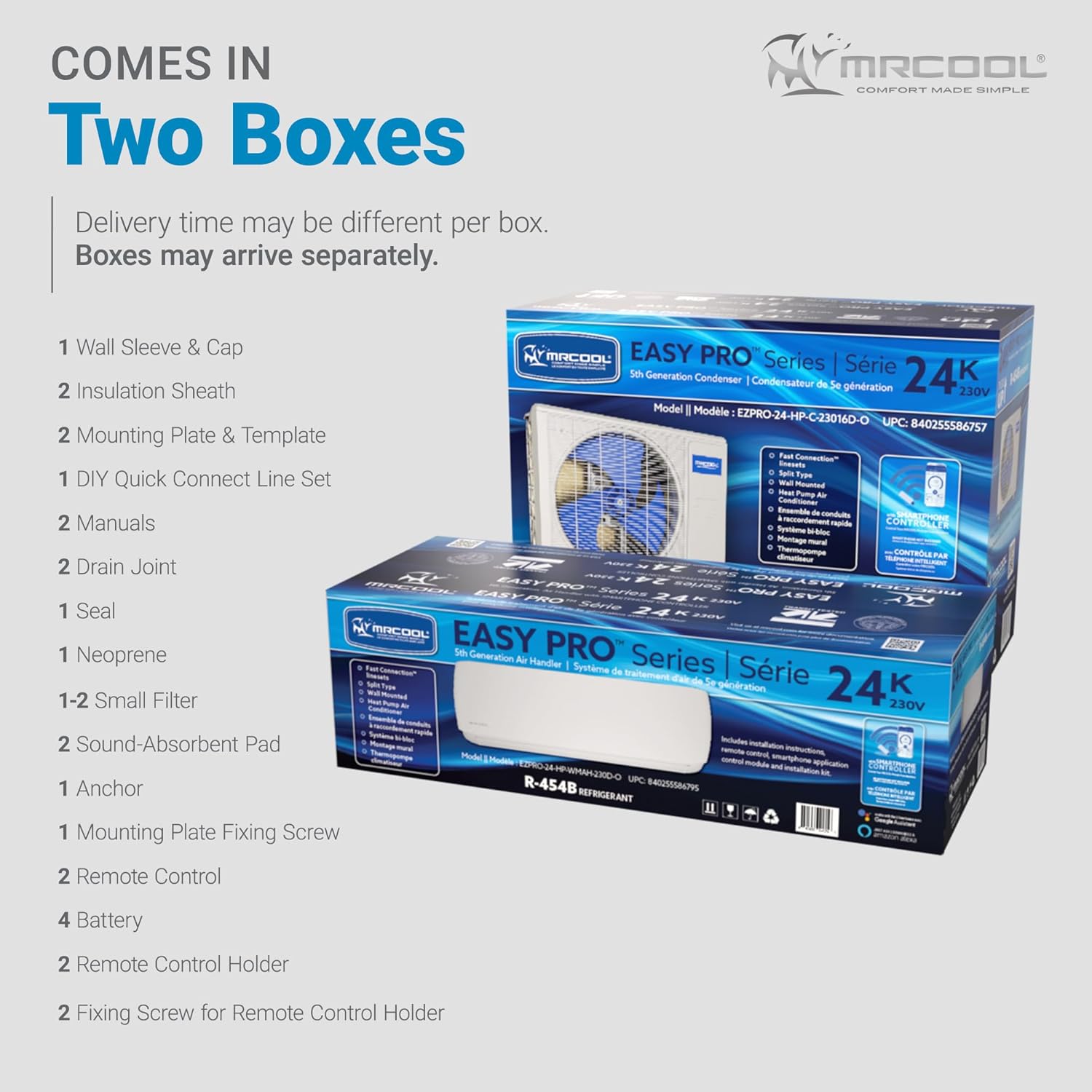

Image: Two product boxes, one for the condenser and one for the air handler, listing various included components such as wall sleeve, insulation sheath, mounting plate, DIY quick connect line set, drain joint, seal, neoprene, small filter, sound-absorbent pad, anchor, mounting plate fixing screw, remote control, and batteries.
- Wall Sleeve & Cap
- Insulation Sheath
- Mounting Plate & Template
- DIY Quick Connect Line Set (16-foot pre-charged)
- Drain Joint
- Seal
- Neoprene
- Small Filter
- Sound-Absorbent Pad
- Anchor
- Mounting Plate Fixing Screw
- Remote Control & Batteries
Note: While designed for DIY, a vacuum pump and gauges are required for proper installation to ensure the system operates efficiently and safely.
Operating Instructions
Your MRCOOL Easy Pro Series mini split system provides both heating and cooling functionalities for year-round comfort. It covers areas up to 400 square feet.
Image: A family relaxing in a living room, with an overlay highlighting key features of the MRCOOL mini split system including Low Ambient Cooling, Complete Kit Included, Leakage Detection, DC Inverter, Dependable Timer, and Gold Fin Condenser.
Key Features:
- Cooling and Heating: Provides efficient cooling and heating for various climates.
- Timer Mode: Schedule operation times for convenience and energy saving.
- Refrigerant Leakage Detection: Automatically detects refrigerant leaks to prevent system damage and ensure safety.
- Active Clean Technology: Helps maintain indoor air quality by keeping the unit fresh.
- Digital Assistant Ready: Compatible with Google Assistant and Amazon Alexa via a smart HVAC controller module and app.
Image: A person interacting with a smartphone, demonstrating the digital assistant readiness of the MRCOOL system, which is compatible with Google Assistant and Amazon Alexa.
Using the Remote Control:
The included remote control allows you to adjust settings such as temperature, mode (cool, heat, fan, dry), fan speed, and timer functions. Point the remote directly at the indoor unit for proper communication.
Image: A woman comfortably seated on a sofa, using the remote control to adjust the settings of the wall-mounted mini split air conditioner visible above her.
Maintenance
Regular maintenance ensures the longevity and efficiency of your MRCOOL mini split system. Always disconnect power to the unit before performing any maintenance.
Cleaning Air Filters:
The system features easy-to-clean filters. It is recommended to clean the air filters every two weeks or more frequently depending on usage and air quality. Refer to the detailed instructions in the full manual for filter removal and cleaning procedures.
Active Clean Technology:
Utilize the Active Clean function to keep the indoor unit's coil clean and prevent mold and bacteria buildup, contributing to better indoor air quality.
Outdoor Unit Maintenance:
Periodically inspect the outdoor unit for any obstructions (leaves, debris) and ensure the area around it is clear for proper airflow. Clean the outdoor coil as needed, following safety guidelines.
Troubleshooting
If your unit is not operating correctly, consult the following common issues before contacting customer support.
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit does not turn on | No power supply; circuit breaker tripped; remote control batteries dead | Check power connection; reset circuit breaker; replace remote batteries |
| Insufficient cooling/heating | Dirty air filters; blocked outdoor unit; wrong mode selected; room too large | Clean air filters; clear obstructions; select correct mode; ensure unit capacity matches room size |
| Unusual noise | Loose parts; foreign objects in fan; normal operating sounds (e.g., refrigerant flow) | Inspect for loose parts or objects; if noise persists and is abnormal, contact support |
| Water leakage from indoor unit | Clogged drain hose; improper installation | Clear drain hose; consult installation manual or professional for inspection |
| Refrigerant Leakage Detection activated | System detected a refrigerant leak | Immediately turn off the unit and contact a qualified HVAC technician for inspection and repair. |
Specifications
| Feature | Detail |
|---|---|
| Model Number | EZPRO-09-HP-11516D-O |
| Cooling Power | 9000 British Thermal Units (BTU) |
| Voltage | 115 Volts |
| Floor Area Coverage | Up to 400 Square Feet |
| Product Dimensions (Outdoor Unit) | 10.63"D x 32.87"W x 21.26"H |
| Noise Level | 43 dB |
| Special Feature | Heating & Cooling Function |
| BEE Star Rating | 2 Star |
| Color | White |
| Power Source | Corded Electric |
| Manufacturer | MRCOOL |
Warranty and Support
MRCOOL COMFORT MADE SIMPLE provides the following warranty for this product:
- Compressor: 1 Year Limited Warranty
- Parts: 2 Years Limited Warranty
For warranty claims, technical assistance, or further support, please contact MRCOOL customer service. You can find more information and contact details on the official MRCOOL website or by visiting the MRCOOL COMFORT MADE SIMPLE Store.
