Garden Winds Replacement Canopy Top Cover

Introduction

This manual provides comprehensive instructions for the installation, operation, and maintenance of your Garden Winds Reinforced Replacement Canopy Top Cover. This canopy is designed to fit most 10' x 13' retractable pergolas, including specific models from Purple Leaf, DOMI, and Kozyard. Please read all instructions carefully before proceeding with installation or use to ensure proper fit and longevity of your product.

Important Safety Information

WARNING: Failure to follow these safety guidelines may result in injury or damage to the product.

• Always measure your pergola frame accurately before purchasing to ensure a proper fit.
• Exercise caution when handling and installing the canopy, especially around moving parts of a retractable pergola frame.
• Keep the canopy material away from open flames, sparks, and other heat sources to prevent fire hazards.
• Do not use the canopy in extreme weather conditions such as heavy winds, snow, or hail. Remove the canopy during such conditions to prevent damage.

Product Overview and Features

The Garden Winds Replacement Canopy Top Cover is constructed from RipLock 350 fabric, a 350 denier polyester material designed for outdoor durability. Key features include:

• RipLock 350 Fabric: High-density 350 denier polyester with a reinforced grid pattern to help limit tear spread.
• Ultra Stitch: Reinforced 4-ply thread stitching provides superior pull strength for seams.
• Outdoor-Rated Protection: UPF 50+ UV resistant, water resistant, and CPAI-84 fire retardant for optimal outdoor performance.
• Precision Fit: Engineered for specific pergola models to ensure a secure and proper fit.

Compatibility

This replacement canopy is designed to fit most 10' x 13' retractable pergolas. It is custom-made to fit the following manufacturer's model numbers:

• Purple Leaf 10x13 Pergola: Wirksworth, ZYMPG1012, ZYMPG1013-KK
• Domi 10x13 Pergola: B08YQTB5PS, B08YQJQFL1
• Kozyard 10x13: KZAPG1013BEI, KZMPG1013-FR, KZMPG1013-BLU

The canopy dimensions are 134.5 inches (L) x 107.5 inches (W). Please measure your existing pergola frame carefully to confirm compatibility before installation.

Setup and Installation

This replacement canopy is designed for easy installation. It features six tubular pockets for attachment to your pergola's retractable frame.

1. Prepare the Pergola: Ensure your pergola frame is clean and free of debris. If replacing an old canopy, carefully remove it from the frame.
2. Identify Frame Details: Familiarize yourself with the attachment points and structure of your pergola frame. Pay attention to how the existing canopy (if any) was secured.
3. Unfold the Canopy: Carefully unfold the new replacement canopy.
4. Insert Support Tubes: Locate the six tubular pockets on the canopy. Slide the retractable support tubes (not included with canopy) from your pergola frame into these pockets.
5. Attach to Frame: Secure the canopy to the pergola frame according to your specific pergola's design. This typically involves attaching the ends of the support tubes to the frame's brackets. Ensure the canopy is evenly spread and taut.
6. Verify Fit: Once installed, check that the canopy is securely attached and properly aligned. Adjust as necessary to prevent sagging or uneven tension.

Operation

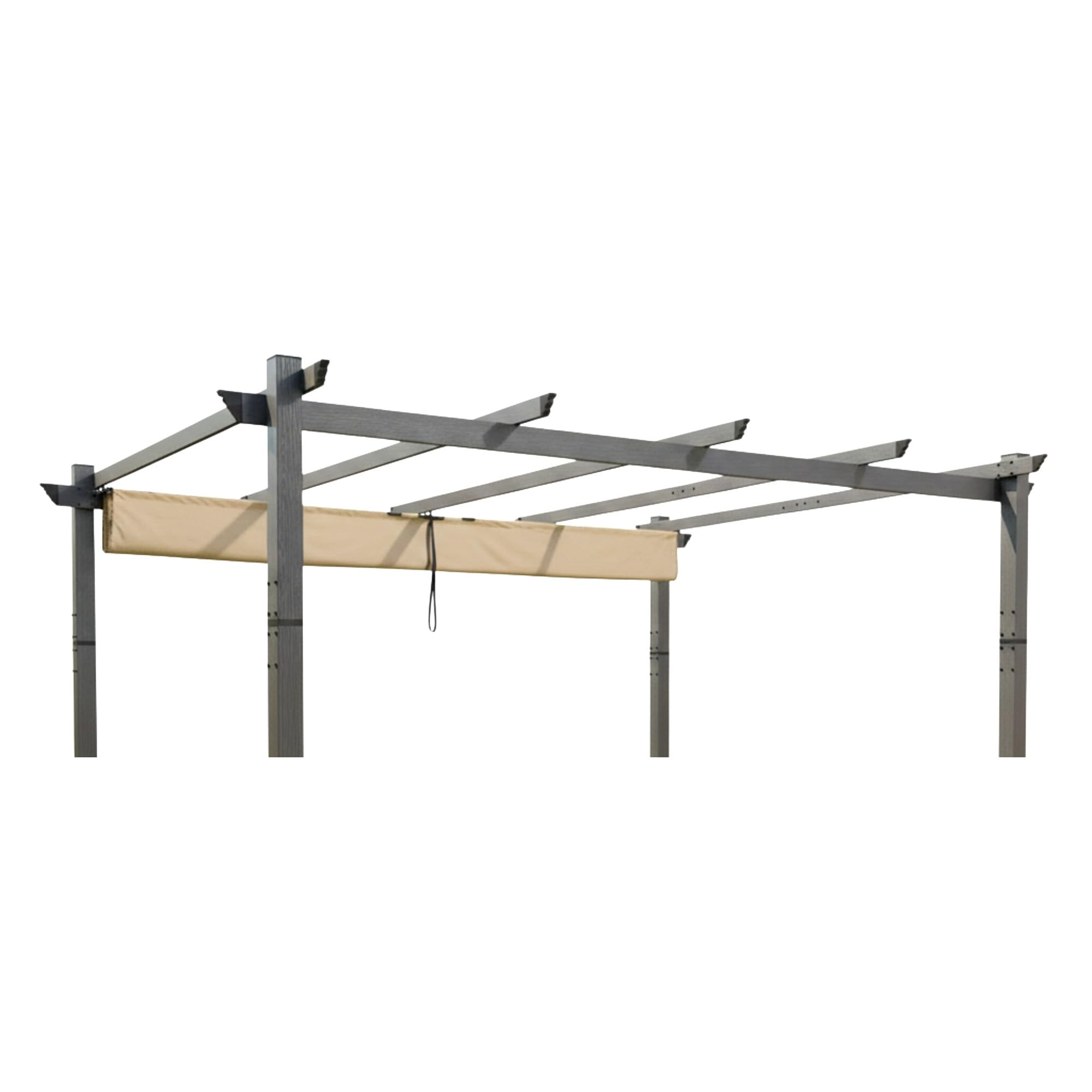

This canopy is designed for retractable pergola frames. To operate, gently pull or push the canopy along its tracks to extend or retract it. Ensure the movement is smooth and free of obstructions. Avoid forcing the canopy if it encounters resistance, as this may cause damage to the fabric or the pergola mechanism.

Maintenance

Proper maintenance will extend the life of your replacement canopy:

• Cleaning: Clean the canopy regularly with mild soap and water. Use a soft brush or cloth to remove dirt and debris. Rinse thoroughly with clean water and allow to air dry completely before retracting or storing. Do not use harsh chemicals or abrasive cleaners.
• Inspection: Periodically inspect the canopy for any signs of wear, tear, or damage. Check seams and attachment points for integrity.
• Seasonal Care: In regions with harsh winters or extreme weather, it is recommended to remove the canopy for storage during the off-season to protect it from damage and prolong its lifespan.

Troubleshooting

• Canopy does not fit: Double-check your pergola's model number and dimensions against the canopy's specifications (134.5"L x 107.5"W). Ensure all measurements are accurate.
• Canopy sags or is uneven: Verify that the support tubes are fully inserted into the tubular pockets and that the canopy is evenly distributed and taut across the frame. Adjust attachment points as needed.
• Difficulty retracting/extending: Inspect the pergola's tracks and mechanisms for any obstructions or damage. Ensure the canopy is not snagged. Lubricate moving parts of the pergola frame if necessary, following the pergola manufacturer's guidelines.

Specifications

Warranty and Support

This Garden Winds Replacement Canopy Top Cover is backed by a 1-year limited performance warranty. This warranty covers manufacturing defects and material failures under normal use conditions.

For questions regarding fit, product issues, or warranty claims, please contact Garden Winds customer support. Our US-based customer support team is available to assist with model identification, compatibility guidance, and post-purchase assistance.

For further assistance, please visit the Garden Winds Store on Amazon or refer to the contact information provided with your purchase.
