1. Introduction
This manual provides comprehensive instructions for the assembly, operation, and maintenance of your stasado King Bed Frame. This bed frame features an upholstered headboard, integrated LED lighting, two storage drawers, and a built-in charging station. Please read these instructions carefully before assembly and use to ensure proper function and safety.
Image 1.1: Fully assembled stasado King Bed Frame, showcasing the upholstered headboard with LED lighting, integrated charging station, and two under-bed storage drawers.
2. Safety Information
- Weight Capacity: Do not load the bed frame with more than 1000 pounds (approximately 453 kg). Exceeding this limit may compromise the structural integrity and safety of the frame.
- Assembly Precautions: Exercise caution around sharp edges during the assembly process to prevent injury. It is recommended to wear protective gloves.
- Electrical Safety: Ensure all electrical connections for the LED lights and charging station are properly secured and not exposed to moisture. Disconnect power before cleaning or maintenance.
- Children and Pets: Keep small parts and packaging materials away from children and pets during assembly.
- Stable Surface: Assemble and place the bed frame on a flat, stable surface to prevent wobbling or instability.
3. Package Contents
Before beginning assembly, verify that all components are present and undamaged. Refer to the included parts list in your packaging for a detailed inventory. Key components include:
- Bed Frame components (metal frame, slats)
- Upholstered Headboard with integrated shelving
- LED Light Strip
- USB Charging Station module
- Two (2) Storage Drawers with wheels
- Assembly Hardware (screws, bolts, nuts, Allen wrench)
- Instruction Manual (this document)
4. Assembly Instructions
Assembly is designed to be straightforward and typically takes approximately 45 minutes. It is recommended to have two people for easier assembly. Ensure you have ample space and all tools provided.
4.1. Preparation
- Unpack all components and lay them out on a clean, soft surface to prevent scratches.
- Identify all parts using the provided parts list.
- Ensure all necessary tools (usually an Allen wrench, provided) are at hand.
4.2. Frame Assembly
Follow the step-by-step diagrams in your physical instruction manual for precise connections. The frame utilizes an Innovative Locking System for secure and efficient setup.

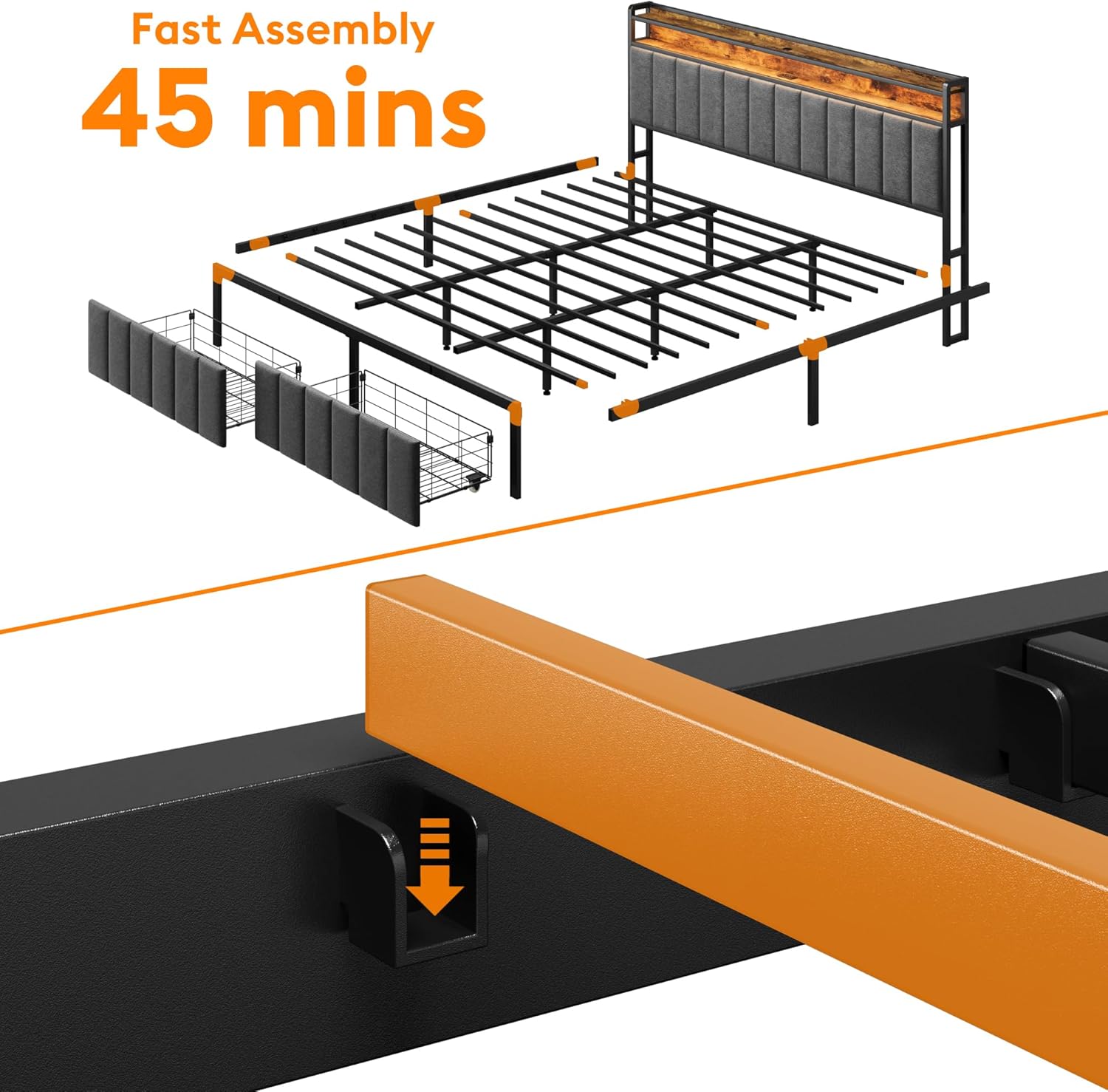

Image 4.1: Exploded view of the bed frame components, illustrating the quick assembly process.
Image 4.2: Detail of the innovative locking system, designed for effortless setup.
4.3. Headboard and Slat Installation
- Attach the upholstered headboard to the main frame using the designated hardware.
- Install the metal slats onto the frame. These slats are equipped with EVA Silent Slats to prevent noise and ensure a quiet sleeping environment.
- Ensure the Secure Mattress Enclosure is properly aligned to keep your mattress firmly in place.
Image 4.3: Detail of the EVA silent slats, designed for noise reduction.
Image 4.4: The secure mattress enclosure feature, ensuring the mattress remains in position.
4.4. Drawer and Electrical Component Installation
- Insert the two storage drawers into their designated slots under the bed frame. Ensure the latch design engages for stability.
- Connect the LED light strip and USB charging station according to the wiring diagrams in your physical manual.
Image 4.5: The two large storage drawers, highlighting the latch design for stability.
Image 4.6: Detail showing the drawer fixture that prevents sliding and the four wheels on each drawer for easy movement.
5. Operating Instructions
5.1. LED Headboard Lighting
The integrated LED lighting system offers customizable ambiance for your bedroom.
- Control: The LED lights can be controlled via a smart controller or a mobile application. Refer to the specific instructions provided with the LED kit for pairing and usage.
- Color Options: Choose from 7 different colors to match your mood or decor.
- Brightness Adjustment: Adjust the light intensity with 3 brightness levels.
- Music Modes: Some models may feature music synchronization modes, allowing the lights to react to sound.
Image 5.1: Customizable RGB LED lighting in the headboard, illustrating control options via remote and mobile app.
5.2. Built-in Charging Station
The headboard includes a convenient charging station for your electronic devices.
- Ports: The charging station typically includes multiple USB ports, including USB-C (20W fast charging) and standard USB-A (5V/1.8A).
- Power: Connect the bed frame's power cord (6.5-foot) to a standard wall outlet.
- Usage: Plug your devices into the appropriate USB ports for charging.

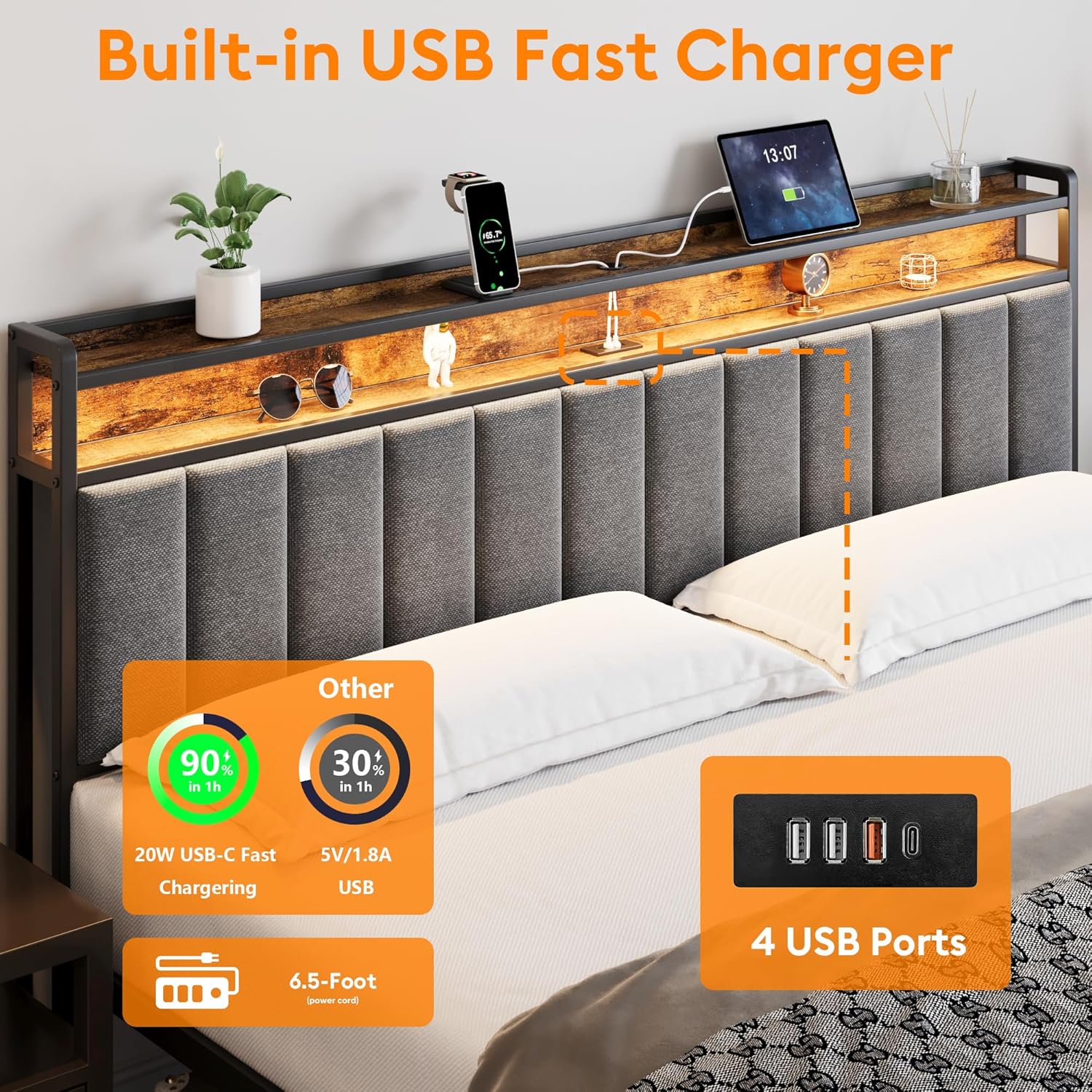

Image 5.2: Detail of the built-in USB fast charger, featuring USB-C and USB-A ports for device charging.
5.3. Storage Drawers
The two under-bed storage drawers provide additional space for organizing personal items.
- Access: Pull the drawers out from under the bed frame. They are equipped with wheels for smooth movement.
- Security: The latch design helps keep the drawers securely in place when pushed in.
- Capacity: Utilize the drawers for storing clothes, blankets, books, or other bedroom essentials.
6. Maintenance
- Cleaning the Frame: Wipe the metal frame with a soft, damp cloth. Avoid abrasive cleaners.
- Cleaning the Upholstery: For the upholstered headboard, use a fabric cleaner suitable for the material, or gently spot clean with a mild detergent and damp cloth. Test on an inconspicuous area first.
- Electrical Components: Ensure the charging station and LED lights are unplugged before cleaning. Wipe with a dry cloth.
- Drawer Maintenance: Periodically check the drawer wheels for debris and clean as needed to ensure smooth operation.
- Hardware Check: Periodically inspect all bolts and screws to ensure they remain tight. Retighten if necessary to maintain stability.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| LED lights not working |
|
|
| Charging station not working |
|
|
| Bed frame is squeaking or unstable |
|
|
| Storage drawers do not stay closed or slide out easily |
|
|
8. Specifications
| Feature | Detail |
|---|---|
| Brand | stasado |
| Model Number | King size bed frame |
| Size | King |
| Product Dimensions (L x W x H) | 86.3"L x 76.8"W x 42"H |
| Item Weight | 105.2 pounds |
| Color | Grey |
| Material | Upholstered, Metal Frame |
| Special Features | LED Lights, No Box Spring Needed, Squeak Resistant, Storage Drawers, USB Charging Station |
| Compatible Mattress Size | King (8-12 inch thickness recommended) |
| Assembly Required | Yes (Approx. 45 minutes) |
| Maximum Load Capacity | 1000 pounds |

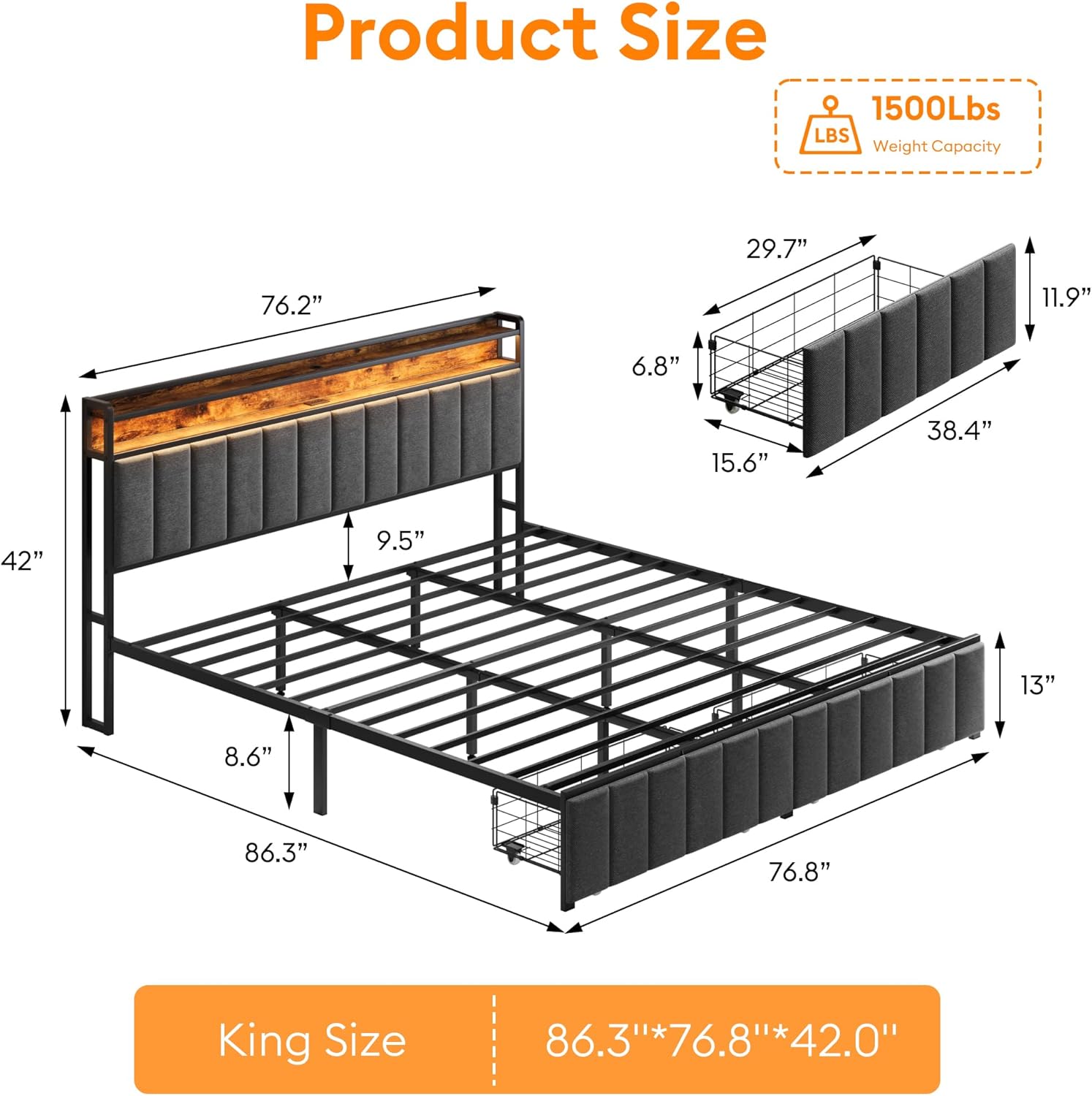

Image 8.1: Detailed product dimensions for the stasado King Bed Frame.
Image 8.2: Recommended mattress thickness range (8-12 inches) for optimal fit.
9. Warranty and Support
Specific warranty information for the stasado King Bed Frame is not provided within this manual. For details regarding warranty coverage, claims, or technical support, please refer to the warranty card included with your product packaging or contact stasado customer service directly through their official website or the retailer where the product was purchased.
