Introduction
This manual provides detailed instructions for the assembly, operation, and maintenance of your GarveeLife 10 x 10 Ft Wood-Grain Aluminum Pergola with Retractable Canopy. Please read this manual thoroughly before beginning assembly or use to ensure safe and proper operation.
Safety Information
WARNING: Failure to follow these instructions may result in serious injury or property damage.
- Ensure all parts are present and undamaged before assembly. Do not attempt to assemble if parts are missing or damaged.
- Assembly requires at least two adults.
- Always wear appropriate safety gear, such as gloves, during assembly.
- Choose a level and stable surface for installation. Secure the pergola to the ground using appropriate anchors (not included, unless specified).
- Do not use the pergola in extreme weather conditions, such as strong winds, heavy rain, or snow. Retract the canopy during such conditions.
- Keep children and pets away from the assembly area.
- Regularly inspect the pergola for loose connections or damaged parts. Tighten fasteners as needed.
Parts List
Before assembly, verify that all components listed below are included in your package. If any parts are missing or damaged, contact GarveeLife customer service.
| Part | Description | Quantity |
|---|---|---|
| Main Support Posts | Wood-grain aluminum vertical posts | 4 |
| Crossbeams | Horizontal wood-grain aluminum beams | Varies by design |
| Retractable Canopy Fabric | Beige waterproof and UV-resistant fabric | 1 |
| Canopy Pulleys/Runners | Components for canopy movement | Set |
| Base Supports/Footings | Upgraded four-sided base for stability | 4 |
| Hardware Kit | Bolts, screws, wrenches, etc. | 1 |
| Instruction Manual | Assembly guide | 1 |
Setup and Assembly
Follow these steps carefully for proper assembly. It is recommended to have at least two people for assembly.
Step 1: Assemble the Basic Framework
First, set up the basic framework by assembling the two vertical legs. Then, install the crossbeam to connect them. Ensure all connections are secure but do not fully tighten bolts until the entire frame is assembled.
Step 2: Connect the Frames
Use additional crossbeams to connect the two assembled frames, forming the complete basic structure of the aluminum pergola. Verify that the structure is square and level before proceeding.
Step 3: Install Canopy Crossbeams and Pulleys
Install all the remaining crossbeams that will support the canopy fabric. Before securing these, make sure to install the canopy's pulleys or runners onto the designated tracks. These components allow the canopy to slide smoothly.
Step 4: Attach Canopy and Secure to Ground
Connect the movable canopy fabric to the installed pulleys. Ensure the canopy is properly aligned and can slide freely. Finally, secure the aluminum alloy frame to the ground using appropriate ground stakes or anchors (not always included, check package contents). Fully tighten all bolts and fasteners.
Base Support and Frame Details
The pergola features an upgraded base column design, reinforced on all four sides for comprehensive stability. This design significantly increases stability, even in windy conditions. Ensure the base supports are firmly attached to the posts and secured to the ground.

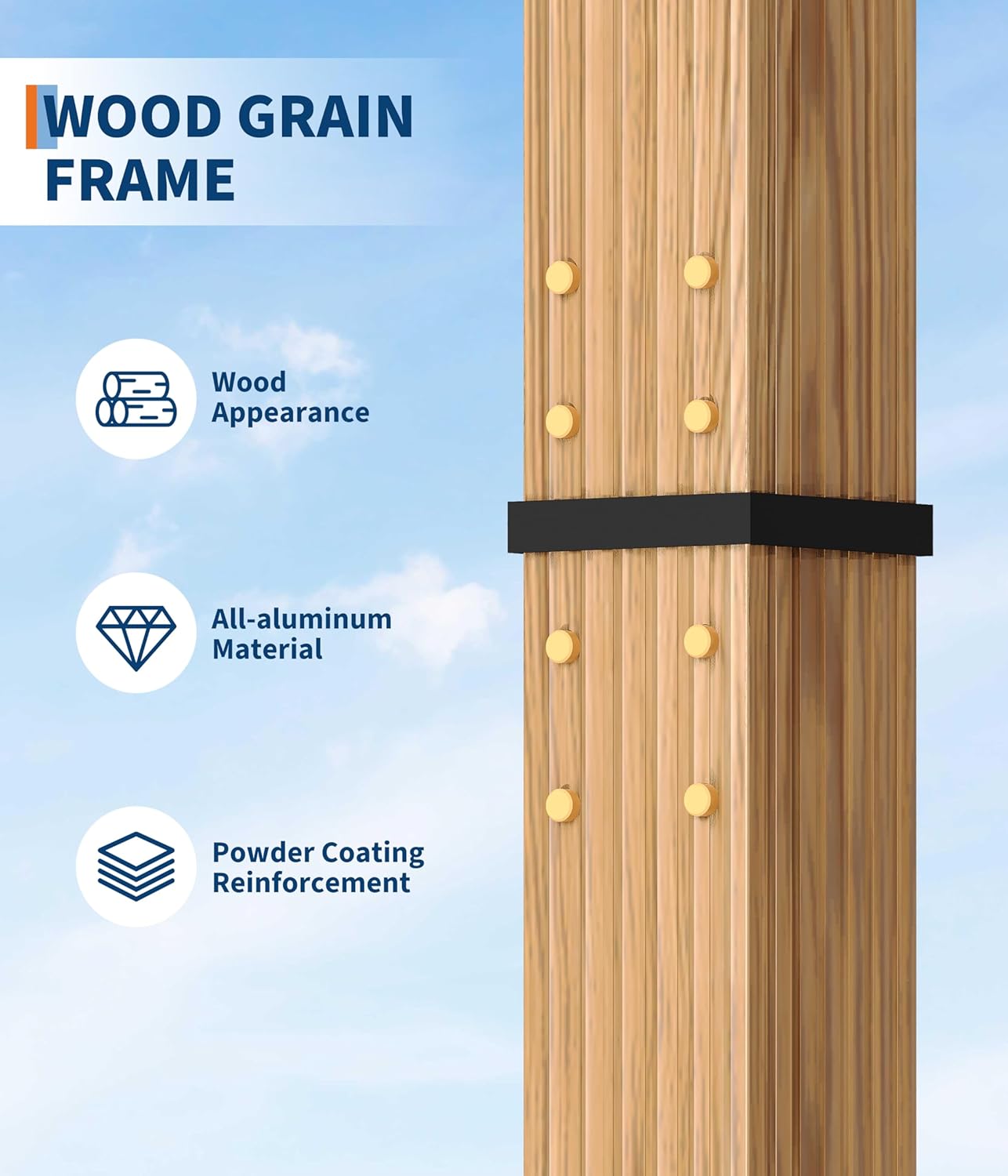

The frame is constructed from wood-grain aluminum with a powder-coated finish, providing the aesthetic of wood with the durability and rust resistance of metal. Verify all frame connections are tight.
Operating Instructions
Retractable Canopy Operation
The pergola features a movable, retractable canopy. To adjust the shade:
- Gently pull or push the canopy fabric along its tracks to extend or retract it.
- The canopy is designed to slide easily, allowing you to control the shaded area as desired.
- For increased stability and to prevent unwanted sliding, the canopy features a hook locking design. Secure the canopy using these fasteners when it is in the desired position.
- In strong winds, heavy rain, or snow, it is highly recommended to fully retract the canopy to prevent damage to the fabric or structure.
Maintenance
- Cleaning the Frame: Clean the aluminum frame with a mild soap and water solution. Rinse thoroughly with clean water and dry with a soft cloth. Avoid abrasive cleaners or harsh chemicals.
- Cleaning the Canopy: The waterproof fabric canopy can be cleaned with a soft brush and mild soap and water. Allow it to air dry completely before retracting or storing. Do not machine wash or tumble dry.
- Regular Inspection: Periodically check all bolts, screws, and connections to ensure they are tight. Re-tighten as necessary. Inspect the canopy fabric for any tears or damage.
- Winter Storage: In areas with heavy snow or prolonged freezing temperatures, it is advisable to remove the canopy fabric and store it indoors to prolong its lifespan. While the aluminum frame is rust-resistant, protecting it from extreme winter conditions can also extend its durability.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Pergola feels wobbly after assembly. | Loose connections; not properly anchored to the ground. | Ensure all bolts and fasteners are fully tightened. Verify the pergola is anchored securely to a level surface using appropriate ground stakes or bolts. |
| Canopy is difficult to slide. | Tracks are dirty or obstructed; pulleys are misaligned or damaged. | Clean the canopy tracks of any debris. Check that the pulleys are correctly aligned and not damaged. Lubricate tracks if necessary with a silicone-based spray. |
| Water pooling on canopy. | Canopy not fully extended or pitched correctly; excessive rain. | Ensure the canopy is fully extended and taut. The canopy is water-resistant, but heavy rainfall may cause some pooling. Retract the canopy during heavy rain. |
| Missing parts upon unboxing. | Packaging error. | Refer to the parts list and contact GarveeLife customer service immediately for replacement parts. |
Specifications
- Brand: GarveeLife
- Model: GLWGAPBeige
- Product Dimensions: 120"L x 91.32"W x 120"H (10'L x 9.71'W x 10'H)
- Internal Usable Dimensions: 7.78'x7.78'x7.15'
- Frame Material: Wood-Grain Aluminum (Powder-Coated)
- Canopy Material: Waterproof and UV-resistant Fabric
- Color: Beige
- Assembly Required: Yes (Recommended 2 people, approx. 2 hours)
- Water Resistance Level: Water Resistant
- Item Weight: 75.8 pounds
Warranty and Support
GarveeLife stands behind the quality of its products. For specific warranty details, please refer to the warranty card included with your purchase or visit the official GarveeLife website. If you encounter any issues or require assistance, please contact GarveeLife customer service.
Customer Service Contact: Refer to your purchase documentation or the GarveeLife official website for the most current contact information.
Online Resources: For additional support, FAQs, and product information, visit the GarveeLife store on Amazon: GarveeLife Store
