E-RIDES 14-inch Foldable Electric Bike User Manual

Introduction

Thank you for choosing the E-RIDES 14-inch Foldable Electric Bike. This manual provides essential information for the safe assembly, operation, and maintenance of your electric bicycle. Please read this manual thoroughly before your first ride to ensure proper usage and to maximize your riding experience.

Safety Guidelines

Your safety is paramount. Always wear a helmet and appropriate safety gear when riding. Adhere to all local traffic laws and regulations. Regular inspection and maintenance are crucial for safe operation.

• Brakes: Ensure both front and rear disc brakes are functioning correctly before each ride.
• Lights: The bike is equipped with a front headlight and a rear taillight for visibility. Always use lights during low-light conditions or at night.
• Tires: Check tire pressure before each ride.
• Battery: Do not attempt to modify or open the battery pack. Charge the battery only with the provided charger.

The bright front headlight and integrated rear taillight with brake indicator enhance visibility for safer riding, especially in low-light conditions.

The reliable front and rear disc brakes provide consistent stopping power in various weather conditions.

Product Overview

The E-RIDES 14-inch Foldable Electric Bike is designed for urban mobility, combining a compact form factor with electric assistance. It features a 250W motor, a 36V 7.8Ah battery, and a maximum speed of 25 km/h.

The E-RIDES electric bike features a compact, foldable design, making it suitable for urban environments and easy storage.

Key Features:

• Powerful Motor: 250W brushless motor for efficient propulsion.
• Long-lasting Battery: 36V 7.8Ah lithium battery offering 20-30 km range.
• Reliable Braking: Front and rear disc brakes for consistent stopping power.
• Smart Display: LCD screen showing speed, battery level, mode, and distance.
• Foldable Design: Two-step folding system for easy transport and storage.

Assembly & Setup

Your E-RIDES electric bike comes partially assembled. Follow these steps to complete the setup:

1. Unboxing and Component Check:

Carefully remove all components from the packaging. Verify that all parts are present:

Included components: Electric Bike, Pedals (x2), Charger (x1), Seat (x1), Headlight (x1), Front Fender (x1), Front Wheel (x1), User Manual, and Tools.

2. Unfolding the Bike:

Locate the folding mechanism on the frame. Release the latch and carefully unfold the bike until the frame locks into place. Secure all quick-release levers.

The two-step quick fold system allows for easy transport and compact storage in spaces like a car trunk, office, or home.

3. Installing Pedals:

Identify the left (L) and right (R) pedals. Screw them into the corresponding crank arms. Ensure they are tightened securely to prevent loosening during use.

4. Adjusting Seat Height:

Adjust the seat post to a comfortable height. Ensure your feet can touch the ground when stopped, and your legs have a slight bend at the knee when pedaling. Secure the quick-release lever firmly.

Customize the seat height to your preference for optimal comfort and posture during rides.

Operation

1. Powering On/Off:

Press and hold the power button on the LCD display to turn the bike on or off.

2. LCD Display:

The intelligent LCD screen provides real-time riding data:

• Battery Level
• Current Speed
• Riding Mode (Electric/Assist)
• Distance Traveled
• Error Codes (if any)
• Assistance Level

The intelligent LCD display provides real-time information, including battery status, speed, and riding mode.

3. Riding Modes:

The bike offers two riding modes:

• Pure Electric Mode: The motor provides full power without pedal assistance.
• Pedal Assist Mode: The motor provides assistance as you pedal, with adjustable levels.

Switch between modes using the controls on the handlebar.

Choose between pure electric mode for effortless travel or pedal assist mode for a customized riding experience.

4. Charging the Battery:

Connect the charger to the bike's charging port and then to a power outlet. The charging indicator on the charger will show the charging status. A full charge typically takes 4-6 hours.

The battery charges fully in 4-6 hours, providing convenient power replenishment.

Maintenance

Regular maintenance ensures the longevity and safe operation of your electric bike.

• Cleaning: Wipe the bike with a damp cloth. Avoid using high-pressure water jets directly on electrical components.
• Battery Care: Store the battery in a cool, dry place. If not used for extended periods, charge it every 1-2 months to maintain its health.
• Brake Inspection: Regularly check brake pads for wear and ensure cables are properly tensioned.
• Tire Maintenance: Inspect tires for punctures or excessive wear. Maintain recommended tire pressure.
• Fasteners: Periodically check all bolts and nuts for tightness.

Troubleshooting

This section addresses common issues you might encounter:

• Bike not powering on: Check if the battery is properly inserted and charged. Ensure all connections are secure.
• Motor not assisting: Verify that pedal assist mode is active and the battery has sufficient charge. Check for any error codes on the LCD display.
• Brakes feel weak: Inspect brake pads for wear. Adjust brake cable tension or consult a professional for brake system issues.
• Unusual noises: Stop riding immediately and inspect the bike for loose components, rubbing parts, or damaged bearings.

For issues not listed here or if problems persist, please contact E-RIDES customer support.

Specifications

Detailed technical specifications for the E-RIDES 14-inch Foldable Electric Bike:

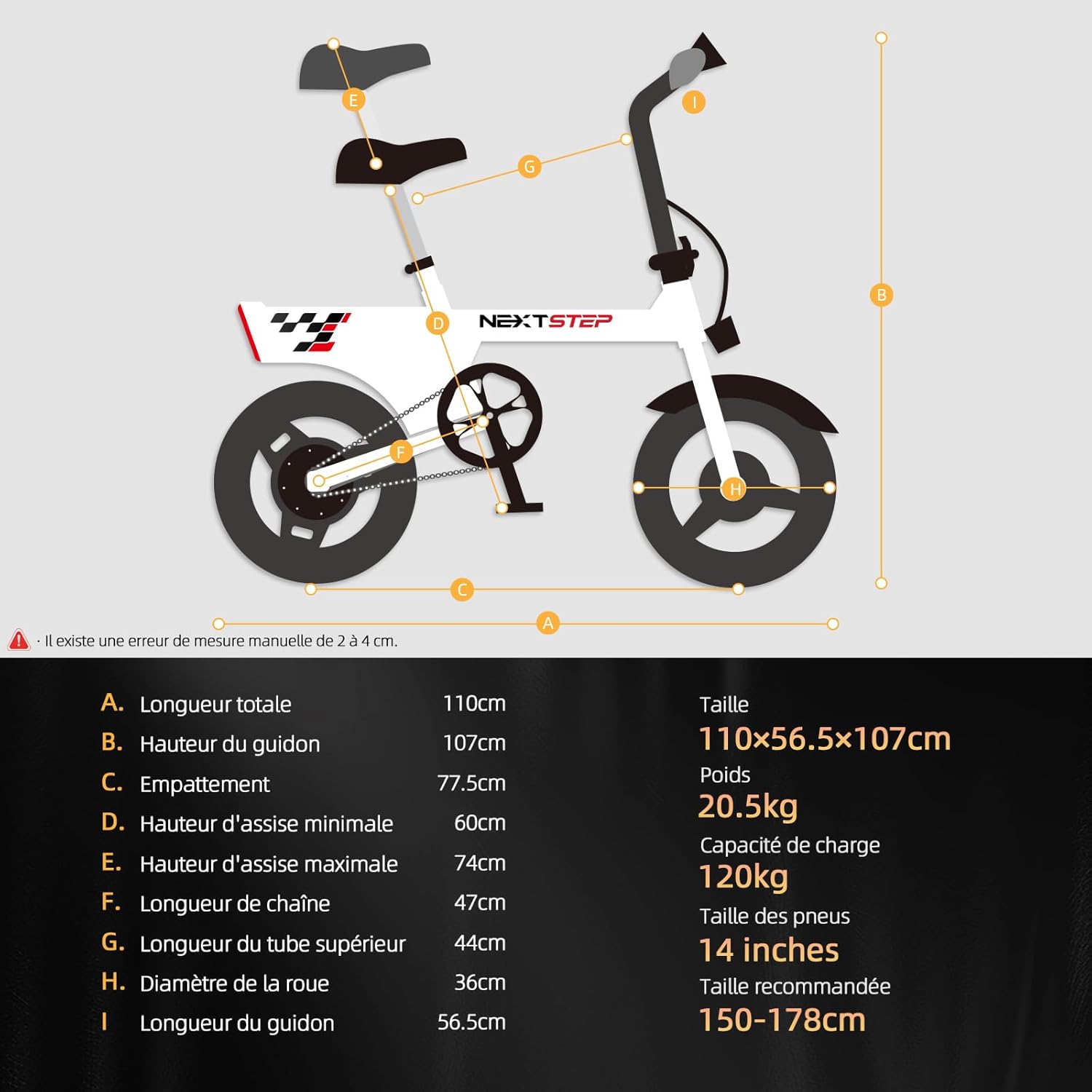

Detailed dimensions of the E-RIDES electric bike for reference.

Warranty and Support

For warranty information, technical support, or replacement parts, please refer to the official E-RIDES website or contact their customer service directly. Keep your purchase receipt as proof of purchase.
