IRONDAY 1800W Steam Iron SWS-369C User Manual

1. Introduction

Thank you for choosing the IRONDAY 1800W Steam Iron. This manual provides essential information for the safe and efficient operation of your new appliance. Please read it thoroughly before first use and keep it for future reference.

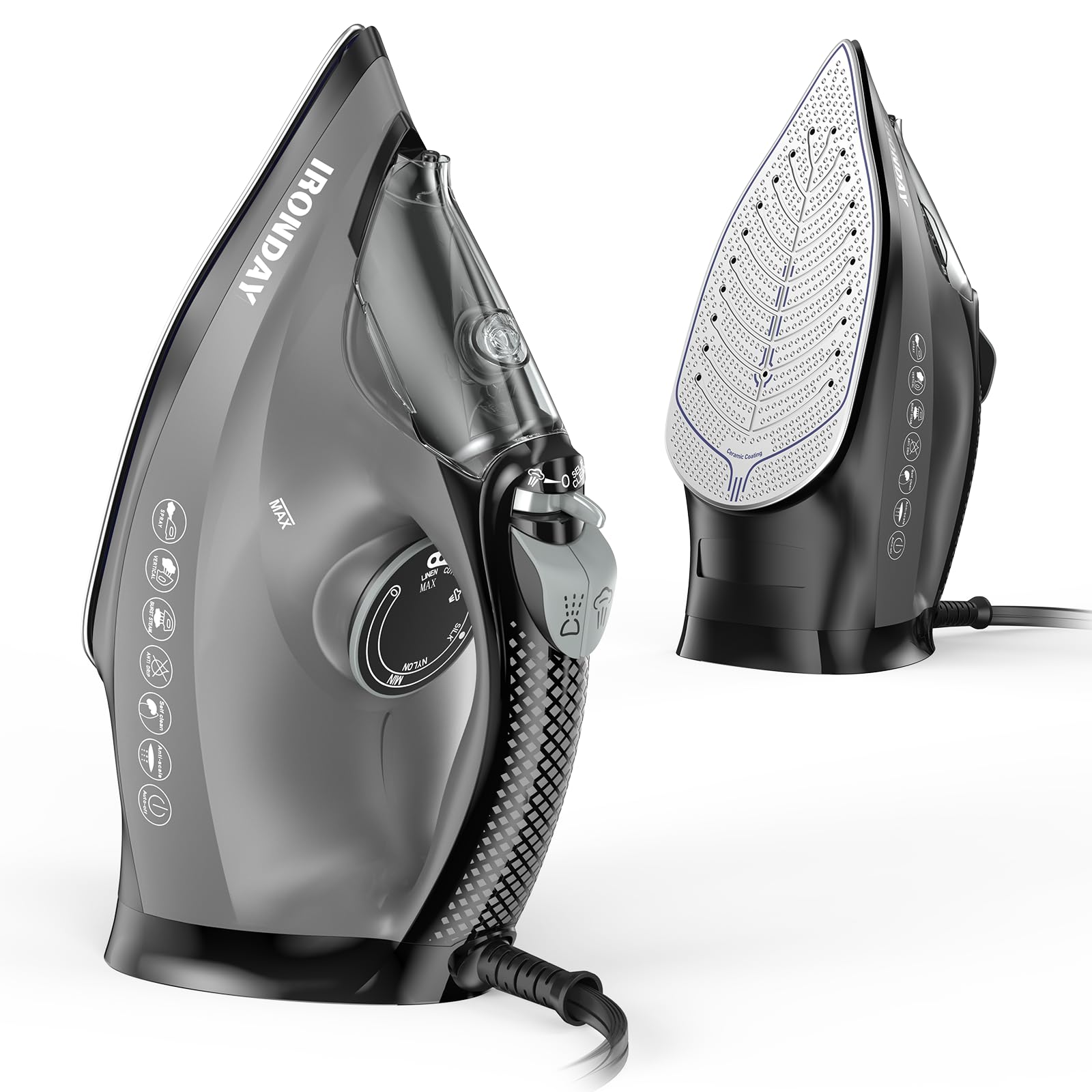

The IRONDAY 1800W Steam Iron, designed for efficient wrinkle removal.

2. Important Safety Information

Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, or injury.

• Do not immerse the iron in water or other liquids.
• Always turn off the iron before plugging or unplugging it from the electrical outlet.
• Never pull on the power cord to disconnect the iron; grasp the plug and pull.
• Allow the iron to cool completely before storing.
• Keep the iron and its cord out of reach of children.

Automatic Shutoff Feature

For your safety, the iron is equipped with a 3-way automatic shutoff function:

• The iron will automatically power off after 30 seconds when placed horizontally on its soleplate or tipped over on its side.
• The iron will automatically power off after 8 minutes when left propped upright on its heel.

Visual representation of the 3-way auto shutoff feature, showing horizontal, tipped, and vertical positions.

3. Package Contents

Upon unpacking, ensure all items are present and in good condition:

• IRONDAY 1800W Steam Iron x 1
• Measuring Cup x 1
• User Manual x 1

The IRONDAY Steam Iron, measuring cup, and user manual included in the package.

4. Product Overview & Features

The IRONDAY 1800W Steam Iron is designed for powerful and efficient ironing with several key features:

• 1800W High Power: Ensures rapid heating in approximately 20 seconds.
• Ceramic Soleplate: Non-stick and scratch-resistant for smooth gliding and even heat distribution.
• Large Water Tank: A 20.28oz (600ml) capacity minimizes refills during large ironing sessions.
• Multi-function Ironing: Supports dry ironing, burst-of-steam, and spray functions.
• Adjustable Steam & Temperature: Customize settings for various fabric types.
• Anti-Drip System: Prevents water leakage at low temperatures.
• Self-Cleaning & Anti-Calcification: Functions to maintain performance and extend the iron's lifespan.
• Precision Tip: Designed for easy access to difficult areas like buttons, collars, and plackets.

The ceramic soleplate with full steam holes for efficient ironing.

The large 600ml water tank reduces the need for frequent refills.

Ergonomic handle for comfortable grip and a pointed tip for precision.

5. Setup

Adding Water

1. Ensure the iron is unplugged and cool.
2. Set the steam control switch to the 'O' (OFF) position.
3. Open the water inlet cover located on the top of the iron.
4. Using the provided measuring cup, carefully pour clean tap water into the water tank up to the 'MAX' fill line. If your tap water is hard, you may mix 50% distilled or deionized water.
5. Close the water inlet cover securely.

Note: Small water droplets may be present in the tank due to factory testing, which is normal.

6. Operating Instructions

Setting the Temperature

1. Plug the iron into a suitable 120V electrical outlet. The indicator light will turn red, indicating the iron is heating.
2. Rotate the temperature adjustment knob to select the desired heat setting based on your fabric type (e.g., Nylon, Silk, Wool, Cotton, Linen). Refer to the fabric care label on your garment.
3. The indicator light will turn green once the selected temperature is reached, signaling the iron is ready for use.

Ironing Functions

• Dry Ironing: For dry ironing, ensure the water tank is empty and the steam control is set to 'O' (OFF). Adjust the temperature knob as needed.
• Steam Ironing: For steam ironing, ensure the water tank is filled. Set the steam control switch to the desired steam level (Min to Max). The iron will continuously release steam when held horizontally.
• Burst of Steam: Press the 'Burst of Steam' button (usually located near the handle) for an extra surge of steam to tackle stubborn wrinkles.
• Spray Function: Press the 'Spray' button (usually located near the handle) to release a fine mist of water, which helps to moisten fabrics for easier ironing.
• Vertical Steaming: The iron can be used vertically to steam hanging garments. Hold the iron a few inches away from the fabric and press the 'Burst of Steam' button.

Step-by-step guide for preparing and using the iron, including setting temperature and starting ironing.

Demonstration of the powerful water spray and continuous steam output.

The iron supports both traditional horizontal ironing and convenient vertical steaming.

7. Maintenance

Self-Cleaning Function

The self-cleaning function helps remove scale buildup and impurities from the steam vents, ensuring optimal performance and preventing stains on your clothes.

1. Fill the water tank to the 'MAX' line.
2. Plug in the iron and set the temperature to 'MAX'.
3. Once the indicator light turns green, unplug the iron.
4. Hold the iron horizontally over a sink.
5. Push and hold the self-clean button (or slide the steam control to 'SELF CLEAN'). Hot water and steam will flush out impurities.
6. Release the button when the water tank is empty.
7. Allow the iron to cool down before storing.

The self-cleaning function helps prevent scale buildup and keeps clothes clean.

Anti-Calcification System

The built-in anti-calcification system reduces the formation of scale, which helps maintain consistent steam output and prolongs the life of your iron. Regular self-cleaning is still recommended.

8. Specifications

9. Warranty & Support

The IRONDAY 1800W Steam Iron comes with a 1-Year Warranty from the date of purchase, covering manufacturing defects under normal use. Please retain your proof of purchase for warranty claims.

For product support, troubleshooting, or warranty inquiries, please refer to the contact information provided in your product packaging or visit the official IRONDAY website.
