1. Introduction
Welcome to your new ZZH Comfy Home Office Desk Chair. This manual provides essential information for assembly, operation, maintenance, and troubleshooting to ensure optimal use and longevity of your chair. Please read all instructions carefully before use and retain this manual for future reference.

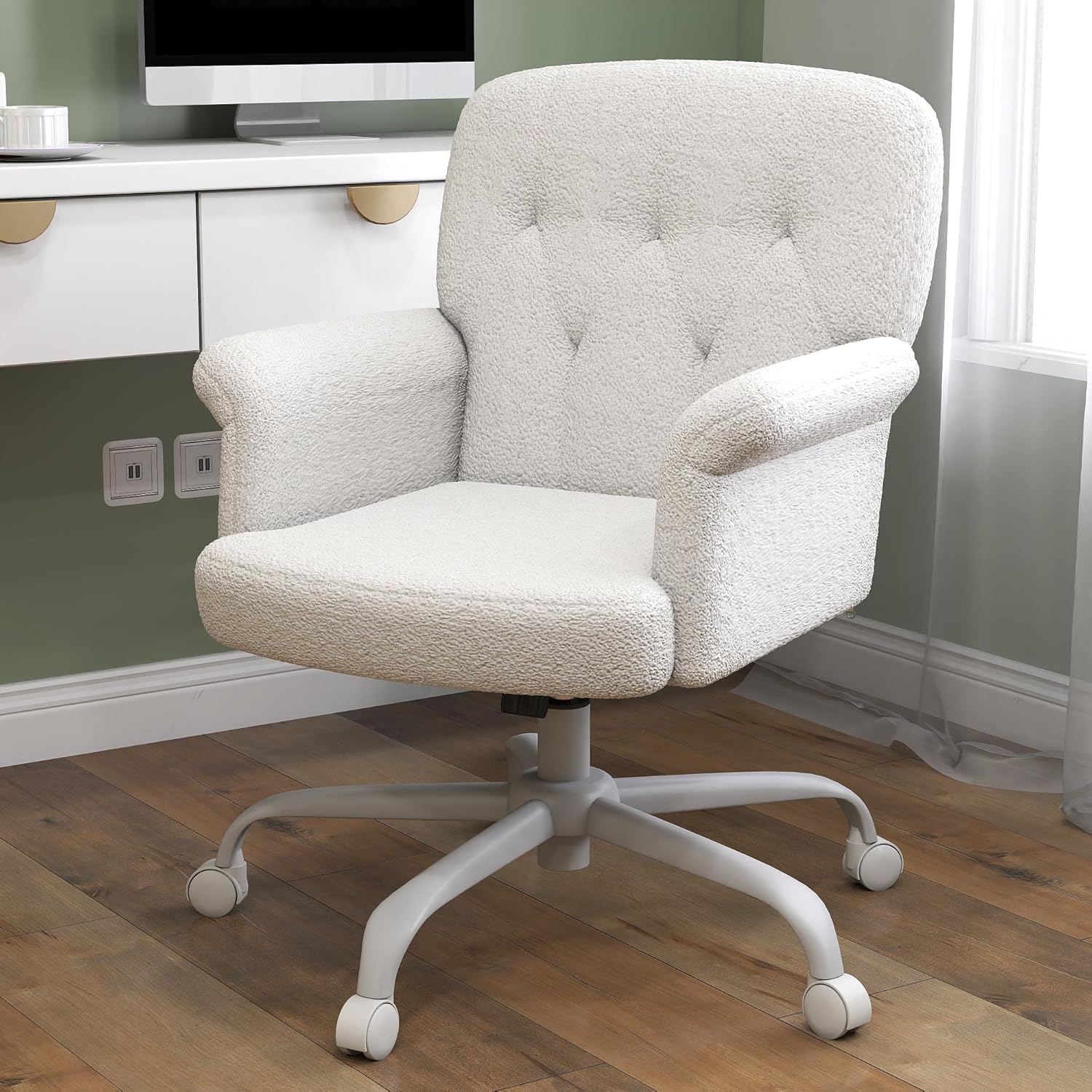

Image 1: ZZH Comfy Home Office Desk Chair (White Modern)
This image displays the ZZH Comfy Home Office Desk Chair in a white teddy fleece finish, featuring a five-star base with casters, L-shaped armrests, and a tufted backrest. The chair is positioned in a home office setting next to a white desk.
2. Safety Information
Read all instructions and warnings before use to prevent injury or damage to the product.
- Ensure all components are securely fastened before using the chair.
- Do not stand on the chair.
- Do not exceed the maximum weight recommendation of 300 pounds (136 kg).
- Keep hands and fingers clear of moving parts during adjustment.
- Use the chair on a stable, level surface to prevent tipping.
- Avoid exposing the chair to direct sunlight or extreme temperatures to prevent material degradation.
3. Package Contents
Before beginning assembly, verify that all parts listed below are present and undamaged. If any parts are missing or damaged, please contact customer support immediately.
- Chair Backrest (1)
- Seat Cushion with Armrests (1)
- Gas Lift Cylinder (1)
- 5-Star Base (1)
- Casters (5)
- Mechanism Plate (1)
- Hardware Pack (screws, washers, Allen wrench) (1)
4. Setup and Assembly
Follow these steps to assemble your ZZH Comfy Home Office Desk Chair. It is recommended to assemble the chair on a soft, clean surface to prevent scratches.
- Attach Casters to Base: Insert each of the five casters into the holes at the end of each leg of the 5-star base. Push firmly until they click into place.
- Insert Gas Lift: Place the gas lift cylinder into the central hole of the assembled 5-star base.
- Attach Mechanism Plate to Seat: Align the mechanism plate with the pre-drilled holes on the underside of the seat cushion. Ensure the front of the mechanism plate faces the front of the seat. Secure with the provided screws and Allen wrench.
- Attach Backrest to Seat: Align the backrest with the mounting points on the rear of the seat cushion. Secure with the provided screws and Allen wrench.
- Connect Seat to Gas Lift: Carefully place the assembled seat onto the gas lift cylinder, ensuring the central hole of the mechanism plate aligns with the top of the gas lift. Press down firmly to secure.
Once assembled, test all functions to ensure proper operation before regular use.
5. Operating Instructions
Your ZZH Comfy Home Office Desk Chair offers several adjustable features for personalized comfort.
5.1. Height Adjustment
To adjust the seat height:
- To Raise: While standing, lift the lever located under the right side of the seat. The seat will rise automatically. Release the lever at the desired height.
- To Lower: While seated, lift the lever located under the right side of the seat. The seat will lower. Release the lever at the desired height.
5.2. Tilt Function and Lock
The chair features a rocking motion for relaxation. To engage or disengage the tilt function:
- To Enable Tilt: Pull the same lever (used for height adjustment) outwards from under the seat. The chair backrest will now recline up to 120 degrees.
- To Lock Upright: Push the lever inwards towards the center of the chair. This will lock the chair in its upright position (90 degrees).
5.3. Tilt Tension Adjustment
Adjust the resistance of the tilt function to your preference:
- Locate the round knob under the front of the seat mechanism.
- To Increase Tension (more resistance): Turn the knob clockwise.
- To Decrease Tension (less resistance): Turn the knob counter-clockwise.
5.4. 360-Degree Swivel
The chair is equipped with a 360-degree swivel function, allowing for easy rotation and access to your workspace without needing to move the entire chair.
Image 2: Adjustable Functions (Height, Tilt, Tension)
This image illustrates the chair's adjustable features. It shows the chair tilting between 90 and 120 degrees, with an arrow indicating a 3.2-inch height adjustment range. Insets detail the tilt adjustment lever (lock/unlock) and the tightness knob for tilt tension.
6. Maintenance and Care
Proper maintenance will extend the life and appearance of your chair.
- Cleaning: Wipe Clean. For the teddy fleece upholstery, use a soft, damp cloth with mild soap if necessary. Avoid harsh chemicals, abrasive cleaners, or excessive moisture.
- Hardware Check: Periodically inspect all screws and bolts. Retighten any loose fasteners to ensure stability and safety.
- Caster Care: Regularly clean the casters to remove hair, dust, and debris that can accumulate and hinder smooth movement.
- Avoid Overloading: Do not exceed the maximum weight capacity of 300 pounds.
- Environmental Conditions: Keep the chair away from direct heat sources, prolonged sunlight, and high humidity to prevent damage to the upholstery and frame.
7. Troubleshooting
Refer to the table below for common issues and their solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Chair does not adjust height | Gas lift not engaged or faulty; Lever not pulled correctly. | Ensure the height adjustment lever is fully pulled up. If the issue persists, check gas lift installation or contact support for a replacement gas lift. |
| Chair wobbles or feels unstable | Loose screws; Uneven floor surface. | Tighten all assembly screws, especially those connecting the seat to the mechanism and the backrest. Ensure the chair is on a flat, level surface. |
| Casters not rolling smoothly | Debris (hair, dust) caught in wheels; Damaged casters. | Turn the chair over and carefully remove any debris from the casters. If casters are damaged, they may need to be replaced. |
| Chair does not tilt or recline | Tilt lock engaged; Tilt tension too high. | Pull the tilt adjustment lever outwards to disengage the lock. Turn the tilt tension knob counter-clockwise to reduce resistance. |
8. Specifications
Detailed specifications for the ZZH Comfy Home Office Desk Chair, Model 5001WT.
| Feature | Detail |
|---|---|
| Brand | ZZH |
| Model Name | 5001WT |
| Color | White |
| Product Dimensions (D x W x H) | 20"D x 18.9"W x 35.2"H |
| Maximum Weight Recommendation | 300 Pounds (136 kg) |
| Back Style | Solid Back |
| Special Features | Adjustable Height, Swivel, Tilt Function |
| Product Care Instructions | Wipe Clean |
| Recommended Uses | Accent, Computer, Reading, Relaxing |
| Style | Modern |
| Fill Material | Foam |
| Cushion Style | Teddy velvet |
| Seat Height | 15.7 Inches (minimum) |
| Seat Depth | 20.08 Inches |
| Seat Length | 20.08 Inches |
| Arm Height | 7.45 Inches |
| Chair Backrest Width | 21.46 Inches |
| Item Weight | 28.6 pounds (13 kg) |
| Date First Available | June 5, 2025 |

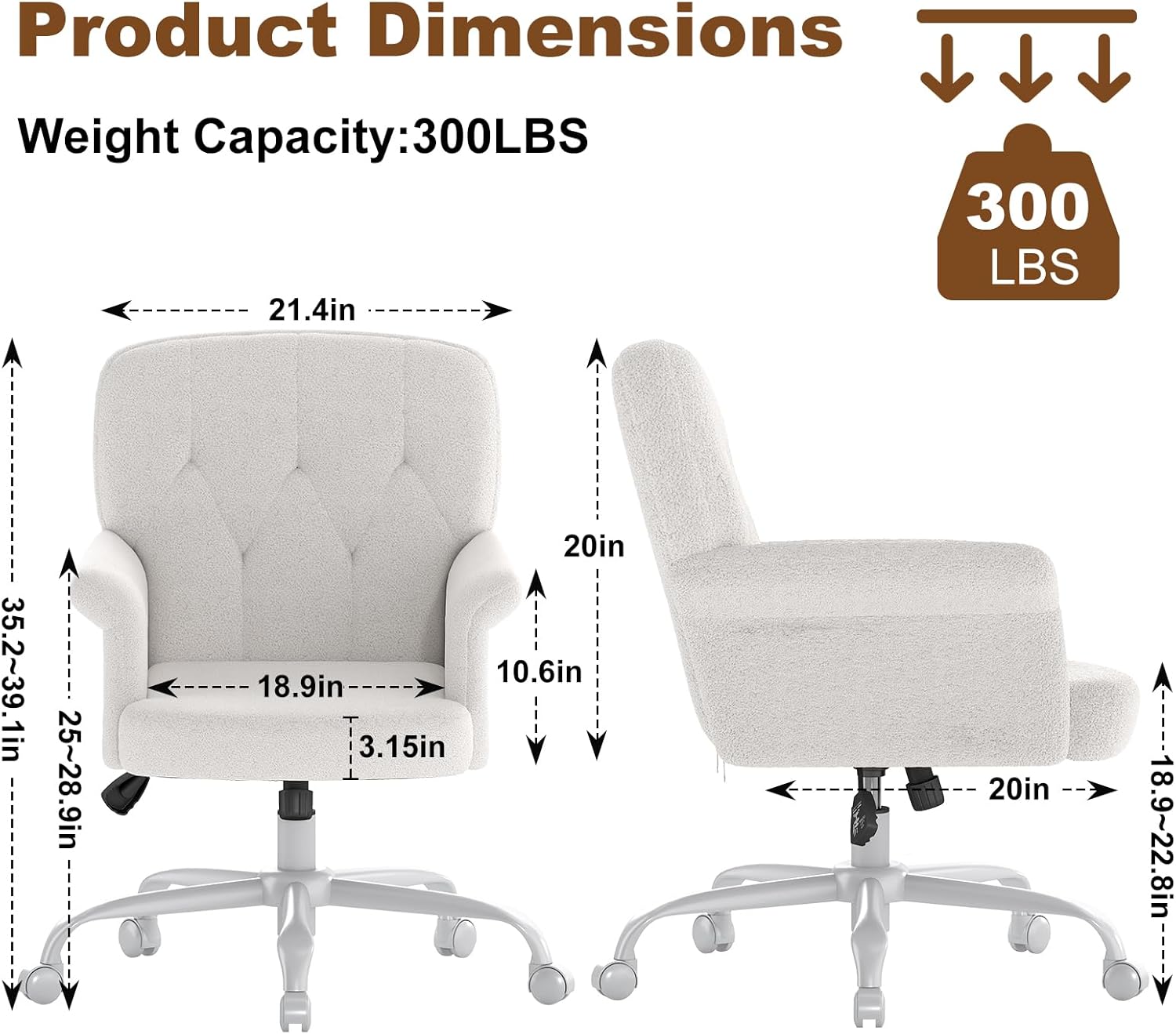

Image 3: Product Dimensions and Weight Capacity
This image provides a detailed diagram of the chair's dimensions, including height (35.2-39.1 inches), width (18.9 inches seat, 21.4 inches backrest), and depth (20 inches). It also highlights a maximum weight capacity of 300 lbs.
9. Warranty and Support
9.1. Warranty Information
For specific warranty details regarding your ZZH Comfy Home Office Desk Chair, please refer to the warranty documentation included with your purchase. If no separate documentation was provided, please contact ZZH customer support for information on applicable warranties.
9.2. Customer Support
If you have any questions, require technical assistance, need to report missing or damaged parts, or have any concerns about your product, please contact ZZH customer support through their official channels.
You can find more information and contact details by visiting the official ZZH Store:
