ECSiNG Lawn Tractor Drive V-Belt User Manual

1. Introduction

This manual provides essential information for the proper installation, maintenance, and troubleshooting of your ECSiNG Lawn Tractor Drive V-Belt, OEM Part Number 754-04268. Please read this manual thoroughly before attempting any installation or maintenance procedures to ensure safe and effective use.

Safety Information

• Always ensure the lawn tractor's engine is turned off and the spark plug wire is disconnected before performing any maintenance or installation.
• Wear appropriate personal protective equipment, such as gloves and eye protection.
• Refer to your lawn tractor's specific owner's manual for detailed safety instructions and belt replacement procedures.
• Keep children and bystanders away from the work area.

2. Product Overview

The ECSiNG Lawn Tractor Drive V-Belt (OEM 754-04268, Model HA005W) is a replacement component designed to transmit power from the engine to the drive system of compatible lawn tractors. This V-belt is engineered for durability and precise fit, ensuring optimal performance of your equipment.

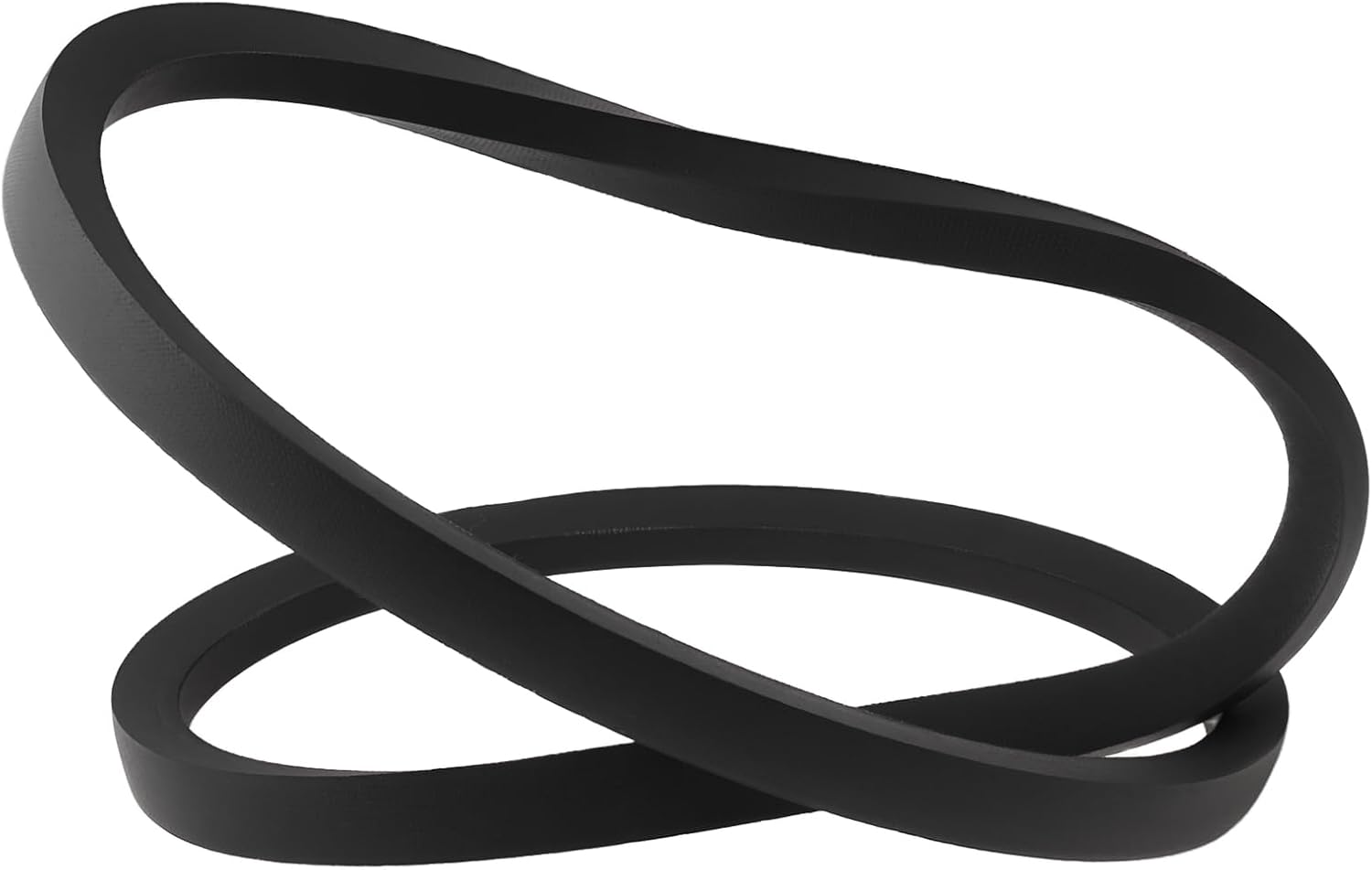

Image 2.1: The ECSiNG Lawn Tractor Drive V-Belt, shown in its coiled state, highlighting its material and construction.

Key Features

• Direct Replacement: Designed to replace OEM part number 754-04268.
• Durable Construction: Manufactured for longevity and reliable power transmission.
• Precise Dimensions: Engineered to meet specific size requirements for compatible models.

Compatibility

This drive V-belt is compatible with a range of lawn tractors. Please verify your equipment's specific requirements before installation.

Image 2.2: The ECSiNG V-Belt displayed alongside a riding lawn mower, illustrating its intended application.

• Compatible with MTD: 115/92; 125/92 A; 14 P-92 RD; 145/92 RD; 180/105 T; 180/92 T; 200/105 T.
• Compatible with Cub Cadet: CC 513 TE; CC 713; CC 714; CC 715; LT1 NR76; LT1 NR92; LT1 OR105T.
• Compatible with WOLF-Garten: 92.130; E 13/92; S 92.130 T; Select 105.155; Select 76.125; Select 92.130.
• Compatible with Gutbrod: JLX 105 R; JLX 76 R; JLX 92 R; LX 76 R; LX 92 R.
• Compatible with Mastercut: 76 92 92-125 92-145 92-155 RT 92.

3. Specifications

The following table details the key specifications of the ECSiNG Lawn Tractor Drive V-Belt:

Image 3.1: Dimensional diagram of the V-belt, indicating its perimeter, width, and height.

Note: Manual measurements are provided; please allow for slight errors.

4. Installation (Replacement)

Replacing a drive V-belt requires careful attention to safety and proper procedure. The following steps provide a general guide. Always consult your specific lawn tractor's owner's manual for detailed, model-specific instructions and diagrams.

Required Tools (May Vary)

• Wrenches or sockets
• Pliers
• Gloves
• Eye protection

General Installation Steps

1. Prepare the Tractor: Park the lawn tractor on a flat, level surface. Engage the parking brake. Turn off the engine and remove the ignition key. Disconnect the spark plug wire to prevent accidental starting.
2. Access the Drive System: Depending on your tractor model, you may need to remove the cutting deck, footrest, or other covers to access the drive belt system. Refer to your tractor's manual for specific access procedures.
3. Relieve Tension: Locate the belt tensioner or idler pulley. Use appropriate tools to relieve tension on the old belt. This may involve loosening bolts or using a lever.
4. Remove Old Belt: Carefully remove the old drive belt from all pulleys. Note the routing path of the old belt, as the new belt must be installed in the same configuration. Taking a photograph before removal can be helpful.
5. Install New Belt: Route the new ECSiNG V-belt around the pulleys, following the exact path of the old belt. Ensure the belt is seated correctly in all pulley grooves.
6. Apply Tension: Re-apply tension to the belt system. Ensure the belt is taut but not overly tight, allowing for proper operation without excessive strain on components.
7. Reassemble: Reinstall any covers, the cutting deck, or other components that were removed. Reconnect the spark plug wire.
8. Test Operation: Start the tractor and slowly engage the drive system to ensure the new belt operates smoothly and correctly. Listen for any unusual noises or signs of improper installation.

5. Maintenance

Regular inspection and maintenance of your drive V-belt will extend its lifespan and ensure consistent performance of your lawn tractor.

Inspection

• Visual Check: Periodically inspect the belt for signs of wear, such as cracks, fraying, glazing (shiny spots), or missing chunks.
• Tension Check: Ensure the belt maintains proper tension. A loose belt can slip, while an overly tight belt can cause premature wear on pulleys and bearings.
• Damage: Look for any foreign objects caught in the belt path or damage to the pulleys themselves.

Image 5.1: A close-up view of the V-belt's textured surface, indicating its grip and material quality.

Cleaning and Storage

• Cleaning: If accessible, gently clean the belt and pulleys to remove dirt, grass clippings, and debris that can cause slippage or wear. Avoid using harsh chemicals or oil-based cleaners on the belt material.
• Storage: If storing a spare belt, keep it in a cool, dry place away from direct sunlight and extreme temperatures to prevent material degradation.

Replacement Frequency

The lifespan of a drive belt varies depending on usage, operating conditions, and maintenance. Replace the belt immediately if any signs of significant wear or damage are observed. Proactive replacement based on your tractor's service schedule or after a certain number of operating hours is recommended.

6. Troubleshooting

This section addresses common issues related to the drive V-belt. For more complex problems, consult a qualified service technician or your tractor's owner's manual.

7. Warranty and Support

For specific warranty information regarding your ECSiNG Lawn Tractor Drive V-Belt, please refer to the documentation provided at the time of purchase or contact the seller directly. Warranty terms and conditions may vary.

For technical support or further assistance, please reach out to the ECSiNG customer service department or the retailer from whom the product was purchased.
