WAMPAT 110" W Large Farmhouse TV Stand Assembly and User Manual

1. Introduction

Thank you for choosing the WAMPAT 110" W Large Farmhouse TV Stand. This versatile 3-in-1 entertainment center is designed to provide extensive storage and a stylish focal point for your living room, bedroom, or dining area. This manual provides detailed instructions for assembly, safe use, and maintenance to ensure long-lasting enjoyment of your product.

Figure 1: WAMPAT 110" W Large Farmhouse TV Stand, Dark Brown

2. Safety Information

Please read and understand all safety warnings and instructions before assembly and use. Keep this manual for future reference.

• Anti-Tipping: Always secure the cabinet to the wall using the included anti-tip hardware to prevent tipping and potential injury. This is crucial for households with children and pets.
• Weight Limits: Do not exceed the maximum weight capacity for the top surface or shelves. Refer to the specifications section for details.
• Assembly: Assemble on a soft, clean surface to prevent scratches. Ensure all parts are correctly aligned and fasteners are tightened securely before use.
• Placement: Place the TV stand on a level surface to ensure stability. Avoid placing in areas with high humidity or direct sunlight to prevent material damage.

3. Product Features

The WAMPAT 110" W Large Farmhouse TV Stand offers a blend of functionality and rustic charm:

• Massive Storage: Over 9 feet of storage space, ideal for media, game discs, consoles, controllers, and books.
• Versatile Design: Functions as a TV stand for 100-120 inch televisions, a dining room credenza, or a bedroom storage cabinet.
• Sturdy Construction: Built with durable wooden frames and reinforced joints for stability.
• Smooth Operation: Features premium metal drawer slides for effortless opening and closing, even when fully loaded.
• Rustic Aesthetic: Chic diamond-pattern barn doors and warm wood finishes complement contemporary and farmhouse decor.
• Durable Surface: Scratch-resistant, textured wood-grain surface resists stains and is easy to clean.
• Modular Configuration: Units can be assembled into a grand 110" wide wall unit, split to flank a sofa, or used individually.
• Hassle-Free Assembly: Includes pre-drilled wood panels, pre-installed drawer slides, and all necessary tools with clear instructions.

Figure 2: Ample storage within the TV stand's cabinets and drawers.

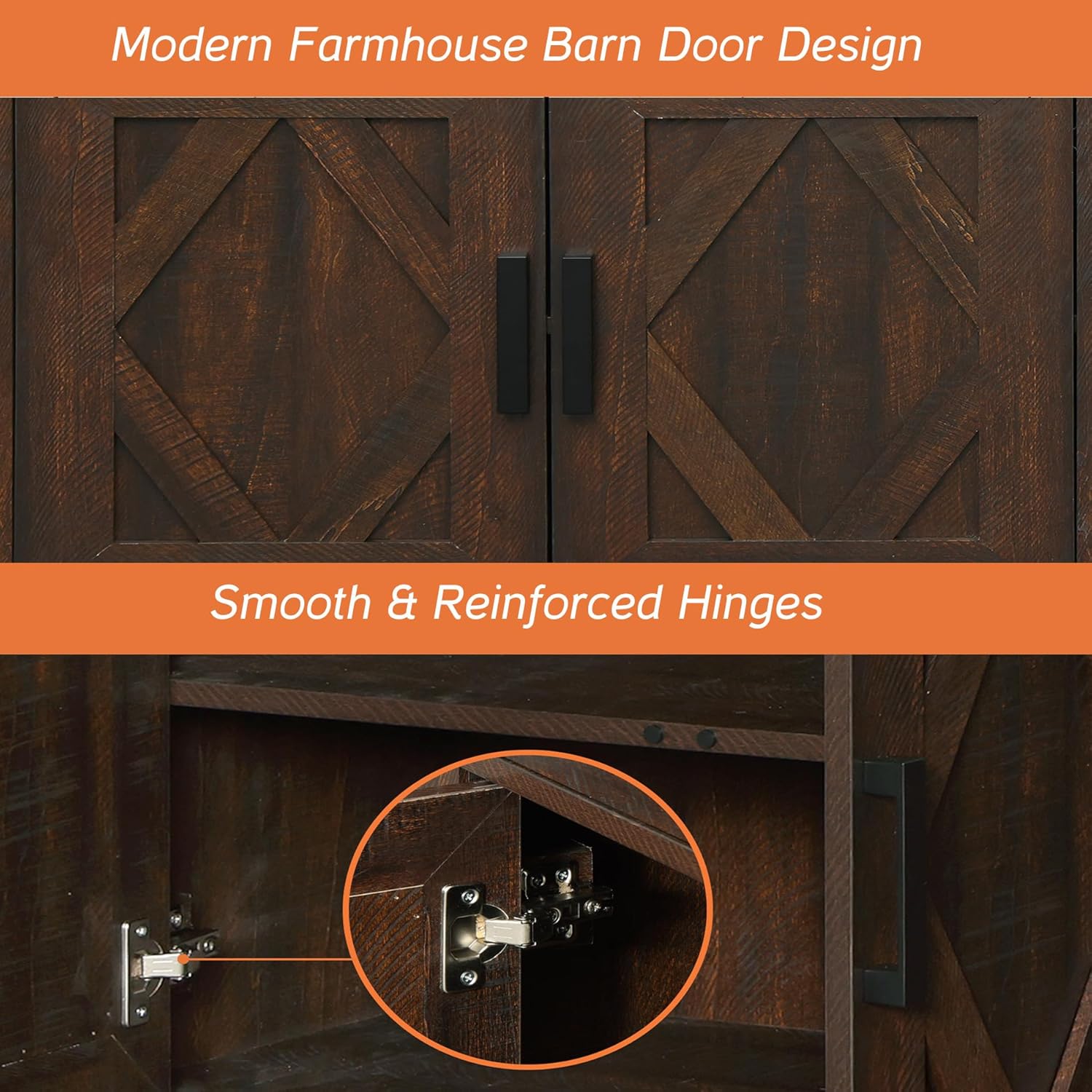

Figure 3: Detail of modern farmhouse barn door design and reinforced hinges.

Figure 4: Sturdy base design and pre-assembled drawer slides for smooth operation.

Figure 5: Features including drawer buckle, easy-to-clean surface, and metal handle.

4. Assembly Instructions

Before you begin, ensure you have a clear, spacious area for assembly. It is recommended to have two people for certain steps. All necessary tools are included. Follow the numbered steps carefully.

4.1. General Assembly Guide (Video)

Video 1: General assembly guide for WAMPAT furniture, demonstrating common construction techniques for components like the bookcase base (Model W07E4080W). This video provides visual assistance for understanding the assembly process.

4.2. Product Dimensions and Components

Familiarize yourself with the overall dimensions and individual components of your TV stand. The unit consists of modular sections that combine to form the full 110-inch width.

Figure 6: Overall and individual unit dimensions of the WAMPAT 110" W TV Stand.

4.3. Step-by-Step Assembly

Refer to the included printed instruction manual for detailed, step-by-step diagrams and part identification. The general process involves:

1. Unpacking: Carefully unpack all components and hardware. Verify all parts are present against the parts list in your manual.
2. Panel Assembly: Begin by connecting the main panels of each modular unit using dowels and cam locks as shown in the video and diagrams.
3. Drawer Assembly: Assemble the drawers, ensuring the pre-installed slides are correctly aligned. Attach handles.
4. Door Assembly: Attach hinges to the barn doors and then mount the doors to the cabinet frames. Attach handles.
5. Unit Connection: Connect the individual modular units to form the complete 110" TV stand.
6. Back Panels: Slide the back panels into place and secure them.
7. Final Touches: Insert shelf pins and place shelves as desired.
8. Secure to Wall: Attach the anti-tip hardware to the back of the unit and secure it to a wall stud.

5. Operating Instructions

Once assembled and securely placed, the WAMPAT TV stand is ready for use. Ensure that any television placed on the stand is centered and its base fits entirely within the top surface. Distribute weight evenly across shelves and drawers to maintain stability. The smooth-gliding drawers and barn doors are designed for easy access to your stored items.

6. Maintenance

To keep your WAMPAT TV stand in optimal condition:

• Cleaning: Wipe surfaces with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners, which can damage the finish.
• Spills: Promptly wipe up any spills to prevent staining or water damage to the engineered wood surface.
• Hardware: Periodically check all screws and fasteners to ensure they remain tight. Retighten if necessary.
• Movement: If moving the unit, empty all contents and lift it carefully to prevent structural damage. Do not drag the unit.

7. Troubleshooting

If you encounter any issues with your TV stand, consider the following:

• Instability: Ensure the unit is on a level surface. Verify all cam locks and screws are fully tightened. Confirm the anti-tip hardware is correctly installed and secured to the wall.
• Drawers/Doors Not Closing Smoothly: Check that the drawer slides are properly aligned and free of obstructions. For doors, ensure hinges are correctly installed and adjusted.
• Missing Parts: If any parts were missing upon delivery, please contact WAMPAT customer support for assistance.

8. Specifications

9. Warranty and Support

WAMPAT products are designed for quality and durability. For specific warranty information or to request support, please refer to the warranty card included with your product or visit the official WAMPAT website. Please have your model number (B0FBWNBMDX) and purchase date available when contacting support.
