HumsiENK 48V 100Ah LiFePO4 Lithium Battery User Manual

1. Introduction

This manual provides essential information for the safe and efficient operation of your HumsiENK 48V 100Ah LiFePO4 Lithium Battery. This high-performance battery is designed for various applications, including golf carts, RVs, campers, trolling motors, yachts, solar systems, and home energy storage. Please read this manual thoroughly before installation and use to ensure optimal performance and longevity.

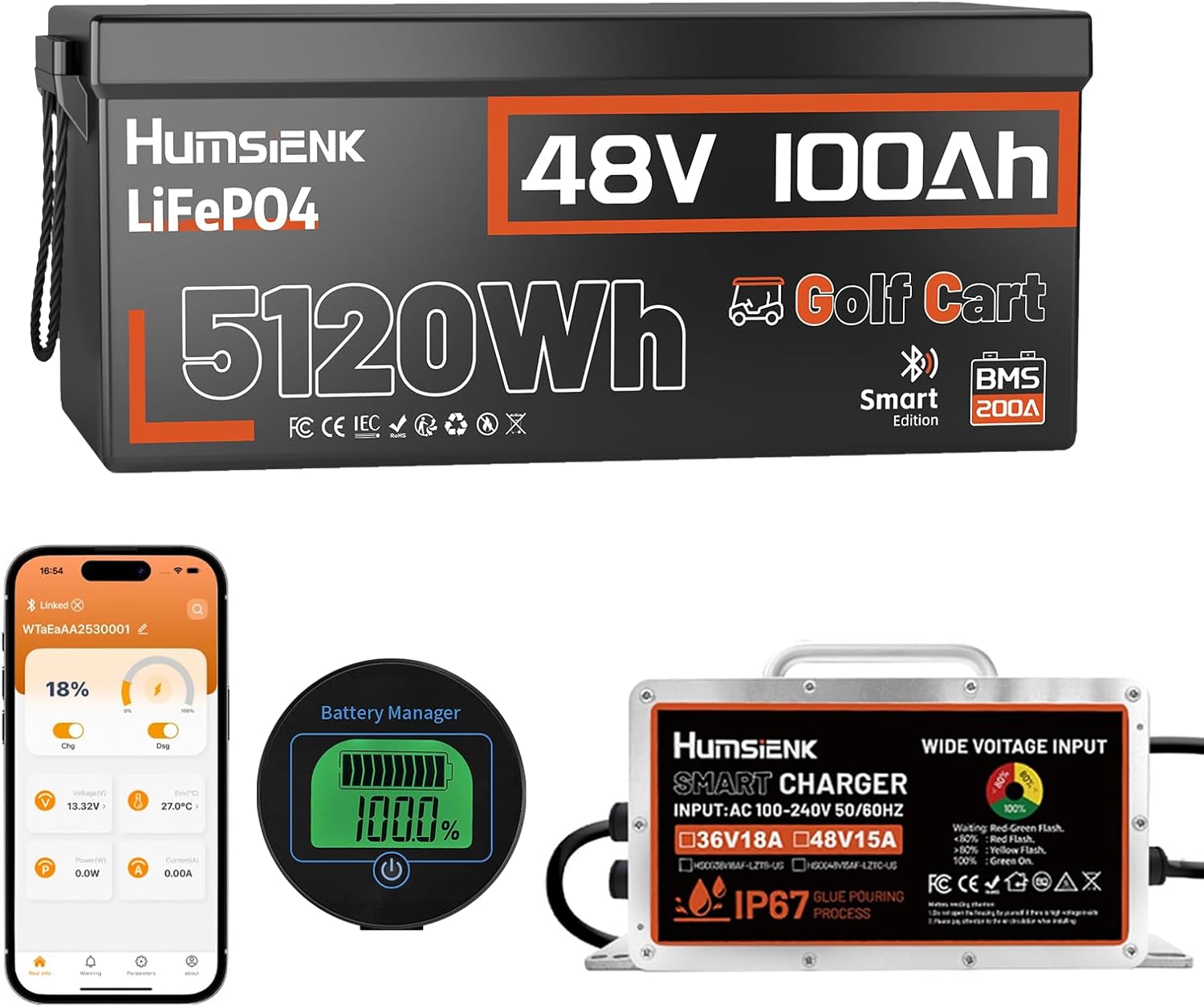

Figure 1: HumsiENK 48V 100Ah LiFePO4 Lithium Battery, 15A Charger, and Bluetooth Monitor. This image displays the main components included with your purchase, highlighting the battery unit, the dedicated 15A charger, and the separate battery monitor for real-time data.

Figure 2: Comparison of HumsiENK LiFePO4 battery with traditional lead-acid batteries. This graphic illustrates the advantages of the LiFePO4 battery in terms of weight, cycle life, discharge rate, BMS protection, self-discharge, and environmental friendliness compared to six GC2 lead-acid batteries.

2. Safety Information

Always prioritize safety when handling and operating batteries. Failure to follow these instructions may result in injury, damage to the battery, or property damage.

• Do not disassemble, modify, or deform the battery.
• Avoid touching uninsulated terminals or connectors to prevent electric shock.
• Ensure proper ventilation during charging and operation.
• Use only the specified 48V 15A charger provided with the battery.
• Keep the battery away from heat sources, open flames, and flammable materials.
• Do not immerse the battery in water or expose it to excessive moisture. The IP65 rating protects against dust and water jets, but not submersion.
• In case of fire, use a Class D fire extinguisher. Water or CO2 may not be effective.
• Store the battery in a cool, dry place when not in use.

3. Package Contents

Verify that all items are present and undamaged upon unpacking:

• 1x HumsiENK 48V 100Ah LiFePO4 Lithium Golf Cart Battery
• 1x HumsiENK 48V 15A Charger
• 1x Battery Monitor
• 1x Battery Monitor Charging Cable
• 1x User Manual (this document)

4. Specifications

Figure 3: HumsiENK LiFePO4 Battery features. This image highlights key features such as low-temperature protection (charging 0-65°C, discharging -20-70°C), Grade A+ cells, 50% lighter weight with 2X performance, a 200A BMS, maximum 4P configuration up to 20.48kWh, and 6 layers of advanced BMS safety.

5. Setup and Installation

This section outlines the general steps for installing your HumsiENK LiFePO4 battery. Always ensure the vehicle is turned off and all power sources are disconnected before beginning installation.

1. Remove Old Batteries: Carefully disconnect and remove existing lead-acid batteries. Note the wiring configuration before removal.
2. Clean Battery Compartment: Clean any debris or corrosion from the battery compartment.
3. Position New Battery: Place the HumsiENK LiFePO4 battery into the compartment. Its compact size and lighter weight (approx. 108 lbs) facilitate easier handling. The battery is compatible with Group 8D battery boxes.
4. Secure Battery: Use appropriate straps or brackets to secure the battery firmly in place to prevent movement during operation.
5. Connect Wiring: Connect the battery cables to the terminals. Ensure correct polarity (positive to positive, negative to negative). Tighten all connections securely.
6. Install Charger: Mount the included 48V 15A charger in a suitable location, typically within the battery compartment or a nearby accessible area. Secure it using screws.
7. Connect Charger Cables: Connect the charger's DC OUT connectors to the battery. Connect the charger's AC IN connectors to a standard power outlet (100V-240V).
8. Install Battery Monitor: Connect the battery monitor to the designated communication port on the battery. Mount the monitor in a visible and accessible location, such as the dashboard.

Figure 4: HumsiENK LiFePO4 battery installed in a golf cart. This image shows the battery positioned within a golf cart's battery compartment, illustrating its compact size and fit, with dimensions of approximately 20.47 inches (length), 8.66 inches (width), and 10.51 inches (height).

6. Operating Instructions

Your HumsiENK LiFePO4 battery is designed for user-friendly operation with smart monitoring features.

• Power On/Off: The battery typically has a power button or switch. Refer to the battery unit for its specific location.
• Bluetooth App Monitoring: Download the dedicated Bluetooth app to your smartphone. Connect to the battery via Bluetooth to monitor real-time data such as voltage, current, temperature, state of charge (SOC), and individual cell voltages.
• Battery Monitor Display: The included battery monitor provides instant visual checks of key battery parameters.
• Charging: Connect the provided 48V 15A charger to a standard AC outlet and then to the battery. The charger features overcharge, over-discharge, short-circuit, over-temperature, and reverse polarity protection. A full charge typically takes approximately 5.5 hours.
• Low-Temperature Protection: The built-in BMS includes low-temperature cut-off protection, which stops charging at 0°C (32°F) to prevent damage. The battery can still discharge normally at temperatures as low as -20°C (-4°F).

Figure 5: HumsiENK LiFePO4 Battery dual monitoring. This image illustrates the two methods for monitoring the battery: via a Bluetooth app on a smartphone and through a dedicated physical battery monitor display.

7. Maintenance

LiFePO4 batteries are known for their low maintenance requirements compared to lead-acid batteries. However, following these guidelines will help maximize their lifespan:

• Regular Inspection: Periodically check the battery terminals for cleanliness and tightness. Ensure there is no corrosion or loose connections.
• Keep Clean: Wipe down the battery case with a dry or slightly damp cloth to remove dust and dirt. Avoid using harsh chemicals.
• Storage: If storing the battery for an extended period (more than a couple of days), ensure it is shut off to prevent any parasitic drain. Store in a cool, dry place.
• Avoid Deep Discharge: While LiFePO4 batteries tolerate deep discharge well, it is generally recommended to avoid consistently discharging below 20% to prolong overall lifespan. The BMS will protect against over-discharge.
• Software Updates: Periodically check for any available firmware updates for the BMS via the Bluetooth app, if applicable.

8. Troubleshooting

If you encounter issues with your HumsiENK LiFePO4 battery, consult the following common troubleshooting steps:

• Battery Not Powering On:
  • Check if the battery's power switch is in the 'ON' position.
  • Verify that the battery terminals are securely connected and free of corrosion.
  • Check the battery monitor or app for the current state of charge. If critically low, attempt to charge.
• Battery Not Charging:
  • Ensure the charger is properly plugged into a working AC outlet and the battery.
  • Check the charger's indicator lights for any error codes.
  • Verify the ambient temperature is within the charging range (0-55°C). The BMS will prevent charging below 0°C.
  • Inspect the charger cables for any damage.
• Reduced Performance/Range:
  • Check the battery monitor or app for individual cell voltage imbalances.
  • Ensure the battery is fully charged before each use.
  • Verify that the load on the battery (e.g., golf cart motor, accessories) is within the specified continuous and peak current limits.
• BMS Protection Triggered: The BMS will automatically shut down the battery in case of overcharge, over-discharge, over-current, short-circuit, or extreme temperatures. The battery monitor or app will usually indicate the specific protection triggered. Address the underlying cause before attempting to restart the battery.

For persistent issues, contact HumsiENK customer support.

9. Warranty and Support

The HumsiENK 48V 100Ah LiFePO4 Lithium Battery is built for durability and long-term performance, offering up to 15,000 deep cycles over a remarkable 10-year lifespan.

For warranty claims, technical assistance, or any product-related inquiries, please contact HumsiENK customer support through the vendor's official channels or refer to the contact information provided with your purchase documentation.
