SKMEI M036 Automatic Mechanical Skeleton Watch User Manual

1. Introduction

Thank you for choosing the SKMEI M036 Automatic Mechanical Skeleton Watch. This timepiece combines classic design with precise automatic mechanical movement, offering a unique view into its intricate workings through the skeleton dial. Designed for durability and style, this manual provides essential information for setup, operation, and maintenance to ensure optimal performance and longevity of your watch.

Key Features:

• Precision Mechanical Movement: Powered by an automatic mechanical movement, this watch ensures precise timekeeping with a visible skeleton design that showcases intricate craftsmanship.
• Elegant Skeleton Dial: The hollow-out dial reveals the inner mechanics, adding a touch of sophistication and artistic appeal to your wrist.
• Versatile Design: With a stainless steel or silica gel strap, it seamlessly transitions from formal business settings to casual outings.
• Durable and Water-Resistant: Built to last, it features a zinc alloy case and is water-resistant up to 30 meters, making it suitable for daily wear.
• Classic Analog Display: The classic analog display with luminous hands ensures easy readability, while the date window adds practicality for everyday use.

2. Setup and Initial Operation

2.1 Initial Winding

As an automatic mechanical watch, the SKMEI M036 does not require a battery. It is powered by the motion of your wrist. If the watch has stopped or is running low on power, follow these steps to initiate operation:

1. Manual Winding: Gently rotate the crown (located on the side of the watch) clockwise approximately 20-30 times. This will provide initial power to the mainspring.
2. Wearing the Watch: Once manually wound, wear the watch for at least 8 hours a day. Your natural wrist movements will continue to wind the watch, keeping it powered.

Note: If the watch is not worn for an extended period, it may stop. Repeat the manual winding process to restart it.

2.2 Setting the Time

1. Pull the Crown: Gently pull the crown out to the second click position.
2. Adjust Time: Rotate the crown clockwise or counter-clockwise to set the hour and minute hands to the correct time.
3. Push the Crown: Once the time is set, push the crown back into its original position to start the watch.

2.3 Adjusting the Band

The watch comes with either a stainless steel or silica gel band. Adjustments may be required for a comfortable fit.

• Stainless Steel Band: Links can be removed or added by a professional jeweler or watch repair service. Do not attempt to remove links yourself without proper tools to avoid damage.
• Silica Gel Band: The buckle allows for fine adjustments. If further adjustment is needed, the band can be trimmed to size. Ensure to measure carefully before cutting.

3. Operating the Watch

3.1 Automatic Movement

Your SKMEI M036 watch features an automatic mechanical movement. This means it is powered by the kinetic energy generated by your arm's motion. When worn regularly, the rotor inside the watch winds the mainspring, eliminating the need for manual winding or battery replacement. A full power reserve typically lasts for approximately 36-48 hours when fully wound and not worn.

3.2 Water Resistance (30m)

The watch is water-resistant up to 30 meters (3 ATM). This rating means it is suitable for daily use and can withstand splashes, rain, and brief immersion in water. It is not suitable for swimming, diving, or showering with hot water, as temperature changes and steam can compromise the seals.

• Avoid pressing the crown or any buttons while the watch is wet or submerged.
• Ensure the crown is fully pushed in before any contact with water.

3.3 Luminous Display

The hands and hour markers of your watch are treated with a luminous material. After exposure to light, they will glow in the dark, providing readability in low-light conditions. The intensity and duration of the glow depend on the exposure time and intensity of light.

4. Maintenance and Care

Proper care will help maintain the appearance and functionality of your SKMEI M036 watch.

• Cleaning: Wipe the watch case and band regularly with a soft, dry cloth. For stainless steel bands, a slightly damp cloth can be used, followed by immediate drying. For silica gel bands, mild soap and water can be used, ensuring thorough rinsing and drying.
• Avoid Chemicals: Do not expose the watch to harsh chemicals, solvents, or detergents, as these can damage the case, crystal, or band.
• Temperature Extremes: Avoid exposing the watch to extreme temperatures (hot or cold) or sudden temperature changes, which can affect the movement and water resistance.
• Magnetic Fields: Keep the watch away from strong magnetic fields (e.g., speakers, refrigerators, certain electronic devices), as magnetism can affect the accuracy of mechanical movements.
• Storage: When not wearing the watch, store it in a cool, dry place, preferably in its original box or a watch case to protect it from dust and scratches.
• Servicing: Mechanical watches benefit from periodic servicing (every 3-5 years) by a qualified watchmaker to ensure optimal performance and lubrication of the movement.

5. Troubleshooting

If you encounter any issues with your SKMEI M036 watch, please refer to the following common troubleshooting tips:

• Watch Not Running:

  Cause: Insufficient power reserve.

  Solution: Manually wind the watch by rotating the crown clockwise 20-30 times. Wear the watch regularly to ensure it stays wound by kinetic energy.
• Time Inaccuracy:

  Cause: Watch is not fully wound, exposure to strong magnetic fields, or requires servicing.

  Solution: Ensure the watch is fully wound. Keep it away from magnetic sources. If inaccuracy persists, professional servicing may be required.

• Condensation Under Crystal:

  Cause: Exposure to extreme temperature changes or compromised water resistance.

  Solution: If condensation is minimal and disappears quickly, it may be due to humidity. If it persists or appears as droplets, seek professional inspection immediately to prevent internal damage.

6. Specifications

7. Product Visuals

7.1 Product Images

Front view of the SKMEI M036 Automatic Mechanical Skeleton Watch in black stainless steel, showcasing the intricate skeleton dial and octagonal bezel.

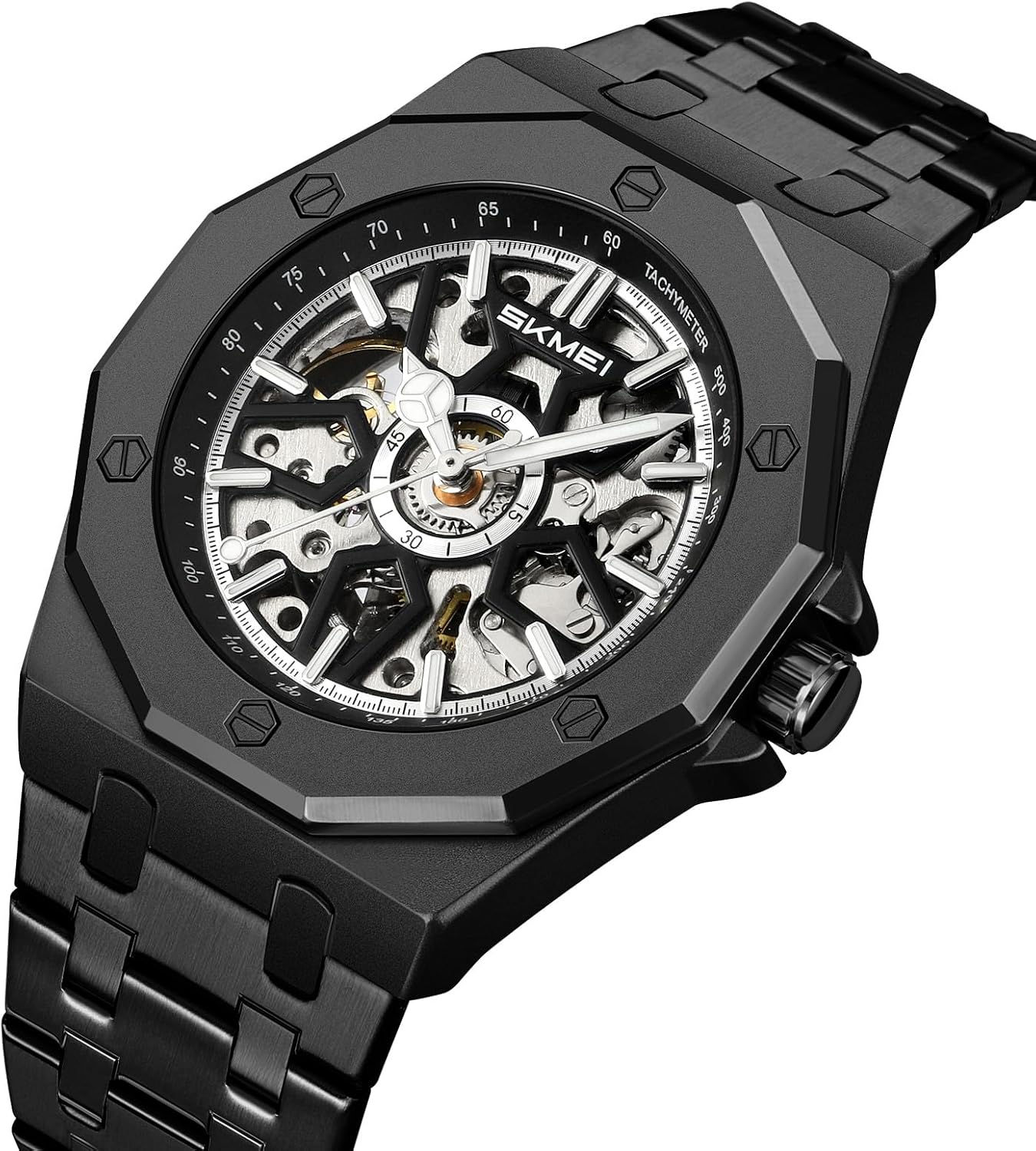

Angled view of the SKMEI M036 watch, highlighting the side profile, crown, and the texture of the black stainless steel band.

The SKMEI M036 watch displayed on a stand, showing its full form and the detailed craftsmanship of the case and band.

The SKMEI M036 watch worn on a wrist, demonstrating its size and aesthetic appeal in a business casual setting.

An overview of various color and band material options for the SKMEI M036 watch, including gold, silver, and black finishes with both silica gel and stainless steel straps.

7.2 Official Product Video

8. Warranty and Support

For information regarding warranty coverage, service, or any other inquiries, please refer to the official SKMEI website or contact your retailer. Keep your purchase receipt as proof of purchase for any warranty claims.

For additional support or to explore other SKMEI products, visit the SKMEI Official Store on Amazon.
