Airoak AZ1810 Vacuum Replacement Filters User Manual

1. Product Overview

The Airoak AZ1810 replacement filter kit is designed for use with the Shark Vertex Duoclean Upright Cleaner AZ1810. This kit includes HEPA post-motor filters, foam filters, and felt filters, which are essential components for maintaining the vacuum cleaner's filtration efficiency. These filters are engineered to capture dust and tiny particles, contributing to a cleaner home environment.

Image: Close-up view of the HEPA filter and foam filter, highlighting their high efficiency in capturing dust and small particles. The image shows the pleated HEPA filter and the dense foam filter, emphasizing their role in effective filtration.

2. Package Contents

Each Airoak AZ1810 filter replacement kit contains the following items:

• 2 HEPA Post-Motor Filters
• 4 Foam Filters
• 4 Felt Filters
• 1 Cleaning Brush

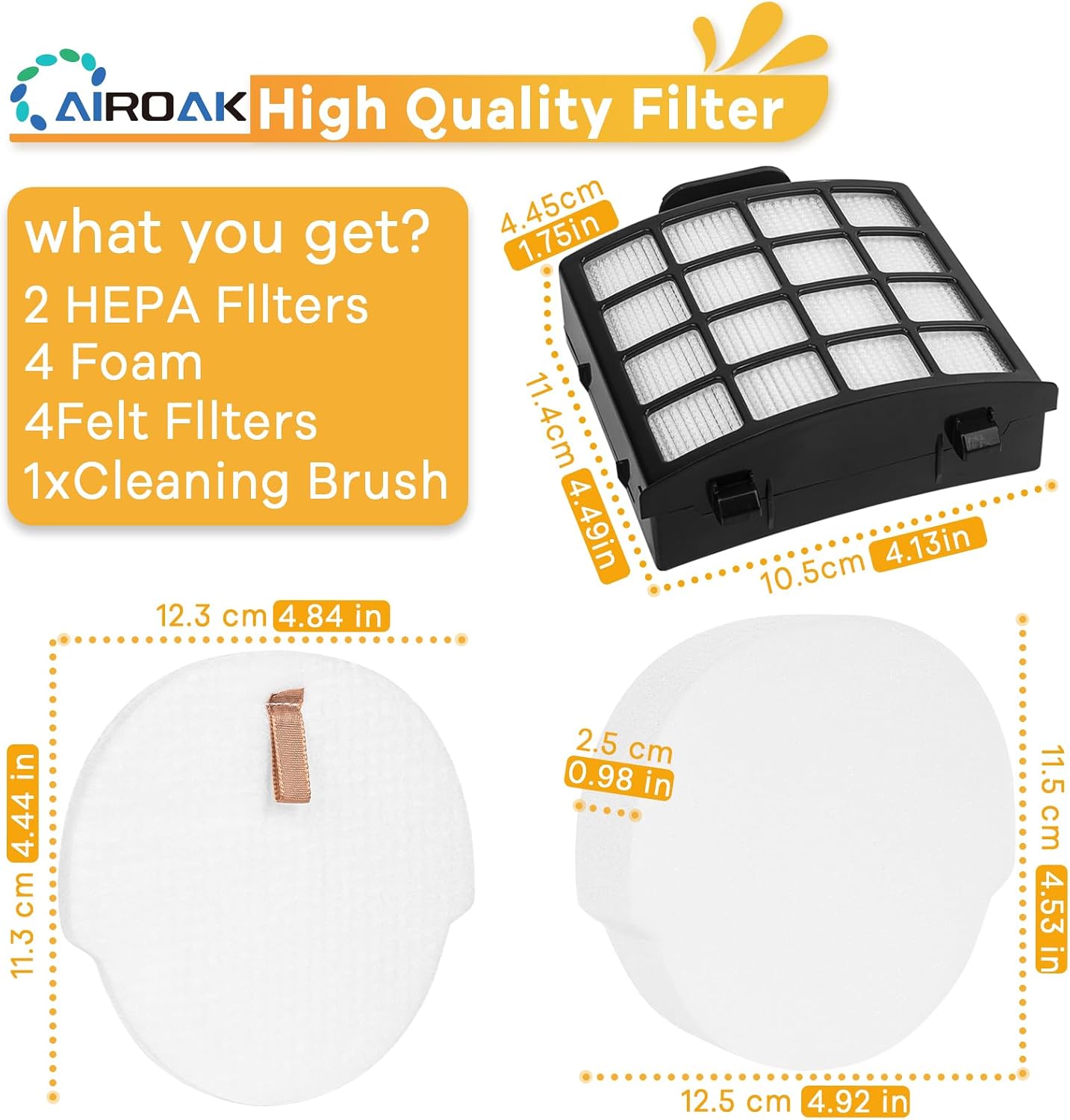

Image: The complete contents of the Airoak AZ1810 filter replacement kit are displayed, including two HEPA filters, four foam filters, four felt filters, and a cleaning brush. Key dimensions of the filters are also shown for reference.

3. Compatibility

These replacement filters are specifically designed to fit the Shark Vertex Duoclean Upright Cleaner AZ1810. Please verify your vacuum model and the shape of your existing filters before installation to ensure proper fit.

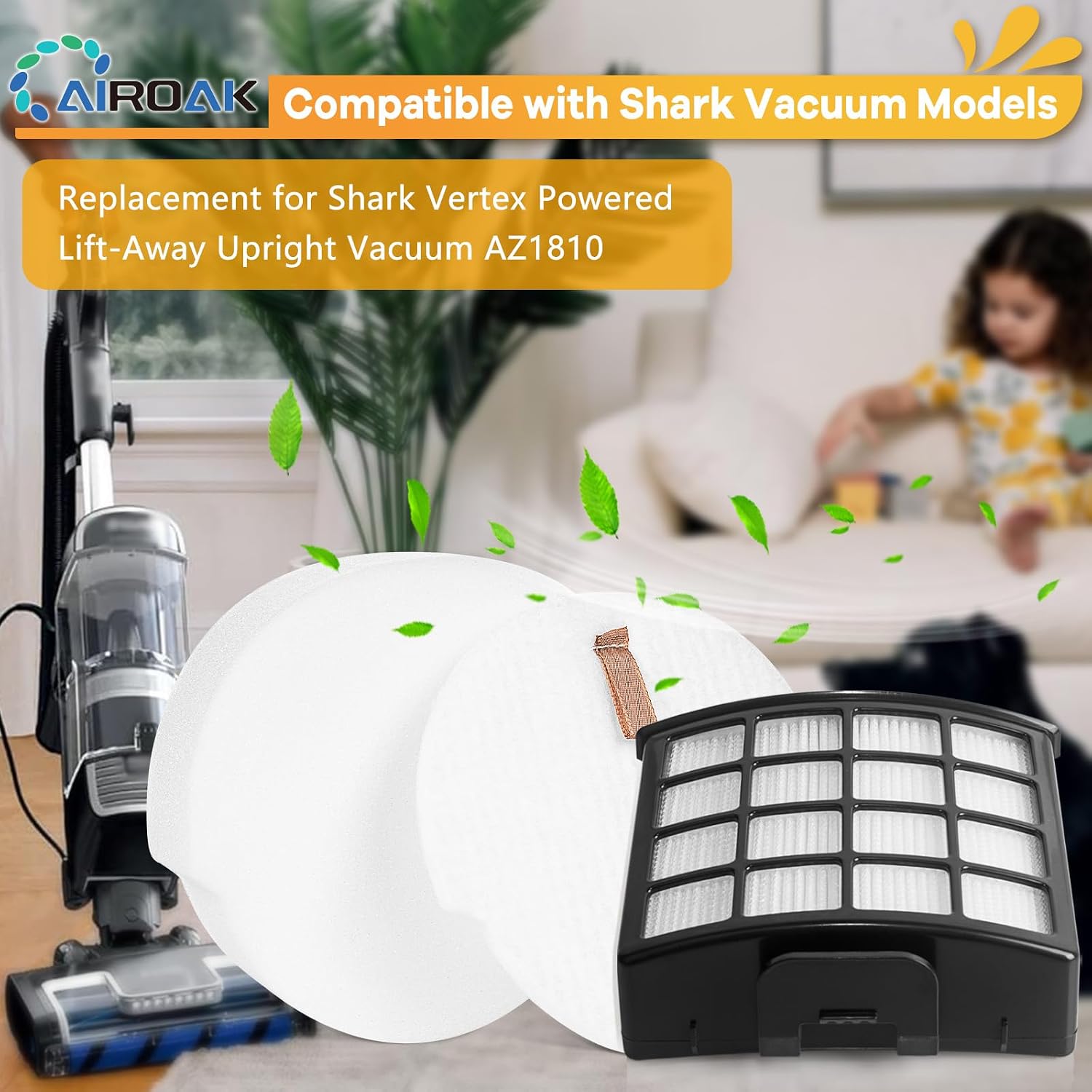

Image: The Airoak replacement filters are shown next to a Shark Vertex vacuum cleaner, visually confirming their compatibility with Shark Vertex Powered Lift-Away Upright Vacuum AZ1810 models.

4. Installation Instructions

Follow these steps to install the Airoak AZ1810 replacement filters into your Shark Vertex Duoclean Upright Cleaner AZ1810. No special tools are required for installation.

1. Power Off and Unplug: Before attempting any maintenance or installation, ensure your vacuum cleaner is turned off and unplugged from the power outlet to prevent accidental operation.
2. Locate Filter Compartments: Refer to your Shark vacuum's user manual to locate the pre-motor foam and felt filters, and the post-motor HEPA filter compartments. These are typically found near the dust cup and at the base of the vacuum.
3. Remove Old Filters: Carefully remove the existing foam, felt, and HEPA filters. Dispose of them responsibly.
4. Insert New Filters:
   • Place the new foam filter into its designated slot.
   • Place the new felt filter on top of the foam filter, ensuring it sits correctly.
   • Insert the new HEPA post-motor filter into its compartment, ensuring it is securely seated.
5. Close Compartments: Securely close all filter compartments.
6. Restore Power: Plug in your vacuum cleaner and power it on.

For a visual guide on filter replacement, please watch the video below:

5. Maintenance and Cleaning

To ensure optimal performance and extend the lifespan of your filters, regular cleaning is recommended.

• Filter Cleaning: The foam and felt filters can be rinsed with clean water. Gently squeeze out excess water and allow them to air dry completely for at least 24 hours before reinstallation. Do not use a washing machine or dryer.
• HEPA Filter: The HEPA filter should be tapped clean to remove loose debris. It is generally not recommended to wash HEPA filters unless specified by the manufacturer, as washing can damage the filter media.
• Cleaning Brush: Use the provided cleaning brush to remove dust and debris from the HEPA filter and other vacuum components.

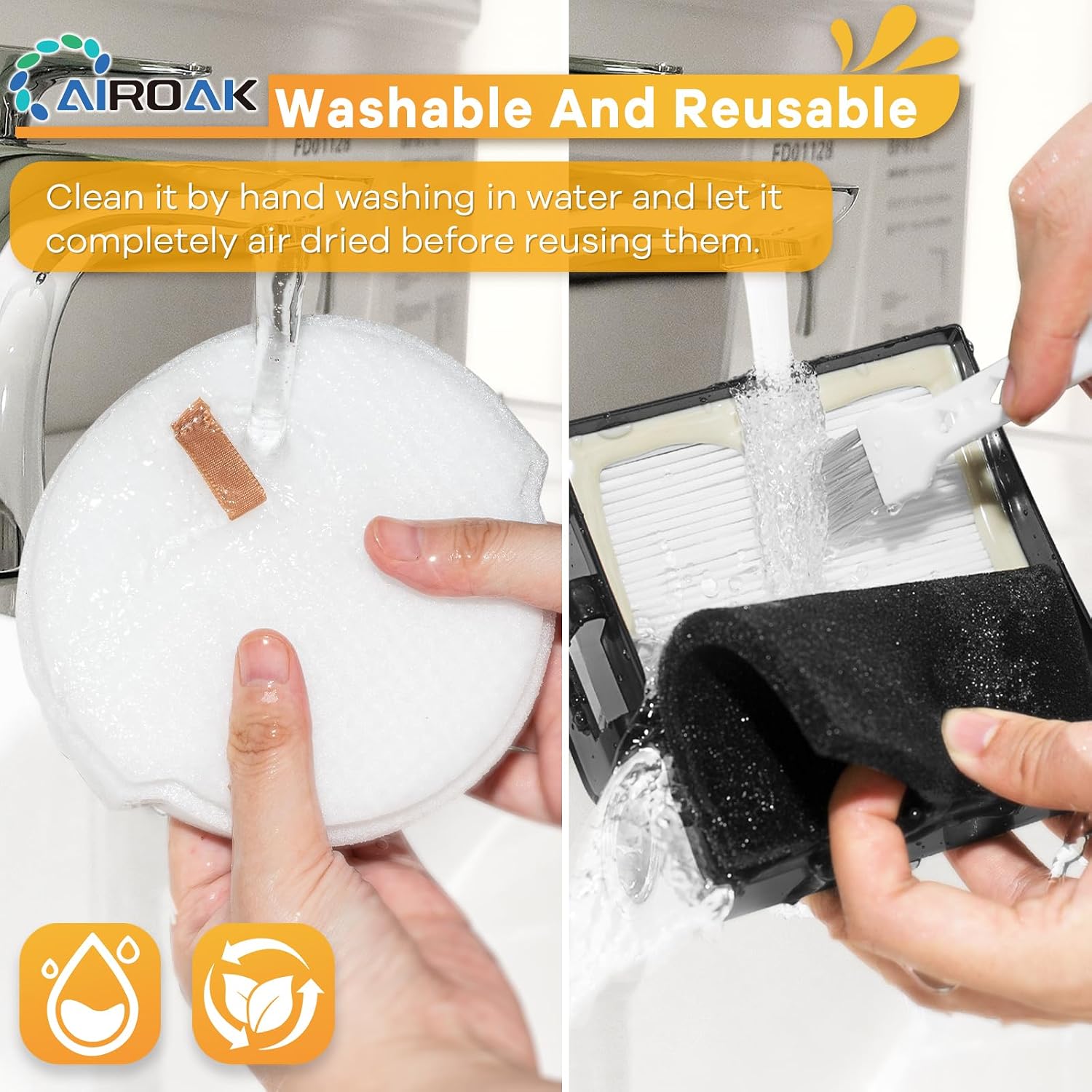

Image: Hands are shown rinsing a foam filter and a HEPA filter under running water, demonstrating the washable and reusable nature of the filters for easy maintenance.

6. Recommended Replacement Schedule

For optimal vacuum performance and air filtration, adhere to the following replacement schedule:

• Clean Filters: It is recommended to clean the foam and felt filters monthly.
• Replace Filters: Replace the entire filter set (HEPA, foam, and felt) every 2-3 months, or more frequently depending on usage and household conditions (e.g., presence of pets, high dust levels).

7. Specifications

8. Warranty and Support

This product is covered by a standard return policy, typically allowing for returns or replacements within 30 days of purchase. For specific details regarding returns, please refer to the retailer's policy where the product was purchased.

If you encounter any questions or issues with your Airoak AZ1810 replacement filters, please contact Airoak customer support. We are committed to providing assistance and will respond to inquiries within 24 hours.
