1. Introduction
Thank you for choosing the FOSTOKO 4-Drawer Lateral File Cabinet. This heavy-duty steel cabinet is designed to provide secure and organized storage for your documents in home or office environments. It features four full-extension drawers, a locking mechanism for privacy, and an anti-tilt system for safety. This manual provides essential information for assembly, operation, maintenance, and troubleshooting to ensure optimal performance and longevity of your product.
Image: The FOSTOKO 4-Drawer Lateral File Cabinet in black, with the bottom drawer extended, showing organized files.
2. Safety Information
Please read and understand all safety instructions before assembling or using the file cabinet. Failure to follow these instructions may result in injury or damage to the product.
- Always assemble the cabinet on a flat, stable surface.
- Use appropriate safety gear when lifting and moving the cabinet due to its heavy weight.
- Do not overload the cabinet beyond its 440 lbs total capacity.
- Keep the cabinet away from heat sources.
- Do not use the cabinet for purposes other than intended to prevent potential hazards.
- The anti-tilt system ensures that only one drawer can be open at a time. Do not attempt to force multiple drawers open simultaneously, as this can cause the cabinet to tip over.
Image: Illustration of the anti-tipping design, demonstrating that only one drawer should be open at a time to prevent the cabinet from falling.
3. Package Contents
Before beginning assembly, ensure all parts are present and undamaged. If any parts are missing or damaged, please contact customer support.
- Cabinet Panels (Top, Bottom, Sides, Back)
- Drawer Components (Fronts, Sides, Backs, Bottoms)
- Drawer Slides (Ball-bearing rails)
- Locking Mechanism with 2 Keys
- Metal Hanging Rods (for file organization)
- Assembly Hardware (Screws, nuts, bolts, etc.)
- Assembly Tools (Screwdriver, gloves, wrench - may vary)
- Instruction Manual
4. Setup and Assembly Instructions
The FOSTOKO 4-Drawer Lateral File Cabinet requires assembly. Each part is labeled with a code, and clear instructions are included in the package. It is recommended to assemble the cabinet on a soft, clean surface to prevent scratches.
General Assembly Steps:
- Unpack and Identify Parts: Carefully remove all components from the packaging. Verify that all parts listed in the package contents are present. Refer to the included diagram for part identification.
- Assemble the Cabinet Frame: Attach the side panels to the bottom panel, followed by the back panel and top panel, using the provided hardware. Ensure all connections are secure.
- Install Drawer Slides: Attach the drawer slides to the inside of the cabinet frame according to the instructions. Ensure they are level and aligned.
- Assemble Drawers:
- Attach the drawer fronts to the side panels of each drawer.
- For the drawer backs, ensure the larger flange is facing down and towards the back/wall, then push firmly to lock into place from the inside out.
- Attach the drawer bottoms.
- Install the drawer portion of the slides onto each assembled drawer.
- Insert Drawers into Cabinet: Extend the cabinet slides fully. Carefully align the four silver tabs on the drawer slides with the corresponding slot openings on the drawer. Once aligned, press down on the drawer until all four tabs click into place. This ensures proper closure and function.
- Install Locking Mechanism: Follow the instructions to install the lock and ensure it operates correctly with the provided keys.
- Attach Hanging Rods: Insert the metal hanging rods into the designated slots within the drawers for file organization.
An installation video may be available to assist with the assembly process. Refer to the instructions provided in your package for specific details and diagrams.
Image: An exploded diagram illustrating the various components of the file cabinet and the general assembly process.
5. Operating Instructions
Drawer Operation:
- The drawers are equipped with ball-bearing slides for smooth and quiet operation.
- To open a drawer, gently pull the handle. To close, push the drawer firmly until it is fully recessed.
- The cabinet features a full-extension design, allowing complete access to the contents of each drawer.

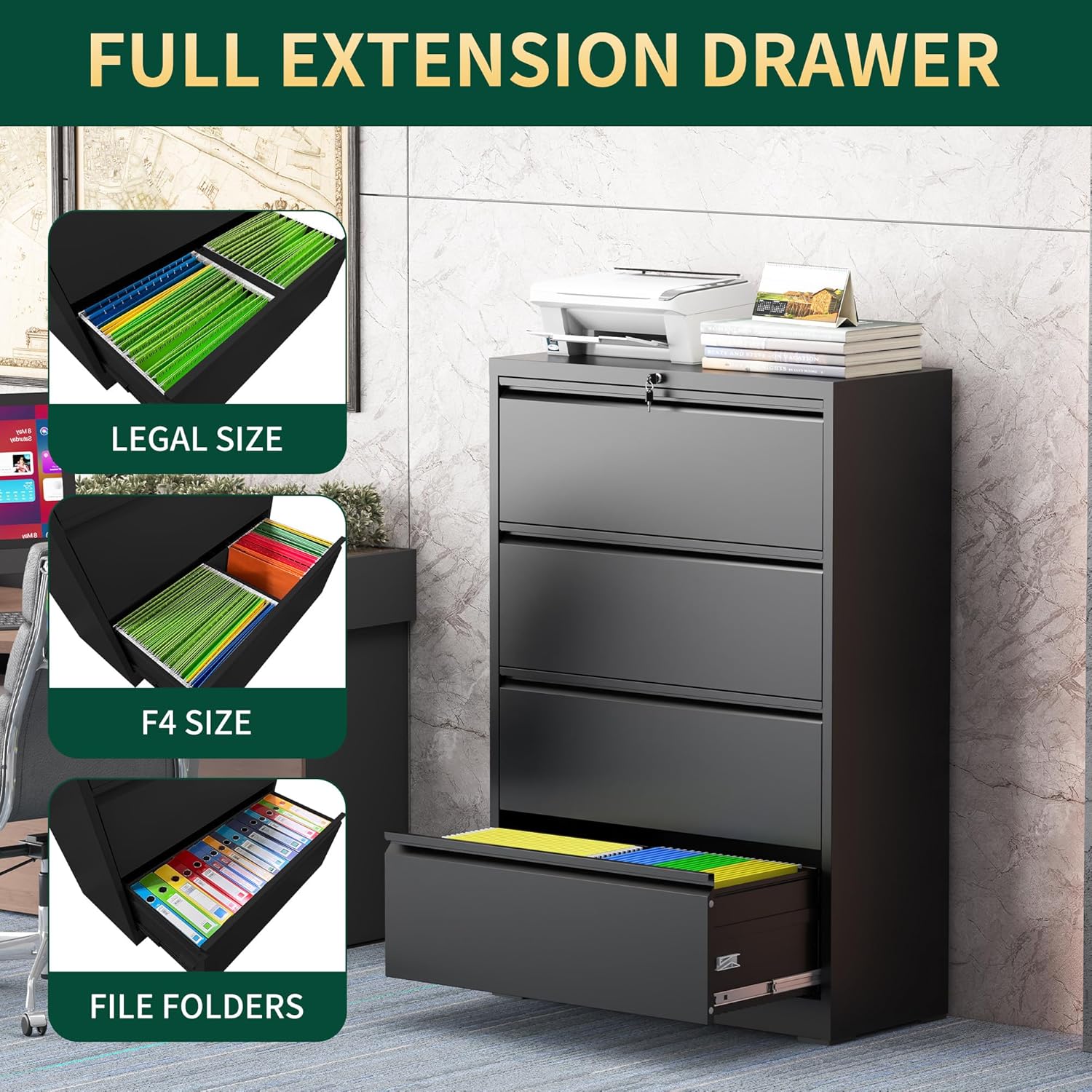

Image: A close-up view of a fully extended drawer, demonstrating its capacity for legal, F4, and standard file folders.
Locking Mechanism:
- The interlock system secures all four drawers simultaneously.
- Insert one of the two provided keys into the lock located on the top drawer.
- Turn the key to lock or unlock all drawers. Remove the key after locking to ensure security.

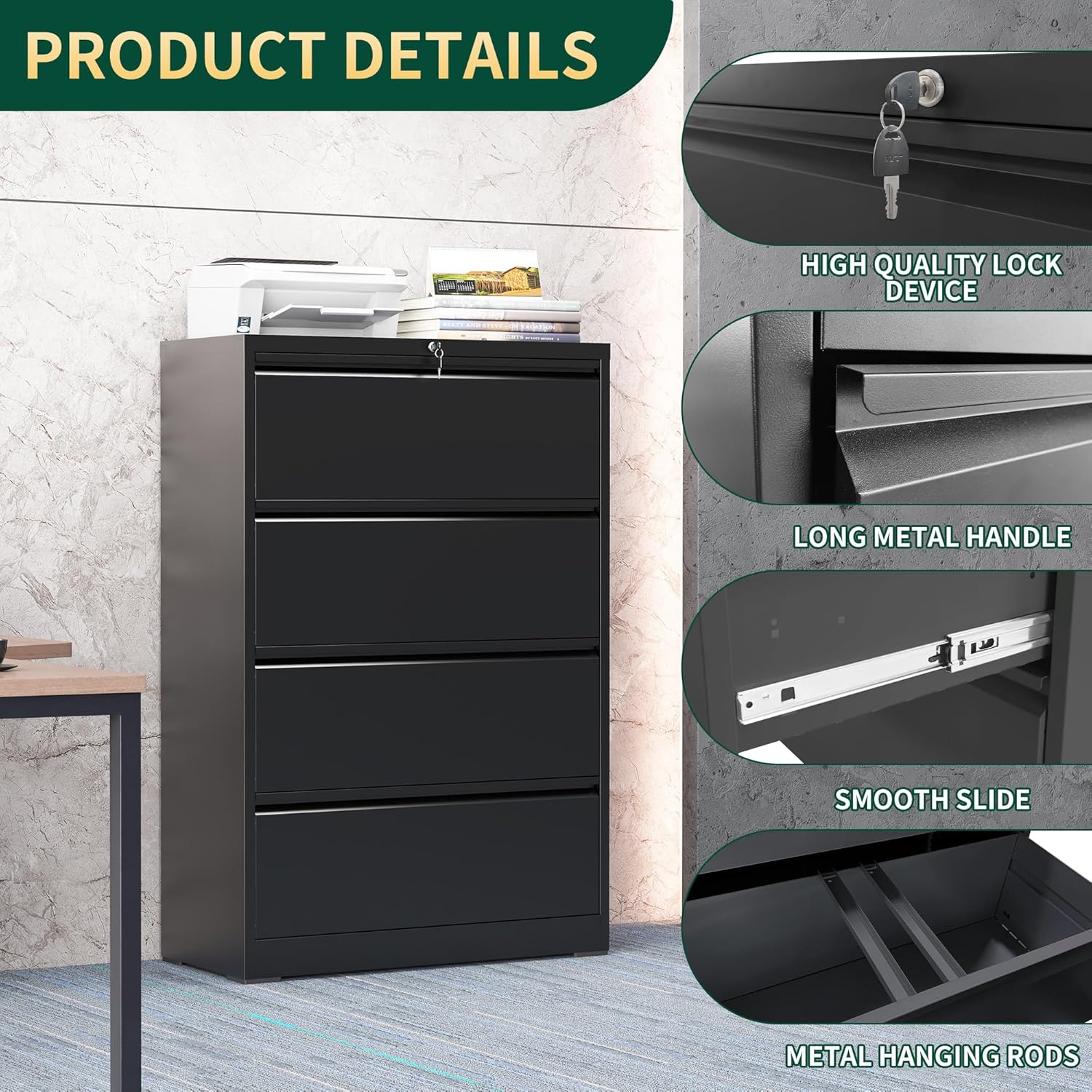

Image: Detailed view highlighting the high-quality lock device and the smooth ball-bearing drawer slides.
Anti-Tilt System:
- For safety, the cabinet is equipped with an anti-tilt system that allows only one drawer to be opened at a time.
- Do not attempt to open a second drawer while another is already extended, as this will engage the safety mechanism and prevent further opening.
6. Maintenance
Regular maintenance will help preserve the appearance and functionality of your file cabinet.
- Cleaning: Wipe the cabinet surfaces with a soft, damp cloth. For stubborn marks, a mild soap solution can be used, followed by drying with a clean cloth. Avoid abrasive cleaners or harsh chemicals, as these can damage the powder-coated finish.
- Drawer Slides: Periodically check the drawer slides for any debris or dust. If necessary, clean them with a dry cloth. Lubrication is generally not required for ball-bearing slides but can be applied sparingly if movement becomes stiff.
- Hardware: Occasionally check all screws and fasteners to ensure they remain tight. Retighten if necessary.
- Rust Prevention: The cold-rolled steel construction with powder coating is designed to resist rust. Keep the cabinet in a dry environment to further prevent corrosion.
Image: A visual comparison highlighting the rust-proof and easy-to-clean properties of the cold-rolled steel construction.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Drawers do not close smoothly or are stiff. |
|
|
| Cabinet feels wobbly after assembly. |
|
|
| Drawers cannot be locked. |
|
|
| Cannot open more than one drawer. | This is normal operation. | The anti-tilt system is functioning correctly. Only one drawer can be opened at a time for safety. |
8. Specifications
| Feature | Detail |
|---|---|
| Brand | FOSTOKO |
| Model Name | File Cabinet |
| Model Number | B01LF-004BM |
| Color | Black |
| Product Dimensions (W x D x H) | 35.43"W x 15.75"D x 52.36"H (Approximate, based on product image) |
| Material | Cold-Rolled Steel, Alloy Steel |
| Finish Type | Powder Coated |
| Total Weight Limit | 440 Pounds |
| Per Drawer Weight Limit | 110 Pounds |
| Item Weight | 109 pounds |
| Special Feature | Lockable, Anti-tilt System, Full Extension Drawers |
| Assembly Required | Yes |
| Recommended Uses | Home Office, Filing Storage |
| Supported File Sizes | Letters, Legal, A4 |
| UPC | 850071181418 |
Image: Detailed product size diagram with overall cabinet dimensions and individual drawer dimensions, including weight capacities.
9. Warranty Information
Warranty information for the FOSTOKO 4-Drawer Lateral File Cabinet is not explicitly provided in the available product data. Please refer to the product packaging or contact the manufacturer directly for details regarding warranty coverage.
10. Customer Support
Specific customer support contact information for FOSTOKO is not provided in the available product data. For assistance with assembly, parts, or product inquiries, please refer to the contact details on your product packaging or the retailer's website where the product was purchased.
