GarveeLife 20'x25'x13' Enclosed Metal Carport User Manual

Introduction

This manual provides essential information for the safe and effective assembly, operation, and maintenance of your GarveeLife 20'x25'x13' Enclosed Metal Carport. This heavy-duty structure is designed to provide full protection for various vehicles, including full-sized pickup trucks, bass boats, and tractors, offering a permanent garage solution for all weather conditions. Please read this manual thoroughly before beginning assembly or use.

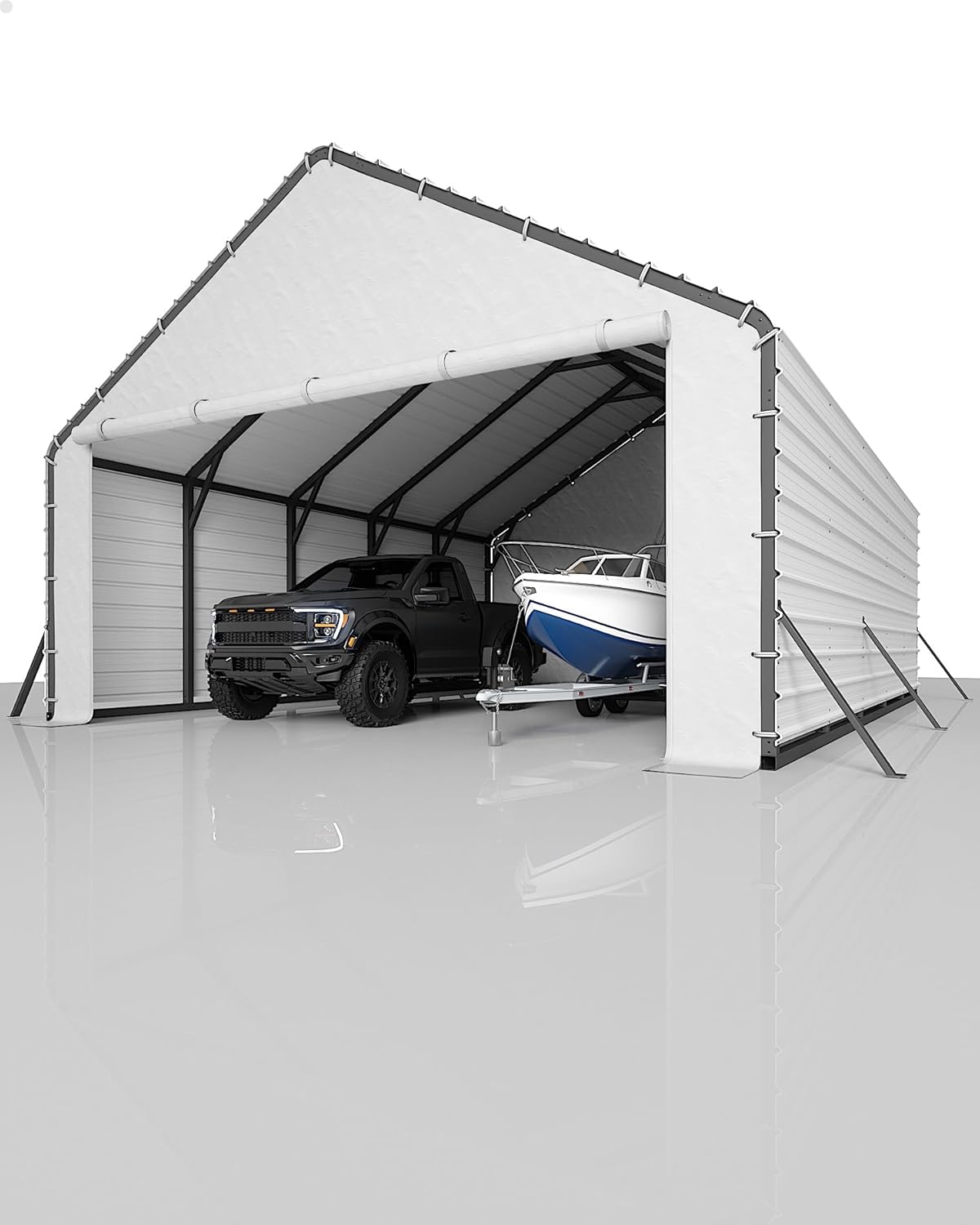

Image: The GarveeLife 20'x25'x13' Enclosed Metal Carport, showcasing its spacious interior accommodating a pickup truck and a boat, highlighting its primary use as a protective shelter.

Important Safety Information

To ensure the safety and optimal performance of your heavy-duty carport, adhere to the following instructions:

1. When installing the roof, apply the included waterproof tape along the edges of the metal sheets to prevent water leakage.
2. In windy areas, secure the carport to the ground using appropriate fixing methods. For grass or gravel surfaces, utilize heavy-duty ground pegs, stakes, and guylines with ratchets for additional downward force. On concrete surfaces, use the provided expansion screws to fix the carport to the ground. Additionally, placing sandbags on the base is recommended to provide more downforce and resist high winds.
3. During snowfall, regularly clear snow from the roof (do not allow accumulation exceeding 5 inches) to prevent excessive load-bearing that could cause damage to the structure.

Setup and Installation

Assembly of the GarveeLife Enclosed Metal Carport requires careful attention to detail and the assistance of multiple individuals.

Pre-Installation Checklist:

• Review the complete Installation Manual (PDF) thoroughly before starting.
• Gather necessary tools: electric drills, gloves, and ladders.
• Ensure you have 2-4 friends or assistants available for assembly. The estimated assembly time is approximately 10 hours.
• Note that the product is packaged in 12 boxes, which may arrive at different times. Do not begin assembly until all parts have been received.
• When installing the side metal panels, it is crucial to cut holes where the ground reinforcing poles will be positioned.

Key Installation Steps:

Image: Visual guide illustrating critical steps for roof panel installation, including precise measurement, application of waterproof foam tape, proper sheet alignment, and securing with self-tapping screws.

1. Measure and Align: Carefully measure and align components as per the manual's instructions. For roof panels, ensure proper overlap, typically 1 to 1.5 inches.
2. Apply Foam Tape: Attach the provided foam tape along the edges of the metal sheets to create a waterproof seal, especially on roof seams.
3. Cover with Sheet: Position the next metal sheet to cover the foam tape and overlap the previous sheet correctly.
4. Drill Self-Tapping Screws: Secure the sheets by drilling self-tapping screws through the pre-drilled holes or as indicated in the manual.

Operation and Usage

Your GarveeLife Enclosed Metal Carport is designed for versatile use as a permanent garage or protective shelter.

• Vehicle Storage: The carport's generous dimensions (24'6'' L x 19'3'' W x 12'8'' H) allow for easy parking of two full-sized pickup trucks. The side pole height of 7'5'' also accommodates compact trailers or RVs.
• Multi-Purpose Shelter: Beyond vehicle storage, the carport can serve as an outdoor workshop, a shed for boats, or a general enclosed space for protecting valuable investments from the elements.

Image: The carport effectively utilized as a secure shed for storing boats, demonstrating its capacity and protective capabilities.

Image: The spacious interior of the carport configured as an outdoor workshop, highlighting its versatility for various activities.

Image: The carport standing strong in a snowy landscape, illustrating its robust design and ability to provide protection in all weather conditions.

Maintenance

Regular maintenance ensures the longevity and continued performance of your GarveeLife carport.

• Snow Removal: As mentioned in the safety section, promptly clear snow from the roof when accumulation reaches 5 inches or more to prevent structural strain.
• Structural Integrity: Periodically inspect the 2'' / 19 gauge high-strength steel poles and 27 gauge sheet metal for any signs of damage or wear. The triple rust-resistant coating helps extend lifespan, but regular checks are recommended.
• Door Maintenance: Ensure the 200g tear-resistant roll-up doors operate smoothly and are free from obstructions.
• Ground Anchoring: Regularly check the ground pegs, stakes, guylines, or expansion screws to ensure they remain securely fastened, especially after severe weather.

Troubleshooting

Should you encounter any issues with your carport, consider the following common concerns:

• Missing or Damaged Parts: Products may occasionally be damaged during transportation or have missing components. If this occurs, do not hesitate to contact customer support for assistance.
• Assembly Difficulties: If you have trouble installing the carport, refer back to the detailed installation manual and ensure all steps are followed precisely. Confirm you have the recommended number of people and tools.
• Water Leakage: Ensure the waterproof tape was correctly applied to all roof seams during installation. Re-inspect and reapply if necessary.
• Wind Resistance Concerns: Verify that the carport is adequately anchored to the ground using the recommended methods for your specific terrain (grass, gravel, or concrete). Consider adding sandbags for extra stability in high-wind areas.

Specifications

Detailed specifications for the GarveeLife 20'x25'x13' Enclosed Metal Carport:

Image: A detailed diagram illustrating the key dimensions of the carport, including length, width, height, and side pole height, for precise planning and understanding of its capacity.

Warranty and Support

GarveeLife is committed to providing quality products and customer satisfaction.

• Warranty: Your GarveeLife Enclosed Metal Carport comes with a 1-year guarantee from the date of purchase. This warranty covers manufacturing defects and material flaws under normal use. Please refer to the warranty document for full terms and conditions.
• Customer Support: For any questions, concerns, missing parts, or assistance with assembly, please do not hesitate to contact GarveeLife customer support. We are here to help.
