KEINVE 1500W Electric Deep Fryer (Model DF-165) Instruction Manual

1. Important Safeguards

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

• Read all instructions before using the deep fryer.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against electrical shock, do not immerse cord, plugs, or heating element in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
• Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
• Do not use appliance for other than intended use.
• Ensure the magnetic power cord is securely attached before operation.

2. Product Overview

The KEINVE 1500W Electric Deep Fryer (Model DF-165) is designed for convenient and safe home frying. Familiarize yourself with its components:

• Adjustable Temperature Control: Dial to select desired frying temperature.
• Power and Ready Indicator Lights: Shows when the unit is powered on and when the oil has reached the set temperature.
• Viewing Window: Allows monitoring of cooking progress without opening the lid.
• Folding Handle: For the frying basket, designed for easy storage and safe handling.
• Locking Cover: Secures the lid during operation to prevent splatters.
• Non-Stick Basket & Oil Pot: Detachable for easy cleaning.
• Magnetic Power Cord: For enhanced safety, detaches easily if tugged.

Product Components Diagram

Figure 2.1: Labeled diagram showing the viewing window, folding handle, exterior basket handle, push button cover latch, indicator light, temperature control, and cool-touch exterior.

Key Features

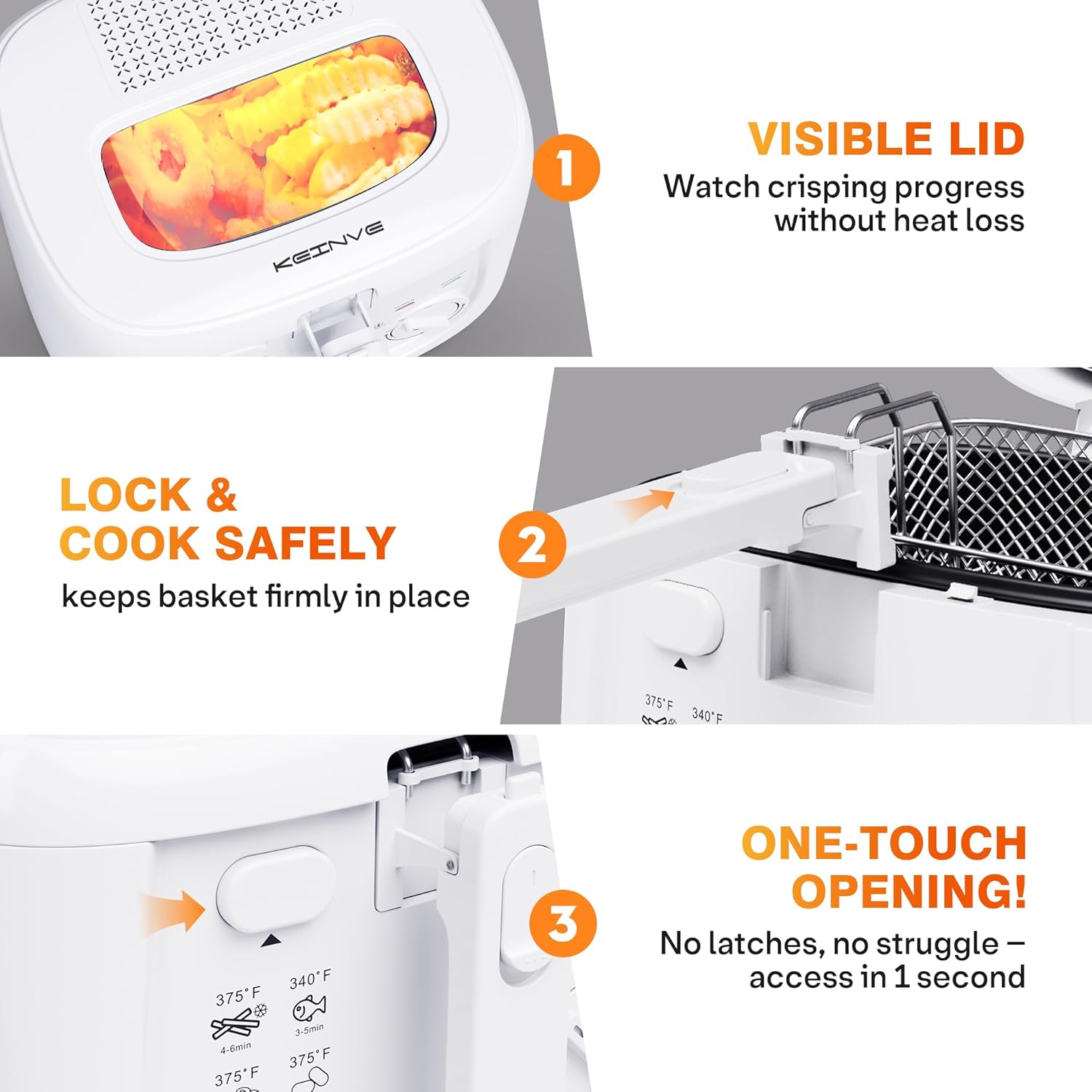

Figure 2.2: Close-up view highlighting the visible lid for monitoring, the secure locking mechanism for the basket, and the one-touch button for lid opening.

Figure 2.3: Illustration of the drip hook for draining excess oil and the viewing window for safe cooking observation.

Figure 2.4: Visual representation of the detachable lid and basket for simplified cleaning, and the magnetic power cord designed for enhanced safety.

3. Setup

1. Unpack: Carefully remove all packaging materials and ensure all components are present.
2. Clean: Before first use, wash the removable basket and oil pot with warm, soapy water. Wipe the exterior of the fryer with a damp cloth. Ensure all parts are completely dry before assembly.
3. Assemble: Place the oil pot securely into the fryer base. Insert the frying basket into the oil pot. Attach the handle to the frying basket by squeezing the prongs and fitting them into the designated slots.
4. Add Oil: Pour cooking oil into the oil pot, ensuring the level is between the MIN and MAX fill lines. Do not overfill.
5. Connect Power: Attach the magnetic power cord to the designated port on the back of the fryer. Plug the other end into a grounded electrical outlet.

Visual Guide for Setup

Figure 3.1: Demonstrates adding cooking oil to the 2.5-liter capacity deep fryer.

4. Operating Instructions

Follow these steps for safe and effective deep frying:

1. Power On: Flip the power switch to the 'ON' position. The red 'POWER' indicator light will illuminate.
2. Set Temperature: Turn the temperature control dial to your desired frying temperature. The fryer offers preset temperatures of 300°F, 340°F, and 375°F. Refer to the quick reference guide on the fryer's front panel for recommended temperatures and times for various foods (e.g., fries, chicken, fish).
3. Preheat Oil: Allow the oil to preheat. The green 'READY' indicator light will illuminate when the oil has reached the set temperature.
4. Load Food: Carefully place food into the frying basket. Do not overload the basket, as this can lower oil temperature and result in soggy food.
5. Lower Basket: Using the folding handle, slowly lower the basket into the hot oil. Ensure the basket is securely locked into place to prevent accidental spills.
6. Close Lid: Close the lid to minimize splattering and contain odors. The viewing window allows you to monitor cooking progress.
7. Fry: Fry for the recommended time or until food is golden brown and cooked through.
8. Remove Food: Once cooking is complete, use the folding handle to raise the basket. Allow excess oil to drain back into the pot.
9. Serve: Carefully transfer the fried food to a plate lined with paper towels to absorb any remaining oil.
10. Power Off: Turn the power switch to the 'OFF' position and unplug the fryer from the outlet.

Temperature Control and Indicator Lights

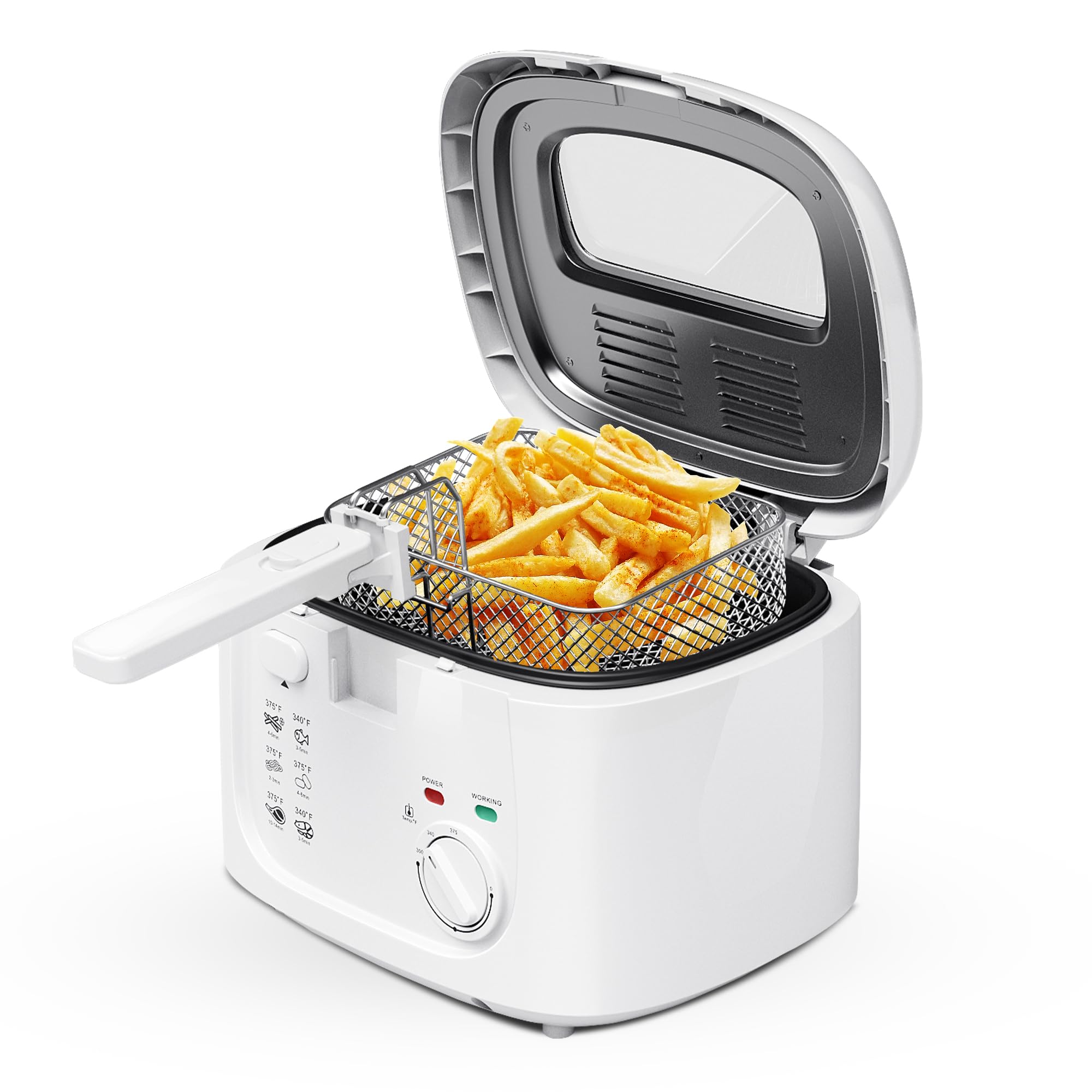

Figure 4.1: Overview of the deep fryer showing the temperature control dial and the Power/Working indicator lights.

Official Product Video: KEINVE 2.5L Deep Fryer

Video 4.1: This video demonstrates the features and operation of the KEINVE 2.5L Deep Fryer, including its compact design and ease of use for various fried foods.

5. Cleaning and Maintenance

Regular cleaning ensures the longevity and optimal performance of your deep fryer.

1. Cool Down: Always allow the fryer and oil to cool completely before cleaning. This can take several hours.
2. Remove Oil: Once cooled, carefully pour the used oil into a suitable container for disposal or reuse.
3. Disassemble: Remove the lid, frying basket, and oil pot. The lid and basket are detachable for easy cleaning.
4. Wash Components: The non-stick basket and oil pot are dishwasher safe. Alternatively, wash them with warm, soapy water and a non-abrasive sponge.
5. Clean Exterior: Wipe the exterior of the fryer base with a damp cloth. Do not immerse the main unit in water.
6. Dry Thoroughly: Ensure all parts are completely dry before reassembling or storing the fryer.

Easy Cleaning Features

Figure 5.1: Illustrates the dishwasher-safe lid and basket, simplifying the cleaning process.

6. Troubleshooting

• Fryer does not turn on: Ensure the power cord is securely plugged into both the fryer and a working electrical outlet. Check if the power switch is in the 'ON' position.
• Oil is not heating: Verify that the temperature control dial is set to a desired temperature and the 'POWER' light is on. Wait for the 'READY' light to illuminate, indicating the oil has reached temperature.
• Food is not crispy: Ensure the oil has reached the correct temperature before adding food. Do not overload the basket; fry in smaller batches if necessary. Ensure food is dry before frying.
• Excessive smoke: This may indicate the oil is too old or the temperature is too high. Replace old oil and ensure the temperature setting is appropriate for the food being fried.
• Oil splattering: Ensure the lid is closed during frying. Make sure food is dry before placing it in the hot oil.

7. Specifications

8. Warranty and Support

For warranty information, product support, or to inquire about replacement parts, please contact KEINVE customer service through the retailer where the product was purchased or visit the official KEINVE website.

Please retain your proof of purchase for warranty claims.
