1. Product Overview
The Ewatchparts MIYOTA 8205 is a brand new, original Japanese automatic watch movement featuring 21 jewels, with both day and date display functions. This movement is designed for precision and durability, making it suitable for watch repair, restoration, or custom watch builds. It operates on an automatic winding mechanism, eliminating the need for battery replacement.
Key features include its robust construction and reliable performance, characteristic of Japanese craftsmanship. The movement comes with essential components for installation, such as a watch winding stem, a dial holding spacer, and two spare screws.
2. Safety Information
Watch movements are delicate instruments. Handle with care to avoid damage to the gears, pivots, and other intricate components. Always use appropriate watchmaking tools and work in a clean, dust-free environment.
- Avoid touching the movement with bare hands; use finger cots or gloves to prevent oil and dirt transfer.
- Do not expose the movement to strong magnetic fields, as this can affect its accuracy.
- Keep away from moisture and extreme temperatures.
- Professional installation by a qualified watchmaker is highly recommended.
3. Package Contents
Your Ewatchparts MIYOTA 8205 Automatic Watch Movement package includes the following items:
- One (1) MIYOTA 8205 Automatic Movement (21 Jewels, Day & Date)
- One (1) Watch Winding Stem
- One (1) Dial Holding Spacer
- Two (2) Spare Screws (optional)

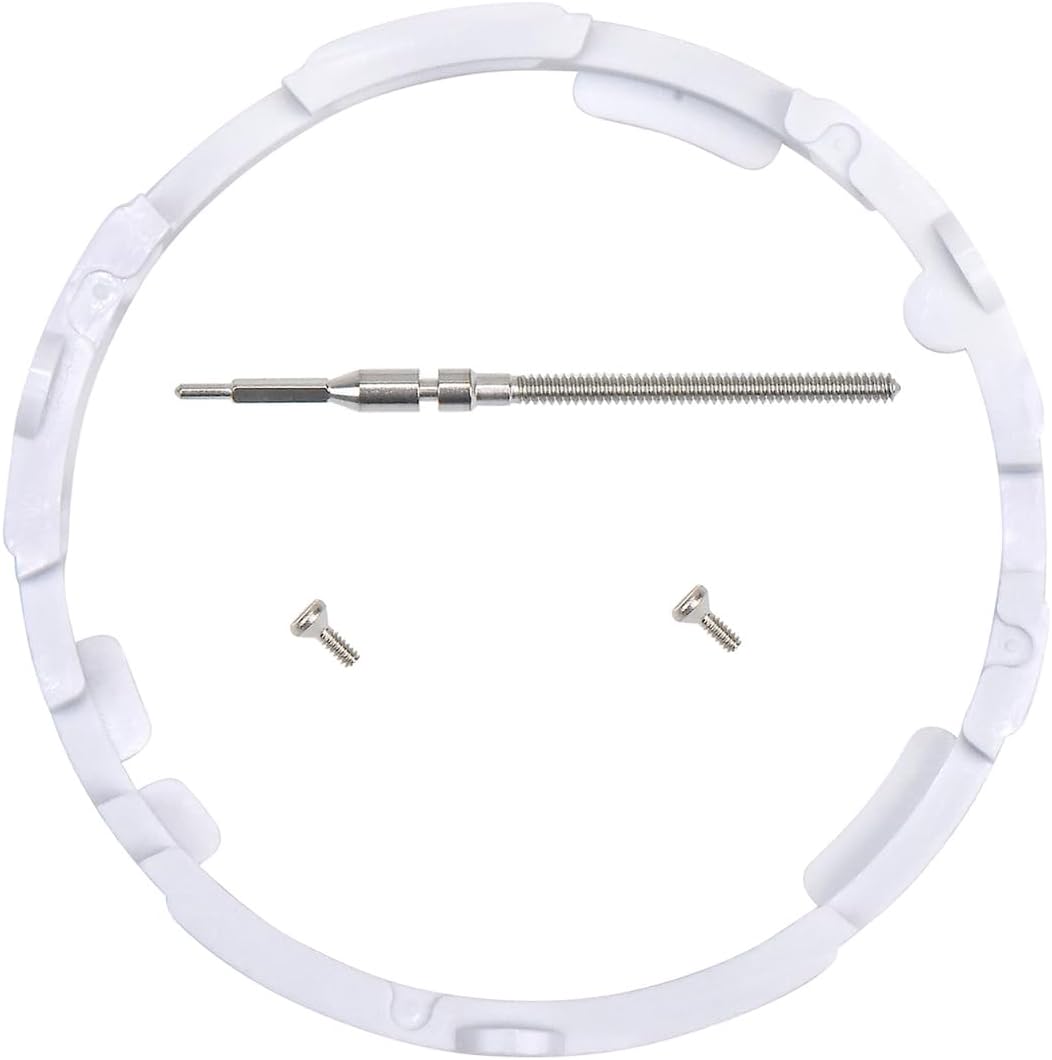

Figure 3.1: Included components: watch winding stem, dial holding spacer, and two spare screws. This image displays the watch winding stem, a white dial holding spacer, and two small screws, which are included with the Miyota 8205 movement for installation.
4. Specifications
| Feature | Detail |
|---|---|
| Caliber | 8205 |
| Ligne Size | 11 1/2 (26.0 mm) |
| Movement Height | 5.67 mm |
| Movement Height w/ Cannon Pinion | 7.41 mm |
| Jewels | 21 |
| Day/Date Position | Date at 3 o'clock position |
| Hand Hole Sizes (H/M/S) | 150/100/20 |
| Movement Type | Automatic |
| Product Dimensions | 2 x 2 x 2 inches |
| Item Weight | 0.13 Pounds |
| Manufacturer | Ewatchparts |
5. Installation and Setup
Installing a watch movement requires specialized skills and tools. If you are not experienced in watchmaking, it is strongly recommended to seek assistance from a professional watchmaker to avoid damaging the movement or your watch.
General Installation Steps (Professional Guidance Recommended):
- Prepare the Workspace: Ensure a clean, dust-free, and well-lit area. Gather all necessary watchmaking tools, including tweezers, screwdrivers, and a movement holder.
- Remove Old Movement (if applicable): Carefully remove the watch crown and stem, then detach the old movement from the watch case.
- Inspect the New Movement: Before installation, visually inspect the MIYOTA 8205 movement for any visible defects or damage.
- Attach Dial and Hands: Secure the watch dial to the movement using the provided dial holding spacer. Carefully attach the hour, minute, and second hands. Ensure they are properly aligned and do not touch each other or the dial.
- Insert Movement into Case: Place the assembled movement, dial, and hands into the watch case. Secure it using the appropriate movement clamps or screws.
- Install Winding Stem and Crown: Insert the winding stem into the movement and attach the crown. Test the winding and setting functions.
- Close Case: Carefully close and seal the watch case back.
Figure 5.1: Front view of the Miyota 8205 automatic watch movement with day and date wheels. This image shows the front of the Miyota 8205 automatic movement, highlighting the day and date indicator wheels and the winding stem.

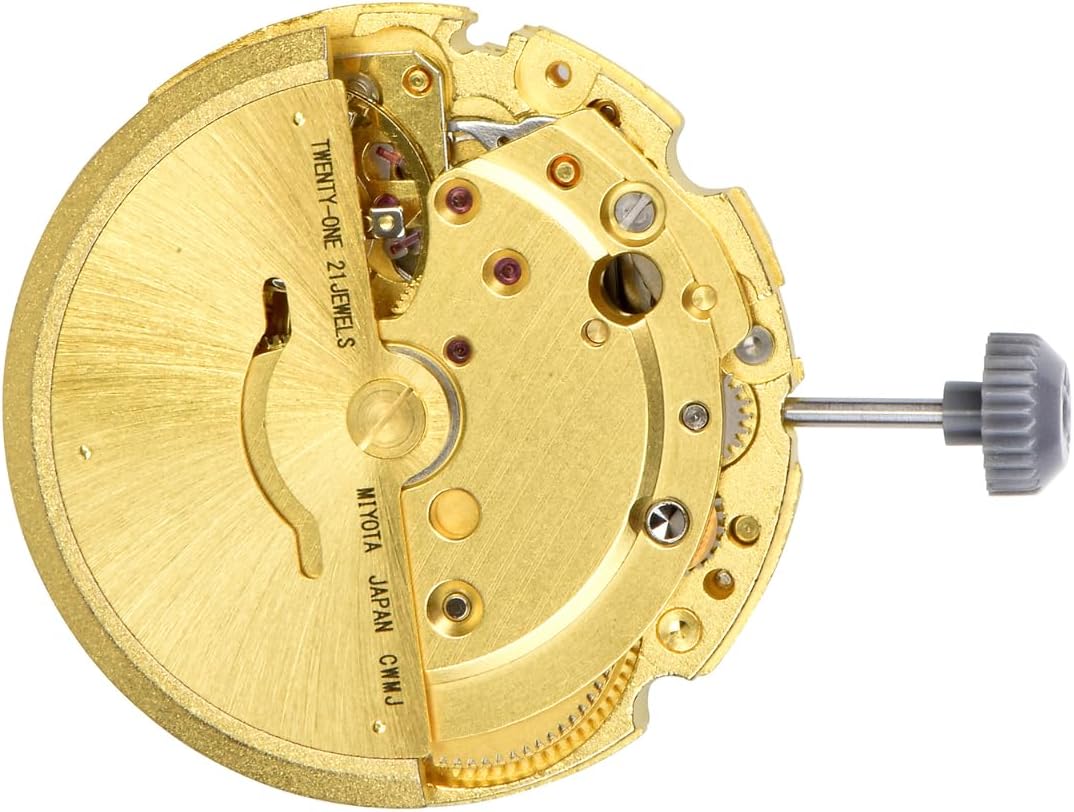

Figure 5.2: Rear view of the Miyota 8205 automatic watch movement showing the oscillating weight (rotor) and visible jewels, indicating its automatic winding mechanism.
Installation Video Reference:
Video 5.1: Watch Movement Replacement Part. This video demonstrates a watch movement replacement process, providing a visual guide for installing a new movement into a watch case.
6. Operation
The MIYOTA 8205 is an automatic movement, meaning it winds itself through the motion of your wrist. It also supports manual winding.
Winding the Movement:
- Automatic Winding: Wear the watch regularly. The oscillating weight (rotor) inside the movement will rotate with your arm's motion, winding the mainspring.
- Manual Winding: If the watch has stopped or to ensure a full power reserve, gently turn the crown clockwise in its normal (pushed-in) position for about 20-30 rotations. Do not overwind.
Setting Time and Date:
- Setting the Date: Pull the crown out to the first click position. Turn the crown clockwise or counter-clockwise (depending on the watch case design) to adjust the date. Avoid setting the date between 9 PM and 3 AM, as this can damage the date mechanism.
- Setting the Day: Pull the crown out to the first click position. Turn the crown in the opposite direction from date setting to adjust the day.
- Setting the Time: Pull the crown out to the second click position. The second hand will stop (hacking feature may vary). Turn the crown to set the hour and minute hands. Push the crown back to the normal position to start the watch.
7. Maintenance
Proper maintenance ensures the longevity and accuracy of your MIYOTA 8205 movement.
- Regular Servicing: Automatic movements typically require servicing every 3-5 years by a qualified watchmaker. This includes cleaning, lubrication, and adjustment.
- Cleaning: Keep the watch case clean to prevent dirt and dust from entering the movement.
- Storage: When not in use, store the watch in a dry, cool place, away from direct sunlight and strong magnetic fields.
- Water Resistance: The movement itself is not water-resistant. Its water resistance depends entirely on the watch case it is installed in. Ensure the watch case is properly sealed if water resistance is desired.
8. Troubleshooting
Here are some common issues and potential solutions for your automatic watch movement:
| Problem | Possible Cause | Solution |
|---|---|---|
| Watch stops or runs intermittently | Insufficient power reserve | Manually wind the watch (20-30 turns of the crown) or wear it for at least 8 hours. |
| Watch runs too fast or too slow | Magnetization or regulation issue | Demagnetize the watch or have it regulated by a professional watchmaker. |
| Date/Day not changing correctly | Incorrect setting time or mechanism fault | Ensure date/day is not set between 9 PM and 3 AM. If issue persists, consult a watchmaker. |
| Crown is loose or detached | Stem not properly secured or damaged | Seek professional repair to re-secure or replace the winding stem and crown. |
9. Warranty and Support
This MIYOTA 8205 Automatic Movement is supplied by Ewatchparts. For specific warranty information, please refer to the terms provided at the time of purchase or contact Ewatchparts directly. Generally, watch movements are covered against manufacturing defects.
Return Policy: The product is eligible for returns within 30 days of purchase, subject to the seller's return policy for refund or replacement.
Manufacturer: Ewatchparts
For technical support or inquiries regarding your MIYOTA 8205 movement, please visit the Ewatchparts Store on Amazon or contact their customer service.
