MYHXQ 17-inch Solar Porch Lights Outdoor Instruction Manual

1. Introduction

Thank you for choosing the MYHXQ 17-inch Solar Porch Lights. These outdoor wall lanterns are designed to provide efficient and convenient lighting for your home, patio, garage, or other outdoor spaces. Featuring advanced solar charging, motion detection, and dusk-to-dawn functionality, these lights offer a reliable and energy-saving lighting solution. Please read this manual thoroughly before installation and use to ensure proper operation and longevity of your product.

2. Product Features

• Advanced Solar Power: Built-in sensitive light sensor automatically charges during the day and illuminates at night. No electricity or wiring required.
• Three Lighting Modes: Offers DIM Mode, ECO Mode (ON/OFF), and PC Mode (Dusk to Dawn) to suit various lighting needs.
• Motion Activated Sensor: Detects motion to adjust brightness, enhancing security and energy efficiency.
• Dusk-to-Dawn Functionality: Automatically turns on at dusk and off at dawn.
• Durable Construction: Made with premium metal and tempered glass panels for reliable weather resistance (rain, sun, snow, wind).
• Easy Installation: Pre-assembled design with included mounting hardware for quick setup.
• E26 Bulb Compatibility: Includes a 5V Low Voltage E26 bulb, with easy replacement access.

3. Package Contents

Please verify that all components are present and in good condition upon opening the package:

• MYHXQ 17-inch Solar Porch Lights (2 units)
• 5V Low Voltage E26 Bulbs (2 units)
• Mounting Hardware (screws, anchors)
• Instruction Manual

4. Specifications

5. Setup and Installation

The MYHXQ Solar Porch Lights are designed for straightforward installation without complex wiring. The unit comes pre-assembled.

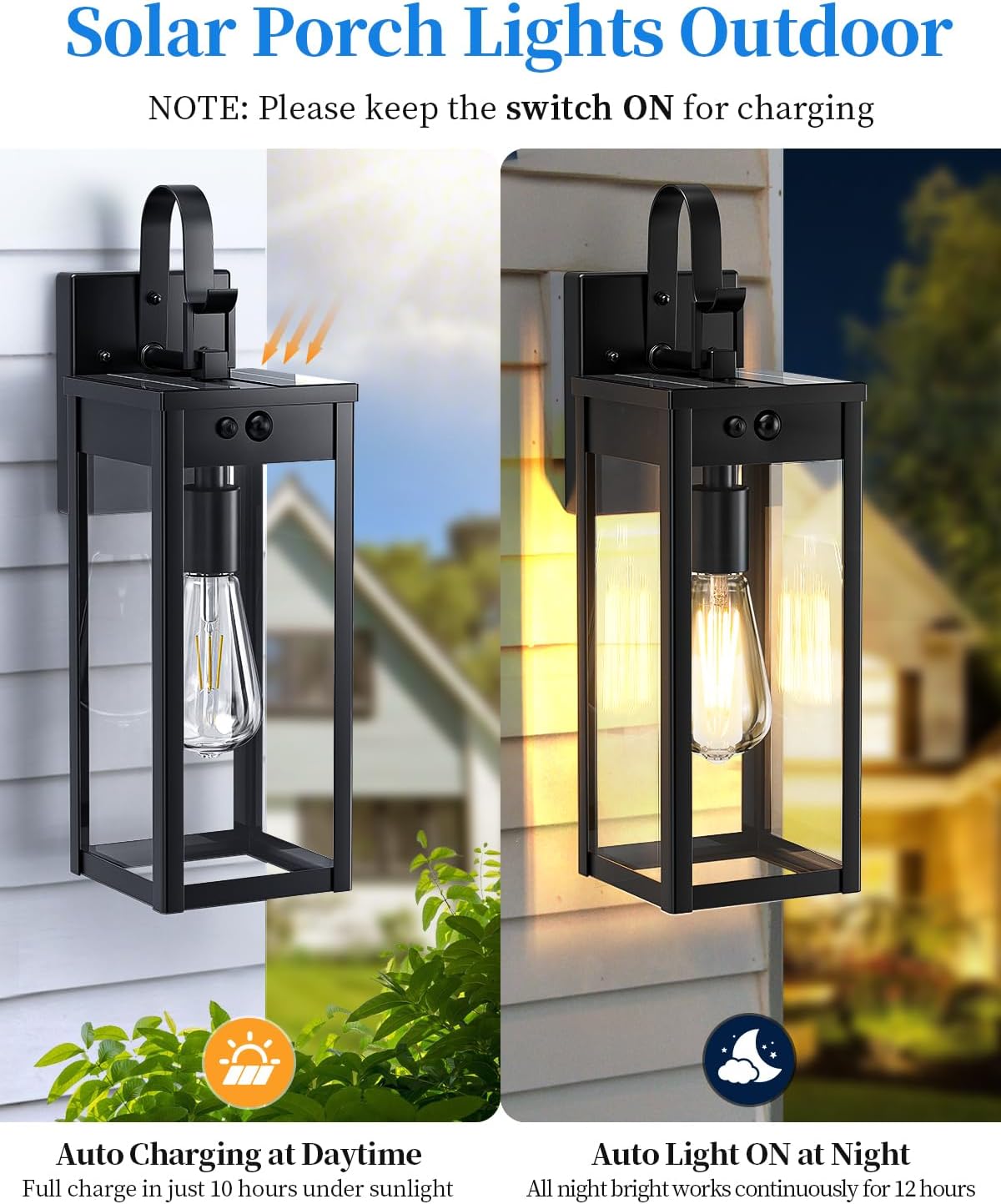

5.1 Initial Charging

1. Before first use, ensure the light's switch is in the 'ON' position.
2. Place the solar light in a location where the solar panel receives at least 10 hours of direct sunlight. This initial charge is crucial for optimal performance.
3. Avoid obstructing the solar panel with shadows from trees, buildings, or other objects, as this will affect charging efficiency.

5.2 Mounting the Light

The lights are wireless, offering flexible installation without location restrictions, provided the solar panel receives adequate sunlight.

1. Choose a suitable outdoor location on a wall, porch, or garage where the light can receive maximum direct sunlight and provide desired illumination.
2. Use the included mounting hardware (screws and anchors) to securely attach the light fixture to the desired surface.
3. Ensure the mounting surface is stable and can support the weight of the light.

5.3 Bulb Installation/Replacement

The light comes with an E26 bulb pre-installed. If replacement is needed:

1. The design features an opening bottom, allowing for simple bulb replacement without tools.
2. Ensure the light is switched off before attempting to replace the bulb.
3. Twist the old bulb counter-clockwise to remove it.
4. Insert the new 5V Low Voltage E26 bulb and twist clockwise until secure.

6. Operating Instructions

The MYHXQ Solar Porch Lights offer three distinct lighting modes, controlled by a switch on the unit. The motion sensor has an ideal detection range of 120 degrees and up to 25 feet, designed to prevent unwanted triggers from distant vehicles or animals.

6.1 Selecting Lighting Modes

To cycle through the modes, press the switch button located on the top of the light fixture:

1. Press for 10 seconds: Turns the light ON.
2. First Press (short): Enters DIM MODE.
3. Second Press (short): Enters ECO MODE (ON/OFF).
4. Third Press (short): Enters PC Mode (Dusk to Dawn).
5. Fourth Press (short): Turns the light OFF.

6.2 Mode Descriptions

• DIM MODE:
  • Automatically turns off during the day.
  • Activates at dusk, maintaining 30% brightness when no motion is detected.
  • Brightens to 100% upon motion detection.
  • Returns to 30% brightness approximately 120 seconds after motion ceases.
• ECO MODE (ON/OFF):
  • Automatically turns off during the day.
  • Remains off at night when no motion is detected.
  • Lights up at 100% brightness when motion is detected at dusk.
  • Turns off approximately 5 seconds after motion ceases.
• PC Mode (Dusk to Dawn):
  • Automatically turns off during the day.
  • Maintains 100% brightness throughout the night (when ambient brightness is <20 LUX).
  • Automatically turns off at dawn (when ambient brightness is >100 LUX) and returns to auto mode.

7. Maintenance

To ensure the optimal performance and longevity of your MYHXQ Solar Porch Lights, follow these maintenance guidelines:

• Cleaning: Regularly wipe the solar panel and glass panes with a soft, damp cloth to remove dust, dirt, and debris. A clean solar panel ensures efficient charging.
• Bulb Replacement: As mentioned in Section 5.3, the E26 bulb can be easily replaced if needed. Use only 5V Low Voltage E26 bulbs.
• Environmental Factors: While weather-resistant, extreme conditions like heavy snow accumulation on the solar panel may temporarily reduce charging efficiency. Clear snow or ice as needed.
• Battery: The internal batteries are designed for long-term use. If you notice a significant decrease in performance over time, ensure the solar panel is clean and receiving adequate sunlight. The AAA batteries included are likely for the sensor/control unit and generally have a long lifespan.

8. Troubleshooting

If you encounter issues with your MYHXQ Solar Porch Lights, please refer to the following common problems and solutions:

9. Warranty and Support

MYHXQ is committed to providing high-quality products. For any questions, concerns, or support needs regarding your solar porch lights, please contact our customer service. While specific warranty details are not provided in this manual, please refer to your purchase documentation or the retailer's website for warranty information.

For assistance, please visit the MYHXQ Store on Amazon or contact the seller directly.
