Korser 6006ALL Swivel Rocker Recliner Instruction Manual

Introduction

Thank you for choosing the Korser 6006ALL Swivel Rocker Recliner. This manual provides essential information for the safe and efficient assembly, operation, and maintenance of your new recliner. Please read all instructions carefully before use and retain this manual for future reference.

Important Safety Information

Always follow the assembly instructions carefully to ensure the chair is assembled correctly and safely. Do not exceed the maximum weight recommendation of 136 kg (300 lbs) to prevent damage or injury. Keep children and pets away from the moving parts of the recliner. Ensure all electrical connections are secure and properly plugged into a suitable power outlet. Do not use the heating or massage functions if the chair is wet or damaged.

Package Contents

Your recliner package typically includes the following components:

• Recliner Base
• Backrest
• Armrests (2)
• Seat Cushion
• Headrest Cushion
• Power Adapter
• Remote Control for Massage/Heating
• Assembly Hardware (screws, tools if needed)
• Instruction Manual

Setup and Assembly

Assembly of your Korser recliner is designed to be quick and straightforward, typically taking about 5 minutes without requiring additional tools. Follow these steps:

1. Unpack Components: Carefully remove all parts from the packaging. Ensure all listed components are present.
2. Attach Backrest: Align the backrest with the base of the chair. Slide the backrest brackets onto the corresponding slots on the chair base until they click securely into place.
3. Connect Electrical Wires: Locate the electrical wires for the massage and heating functions. Connect the corresponding wires from the backrest to the base. Ensure a secure connection.
4. Attach Armrests: Slide the armrests onto the side brackets of the chair base. Ensure they are firmly attached.
5. Connect Power: Plug the power adapter into the chair's power input, then plug the adapter into a wall outlet.
6. Connect Remote Control: Plug the remote control cable into its designated port, usually located near the power input.

For a visual guide, please refer to the assembly video below:

Image: Product Dimensions. This image provides a detailed diagram of the recliner's dimensions, including height, width, and depth, to help users understand its size.

Operating Instructions

Reclining Function

To recline the chair, locate the side-pull buckle on the side of the armrest. Pull the buckle to release the footrest and lean back to your desired position. The chair offers multiple reclining positions for reading, watching TV, or napping. To return to the upright position, push down on the footrest with your legs until it locks into place.

Image: Adjustable Backrest. This image illustrates the various adjustable backrest angles (105° for chatting, 135° for watching, 165° for napping) for personalized comfort.

360° Swivel and Rocking Motion

The recliner features a 360° smooth swivel and a gentle rocking motion. You can effortlessly turn the chair to face different directions or enjoy a soothing rocking experience. These functions operate independently of the reclining mechanism.

Heated Massage Function

The recliner is equipped with an 8-point vibration system and a heating function. Use the multi-function remote control to operate these features:

• Power: Press the 'POWER' button to turn the massage and heating system on/off.
• Massage Modes: Choose from 5 massage modes (Pulse, Press, Wave, Auto, Normal) to target your back, lumbar, thighs, and legs.
• Intensity Levels: Select between 2 intensity levels (High/Low) for your preferred massage strength.
• Heating: Press the 'HEAT' button to activate the lumbar heating function.
• Timer: Set a timer for 15, 30, or 60 minutes for automatic shut-off.

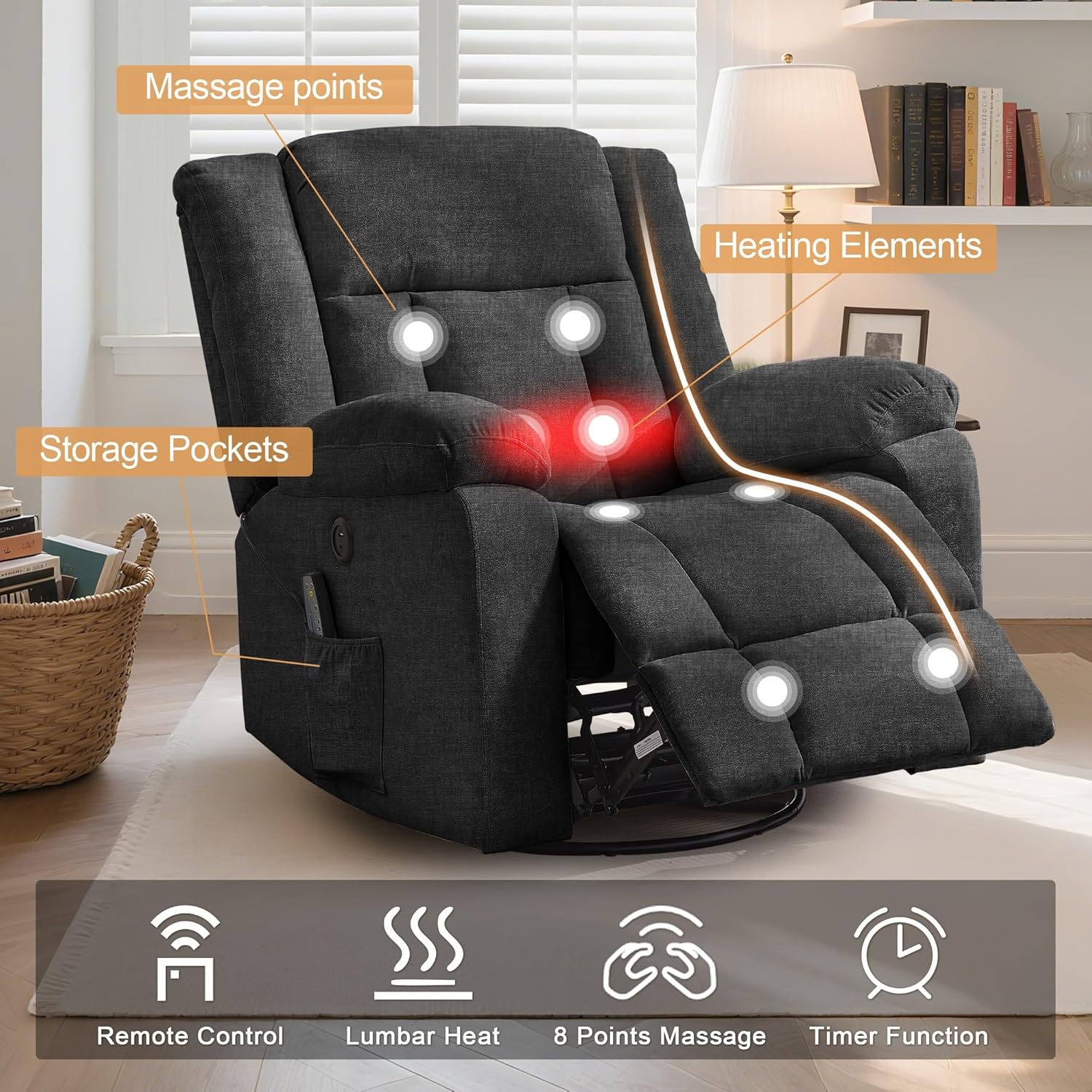

Image: Massage and Heating Features. This image highlights the 8 massage points and heating elements within the recliner, along with icons for remote control, lumbar heat, massage modes, and timer function.

USB Charging Ports and Storage

The recliner includes convenient side pouches and USB/Type-C charging ports. Use the side pockets to store remotes, magazines, or small personal items. The USB ports are designed for recharging low-energy devices such as iPhones and iPads.

Image: Convenient Design. This image showcases the recliner's side pockets and integrated USB/Type-C charging ports for enhanced user convenience.

Maintenance

The luxurious chenille fabric is designed for easy cleaning. For spills, gently blot with a clean, damp cloth. For general cleaning, vacuum regularly using a soft brush attachment. Avoid harsh chemicals or abrasive cleaners, as these may damage the fabric.

Troubleshooting

If you encounter any issues with your recliner, such as shipping damages or operational concerns, please do not hesitate to contact our customer support team for assistance. Refer to the warranty information for contact details.

Specifications

Warranty and Support

For warranty information or customer support, please refer to the contact details provided at the time of purchase or visit the official Korser website. Our team is available to assist with any product-related inquiries or concerns.
