Shinic FW449-15 Portable Electric Space Heater

Introduction

This manual provides essential information for the safe and efficient operation of your Shinic FW449-15 Portable Electric Space Heater. Please read all instructions carefully before use and retain this manual for future reference.

Important Safety Information

WARNING: To reduce the risk of fire, electric shock, or injury, observe the following:

• Read all instructions before using this heater.
• This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. Use handles when moving this heater. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet (0.9 m) from the front of the heater and keep them away from the sides and rear.
• Extreme caution is necessary when any heater is used by or near children or invalids and whenever the heater is left operating and unattended.
• Always unplug the heater when not in use.
• Do not operate any heater with a damaged cord or plug or after the heater malfunctions, has been dropped or damaged in any manner. Return heater to authorized service facility for examination, electrical or mechanical adjustment, or repair.
• Do not use outdoors. This heater is intended for indoor use only.
• Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Arrange cord away from traffic area and where it will not be tripped over.
• To disconnect heater, turn controls to OFF, then remove plug from outlet.
• Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire, or damage the heater.
• To prevent a possible fire, do not block air intakes or exhaust in any manner. Do not use on soft surfaces, like a bed, where openings may become blocked.
• A heater has hot and arcing or sparking parts inside. Do not use it in areas where gasoline, paint, or flammable vapors or liquids are used or stored.
• This heater is equipped with an overheat protection device that automatically shuts off the heater if internal components reach excessive temperatures.
• Always plug heaters directly into a wall outlet/receptacle. Never use with an extension cord or relocatable power tap (outlet/power strip).

Image: Safety features including ETL certification and a warning against touching the hot air outlet.

Product Overview

The Shinic FW449-15 Portable Electric Space Heater is designed for indoor use, providing efficient heating with adjustable settings and safety features. It features a durable metal housing and a convenient padded carry handle for portability.

Components and Controls

• Power & Caution Indicator Lights: Indicates power status and potential warnings.
• Thermostat Knob: Adjusts the desired room temperature.
• Heat Settings Knob: Selects between FAN (Natural Wind), LOW (750W), and HIGH (1500W) heat modes, or OFF.
• Adjustable Tilt Head: Allows for 60° free adjustment of the heating angle.
• Padded Carry Handle: For comfortable and secure transport.
• Wide, Stable Steel Base: Ensures stability during operation.

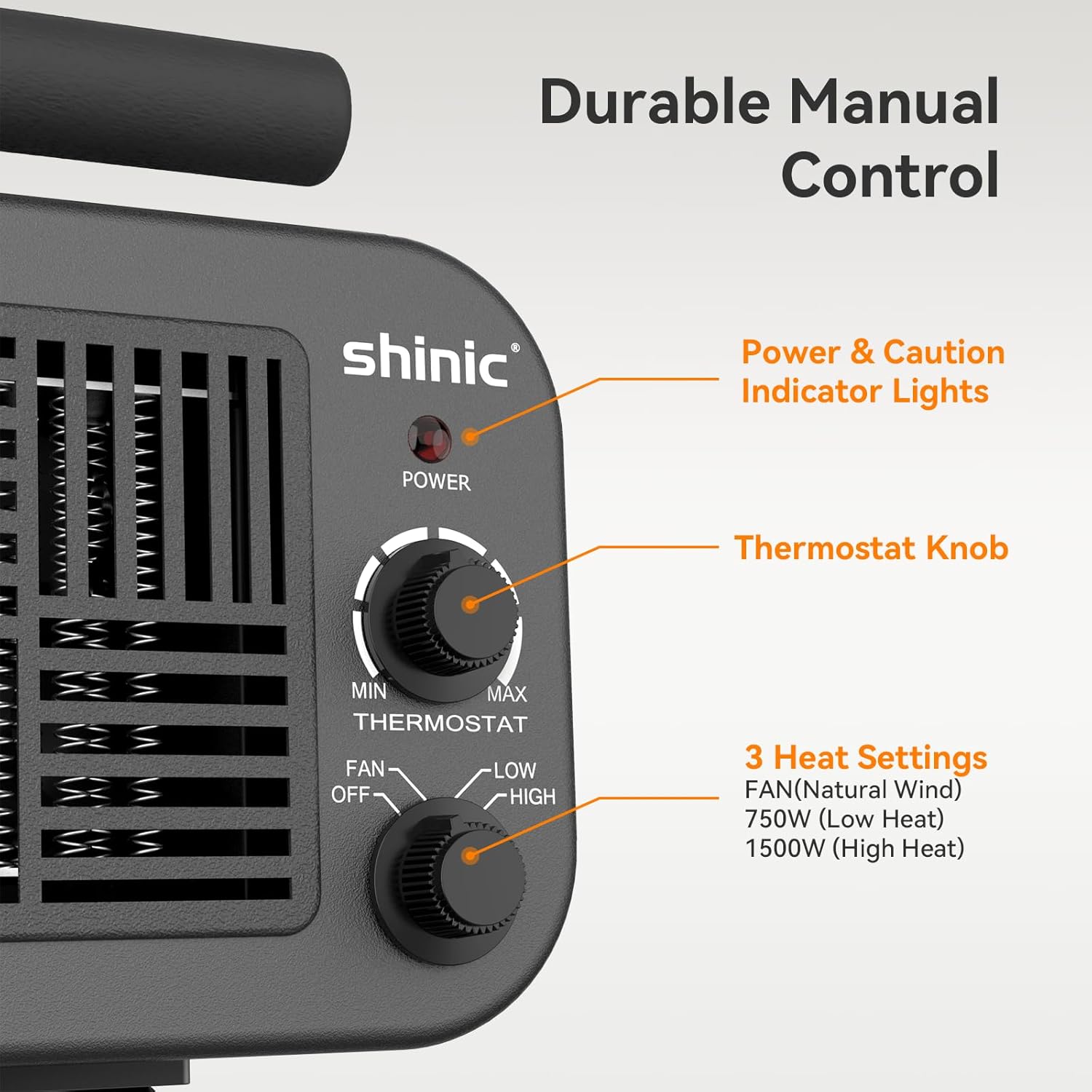

Image: Control panel with Power indicator, Thermostat knob, and 3 Heat Settings (Fan, Low, High).

Image: The heater's head can be tilted up to 60 degrees for directional heating.

Image: Product details highlighting the padded carry handle, wide stable steel base, and overall dimensions (9.02 inch width, 8.07 inch depth, 12.20 inch height).

Setup Instructions

Your Shinic FW449-15 heater comes mostly pre-assembled. Follow these steps to prepare it for use:

1. Carefully remove the heater and all packaging materials from the box.
2. Ensure the tubular stand is securely attached to the main unit. If not, align the stand with the mounting points on the heater and secure it using the provided fasteners.
3. Place the heater on a firm, level surface, ensuring it is at least 3 feet (0.9 m) away from any walls, furniture, or other combustible materials.
4. Verify that the power cord is free from damage and kinks.

Operating Instructions

To operate your Shinic FW449-15 Portable Electric Space Heater:

1. Plug In: Insert the power plug directly into a 120V A.C., 60Hz wall outlet. Do not use extension cords or power strips. The red POWER indicator light will illuminate.
2. Set Thermostat: Rotate the Thermostat Knob clockwise to the MAX position. This ensures the heater will operate continuously until the desired room temperature is reached.
3. Select Heat Setting: Rotate the Heat Settings Knob to your desired mode:
   • FAN: Activates the fan for natural air circulation without heat.
   • LOW (750W): Provides 750 watts of heat output.
   • HIGH (1500W): Provides 1500 watts of heat output for faster and hotter heating.
4. Adjust Thermostat for Desired Temperature: Once the room reaches a comfortable temperature, slowly rotate the Thermostat Knob counter-clockwise until the heater turns off. The heater will now cycle on and off automatically to maintain this set temperature.
5. Adjust Heating Angle: Use the adjustable tilt head to direct the heat flow to the desired area.
6. Turn Off: To turn off the heater, rotate the Heat Settings Knob to the OFF position and unplug the unit from the wall outlet.

Maintenance

Regular maintenance helps ensure the longevity and safe operation of your heater:

• Cleaning: Always unplug the heater before cleaning. Use a soft, damp cloth to wipe the exterior surfaces. Do not use abrasive cleaners or solvents. Ensure no water enters the interior of the heater.
• Storage: When not in use, store the heater in a cool, dry place. It is recommended to store it in its original packaging to protect it from dust and damage.
• Cord Inspection: Periodically inspect the power cord and plug for any signs of damage. If damaged, do not use the heater and contact customer service.

Troubleshooting

If your heater is not operating correctly, consult the following common issues:

• Heater does not turn on:
  • Ensure the power cord is securely plugged into a working 120V outlet.
  • Check if the Heat Settings Knob is set to FAN, LOW, or HIGH, not OFF.
  • Verify the Thermostat Knob is set to a higher temperature than the current room temperature, or to MAX.
  • Check your household circuit breaker or fuse box.
• Heater turns off unexpectedly:
  • The overheat protection may have activated. Unplug the heater, allow it to cool down for 10-15 minutes, and ensure there are no obstructions blocking the air intake or exhaust vents.
  • The room temperature may have reached the thermostat setting. Adjust the thermostat to a higher setting if more heat is desired.
• Reduced heat output:
  • Ensure the heater is set to HIGH (1500W) for maximum heat.
  • Check for any obstructions around the heater that might be impeding airflow.

If problems persist, contact Shinic customer service for assistance.

Specifications

Warranty and Customer Support

The Shinic FW449-15 Portable Electric Space Heater comes with a 1-Year Limited Warranty. If you encounter any issues or have questions regarding your product, please contact Shinic customer service. We guarantee that any questions you may have will be answered within 0-12 hours.

For support, please refer to the contact information provided in your product packaging or visit the official Shinic website.
