1. Introduction
Thank you for choosing the GIONIEN GFK30E Electric Range Oven. This manual provides essential information for the safe and efficient operation, installation, and maintenance of your new appliance. Please read all instructions carefully before use and retain this manual for future reference.
Figure 1.1: GIONIEN GFK30E Electric Range Oven
2. Safety Information
Your safety and the safety of others are very important. This manual contains important safety messages. Always read and obey all safety messages.
- Electrical Safety: Ensure the range is properly grounded. Do not use extension cords. Disconnect power before servicing.
- Burn Hazard: Cooktop and oven surfaces can remain hot after use. Use caution when touching.
- Fire Hazard: Never leave the range unattended while cooking. Keep flammable materials away from the appliance. Clean grease regularly.
- Child Safety: Do not allow children to play with or near the range. Keep oven door closed when not in use.
- Proper Installation: Ensure the anti-tip bracket is properly installed to prevent tipping.
3. Product Features
The GIONIEN GFK30E Electric Range Oven is designed for modern kitchens, offering a blend of performance and convenience.
- 5-Burner Ceramic Glass Cooktop: Features five radiant elements with independent knob controls for precise heat adjustment from LO to HI. Includes a powerful 3300W triple-ring burner for rapid boiling.
- 4.38 Cu.Ft Convection Oven: A spacious oven with a convection system that uses a fan and triple heating elements for fast, even cooking and consistent results.
- Dual Oven Racks: Provides flexibility for cooking multiple dishes simultaneously.
- Halogen Lighting: Bright interior lighting allows for clear monitoring of cooking progress without opening the oven door.
- Stainless Steel Finish: A sleek and durable exterior that complements various kitchen aesthetics.
- Triple Insulated Glass Doors: Energy-efficient design to minimize heat loss and maintain consistent oven temperatures.

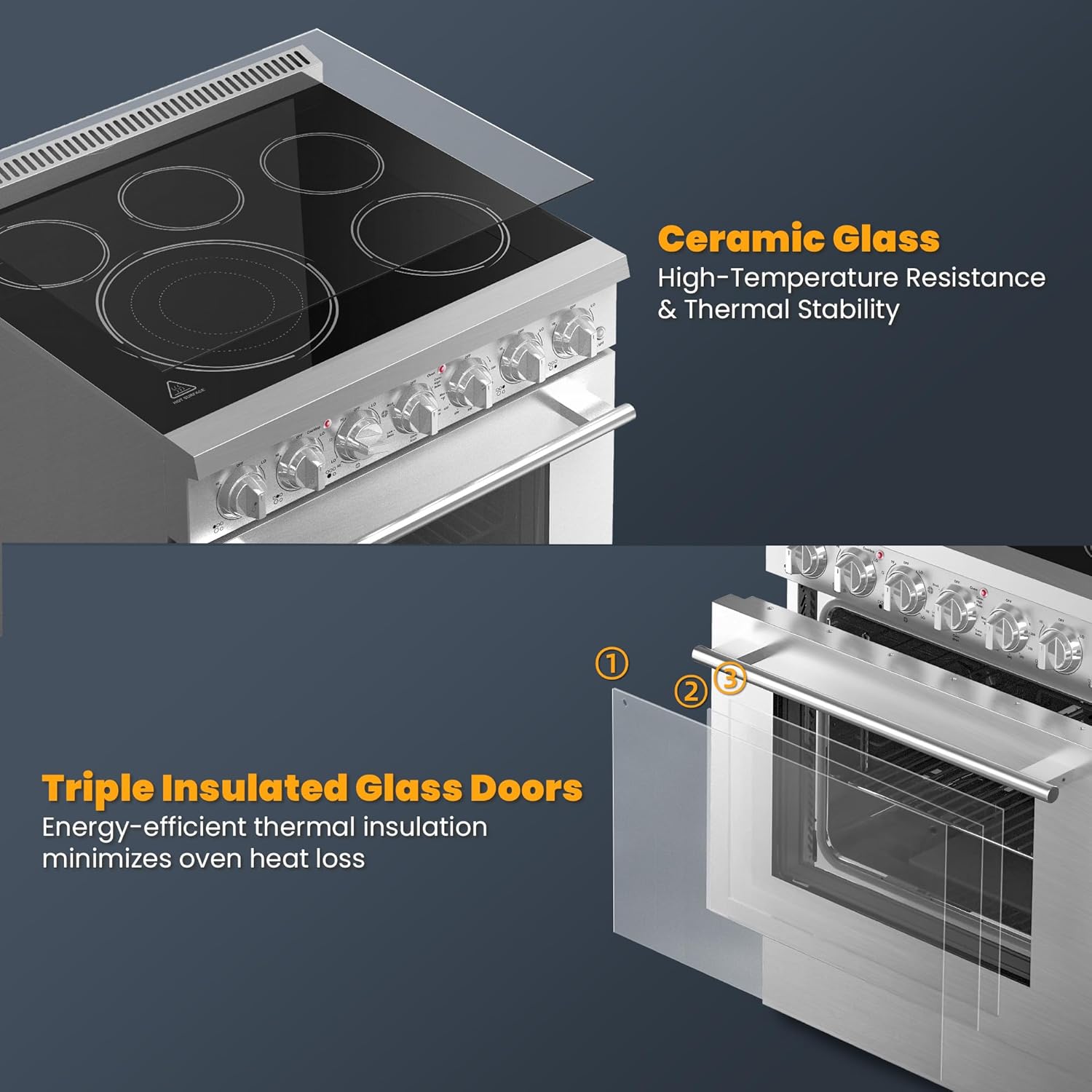

Figure 3.1: Ceramic Glass Cooktop and Triple Insulated Oven Door
4. Setup and Installation
Proper installation is crucial for the safe and efficient operation of your range. It is recommended that installation be performed by a qualified technician.
4.1 Unpacking
- Remove all packaging materials, tape, and protective film from the range.
- Check for any shipping damage. Report any damage immediately to your dealer.
- Ensure all accessories, such as oven racks, are present.
4.2 Location Requirements
The range must be installed in a location that meets local codes and regulations. Ensure adequate clearance from combustible surfaces.
4.3 Electrical Connection
This appliance requires a dedicated, grounded electrical circuit. Refer to the electrical specifications in Section 7 for voltage and amperage requirements. Consult a qualified electrician for proper wiring.
4.4 Anti-Tip Bracket Installation
The anti-tip bracket must be securely installed to the wall or floor to prevent the range from tipping forward. Failure to do so can result in serious injury.
4.5 Dimensions and Clearance
Refer to the diagram below for product dimensions and recommended clearances for installation.
Figure 4.1: Product Dimensions and Installation Clearances
Note: The adjustment range of the oven feet is 1.4"-3.3" to level the appliance.
5. Operating Instructions
5.1 Control Panel Overview
The range features independent knob controls for each cooktop element and oven functions.
Figure 5.1: Control Knobs for Cooktop and Oven
5.2 Cooktop Operation
The ceramic glass cooktop features five radiant elements. Turn the corresponding knob to activate and adjust the heat level.
- Heat Settings: Rotate the knob from OFF through LO to HI for desired heat intensity.
- Element Power: Elements range from 100W to 3300W. The triple-ring burner offers maximum power for rapid heating.
- Suitable Cookware: Use flat-bottomed cookware made of cast iron, enamel ware, glass ceramic, aluminum, copper, or stainless steel for optimal performance.
- Hot Surface Indicator: An indicator light will illuminate when a cooktop surface is hot, even after the element is turned off.
Figure 5.2: Cooktop Elements and Power Ratings
Figure 5.3: Recommended Cookware for Ceramic Cooktop
5.3 Oven Operation
The 4.38 Cu.Ft oven offers various cooking modes and features.
- Oven Functions: Select desired function (e.g., Bake, Broil, Convection Bake) using the oven function knob.
- Temperature Setting: Use the oven temperature knob to set the desired temperature.
- Convection System: The convection fan circulates hot air for faster and more even cooking, ideal for roasting and baking multiple items.
- Oven Racks: The oven includes two cooking racks with five possible positions for versatile cooking.
Figure 5.4: Spacious 4.38 Cu.Ft Convection Oven
Figure 5.5: Convection System for Even Heat Distribution

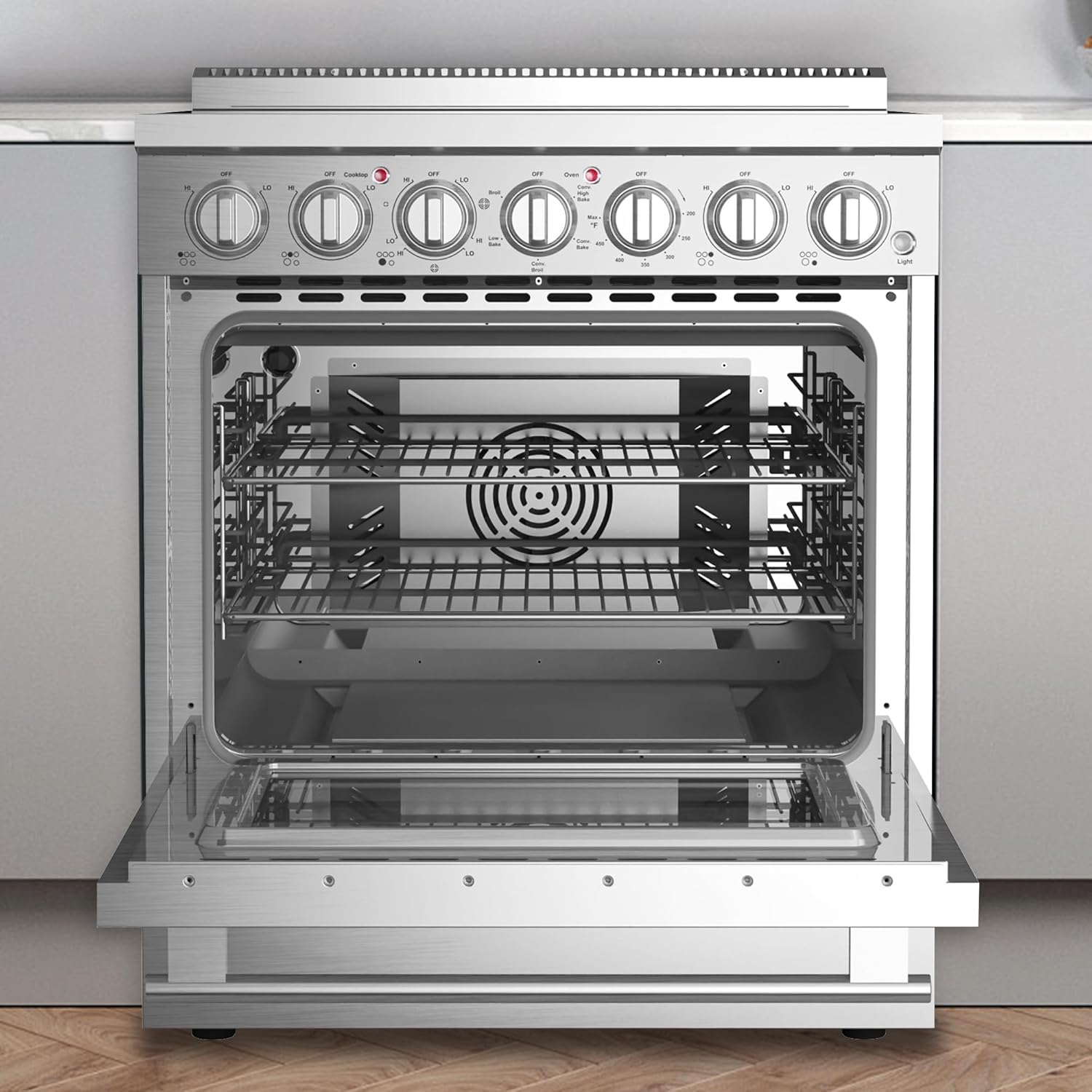

Figure 5.6: Oven Rack Positions
6. Maintenance and Cleaning
Regular cleaning and maintenance will ensure the longevity and optimal performance of your GIONIEN range.
6.1 Cooktop Cleaning
- Allow the cooktop to cool completely before cleaning.
- Wipe spills immediately with a damp cloth and mild detergent.
- For stubborn stains, use a ceramic cooktop cleaner and a non-abrasive pad.
- Avoid abrasive cleaners, scouring pads, or harsh chemicals that can scratch the glass surface.
6.2 Oven Interior Cleaning
- Remove oven racks before cleaning.
- For light soils, wipe with a damp cloth and mild soap.
- For heavier soils, use an oven cleaner according to the product instructions. Ensure adequate ventilation.
- Do not use oven cleaners on the door gasket, heating elements, or fan.
6.3 Exterior Cleaning
- Clean stainless steel surfaces with a soft cloth and a stainless steel cleaner or mild soapy water.
- Wipe in the direction of the grain to avoid streaking.
- Avoid abrasive cleaners or pads that can scratch the finish.
7. Troubleshooting
Before contacting customer service, review the following common issues and solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Range does not operate | No power to the range; circuit breaker tripped. | Check power supply and reset circuit breaker. |
| Cooktop element not heating | Knob not set correctly; element failure. | Ensure knob is turned to a heat setting. If problem persists, contact service. |
| Oven not heating properly | Incorrect temperature setting; oven door not closed completely; heating element failure. | Verify temperature setting. Ensure door is fully closed. If problem persists, contact service. |
| Uneven cooking in oven | Improper rack position; overcrowding oven; convection fan issue. | Adjust rack position. Avoid overcrowding. Ensure convection fan is operating (if applicable). |
| Hot surface indicator stays on | Cooktop surface is still hot. | This is normal. The light will turn off once the surface has cooled sufficiently. |
8. Specifications
Detailed specifications for the GIONIEN GFK30E Electric Range Oven.
- Product Dimensions: 26.2 x 30 x 37.9 inches (Depth x Width x Height)
- Item Weight: 219 pounds
- Manufacturer: GIONIEN
- Item Model Number: GFK30E
- Material: Stainless Steel
- Finish Type: Stainless Steel
- Oven Capacity: 4.38 Cu.Ft
- Cooktop Elements: 5 Radiant Elements (e.g., 3300W, 2000W, 1200W, 1200W, 100W)
- Form Factor: Freestanding
9. Warranty and Support
For warranty information or technical assistance, please contact GIONIEN customer support. Keep your purchase receipt and model number handy when contacting support.
- Manufacturer: GIONIEN
- Model Number: GFK30E
- Customer Support: Refer to the contact information provided with your purchase or visit the official GIONIEN website.
