AEGTEST AGT-1385 Gas Leak Detector User Manual

1. Introduction

The AEGTEST AGT-1385 is a portable gas leak detector designed to identify the presence of various combustible gases, including methane, propane, and butane. Equipped with a 17 cm flexible gooseneck probe and a clear color display, this device provides both visual and audible alarms to help users quickly assess and locate potential gas leaks in residential, RV, and other environments. This manual provides essential information for the safe and effective use of your AGT-1385 gas leak detector.

2. Safety Information

WARNING: This device is a detection tool and should not be used as a substitute for professional gas leak inspection or safety equipment. Always follow local safety regulations and contact qualified professionals for gas leak emergencies.

• Ensure proper ventilation when investigating potential gas leaks.
• Do not use the device in environments with extremely high gas concentrations, which could pose an explosion risk.
• Keep the device away from water and extreme temperatures.
• Replace batteries promptly when the low battery indicator appears to ensure accurate readings.
• Do not attempt to repair or modify the device yourself. Refer to qualified service personnel.

3. Package Contents

Verify that all items are present in your package:

• 1x AEGTEST AGT-1385 Gas Leak Detector
• 1x User Manual (this document)
• 2x AAA Batteries

4. Product Overview

4.1 Key Features

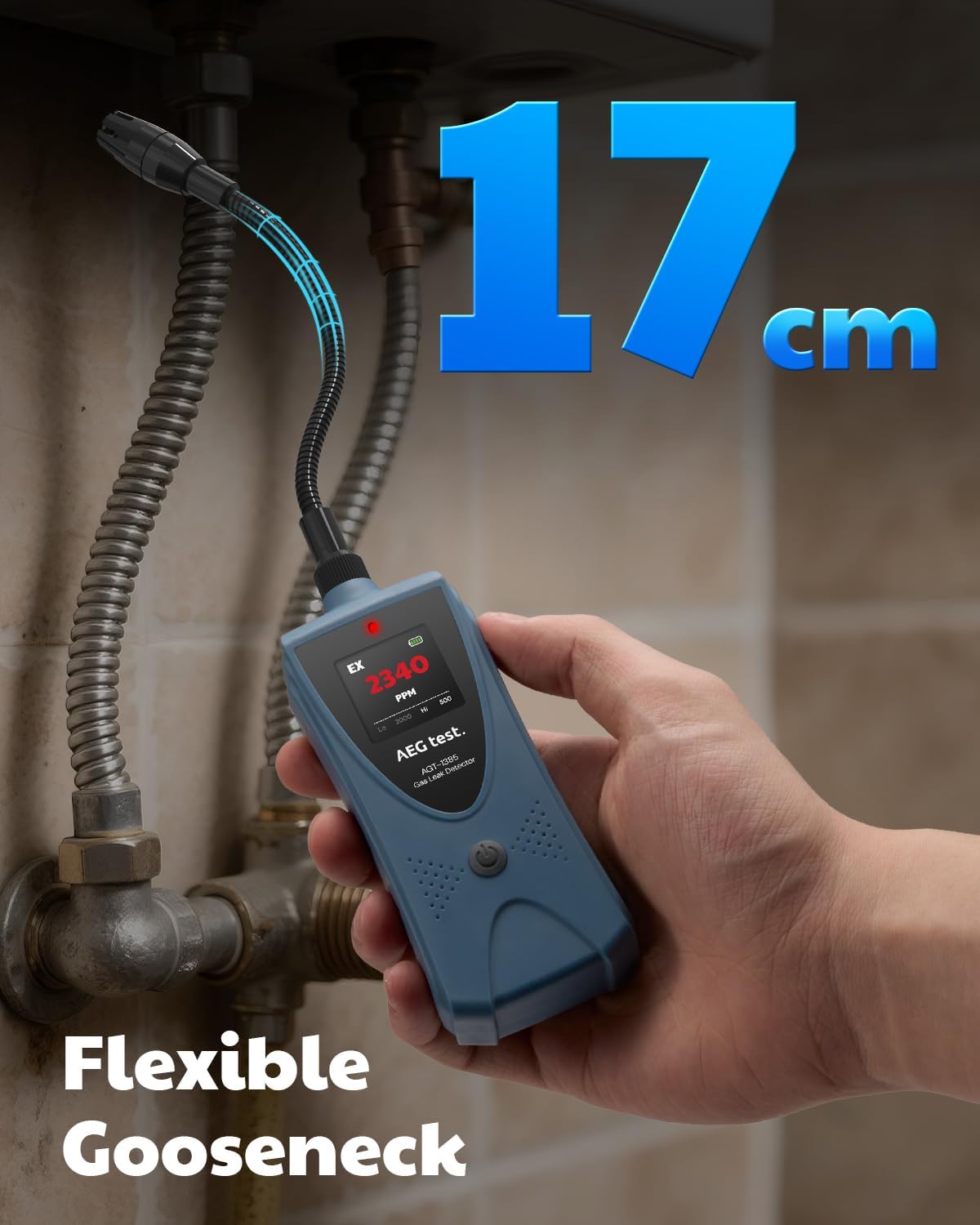

• Flexible Gooseneck Probe: A 17.3 cm (6.8-inch) flexible probe allows access to confined spaces.
• Color Display: A clear TFT color screen shows real-time gas concentration (PPM) and alarm status.
• Dual Alarms: Visual (color change on display, flashing light) and audible (beeping frequency changes) alarms indicate gas presence and concentration levels.
• Multi-Gas Detection: Detects over 10 combustible gases, including methane, propane, and natural gas.
• Wide Detection Range: Measures gas concentrations from 0 to 9999 PPM.
• Rapid Response: Detects gas within 0.5 seconds.
• Dual Sensitivity Modes: High and Low sensitivity settings for varied detection needs.
• Automatic Power-Off: Powers off after 5 minutes of inactivity to conserve battery life.
• Low Battery Indicator: Alerts when batteries need replacement.

4.2 Device Components

5. Setup

5.1 Battery Installation

1. Locate the battery compartment on the back of the device.
2. Open the compartment cover.
3. Insert the two AAA batteries, ensuring correct polarity (+/-).
4. Close the battery compartment cover securely.

5.2 Initial Warm-up

After powering on, the device requires approximately 15 seconds for the sensor to warm up and stabilize. During this period, the display will show a countdown or a 'Please Wait...' message. This warm-up ensures accurate readings and sensor stability. Do not use the device for detection until the warm-up sequence is complete.

6. Operating Instructions

6.1 Power On/Off

• To Power On: Press and hold the power button (usually the main button on the front) for a few seconds until the display illuminates and the warm-up sequence begins.
• To Power Off: Press and hold the power button again for a few seconds. The device will power off automatically after 5 minutes of inactivity.

6.2 Selecting Sensitivity Modes

The AGT-1385 offers two sensitivity modes:

• Low Sensitivity (Lo): Default setting, suitable for general detection. Alarm threshold typically around 2000 PPM.
• High Sensitivity (Hi): For detecting smaller leaks or pinpointing sources. Alarm threshold typically around 500 PPM.

To Switch Modes: Briefly press the power button (a short press) while the device is on and ready. The display will indicate the current sensitivity mode (Lo or Hi).

6.3 Gas Detection Process

1. Ensure the device has completed its warm-up sequence.
2. Select the desired sensitivity mode (High for precise location, Low for general area scanning).
3. Carefully extend and bend the flexible gooseneck probe to reach the area suspected of a gas leak.
4. Slowly move the sensor tip of the probe around the suspected leak source (e.g., gas pipes, appliance connections, valves).
5. Observe the color display for real-time PPM readings. The color of the values will change (e.g., to red) and an audible alarm will sound, with increasing frequency, as gas concentration rises.
6. Pinpoint the leak by moving the probe to where the PPM reading is highest and the alarm is most frequent.

7. Maintenance

7.1 Cleaning

Wipe the device with a soft, dry cloth. Do not use abrasive cleaners or solvents, as these can damage the casing or internal components. Ensure the sensor tip is kept clean and free from obstructions.

7.2 Battery Replacement

When the low battery indicator appears on the display, replace both AAA batteries with new ones to ensure optimal performance and accurate readings. Refer to section 5.1 for battery installation instructions.

7.3 Storage

Store the device in a cool, dry place away from direct sunlight and extreme temperatures. If storing for an extended period, remove the batteries to prevent leakage.

8. Troubleshooting

9. Specifications

10. Warranty and Support

AEGTEST provides a 36-month after-sale service for the AGT-1385 Gas Leak Detector. If you encounter any issues or have questions regarding your device, please contact AEGTEST customer support through your purchase platform or the official AEGTEST website for assistance.

Please retain your proof of purchase for warranty claims.
