WMParts USA FWD Traction Cable 140-3947 Instruction Manual

For TORO Lawnmower Models 21442, 21445, 21447, 21770

1. Product Overview

This manual provides essential information for the installation, operation, and maintenance of the WMParts USA FWD Traction Cable, part number 140-3947. This cable is designed as a replacement part for specific TORO front-wheel drive lawnmower models.

Compatible TORO Models:

  • 21442
  • 21445
  • 21447
  • 21770
WMParts USA FWD Traction Cable 140-3947
Figure 1: Overview of the WMParts USA FWD Traction Cable 140-3947. This image displays the complete cable, coiled for packaging, showing both connection ends.

2. Safety Information

Always prioritize safety when performing maintenance or installation on your lawnmower. Failure to follow safety instructions may result in injury or damage to equipment.

  • Disconnect Spark Plug: Before beginning any work, always disconnect the spark plug wire from the spark plug to prevent accidental engine starting.
  • Wear Protective Gear: Use appropriate personal protective equipment, such as gloves and eye protection.
  • Read Mower Manual: Refer to your TORO lawnmower's original owner's manual for specific safety procedures and component locations.
  • Secure Equipment: Ensure the lawnmower is on a stable, level surface and cannot roll or tip during service.

3. Installation Instructions

This section outlines the general steps for replacing the FWD traction cable. Specific procedures may vary slightly depending on your exact TORO model. Always consult your mower's service manual for detailed instructions.

Tools Required:

  • Wrenches or sockets (appropriate sizes for cable fasteners)
  • Pliers
  • Gloves
  • Eye protection

Replacement Procedure:

  1. Prepare the Lawnmower: Ensure the engine is off and cool. Disconnect the spark plug wire.
  2. Locate the Old Cable: Identify the existing FWD traction cable. It typically runs from the control handle to the transmission housing.
  3. Disconnect from Control Handle: Carefully detach the cable end from the traction control lever on the mower's handle. This usually involves unhooking a Z-bend or a spring-loaded connection.
  4. Disconnect from Transmission: Trace the cable down to the transmission. Disconnect the other end of the cable from the transmission engagement mechanism. This often involves removing a retaining clip or nut.

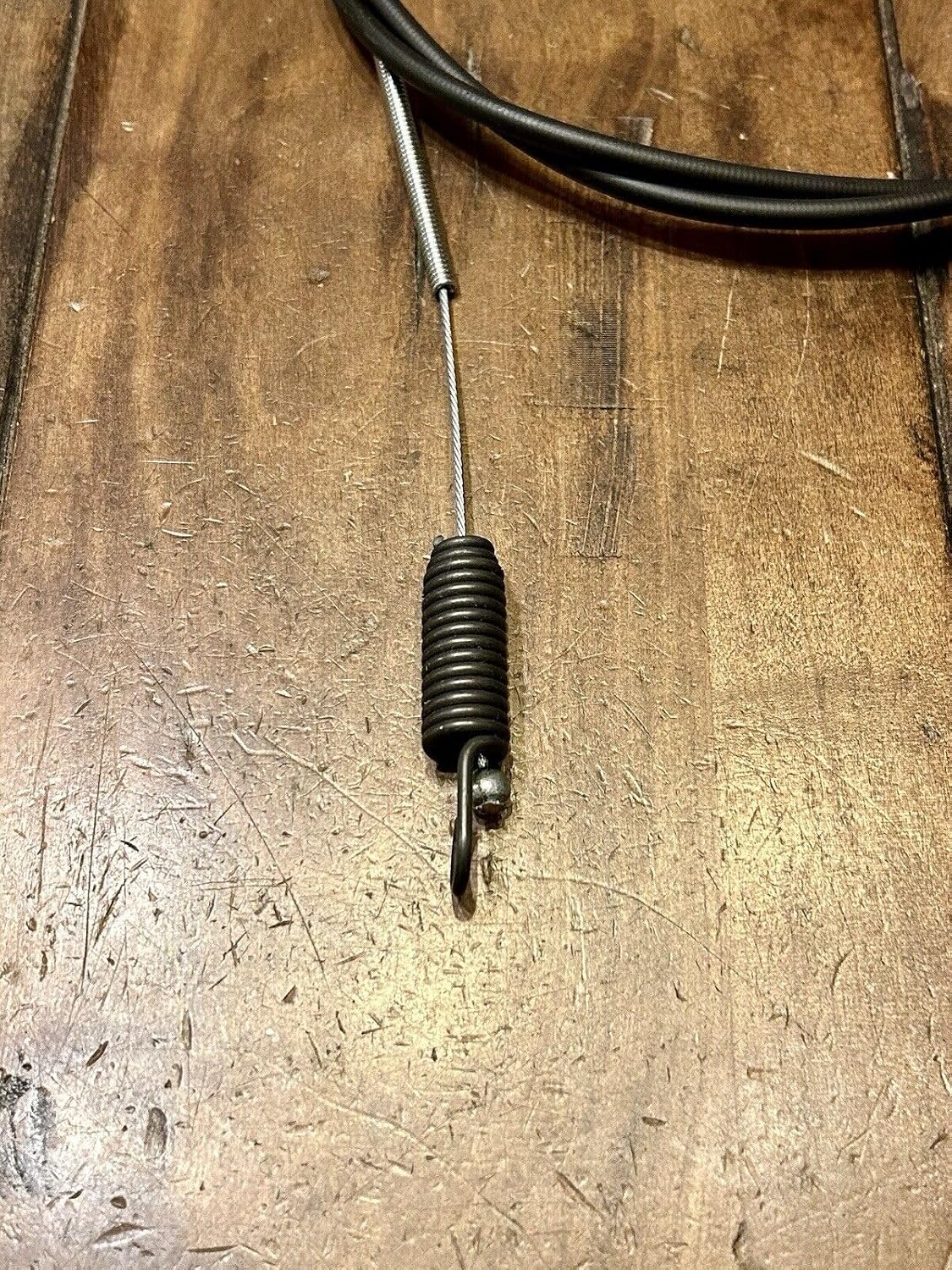

    5. Traction Cable Spring End
    Figure 2: Close-up of one end of the traction cable, featuring a spring and hook mechanism. This end typically connects to the transmission or drive engagement lever.
  5. Remove Old Cable: Carefully pull the old cable out, noting its routing path to ensure the new cable is installed correctly.
  6. Install New Cable: Route the new WMParts USA 140-3947 traction cable along the same path as the old one. Ensure it is not pinched or kinked.
  7. Connect to Transmission: Attach one end of the new cable to the transmission engagement mechanism. Secure it with any necessary clips or nuts.
    8. Traction Cable Bent Hook End
    Figure 3: Close-up of the other end of the traction cable, showing a bent metal hook. This end typically connects to the control lever on the mower handle.
  8. Connect to Control Handle: Attach the other end of the new cable to the traction control lever on the handle.
  9. Adjust Cable Tension (if applicable): Some cables may have an adjustment point to ensure proper tension. Refer to your mower's manual for specific adjustment procedures. The cable should have slight slack when the traction lever is disengaged, and become taut when engaged.
  10. Test Operation: Reconnect the spark plug wire. Start the engine and test the traction system in a safe, open area. Ensure the FWD engages and disengages smoothly.

4. Operation

The FWD traction cable is an integral part of your lawnmower's self-propel system. Once correctly installed, its operation is controlled by the traction engagement lever on your mower's handle.

  • Engaging Traction: Squeeze or push the traction control lever (as per your mower's design) to engage the front-wheel drive. This action pulls the traction cable, which in turn engages the drive mechanism in the transmission.
  • Disengaging Traction: Release the traction control lever to disengage the front-wheel drive. The cable will relax, allowing the drive mechanism to disengage.

Ensure the cable moves freely and without binding when operating the traction lever.

5. Maintenance

Regular inspection and basic maintenance can extend the life of your traction cable and ensure reliable operation of your lawnmower's self-propel system.

  • Visual Inspection: Periodically inspect the entire length of the cable for signs of wear, fraying, kinks, or damage to the outer casing. Check both connection points for secure attachment.
  • Cleaning: Keep the cable and its connection points free from dirt, grass clippings, and debris. A build-up of foreign material can impede cable movement.
  • Lubrication: While many modern cables are sealed, if your mower's manual suggests lubricating cable ends or pivot points, use a light lubricant suitable for outdoor equipment. Avoid over-lubrication, which can attract dirt.
  • Replacement: Replace the cable immediately if you observe significant wear, damage, or if the traction system is not engaging or disengaging properly after checking other components.

6. Troubleshooting

If you experience issues with your lawnmower's FWD traction system after installing the new cable, consider the following common problems and solutions:

ProblemPossible CauseSolution
Traction not engaging
  • Cable improperly connected
  • Cable too loose (insufficient tension)
  • Obstruction preventing full cable movement
  • Other mower components (e.g., belt, transmission) are faulty
  • Verify both ends of the cable are securely attached.
  • Adjust cable tension if an adjustment point is present.
  • Inspect cable path for debris or binding.
  • Consult your mower's manual for troubleshooting other drive system components.
Traction not disengaging
  • Cable too tight (excessive tension)
  • Cable binding or sticking
  • Control lever mechanism faulty
  • Adjust cable tension to allow for proper slack when disengaged.
  • Inspect cable for kinks or damage; ensure it moves freely.
  • Check the control lever and its pivot points for proper function.
Cable feels stiff or binds
  • Incorrect routing
  • Cable casing damaged or kinked
  • Internal corrosion or debris
  • Re-route the cable, ensuring no sharp bends or obstructions.
  • Inspect the cable casing for damage. If damaged, replace the cable.
  • If lubrication is recommended, apply as per mower manual.

7. Specifications

  • Brand: WMParts USA
  • Part Number: 140-3947
  • Compatible TORO Models: 21442, 21445, 21447, 21770
  • Material: Acrylonitrile Butadiene Styrene (ABS)
  • Manufacturer: WMParts USA
  • UPC: 761694668388
  • Item Model Number: OEM
Traction Cable Part Number 140-3947
Figure 4: Close-up view of the cable casing displaying the part number "140 3947" for identification.

8. Warranty and Support

The WMParts USA FWD Traction Cable 140-3947 comes with a one-year warranty from the date of purchase.

For warranty claims, technical assistance, or any questions regarding this product, please contact WMParts USA customer service. Refer to the official WMParts USA website or your purchase documentation for current contact information.
