DurayLoly Cross Legged Office Chair with Foot Rest

1. Setup and Assembly

This section provides step-by-step instructions for assembling your DurayLoly Cross Legged Office Chair. Please ensure all parts are present before beginning assembly.

Image Description: An exploded view showing all components of the DurayLoly Cross Legged Office Chair laid out on a white surface. Key parts include the seat cushion, backrest, gas lift cylinder, 5-prong base, casters, and various screws and tools. This visual guide helps identify each piece required for assembly.

1. Assemble the Base: Insert the five curved legs (D) into the central hub (J) of the 5-prong base. Secure each leg with the provided screws (F) using the hex key.
2. Attach Casters: Firmly push each of the five casters (G) into the holes at the end of each leg of the assembled base until they click into place.
3. Install Gas Lift: Place the decorative cover (J) over the central hole of the base, then insert the gas lift cylinder (C) into the central hole of the base.

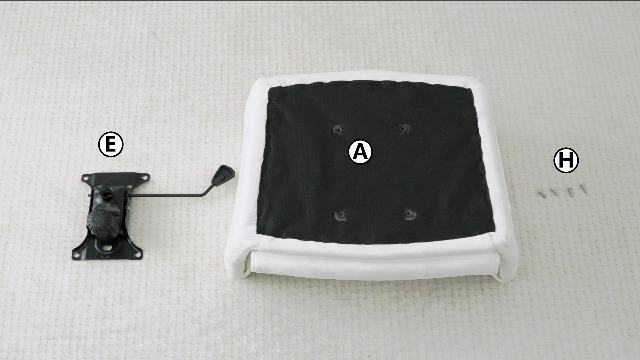

4. Attach Mechanism to Seat: Align the seat plate mechanism (E) with the pre-drilled holes on the underside of the seat cushion (A). Ensure the "FRONT" label on the mechanism faces the front of the seat. Secure with screws (H).
5. Connect Seat to Base: Carefully place the assembled seat (A) onto the top of the gas lift cylinder (C), ensuring it is securely seated.
6. Attach Backrest: Insert the two metal posts of the backrest (B) into the corresponding slots on the rear of the seat cushion (A). Push down firmly until the backrest is securely attached.

2. Operating Instructions

Your DurayLoly Cross Legged Office Chair is designed for versatile comfort. Familiarize yourself with its adjustable features to optimize your seating experience.

Height Adjustment

To adjust the chair's height, locate the lever on the right side beneath the seat. While seated, pull the lever up to lower the chair. To raise the chair, stand up and pull the lever up. Release the lever at your desired height to lock it in place. This mechanism accommodates various desk heights and user sizes.

Image Description: A visual representation of the chair's height adjustment feature. It shows the chair at two different heights relative to a desk, with an inset illustrating the 'Up' and 'Down' functions of the adjustment lever and the 'Tighten' and 'Loose' functions for tilt tension.

Reclining Backrest and Retractable Foot Rest

The backrest can be reclined from 90° to 120° for varied comfort. Use the lever on the left side beneath the seat to adjust the recline angle. The integrated footrest can be extended to provide additional support for your legs, allowing for cross-legged sitting or relaxed lounging. To extend, pull the footrest forward from beneath the seat. To retract, push it back until it is fully stored.

Image Description: A person is shown comfortably reclining in the chair with the retractable footrest extended. The image highlights the adjustable recline angle (90° to 120°) and the extended footrest, demonstrating the chair's versatility for different sitting positions.

Swivel and Mobility

The chair features a 360° swivel function for easy rotation and movement. The smooth-rolling silent casters allow for effortless mobility across various floor surfaces without causing scratches.

Image Description: The chair is shown with its 5-prong base and 360° silent casters, illustrating its smooth mobility. A person is gently pushing the chair, emphasizing its ease of movement on various floor types.

3. Maintenance

Proper maintenance ensures the longevity and continued comfort of your DurayLoly office chair. The soft teddy plush fabric is designed for easy cleaning.

• Regular Cleaning: For general cleaning, gently vacuum the plush fabric to remove dust and debris.
• Spot Cleaning: For spills or stains, use a mild fabric cleaner or a damp cloth with a small amount of gentle soap. Blot the affected area gently; do not rub vigorously. Test any cleaning solution on an inconspicuous area first.
• Hardware Check: Periodically check all screws and bolts to ensure they are tight. Re-tighten if necessary to maintain stability and prevent squeaking.
• Caster Care: Keep the casters free from hair and debris to ensure smooth rolling. Clean them regularly with a damp cloth.

4. Troubleshooting

If you encounter any issues with your chair, refer to the following common problems and solutions:

5. Specifications

• Brand: DurayLoly
• Model: B0F9WZQJG3
• Color: White
• Product Dimensions: 25.2"D x 26.77"W x 36.2"H
• Weight Capacity: 242 lbs
• Material: Textile (Teddy Plush Fabric)
• Fill Material: Virgin Cotton, High-Resilience PP Cotton, Memory Foam
• Back Style: Cushion Back
• Special Features: Adjustable Height, Ergonomic Design, Seat Lock, Swivel, Retractable Foot Rest
• Reclining Positions: 3 (90° to 120°)
• Casters: 360° Silent Casters
• Assembly: Required (Easy Setup)

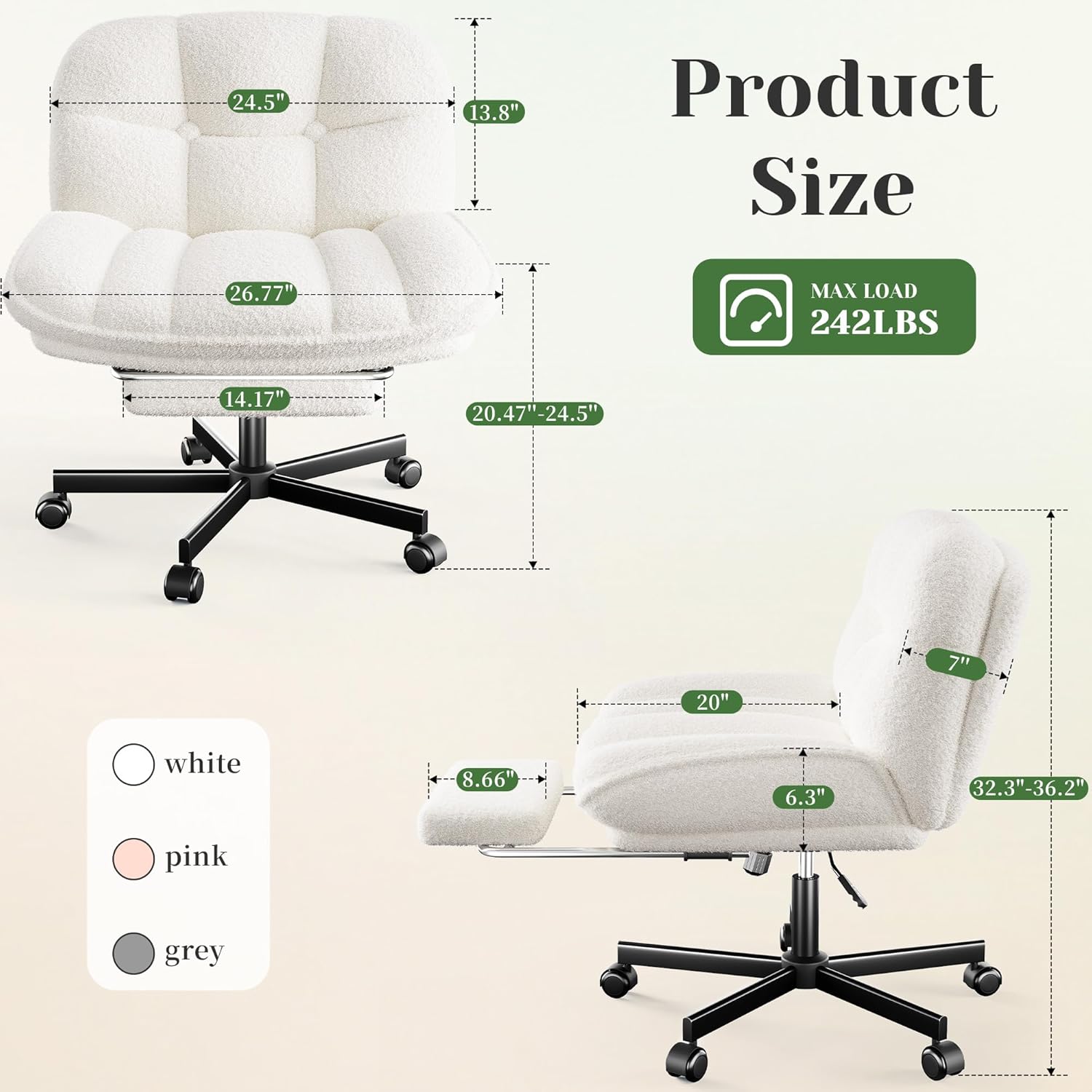

Image Description: Detailed diagram illustrating the dimensions of the DurayLoly Cross Legged Office Chair, including seat width, depth, backrest height, and overall height range. It also clearly states the maximum load capacity of 242 lbs.

Image Description: An illustration showing the internal layers of the 6.3-inch thick padded seat cushion. It highlights the Teddy Plush fabric, PP Cotton, Memory Foam, and Sturdy Plank, emphasizing the comfortable and qualified construction materials.

6. Safety Information

Please adhere to the following safety guidelines to ensure safe operation and prevent damage to the chair or injury to the user:

• Weight Limit: Do not exceed the maximum weight capacity of 242 lbs (110 kg).
• Proper Use: Always use the adjustable features (height, recline, footrest) with caution and as instructed. Avoid sudden movements or excessive force.
• Stability: Ensure the chair is placed on a stable, level surface. Avoid standing on the chair or using it as a step stool.
• Children and Pets: Keep children and pets away from the chair during assembly and adjustment to prevent accidents.

7. Warranty and Support

For any questions regarding product warranty, missing parts, or technical support, please contact the seller directly through your purchase platform. Please have your model number (B0F9WZQJG3) and purchase date ready for faster assistance.

You can visit the official DurayLoly store for more information and products: DurayLoly Store
