Generic FN-BT43 Touch Screen Earbuds User Manual

1. Introduction

The Generic FN-BT43 Touch Screen Earbuds offer a high-quality wireless audio experience with active noise cancellation, intuitive touch controls, and advanced Bluetooth connectivity. These earbuds combine comfort, sound quality, and practicality, providing an immersive and modern experience, especially in noisy environments. Key features include Bluetooth 5.4, earbud battery capacity of 30mAh per earbud, a charging case with 300mAh capacity, approximately 4.5 hours of continuous music playback, a wireless range of 10 meters, and a charging time of about 1.5 hours via a Type-C port.

Package Contents

• FN-BT43 Earbuds (Left and Right)
• Charging Case
• USB Type-C Charging Cable
• User Manual

2. Product Overview

The FN-BT43 earbuds feature a compact, in-ear design for comfortable wear. The charging case not only protects the earbuds but also recharges them on the go. Each earbud is equipped with a touch-sensitive surface for controlling various functions.

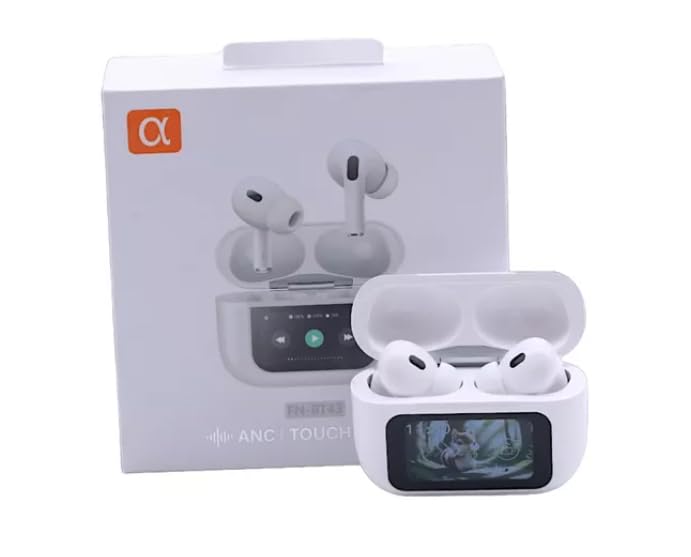

Image: The Generic FN-BT43 Touch Screen Earbuds shown with their charging case. The earbuds are white and have an in-ear design. The charging case is also white and compact.

3. Setup

3.1 Charging the Earbuds and Case

1. Charge the Charging Case: Connect the provided USB Type-C cable to the charging port on the case and the other end to a 5V-500mA power source (e.g., a USB wall adapter or computer USB port). The charging time for the case is approximately 1.5 hours.
2. Charge the Earbuds: Place the earbuds into the charging case. Ensure they are correctly seated in their respective slots. The earbuds will automatically begin charging from the case's internal battery.

Note: Fully charge the earbuds and charging case before first use for optimal battery performance.

3.2 Bluetooth Pairing

1. Power On: Open the charging case. The earbuds will automatically power on and enter pairing mode. You may see indicator lights flashing on the earbuds.
2. Activate Bluetooth: On your mobile device (smartphone, tablet, etc.), go to the Bluetooth settings and ensure Bluetooth is enabled.
3. Select Device: In the list of available Bluetooth devices, look for "FN-BT43" and select it to connect.
4. Confirmation: Once connected, the earbuds will usually provide an audio prompt, and the indicator lights may change to a steady glow or turn off.

Note: The earbuds will automatically reconnect to the last paired device when taken out of the case, if Bluetooth is enabled on the device and it is within the 10-meter wireless range.

4. Operating the Earbuds

4.1 Touch Controls

The FN-BT43 earbuds feature intuitive touch controls on their outer surface. The specific functions may vary slightly, but common controls are:

• Play/Pause: Single tap on either earbud.
• Next Track: Double tap on the right earbud.
• Previous Track: Double tap on the left earbud.
• Volume Up: Triple tap on the right earbud.
• Volume Down: Triple tap on the left earbud.
• Answer/End Call: Single tap on either earbud during an incoming call.
• Reject Call: Press and hold either earbud for 2 seconds during an incoming call.
• Activate Voice Assistant: Press and hold either earbud for 2 seconds (when not on a call).
• Active Noise Cancellation (ANC) Toggle: Press and hold the left earbud for 3 seconds to cycle through ANC modes (On/Off/Transparency, if applicable).

4.2 Power On/Off

• Power On: Open the charging case, or press and hold the touch area on both earbuds for approximately 3 seconds if they are outside the case and off.
• Power Off: Place the earbuds back into the charging case and close the lid. Alternatively, press and hold the touch area on both earbuds for approximately 5 seconds.

5. Maintenance

5.1 Cleaning

• Use a soft, dry, lint-free cloth to clean the earbuds and charging case.
• Do not use abrasive cleaners, alcohol, or chemical solvents.
• Gently clean the charging contacts on both the earbuds and the case with a dry cotton swab if necessary.

5.2 Storage

• Always store the earbuds in their charging case when not in use to protect them and keep them charged.
• Store in a cool, dry place away from direct sunlight and extreme temperatures.

5.3 Water Resistance

The FN-BT43 earbuds are water resistant. This means they can withstand splashes, sweat, and light rain. They are not designed for swimming, showering, or submersion in water. Do not expose them to pressurized water or high-velocity water, such as during water sports.

6. Troubleshooting

• Earbuds not pairing:
  • Ensure both earbuds are charged.
  • Turn off and on your device's Bluetooth.
  • Forget "FN-BT43" from your device's Bluetooth list and try pairing again.
  • Place earbuds back in the case, close the lid, wait 10 seconds, then open to re-initiate pairing mode.
• No sound from one earbud:
  • Ensure both earbuds are charged.
  • Try resetting the earbuds (refer to the manual for specific reset instructions, if available, or try placing them in the case, closing, and reopening).
  • Clean the charging contacts.
• Charging issues:
  • Ensure the charging cable is securely connected.
  • Try a different USB port or power adapter.
  • Clean the charging port and contacts.
• Touch controls not responding:
  • Ensure your fingers are clean and dry.
  • Try restarting the earbuds by placing them in the case and taking them out again.

7. Specifications

8. Warranty and Support

8.1 Manufacturer's Warranty

This product comes with a manufacturer's warranty of 30 days from the date of purchase. This warranty covers manufacturing defects. It does not cover damage caused by misuse, accidents, unauthorized modifications, or normal wear and tear.

8.2 Customer Support

For any questions, technical assistance, or warranty claims, please contact the retailer where you purchased the product. Please have your proof of purchase and product model number (FN-BT43) ready when contacting support.
