JXXAMZZ Water Pump 49044-2066 Instruction Manual

Introduction

This manual provides essential information for the proper installation, operation, and maintenance of your JXXAMZZ 49044-2066 water pump. This water pump is designed as a replacement part for Kawasaki FD590V, FD611V, FD620D, and FD661D engines. Please read this manual thoroughly before installation and use to ensure safe and efficient performance of your engine's cooling system.

Safety Information

Always observe the following safety precautions when working with engine components and fluids:

• Wear appropriate personal protective equipment (PPE), including safety glasses and gloves, to prevent injury from chemicals or sharp objects.
• Ensure the engine is completely cool and the ignition is off before beginning any work. Disconnect the battery's negative terminal to prevent accidental starting.
• Engine coolant is toxic. Handle it with care and dispose of used coolant responsibly according to local environmental regulations.
• Refer to the original engine manufacturer's service manual for specific torque specifications, fluid capacities, and detailed procedures relevant to your engine model.
• Do not attempt repairs if you are unsure of the procedure. Consult a qualified technician.

Package Contents

Verify that all components are present and undamaged upon opening the package:

• One (1) JXXAMZZ Water Pump, Part Number 49044-2066

Setup and Installation

Proper installation is crucial for the longevity and performance of your water pump. Follow these steps carefully:

Tools and Materials Required:

• Appropriate wrench and socket set
• Screwdriver
• Coolant drain pan
• New engine coolant (specific type recommended by engine manufacturer)
• Gasket scraper or wire brush
• Torque wrench
• New gasket (if not pre-applied to pump)
• RTV sealant (if recommended by engine manufacturer)

Preparation:

1. Ensure the engine is completely cool to prevent burns from hot coolant or engine components.
2. Disconnect the negative terminal of the engine's battery to prevent accidental starting or electrical shorts.
3. Place a suitable drain pan beneath the engine's radiator or drain plug. Drain the engine coolant completely. Refer to your engine's service manual for the correct draining procedure.

Removal of Old Water Pump:

4. Locate the water pump on the engine. It is typically mounted on the engine block and connected to the cooling system hoses.
5. Carefully disconnect any hoses or electrical connections attached to the old water pump. Use caution to avoid damaging hoses or connectors.
6. Remove the mounting bolts securing the old water pump to the engine block. Keep track of bolt locations if they vary in size or length.
7. Gently pry the old water pump away from the engine block. Be prepared for residual coolant to spill.
8. Clean the mounting surface on the engine block thoroughly. Use a gasket scraper or wire brush to remove all traces of old gasket material, corrosion, and debris. Ensure the surface is smooth and clean for a proper seal.

Installation of New Water Pump:

9. If your new water pump requires a separate gasket, apply a thin, even layer of RTV sealant (if recommended by the engine manufacturer) to both sides of the new gasket.
10. Position the new JXXAMZZ 49044-2066 water pump onto the engine block, carefully aligning the mounting holes with the bolt holes on the engine.
11. Insert and hand-tighten the mounting bolts. Refer to your engine's service manual for the correct tightening sequence and torque specifications. Tighten bolts gradually and evenly to ensure proper seating and prevent warping.
12. Reconnect all hoses and electrical connections to the new water pump. Ensure all hose clamps are secure and properly positioned.
13. Refill the cooling system with the recommended type and quantity of engine coolant. Follow the engine manufacturer's bleeding procedure to remove any trapped air from the system.
14. Reconnect the negative terminal of the battery.

Figure 1: Front view of the JXXAMZZ 49044-2066 water pump, showing the drive gear and mounting points.

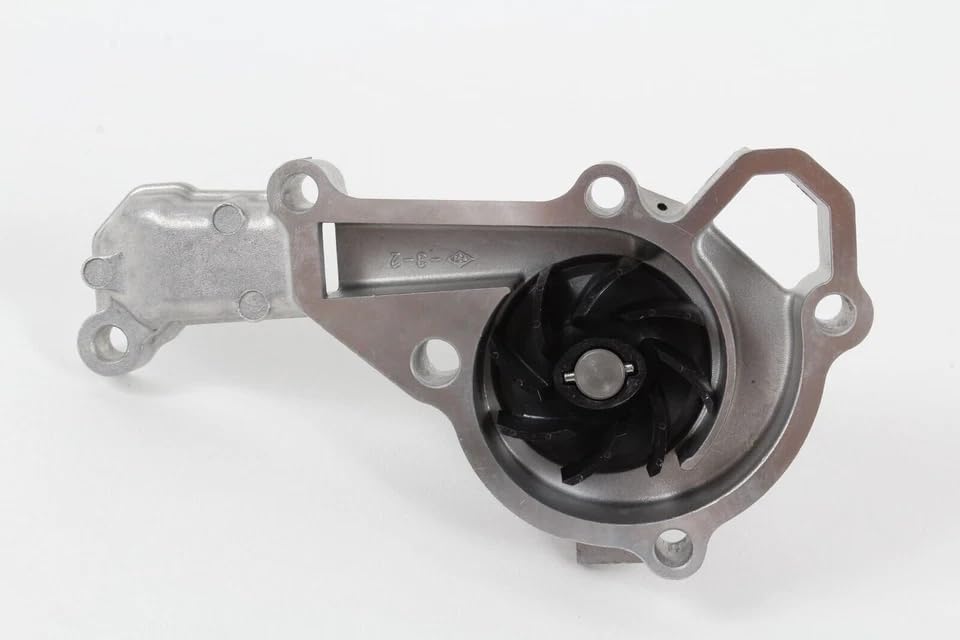

Figure 2: View of the impeller inside the JXXAMZZ 49044-2066 water pump housing, responsible for circulating coolant.

Figure 3: Angled view of the JXXAMZZ 49044-2066 water pump, highlighting its overall construction.

Operating (Post-Installation Checks)

After completing the installation, perform the following checks to ensure proper function:

1. Start the engine and allow it to run at idle. Monitor the engine temperature gauge closely.
2. Visually inspect the new water pump and all hose connections for any signs of coolant leaks. Pay close attention to the gasket mating surface.
3. Listen for any unusual noises (e.g., grinding, squealing) coming from the water pump area.
4. Once the engine has reached operating temperature and then cooled down, recheck the coolant level in the reservoir and top up if necessary.
5. Take the engine for a short test run, continuing to monitor the temperature gauge and checking for leaks upon return.

Maintenance

Regular maintenance helps extend the life of your water pump and cooling system:

• Visual Inspection: Periodically inspect the water pump for any signs of coolant leaks, corrosion, or physical damage.
• Drive Belt Check: If your water pump is driven by a belt, regularly check the condition and tension of the drive belt. Replace worn, cracked, or frayed belts.
• Coolant Level and Quality: Ensure the cooling system maintains the correct coolant level. Replace engine coolant according to the engine manufacturer's recommended service intervals to prevent corrosion and maintain cooling efficiency.
• Listen for Noises: Pay attention to any new or unusual noises coming from the water pump area, which could indicate bearing wear.

Troubleshooting

This section provides solutions to common issues related to the water pump:

Specifications

Warranty

This JXXAMZZ water pump is covered by a 365-day manufacturer's warranty from the original date of purchase. This warranty guarantees the product against defects in materials and workmanship under normal use and service. It does not cover damage resulting from improper installation, misuse, neglect, accident, unauthorized modification, or normal wear and tear. For warranty claims, please retain your proof of purchase and contact your retailer or the manufacturer directly for assistance.

Customer Support

For technical assistance, installation questions, or any other inquiries regarding your JXXAMZZ water pump, please contact your product retailer. When seeking support, please have your product model number (HO4877) and proof of purchase readily available to expedite assistance.
