POWTAXBJGD BAV99 A7 SMD Chip Switch Transistor User Manual

1. Introduction

This manual provides essential information for the safe and effective use of the POWTAXBJGD BAV99 A7 SMD Chip Switch Transistor. The BAV99 A7 is a dual switching diode in a SOT-23 surface-mount package, designed for high-speed switching applications in various electronic circuits. Please read this manual thoroughly before installation and operation.

2. Safety Information

Always observe the following safety precautions when working with electronic components:

• Electrostatic Discharge (ESD) Protection: Electronic components are sensitive to ESD. Always use appropriate ESD precautions, such as anti-static mats, wrist straps, and grounded tools, when handling these transistors.
• Power Off: Ensure all power is disconnected from the circuit before installing, removing, or working with the components.
• Soldering Safety: Use proper ventilation when soldering. Avoid inhaling fumes. Use appropriate safety eyewear.
• Component Orientation: Verify correct component orientation (polarity) before soldering to prevent damage.
• Voltage and Current Limits: Do not exceed the maximum voltage and current ratings specified for the BAV99 A7 to prevent component failure or circuit damage.

3. Product Overview

The BAV99 A7 is a high-speed switching diode array, commonly used in applications requiring fast switching times and low leakage currents. Its SOT-23 package makes it suitable for compact designs. Each unit contains two independent diodes configured in series.

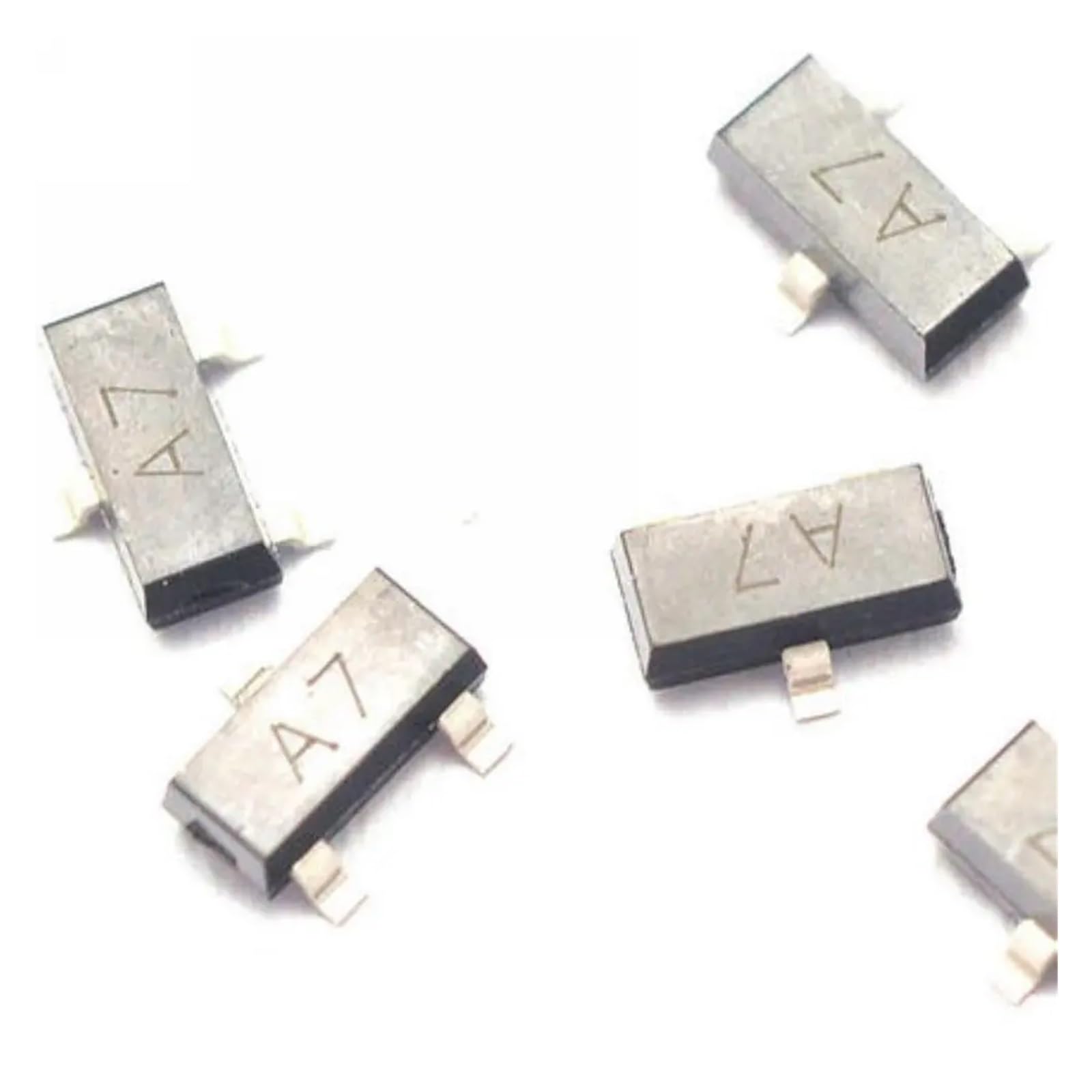

Figure 1: A batch of BAV99 A7 SOT-23 SMD Chip Switch Transistors. These components are designed for high-speed switching applications in electronic circuits.

4. Specifications

Key technical specifications for the BAV99 A7 transistor:

5. Setup and Installation

Proper installation is crucial for the reliable operation of the BAV99 A7. Follow these steps:

1. Prepare Workspace: Ensure your workspace is clean, well-lit, and ESD-safe.
2. Identify Pins: Refer to the BAV99 A7 datasheet for the exact pinout of the SOT-23 package. Typically, SOT-23 packages have three pins, and the orientation mark (e.g., a dot or notch) indicates pin 1. The BAV99 is a dual diode, so understanding the internal connection is vital.
3. Solder Pad Preparation: Ensure the solder pads on your Printed Circuit Board (PCB) are clean and properly tinned.
4. Placement: Carefully place the BAV99 A7 onto the designated solder pads, ensuring correct orientation. Use tweezers for precise placement.
5. Soldering: Solder each pin using appropriate soldering techniques for SMD components. Use a fine-tip soldering iron and lead-free solder if required. Apply heat briefly to avoid overheating the component. Inspect solder joints for proper connection and absence of bridges.
6. Cleaning: After soldering, clean any flux residue from the PCB using an appropriate cleaning agent.

Note: For detailed pinout and recommended soldering profiles, consult the official BAV99 A7 datasheet from the component manufacturer.

6. Operating Principles

The BAV99 A7 consists of two high-speed switching diodes. Diodes are semiconductor devices that allow current to flow predominantly in one direction (forward bias) and block it in the reverse direction (reverse bias). The "switching" characteristic refers to their ability to transition rapidly between conducting and non-conducting states.

• Forward Bias: When a positive voltage is applied to the anode relative to the cathode, the diode conducts current with a small voltage drop (forward voltage).
• Reverse Bias: When a negative voltage is applied to the anode relative to the cathode, the diode blocks current flow, provided the reverse voltage does not exceed its maximum rating.
• Switching Speed: The BAV99 A7 is optimized for fast switching, making it suitable for applications like signal rectification, voltage clamping, and protection circuits where rapid response is critical.

7. Maintenance

The BAV99 A7 is a passive electronic component and requires minimal maintenance. Adhere to the following guidelines for optimal longevity:

• Storage: Store unused components in their original anti-static packaging in a dry, cool environment, away from direct sunlight and extreme temperatures.
• Handling: Always handle components by their edges or packaging to avoid contamination or damage to the pins and body.
• Circuit Environment: Ensure the circuit in which the BAV99 A7 is installed operates within its specified voltage, current, and temperature limits.

8. Troubleshooting

If the BAV99 A7 component or the circuit it is part of is not functioning as expected, consider the following common issues:

• Incorrect Orientation: Verify that the diode is installed with the correct polarity. Incorrect orientation will prevent current flow or cause damage.
• Poor Solder Joints: Inspect all solder joints for cold joints, shorts, or insufficient solder. Re-solder if necessary.
• Exceeded Ratings: Check if the operating voltage or current in the circuit exceeds the BAV99 A7's maximum ratings. Overstressing the component can lead to permanent damage.
• ESD Damage: If ESD precautions were not followed, the component might have been damaged during handling.
• Circuit Design Issues: Ensure the surrounding circuit components and design are appropriate for the BAV99 A7's characteristics.

If issues persist, consult a qualified electronics technician or refer to detailed circuit schematics and datasheets.

9. Warranty and Support

POWTAXBJGD products are manufactured to high-quality standards. For specific warranty information, please refer to the purchase documentation or contact your supplier. Technical support for the BAV99 A7 component is generally provided through the original component manufacturer's datasheets and application notes. For inquiries related to your purchase, please contact POWTAXBJGD customer service.

Please note that improper handling, installation, or operation outside of specified limits may void any applicable warranty.
