Fricparts Replacement Blower Wheel Instruction Manual

1. Product Overview

This document provides instructions for the Fricparts replacement blower wheel, designed for Kenmore Dryer Model 110.70012002. The blower wheel is a critical component in your dryer's ventilation system, responsible for moving air through the dryer drum and out the exhaust vent.

The Fricparts part number for this component is FRIC-PL-APP-TP-22052025-024220. Please verify your dryer's model number (110.70012002) to ensure compatibility before proceeding with installation.

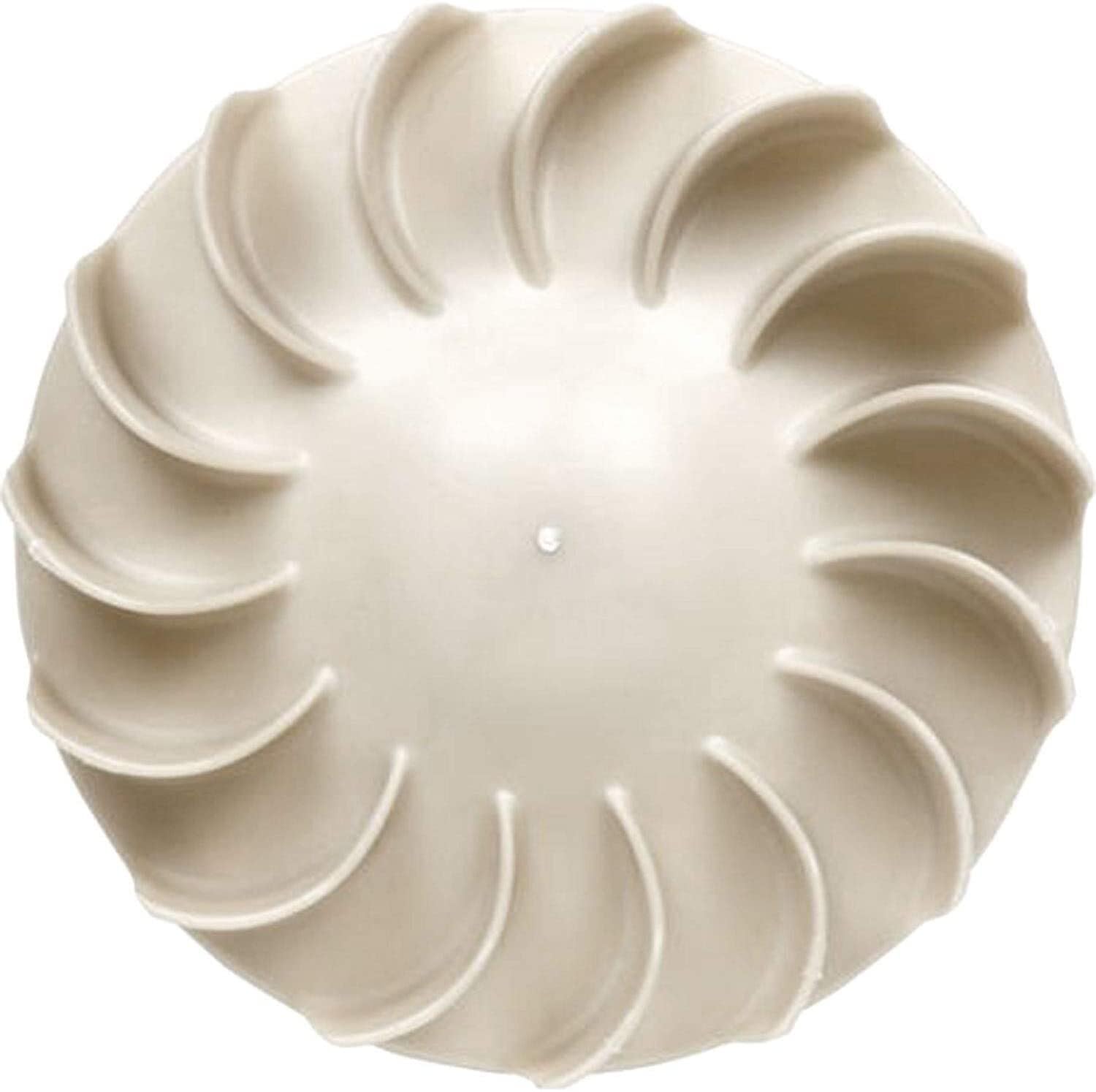

This image displays the Fricparts replacement blower wheel. It features a circular design with multiple curved blades arranged around a central hub, designed to efficiently move air within the dryer.

2. Safety Information

• Always disconnect power to the dryer by unplugging it or turning off the circuit breaker before beginning any repair or maintenance. Failure to do so can result in electric shock or serious injury.
• Wear appropriate safety gear, such as work gloves, to protect your hands from sharp edges or components.
• If you are unsure about any step in the installation process, consult a qualified appliance technician.
• Keep all small parts and tools away from children and pets.
• Ensure the work area is well-lit and clear of obstructions.

3. Package Contents

Verify that all components are present and undamaged before beginning installation:

• 1 x Fricparts Replacement Blower Wheel (Part Number: FRIC-PL-APP-TP-22052025-024220)

4. Setup and Installation

The following steps outline a general procedure for replacing a dryer blower wheel. Specific disassembly steps may vary slightly depending on your exact dryer configuration. Refer to your dryer's service manual for detailed instructions if available.

1. Disconnect Power: Unplug the dryer from the electrical outlet or turn off the circuit breaker supplying power to the dryer.
2. Access the Blower Housing: Depending on your dryer model, you may need to remove the front panel, rear panel, or top panel to gain access to the blower housing. This often involves removing screws and clips.
3. Locate the Blower Wheel: The blower wheel is typically located inside a housing at the rear or bottom of the dryer drum, connected to the drive motor shaft.
4. Remove the Old Blower Wheel:
   • Carefully detach any hoses or ducts connected to the blower housing.
   • The blower wheel is usually secured to the motor shaft with a nut. This nut is often reverse-threaded (turns clockwise to loosen). Use a wrench or socket to loosen and remove the nut.
   • Once the nut is removed, gently pull the old blower wheel off the motor shaft. It may be tight due to lint buildup or corrosion.
5. Clean the Area: While the blower wheel is removed, take the opportunity to thoroughly clean any lint and debris from the blower housing and surrounding areas.
6. Install the New Blower Wheel:
   • Align the new Fricparts blower wheel onto the motor shaft. Ensure it slides on smoothly and seats properly.
   • Thread the retaining nut back onto the motor shaft. Remember, it is likely reverse-threaded, so turn counter-clockwise to tighten. Tighten securely, but do not overtighten.
7. Reassemble the Dryer: Reattach any ducts or hoses, and reassemble the dryer panels in reverse order of disassembly. Ensure all screws and clips are securely fastened.
8. Restore Power and Test: Plug the dryer back into the electrical outlet or turn on the circuit breaker. Run a short cycle to ensure the dryer operates correctly and there are no unusual noises.

5. Operating Function

Once installed, the blower wheel functions automatically as an integral part of the dryer's operation. When the dryer is running, the motor spins the blower wheel, which creates airflow. This airflow draws air through the heating element, circulates it through the dryer drum to facilitate the drying of clothes, and then expels the moist air through the exhaust vent to the outside.

Proper installation of the blower wheel is essential for efficient airflow, preventing issues such as extended drying times, overheating, and potential damage to other dryer components.

6. Maintenance

While the blower wheel itself requires minimal direct maintenance, its effective operation relies on the overall health of your dryer's ventilation system. Follow these guidelines to ensure optimal performance and longevity:

• Clean Lint Filter: Always clean the dryer's lint filter before or after each load. A clogged lint filter severely restricts airflow, putting strain on the blower wheel and reducing drying efficiency.
• Inspect Exhaust Vent: Periodically inspect the dryer's exhaust vent and ductwork for blockages (e.g., lint buildup, bird nests). A clogged vent can cause the dryer to overheat and reduce the lifespan of the blower wheel and motor.
• Listen for Unusual Noises: Pay attention to any new or unusual noises coming from the dryer during operation. Rattling, grinding, or squealing sounds could indicate a problem with the blower wheel (e.g., loose, damaged, or obstructed) or other rotating components.
• Professional Inspection: Consider having your dryer professionally inspected and cleaned every few years, especially if you notice a decrease in drying performance or an increase in drying times.

7. Troubleshooting

If you experience issues with your dryer after installing the replacement blower wheel, consider the following common troubleshooting steps:

• Dryer Not Drying Effectively / Long Drying Times:
  • Ensure the lint filter is clean.
  • Check the dryer's exhaust vent and ductwork for any blockages.
  • Verify that the blower wheel is securely attached to the motor shaft and spinning freely.
• Loud Noises (Rattling, Grinding, Squealing):
  • Disconnect power and inspect the blower wheel for any foreign objects (e.g., coins, small items of clothing) lodged in the blades or housing.
  • Check if the blower wheel is loose on the motor shaft. Re-tighten the retaining nut if necessary (remember reverse thread).
  • Inspect the blower wheel for any visible damage, cracks, or broken blades. A damaged wheel will need to be replaced.
• Dryer Overheating:
  • Immediately discontinue use.
  • This is often caused by restricted airflow. Check the lint filter, exhaust vent, and ensure the blower wheel is functioning correctly to move air.

If troubleshooting steps do not resolve the issue, it is recommended to contact a qualified appliance repair technician.

8. Specifications

9. Warranty Information

Specific warranty details for this Fricparts replacement part may vary. Please refer to the original purchase documentation, product listing, or contact the seller directly for information regarding warranty coverage, terms, and conditions.

10. Support

For technical assistance, installation guidance, or any other inquiries regarding your Fricparts replacement blower wheel, please contact the retailer or manufacturer from whom the part was purchased. Have your purchase details and the part number (FRIC-PL-APP-TP-22052025-024220) readily available for faster service.
