Instruction Manual for Generic Replacement Start Relay Overload Capacitor Kit

1. Introduction

This manual provides essential information for the installation and maintenance of the Generic replacement start relay, overload, and capacitor kit for Jenn-Air JCD2292KTW refrigerators. Please read these instructions carefully before proceeding with installation to ensure proper function and safety.

2. Product Overview

The replacement kit includes a start relay, an overload protector, and a capacitor. These components are crucial for the proper operation of your refrigerator's compressor, facilitating its startup and protecting it from electrical overloads.

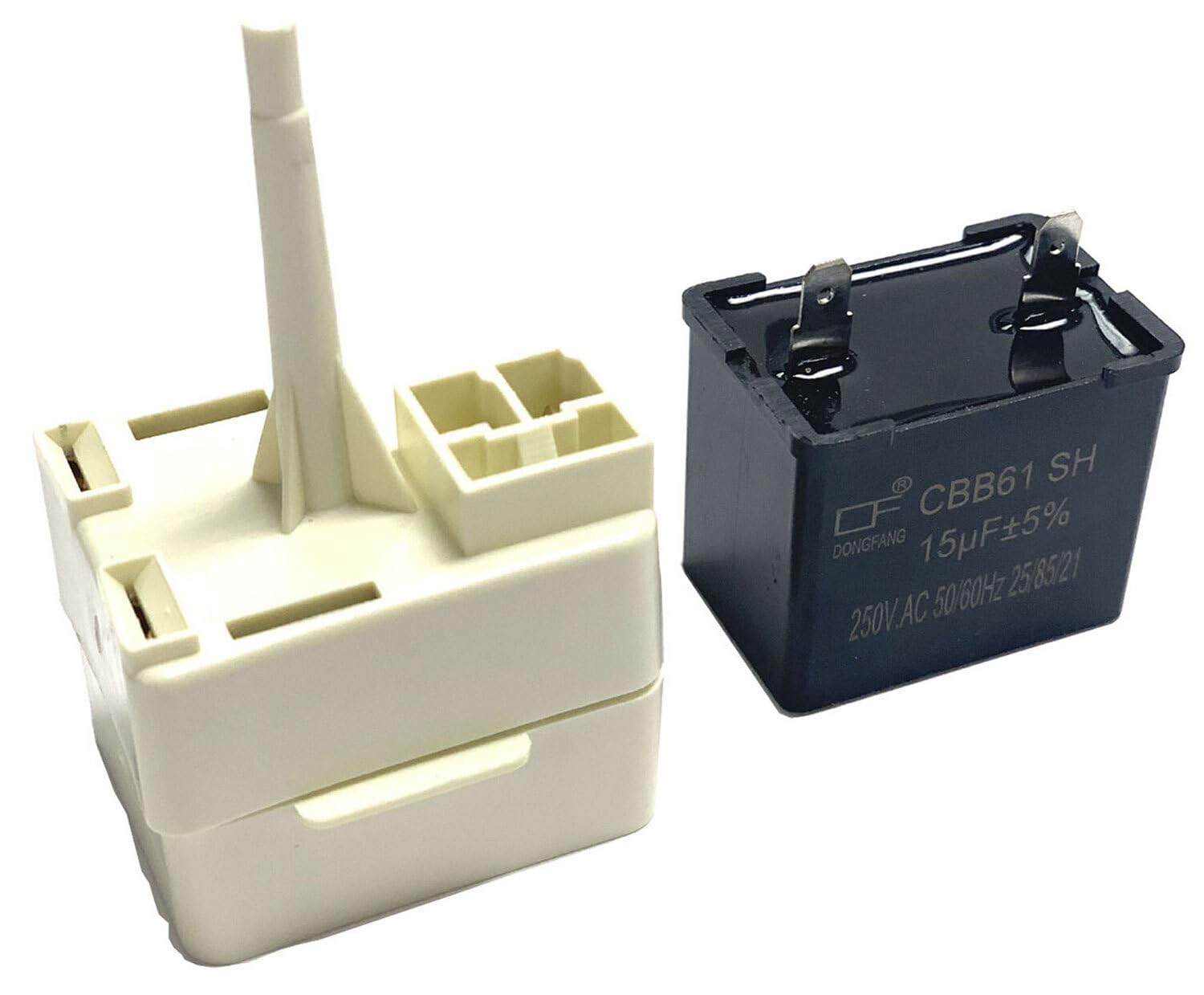

Image 1: Components of the replacement kit, showing the white start relay/overload unit and the black rectangular capacitor.

The white component is typically the start relay and overload protector integrated into one unit, designed to provide the initial boost for the compressor motor and then disconnect, while also protecting against excessive current. The black component is the capacitor, which stores and releases electrical energy to assist in the compressor's starting phase.

3. Compatibility

This replacement kit is specifically designed for the Jenn-Air JCD2292KTW refrigerator model. It is critical to verify your refrigerator's model number before attempting installation to ensure compatibility. Appliance parts can appear similar, but specific models require precise components for correct and safe operation.

Part Number: JCD2292KTW

4. Safety Information

• Disconnect Power: Always unplug the refrigerator from the electrical outlet before performing any service or installation. Failure to do so can result in electric shock, serious injury, or death.
• Professional Installation Recommended: If you are not experienced with appliance repair, it is highly recommended to seek assistance from a qualified technician.
• Wear Protective Gear: Use appropriate personal protective equipment, such as gloves and safety glasses, during installation.
• Handle with Care: Electrical components can be delicate. Handle them carefully to avoid damage.

5. Installation

The following steps provide a general guide for replacing the start relay, overload, and capacitor. Specific refrigerator models may vary. Refer to your refrigerator's service manual for detailed instructions if available.

1. Prepare the Refrigerator:
   • Unplug the refrigerator from the power source.
   • Move the refrigerator away from the wall to access the compressor compartment, usually located at the bottom rear.
2. Access Components:
   • Locate and remove the access panel covering the compressor and electrical components. This usually involves unscrewing a few screws.
3. Identify and Disconnect Old Parts:
   • Carefully observe how the existing start relay, overload, and capacitor are connected to the compressor and wiring. Take photos if necessary for reference.
   • Disconnect the wires from the old components. Note their positions.
   • Gently pull the old start relay and overload protector off the compressor's electrical pins.
   • Disconnect the capacitor, if separate.
4. Install New Parts:
   • Align the new start relay and overload protector with the compressor's electrical pins and push it firmly into place until it clicks.
   • Connect the wires to the new components in the same configuration as the old ones. Ensure all connections are secure.
   • If the capacitor is a separate unit, connect it according to the original wiring.
5. Test and Reassemble:
   • Before reattaching the access panel, plug the refrigerator back in and listen for the compressor to start. Allow it to run for a few minutes to confirm proper operation.
   • If the compressor starts and runs correctly, unplug the refrigerator again.
   • Reattach the access panel and push the refrigerator back into its position.
   • Plug the refrigerator back into the power source.

Warning: Incorrect installation can damage the refrigerator or pose a safety hazard. If you are unsure, consult a qualified appliance technician.

6. Operating Principle

The start relay, overload protector, and capacitor work in conjunction to manage the compressor's operation. The start relay provides a temporary surge of power to the compressor's start winding, helping it overcome initial inertia. Once the compressor reaches operating speed, the relay disconnects the start winding. The overload protector monitors the compressor's current draw and temperature, shutting off power if it detects an unsafe condition, preventing damage from overheating or excessive load. The capacitor stores electrical energy and releases it during startup, providing an additional boost to the compressor motor.

7. Maintenance

These components are generally maintenance-free. However, periodic inspection during other refrigerator maintenance (e.g., cleaning condenser coils) can help identify potential issues early:

• Visual Inspection: Check for any signs of physical damage, burn marks, or corrosion on the relay, overload, and capacitor.
• Secure Connections: Ensure all wire connections are tight and free from looseness.
• Cleanliness: Keep the compressor compartment clean and free of dust and debris to ensure proper heat dissipation.

8. Troubleshooting

If your refrigerator is experiencing issues related to the compressor, the start relay, overload, or capacitor might be faulty. Common symptoms include:

• Compressor Not Starting: The compressor hums for a few seconds and then shuts off, or makes a clicking sound but doesn't start. This often indicates a faulty start relay or capacitor.
• Refrigerator Not Cooling: If the compressor is not running at all, or only intermittently, and other components (like the fan) are working, these parts could be the cause.
• Repeated Clicking Sounds: A rapid clicking sound from the compressor area often points to a failing overload protector attempting to reset.

If you suspect a fault, perform the safety steps (disconnect power) and inspect the components. If visual inspection reveals damage, replacement is likely necessary. For electrical testing, consult a qualified technician.

9. Specifications

10. Warranty and Support

As a generic replacement part, specific warranty details may vary. Please refer to the seller or retailer from whom you purchased this kit for information regarding warranty coverage and return policies. For technical support or installation assistance, it is recommended to consult a qualified appliance repair professional.
