User Manual

1. Introduction

This manual provides essential information for the safe and efficient operation, installation, and maintenance of the Tcairzl Pneumatic Filter-Regulator Assembly, designed as a fit for Festo MSB6-1/2-5-ASY systems. Please read this manual thoroughly before installation and operation.

Product Model: MSB6-1/2-5-ASY

Part Number: HH0570XZ

Brand: Tcairzl

2. Product Overview

The Tcairzl Pneumatic Filter-Regulator Assembly is a critical component for managing compressed air quality and pressure in industrial pneumatic systems. It combines the functions of air filtration and pressure regulation into a single, compact unit, ensuring clean, dry, and consistently pressurized air for downstream equipment.

Figure 2.1: Front view of the complete pneumatic filter-regulator assembly, showing multiple integrated units.

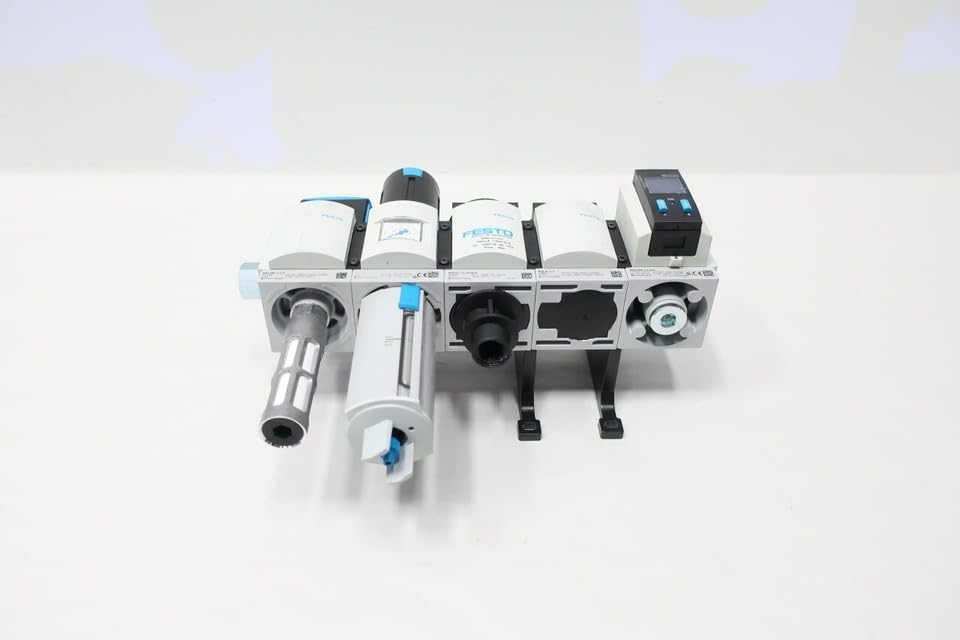

Figure 2.2: Angled perspective of the assembly, highlighting the modular design and various components.

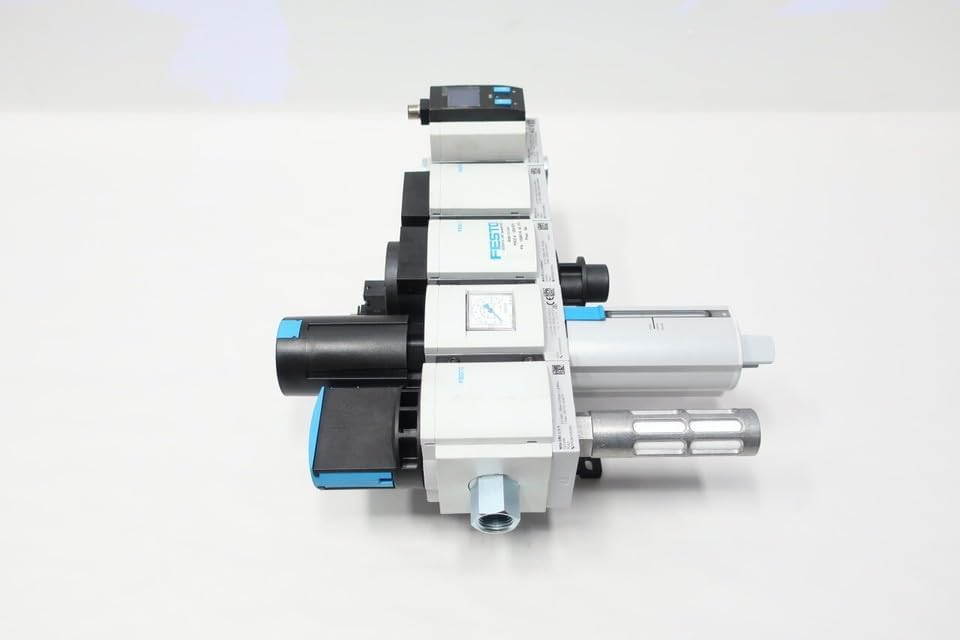

Figure 2.3: Side view of the assembly, showing the depth and connection points of the units.

Figure 2.4: Top-down view, illustrating the overall footprint and arrangement of the filter and regulator modules.

Figure 2.5: Detailed view of the service unit label, showing model number (MSB6-1/2-5-ASY), product number (13095119), and maximum pressure (6 Bar).

Figure 2.6: Barcode and shipping information, indicating the Festo product number 13095119 and a weight of 10 lbs. Also visible is the number 01067059.

3. Setup and Installation

Proper installation is crucial for the performance and longevity of the filter-regulator assembly. Ensure all safety precautions are followed.

3.1 Safety Precautions

• Always depressurize the pneumatic system before installation or maintenance.
• Wear appropriate personal protective equipment (PPE), including eye protection.
• Ensure the installation area is well-ventilated and free from contaminants.
• Verify that the supply pressure does not exceed the maximum operating pressure of the unit (6 Bar / 87 PSI).

3.2 Mounting

1. Select a stable, vertical mounting surface.
2. Mount the assembly with the filter bowl facing downwards to allow for proper drainage.
3. Secure the unit using appropriate fasteners through the designated mounting holes.

3.3 Connections

1. Connect the compressed air supply line to the inlet port (typically marked "IN" or with an arrow indicating flow direction).
2. Connect the regulated air output line to the outlet port (typically marked "OUT").
3. Use appropriate thread sealant on all pneumatic connections to prevent leaks.
4. Ensure all connections are tight but do not overtighten.

4. Operating Instructions

Follow these steps for proper operation of the filter-regulator assembly.

4.1 Initial Startup

1. Slowly open the main air supply valve to pressurize the system.
2. Check for any air leaks using a leak detection solution.
3. Observe the pressure gauge to ensure the system is pressurized.

4.2 Pressure Adjustment

1. To adjust the regulated pressure, pull up the adjustment knob on the regulator.
2. Turn the knob clockwise to increase pressure and counter-clockwise to decrease pressure.
3. Monitor the output pressure gauge while adjusting.
4. Once the desired pressure is set, push the knob down to lock it in place.

4.3 Condensate Drainage

The filter section collects condensate (water and oil). This must be drained regularly.

• Manual Drain: If equipped with a manual drain, open the drain valve at the bottom of the filter bowl until all condensate is expelled. Close the valve securely.
• Automatic Drain: If equipped with an automatic drain, the condensate will be expelled automatically when the liquid level reaches a certain point. Periodically check for proper function.

5. Maintenance

Regular maintenance ensures optimal performance and extends the lifespan of your filter-regulator assembly.

5.1 Filter Element Replacement

The filter element should be replaced periodically, or when a significant pressure drop across the filter is observed, indicating clogging.

1. Depressurize the system completely.
2. Unscrew the filter bowl from the main body.
3. Remove the old filter element.
4. Clean the filter bowl and O-rings.
5. Install a new, genuine replacement filter element.
6. Reattach the filter bowl, ensuring it is hand-tightened or tightened to manufacturer specifications.
7. Repressurize the system and check for leaks.

5.2 General Cleaning

• Clean the exterior of the unit with a damp cloth. Do not use solvents that may damage plastic components.
• Inspect all seals and O-rings for signs of wear or damage. Replace as necessary.

6. Troubleshooting

This section provides solutions to common issues you may encounter.

7. Specifications

8. Warranty and Support

No specific warranty information is available in the provided product details. For support or warranty inquiries, please contact the manufacturer, Tcairzl, directly through their official channels.

For additional information or to purchase replacement parts, please refer to the product's ASIN: B0F9QBL6DD.

The barcode information from the packaging indicates Festo product number 13095119. For specific Festo components, refer to their official documentation or website: www.festo.com
