Sojagg Kiruna Gazebo 12x20 User Manual

1. Product Overview

The Sojagg Kiruna Gazebo is designed to enhance your outdoor living space, providing a shaded and elegant area for relaxation and entertainment. It features a robust aluminum frame and a durable galvanized steel roof with ACP panels, ensuring longevity and resistance to various weather conditions. The integrated double track system allows for easy installation of the included mosquito netting, offering protection from insects while maintaining an open-air feel.

Figure 1.1: Front view of the Sojagg Kiruna Gazebo, showcasing its black aluminum frame and dark galvanized steel roof.

2. Key Features

• Spacious Design: Footprint of 235.9" x 143.4" (approximately 19.6 ft x 11.9 ft) providing ample space.
• Generous Headroom: Maximum entry headroom of 82.8" (approximately 6.9 ft) and maximum outside height of 124.8" (approximately 10.4 ft).
• Durable Construction: High-quality aluminum structure resistant to corrosion, rust, and scratches, requiring minimal maintenance.
• Robust Roof: Galvanized steel roof with ACP (Aluminum Composite Panel) top for enhanced durability and modern aesthetics.
• Insect Protection: Includes PVC coated mosquito netting with a double track system for easy installation and smooth operation.
• Enhanced Stability: Features extra wide posts for increased sturdiness and resistance to environmental factors.
• Temperature Regulation: Designed to help keep warm temperatures out, providing a cooler shaded area.

3. Specifications

4. Setup and Assembly

Assembly of the Sojagg Kiruna Gazebo requires careful attention to detail and typically two or more people. It is recommended to set aside sufficient time for the assembly process. Ensure all components are present and undamaged before beginning.

4.1. Before You Begin

• Site Selection: Choose a level, stable surface for installation. Ensure adequate clearance around the gazebo for assembly and future use.
• Tools Required: Gather necessary tools as specified in the separate assembly instructions (e.g., wrenches, screwdrivers, ladder).
• Unpacking: Carefully unpack all boxes and identify each part using the provided parts list. Keep small parts organized.
• Safety First: Wear appropriate safety gear, such as gloves and eye protection. Do not attempt assembly in high winds or adverse weather conditions.

4.2. Assembly Steps (General Guidelines)

Refer to the detailed assembly manual included with your product for step-by-step instructions, diagrams, and specific hardware requirements. The following is a general sequence:

1. Base Frame Assembly: Connect the base beams and posts to form the foundational structure. Ensure all connections are secure but do not fully tighten bolts until the frame is squared.
2. Post Installation: Erect the vertical posts and secure them to the base frame.
3. Roof Frame Assembly: Assemble the roof support beams and connect them to the top of the posts.
4. Roof Panel Installation: Carefully install the galvanized steel and ACP roof panels according to the designated order.
5. Mosquito Netting Installation: Install the PVC coated mosquito netting onto the double track system using the provided rolling hooks.
6. Final Tightening: Once the entire structure is assembled and squared, fully tighten all bolts and fasteners.
7. Anchoring: Securely anchor the gazebo to the ground or deck using appropriate anchoring hardware (not always included, check manual).

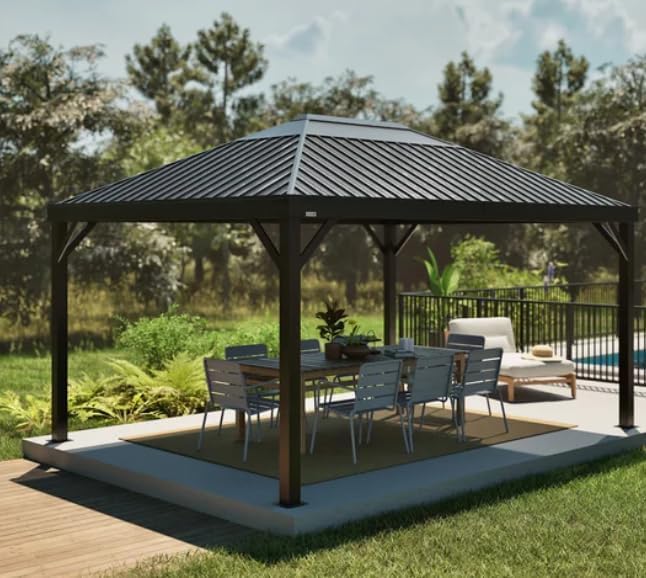

Figure 4.1: The Sojagg Kiruna Gazebo fully assembled and integrated into an outdoor dining area, demonstrating its spacious interior.

5. Operating Instructions

The Sojagg Kiruna Gazebo is designed for straightforward use, providing a comfortable outdoor space.

• Enjoying the Space: Utilize the gazebo for various outdoor activities such as dining, lounging, or entertaining guests. Its robust structure provides reliable shade and shelter.
• Using Mosquito Netting: The included PVC coated mosquito netting can be easily drawn closed or opened along the double track system. Slide the netting smoothly to protect the interior from insects when desired, or retract it for an open-air experience.
• Weather Considerations: While the gazebo is built to be durable, it is advisable to take precautions during extreme weather conditions. In cases of severe wind, heavy snow, or hail, it is recommended to remove any hanging items and ensure the netting is secured to prevent damage.

Figure 5.1: The Sojagg Kiruna Gazebo with its mosquito netting fully extended, creating an enclosed and protected outdoor lounge space.

6. Maintenance

Regular maintenance will ensure the longevity and optimal appearance of your Sojagg Kiruna Gazebo.

• Frame Cleaning: Clean the aluminum frame periodically with mild soap and water. Rinse thoroughly with clean water and dry with a soft cloth to prevent water spots. Avoid abrasive cleaners or harsh chemicals.
• Roof Cleaning: The galvanized steel roof can be cleaned with a soft brush and mild detergent. Rinse well. Remove any accumulated leaves or debris from the roof to prevent water pooling.
• Netting Care: The PVC coated mosquito netting can be spot cleaned with mild soap and water. For deeper cleaning, it may be removed and hand washed. Ensure it is completely dry before re-installing or storing to prevent mildew.
• Hardware Inspection: Periodically check all bolts, screws, and connections to ensure they remain tight. Re-tighten as necessary to maintain structural integrity.
• Winterization: In regions with heavy snowfall, it is recommended to remove accumulated snow from the roof to prevent excessive weight. While the structure is robust, extreme snow loads can cause damage. Consider disassembling and storing the netting and any fabric components during winter months.

7. Troubleshooting

This section addresses common issues you might encounter with your gazebo.

• Issue: Gazebo feels wobbly after assembly.

  Solution: Ensure all bolts and fasteners are fully tightened. Verify that the gazebo is installed on a level surface. If on uneven ground, consider shimming the base of the posts or relocating to a more suitable area. Confirm proper anchoring.
• Issue: Mosquito netting does not slide smoothly.

  Solution: Check the tracks for any obstructions or debris. Clean the tracks with a damp cloth. Ensure the rolling hooks are properly inserted and not bent. Lubricate the tracks lightly with a silicone-based spray if needed.

• Issue: Water pooling on the roof.

  Solution: This indicates improper roof panel installation or a sag in the roof structure. Re-check the roof panel alignment and ensure all roof support beams are correctly installed and secured. Remove any debris from the roof surface.

• Issue: Rust spots appearing on metal components.

  Solution: While the aluminum frame is corrosion-resistant, galvanized steel components can show minor surface rust over time, especially if the coating is scratched. Clean the area with a wire brush to remove loose rust, then apply a rust-inhibiting primer and paint suitable for outdoor metal. For aluminum, ensure no steel fasteners are causing galvanic corrosion.

8. Warranty and Support

For specific warranty information regarding your Sojagg Kiruna Gazebo, please refer to the warranty card or documentation included with your purchase. Warranty terms typically cover manufacturing defects for a specified period.

Should you require technical assistance, replacement parts, or have questions not covered in this manual, please contact Sojagg customer support:

• Manufacturer: Sojag
• Customer Service Phone: 855-659-4402
• Website: www.sojag.ca (Note: This is a placeholder URL, please refer to your product documentation for the official website.)
