KingChii 19" Tabletop 2-Burner Portable Gas Griddle Instruction Manual

1. Introduction

This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your KingChii 19" Tabletop 2-Burner Portable Gas Griddle. Please read all instructions carefully before assembly and use to ensure proper function and safety.

The KingChii 19" Tabletop 2-Burner Portable Gas Griddle is designed for versatile outdoor cooking, offering a spacious cooking surface and even heat distribution. It features high-efficiency burners for fast heating, a push-button ignition system for quick starts, and individual burner knobs for precise flame control. Its rugged powder-coated steel body makes it suitable for various outdoor environments, including patios, RVs, and campsites. An integrated grease management system and non-stick cooking surface facilitate easy cleanup.

Figure 1: KingChii 19" Tabletop Griddle demonstrating cooking capacity for various foods.

2. Safety Information

WARNING: Failure to follow these instructions could result in fire, explosion, or burn hazard, which could cause property damage, personal injury, or death.

• For outdoor use only. Do not operate this appliance in an enclosed area such as a garage, shed, or any other enclosed area.
• Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
• This appliance is for use with LP (liquefied petroleum) gas only. Do not connect to a remote gas supply.
• Always check for gas leaks before each use. Use a soapy water solution to check connections. Never use a flame.
• Keep children and pets away from the griddle during operation and while it is cooling down.
• Ensure adequate ventilation. Do not block the flow of combustion and ventilation air.
• Always place the griddle on a stable, level, non-combustible surface.
• Do not move the appliance during use. Allow to cool completely before moving or storing.
• Wear protective gloves when handling hot surfaces.

3. Product Components

Familiarize yourself with the parts of your KingChii 19" Tabletop 2-Burner Portable Gas Griddle:

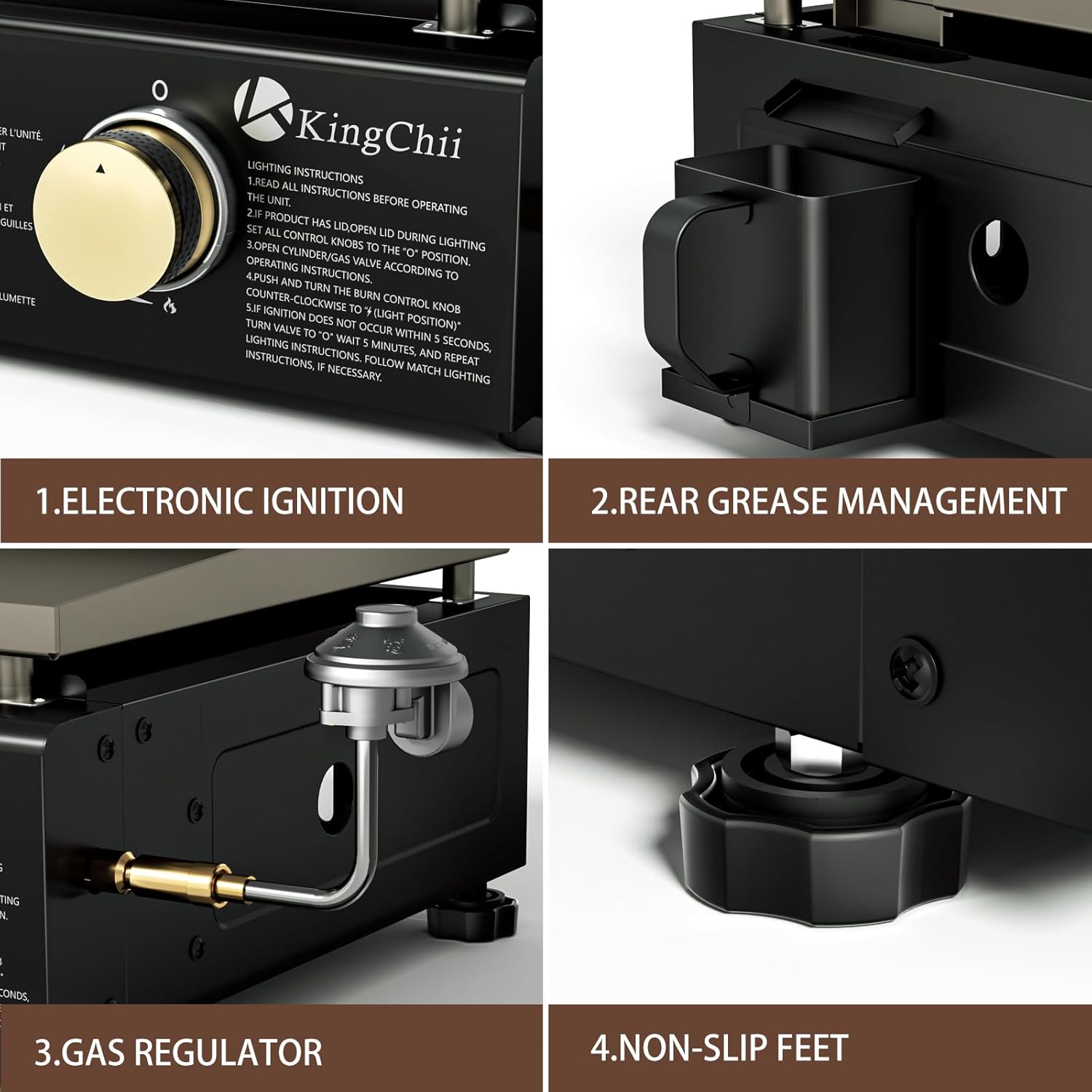

Figure 2: Key components of the KingChii 19" Tabletop 2-Burner Portable Gas Griddle.

• Omni Griddle Plate: The primary cooking surface, designed for even heat distribution.
• Propane Connection: Inlet for connecting the gas regulator and propane tank.
• Rear Grease Management System: A channel and trap located at the rear of the griddle to collect excess grease and food debris.
• Non-Slip Feet: Provides stability and prevents the griddle from sliding on surfaces.
• Control Knobs: Individual knobs for each burner to adjust flame intensity and temperature.
• Electronic Ignition: Push-button system for quick and reliable burner ignition.
• Gas Regulator: Connects to the propane tank to control gas flow and pressure.

4. Setup and Assembly

The KingChii 19" Tabletop 2-Burner Portable Gas Griddle requires minimal assembly. Ensure all packaging materials are removed before proceeding.

1. Placement: Place the griddle on a stable, level, non-combustible surface outdoors. Ensure there is adequate clearance from combustible materials.
2. Griddle Plate Installation: Carefully place the omni griddle plate onto the main body of the griddle, ensuring it sits securely over the burners.
3. Grease Trap Installation: Insert the rear grease trap into its designated slot at the back of the griddle.
4. Propane Connection: Connect the gas regulator hose to the griddle's propane inlet. Hand-tighten securely. Then, connect the other end of the regulator to your LP gas tank. Ensure all connections are tight before opening the gas supply.
5. Leak Test: Before first use and after any tank change, perform a leak test. Apply a soapy water solution to all gas connections. Bubbles indicate a leak. If a leak is detected, turn off the gas supply immediately, tighten connections, and retest. If the leak persists, do not use the griddle and contact customer support.

Figure 3: KingChii 19" Tabletop Griddle ready for propane connection.

5. Operating Instructions

Follow these steps for safe and effective operation of your griddle:

5.1. Initial Seasoning (Before First Use)

Seasoning the griddle plate is crucial for creating a non-stick surface and protecting it from rust. This process should be repeated several times for best results.

1. Clean the griddle surface thoroughly with warm, soapy water and rinse completely. Dry immediately.
2. Apply a thin, even layer of high-heat cooking oil (e.g., flaxseed, grapeseed, or vegetable oil) to the entire cooking surface.
3. Turn on the griddle to medium-high heat. Allow the oil to burn off until it stops smoking (approximately 15-20 minutes). The surface will darken.
4. Turn off the griddle and let it cool.
5. Repeat steps 2-4 at least 3-5 times. The more layers of seasoning, the better the non-stick properties and protection.

5.2. Lighting Instructions

Figure 4: Electronic ignition and control knobs for the KingChii griddle.

1. Read all instructions before operating the unit.
2. If the product has a lid, open the lid during lighting.
3. Set all control knobs to the "O" (OFF) position. Open the cylinder/gas valve according to operating instructions.
4. Push and turn the burn control knob counter-clockwise to the "⚡" (LIGHT) position.
5. If ignition does not occur within 5 seconds, turn the valve to "O" (OFF), wait 5 minutes, and repeat lighting instructions.
6. Follow match lighting instructions if necessary.

5.3. Temperature Control

Your KingChii griddle features two independently controlled burners, allowing you to create different heat zones for cooking various foods simultaneously. Adjust the control knobs to achieve your desired temperature. Turn clockwise for lower heat and counter-clockwise for higher heat.

6. Maintenance and Cleaning

Proper maintenance ensures the longevity and performance of your griddle.

6.1. After Each Use

Figure 5: Step-by-step guide for easy griddle cleaning.

1. Scrape: While the griddle is still warm, use a metal spatula or scraper to push food debris and excess grease into the rear grease trap.
2. Empty Grease Trap: Once cooled, remove and empty the rear grease trap. Clean it with warm, soapy water.
3. Wipe: Wipe the griddle surface with a clean cloth or paper towel. For stubborn residue, you may add a small amount of water to the warm griddle and scrape again.
4. Re-season (Optional, but Recommended): Apply a very thin layer of cooking oil to the griddle surface to maintain seasoning and prevent rust, especially if storing for an extended period.

6.2. General Care

• Clean the exterior surfaces with mild soap and water. Avoid abrasive cleaners.
• Store the griddle in a dry, protected area when not in use.
• Regularly inspect the gas hose and connections for any signs of wear, cuts, or damage. Replace if necessary.

7. Troubleshooting

If you encounter issues with your griddle, refer to the following common problems and solutions:

8. Specifications

Key specifications for your KingChii 19" Tabletop 2-Burner Portable Gas Griddle:

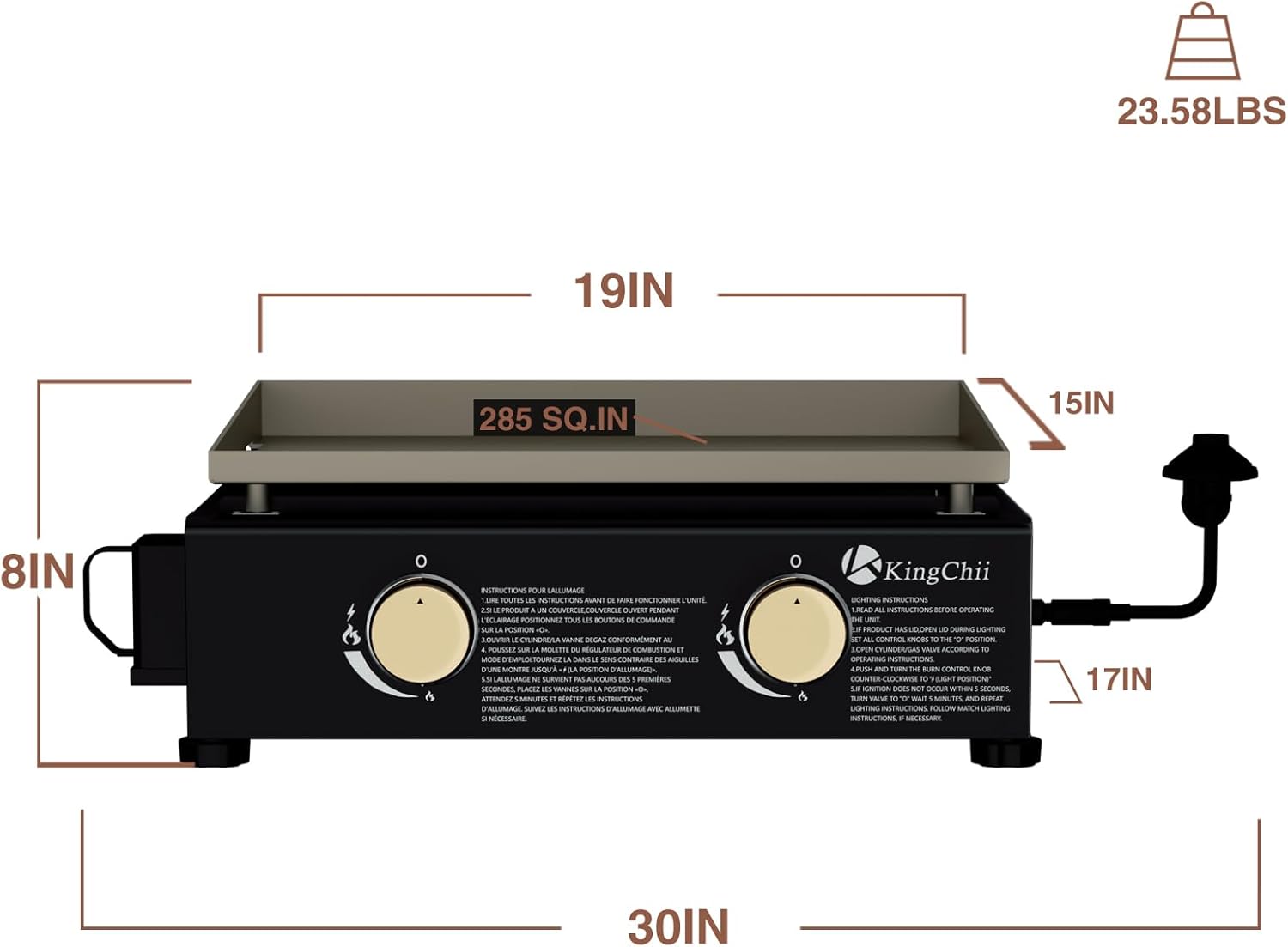

Figure 6: Dimensions and weight of the KingChii 19" Tabletop Griddle.

• Brand: KingChii
• Model Name: 2-Burner Tabletop
• Material: Stainless Steel (cooking surface), Powder-Coated Steel (body)
• Special Feature: Gas Stovetop Compatible, Rear Grease Trap
• Color: Black
• Number of Burners: 2
• Cooking Surface Area: Approximately 285 sq. inches
• Dimensions (Approximate): 30" (L) x 19" (W) x 8" (H)
• Item Weight: Approximately 23.58 lbs
• Assembly Required: Yes (minimal)

9. Warranty and Support

For warranty information, product support, or to purchase replacement parts, please refer to the documentation included with your product or visit the official KingChii website. Keep your purchase receipt as proof of purchase for any warranty claims.
