Technical Precision TZ-FDVT-V
Instruction Manual for Technical Precision Charge Air Cooler
Model: TZ-FDVT-V
Product Overview
This document provides essential information for the installation, operation, and maintenance of the Technical Precision Replacement Charge Air Cooler, designed for International 8200 Year 1994 models. This component is crucial for maintaining optimal engine performance by cooling compressed air from the turbocharger before it enters the engine's intake manifold.

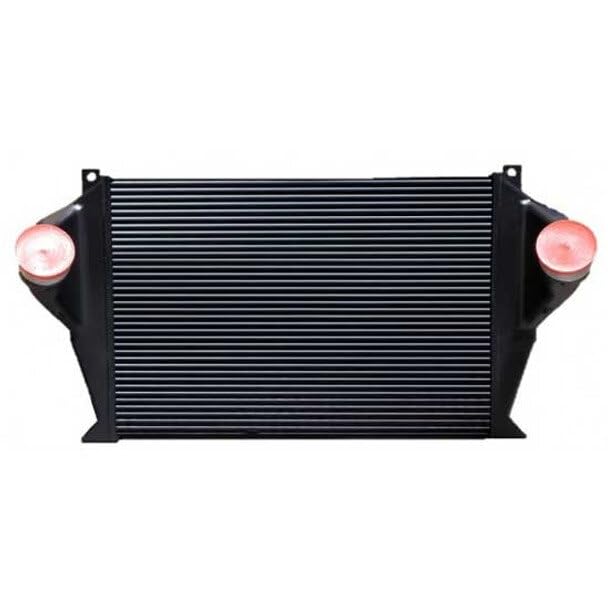

Image: Technical Precision Replacement Charge Air Cooler. This image displays the front view of the charge air cooler, showing its finned core and the inlet/outlet connections on either side, capped with protective covers.
Setup and Installation
Proper installation is critical for the performance and longevity of your new charge air cooler. It is recommended that installation be performed by a qualified technician.
Pre-Installation Checklist:
- Ensure the engine is cool and the vehicle's electrical system is disconnected.
- Verify that the replacement cooler matches the specifications of the original unit.
- Gather all necessary tools and safety equipment.
- Inspect the surrounding components (hoses, clamps, mounting points) for wear or damage. Replace as needed.
Installation Steps (General Guidelines):
- Carefully remove the old charge air cooler, noting the position of all connections and mounting hardware.
- Clean the area where the new cooler will be installed, removing any debris or corrosion.
- Install the new Technical Precision charge air cooler, ensuring all mounting points align correctly.
- Connect all air hoses and clamps securely. Ensure no leaks are present.
- Reconnect any sensors or electrical connections that were detached.
- Perform a system pressure test to check for leaks before operating the vehicle.
- Start the engine and check for proper operation and any unusual noises or indications.
Operating Principles
The charge air cooler, also known as an intercooler, is a heat exchanger that cools the hot, compressed air from the turbocharger before it enters the engine's combustion chambers. Cooling the air increases its density, allowing more oxygen to enter the cylinders. This results in more efficient combustion, improved power output, and reduced emissions. The cooler operates passively, relying on ambient airflow to dissipate heat from the charge air.
Maintenance
Regular maintenance helps ensure the longevity and optimal performance of your charge air cooler.
Recommended Maintenance Schedule:
- Every 12 months or 50,000 miles (whichever comes first): Inspect the exterior fins for debris (leaves, dirt, insects) and clean gently with compressed air or a soft brush.
- Every 24 months or 100,000 miles: Inspect all hoses and clamps connected to the cooler for cracks, hardening, or looseness. Replace as necessary.
- As needed: Check for any signs of oil residue inside the cooler, which may indicate issues with the turbocharger or engine ventilation system.
Cleaning Instructions: For external cleaning, use a mild detergent solution and rinse thoroughly with low-pressure water. Avoid high-pressure washers directly on the fins, as this can bend them and reduce efficiency. For internal cleaning, if necessary, consult a professional mechanic.
Troubleshooting
If you experience issues with your vehicle's performance that may be related to the charge air cooler, refer to the following common problems and solutions.
| Symptom | Possible Cause | Solution |
|---|---|---|
| Reduced Engine Power / Poor Fuel Economy | Clogged or damaged cooler fins; Internal leaks; Loose or cracked hoses. | Clean external fins; Inspect for leaks (pressure test); Tighten or replace hoses. |
| Visible Leaks (Oil or Coolant) | Cracked cooler core; Damaged seals or O-rings; Loose connections. | Inspect for cracks; Replace seals/O-rings; Tighten connections. If core is cracked, replacement is necessary. |
| Unusual Noises (Hissing, Whistling) | Air leaks from hoses or cooler connections. | Inspect all connections and hoses for leaks. Tighten clamps or replace damaged components. |
If troubleshooting steps do not resolve the issue, it is recommended to seek assistance from a certified automotive technician.
Specifications
| Attribute | Detail |
|---|---|
| Product Type | Replacement Charge Air Cooler |
| Compatibility | International 8200 Year 1994 |
| Dimensions (Core) | 35.65 X 24.68 INCH |
| Core Thickness | 1.630 INCH |
| Brand | Technical Precision |
| Model Number | TZ-FDVT-V |
| Manufacturer | Technical Precision |
| ASIN | B0F9NFTTRN |
| Unit per sale | 1 |
Warranty and Support
This product is offered by Technical Precision. For any inquiries regarding product performance, installation, or potential defects, please contact the seller directly through your purchase platform.
Return Policy: This product is subject to a 30-day return policy from the date of purchase. Please refer to the terms and conditions of your purchase for detailed return instructions.
For additional support and product information, you may visit the Technical Precision Store on Amazon.
