Introduction
This manual provides essential information for the safe and efficient operation, assembly, and maintenance of your JOYRACER 24V Licensed Ford Shelby Cobra Kids Electric Ride-On Car. Please read all instructions carefully before use and retain this manual for future reference.
1. Setup and Assembly
Adult assembly is required. Please ensure all components are present before beginning assembly.
1.1 What's in the Box:
- 24V 2 Seater Licensed Shelby GT350 Ride On Car for Toddler
- Parental Remote Control
1.2 Assembly Steps:
- Carefully remove all components from the packaging.
- Attach the wheels securely to the vehicle chassis. Ensure all fasteners are tightened.
- Connect the battery terminals. Refer to the battery compartment for specific instructions.
- Install the steering wheel and connect its wiring.
- Secure the seats and safety harnesses.
- Perform an initial charge of the battery for 8-12 hours before first use.
Figure 1: Main product view of the JOYRACER 24V Licensed Ford Shelby Cobra Kids Electric Ride-On Car in Black.
1.3 Assembly Video:
Video 1: This video demonstrates the assembly process of the JOYRACER 24V Licensed Ford Shelby Cobra Kids Electric Ride-On Car, including attaching wheels, connecting the battery, and installing the steering wheel and seats.
2. Operating Instructions
The JOYRACER Ford Shelby Cobra offers both manual and remote control operation for versatile play.
2.1 Driving Modes:
- Manual Control: Children can operate the vehicle using the steering wheel and foot pedal.
- Remote Control: Parents can override manual controls using the included 2.4G remote control, which features forward/reverse, left/right steering, and an emergency stop button for enhanced safety.
Figure 2: Illustration of the dual driving modes: manual control by the child and parental remote control.
2.2 Speed Settings:
The vehicle features multiple speed settings (1.86-4.45 MPH) to accommodate different skill levels and environments. Adjust the speed using the controls on the dashboard or remote.
2.3 Entertainment Features:
The ride-on car includes a central control screen with music, Bluetooth connectivity, and a USB port. Children can enjoy pre-loaded tunes or connect their own devices.

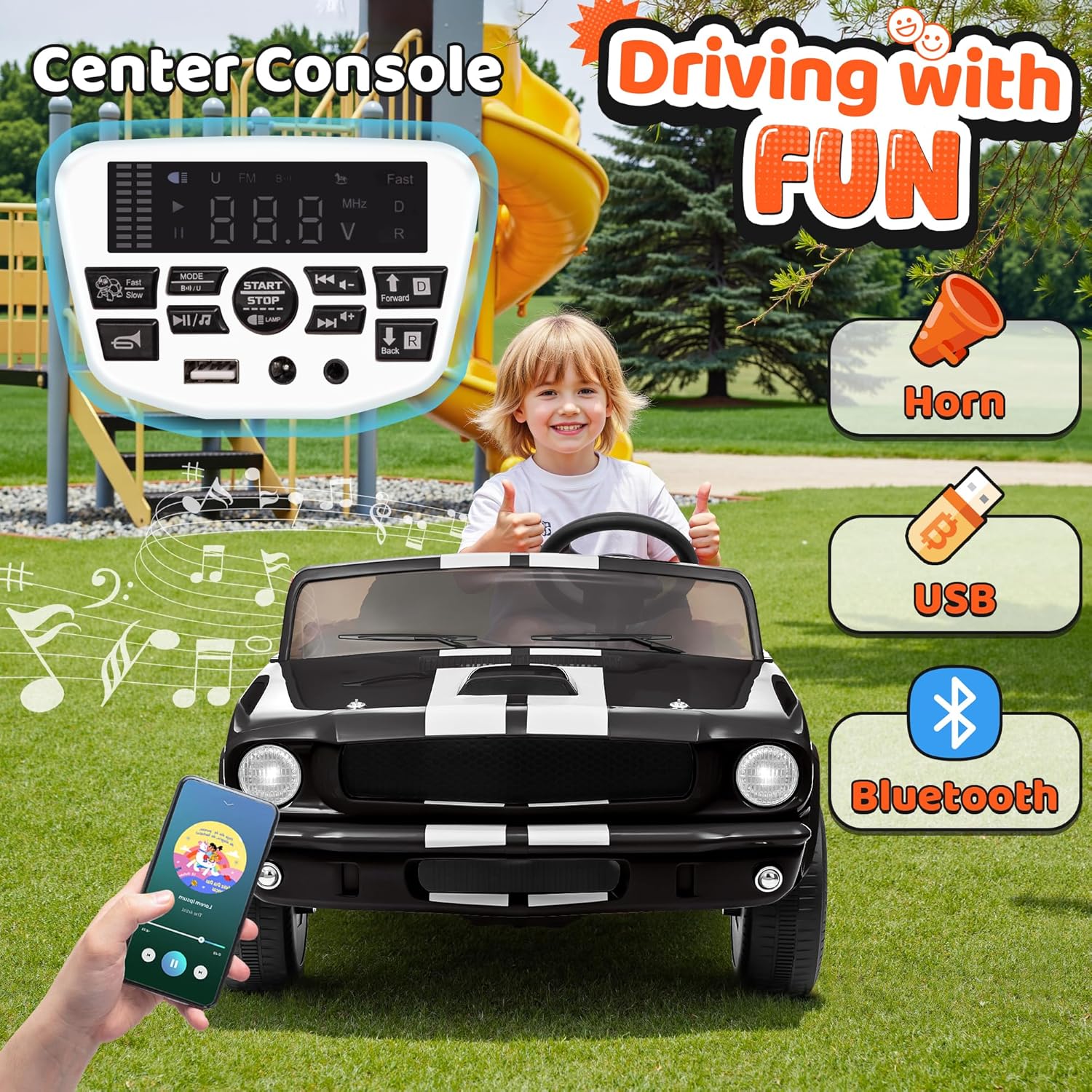

Figure 3: Detailed view of the center console with controls for music, Bluetooth, USB, and horn.
2.4 Operational Video:
Video 2: This video showcases the outdoor functionality and various features of the JOYRACER 24V Licensed Ford Shelby Cobra Kids Electric Ride-On Car with two children.
3. Maintenance
Regular maintenance ensures the longevity and safe operation of your ride-on car.
3.1 Cleaning:
Wipe the vehicle with a soft, damp cloth. Avoid using abrasive cleaners or solvents that may damage the finish or electrical components.
3.2 Battery Care:
- Charge the battery fully after each use.
- If storing for extended periods, charge the battery at least once a month to maintain its lifespan.
- Do not overcharge the battery.
3.3 Storage:
Store the vehicle in a dry, cool place away from direct sunlight and moisture. Protect it from extreme temperatures.
Figure 4: The built-in carrying handle provides a convenient solution for transporting the car when the battery runs out.
4. Troubleshooting
If you encounter issues with your ride-on car, refer to the following common problems and solutions:
- Vehicle not starting: Check battery connection, ensure battery is charged, and verify the power button is engaged.
- Slow speed/Loss of power: Battery may be low; recharge fully. Ensure the speed setting is not on 'slow' mode.
- Remote control not responding: Check batteries in the remote. Ensure the remote is paired correctly with the vehicle.
- Unusual noises: Inspect wheels for obstructions. If noises persist, discontinue use and contact customer support.
5. Specifications
| Feature | Detail |
|---|---|
| Product Dimensions | 44.2 x 25.6 x 20.1 inches |
| Battery | 24V 7Ah |
| Motor | 2 x 200W |
| Speed Range | 1.86 - 4.45 MPH (3-7.1 km/h) |
| Max Load Capacity | 110 lbs |
| Recommended Age | 3 years and up |
| Seating Capacity | 2 Seater |
| Suspension | 4-Wheeler Suspension |
| Special Features | Remote Control, Soft Start, Bluetooth, LED Lights, Music, USB |
Figure 5: Visual representation of the ride-on car's dimensions and weight capacity.
6. Safety Information
For the safety of your child, please adhere to the following guidelines:
- Adult assembly is required.
- Always supervise children during operation.
- Ensure children wear safety belts at all times.
- Do not operate the vehicle near streets, cars, steep inclines, swimming pools, or other bodies of water.
- Only use on flat, dry surfaces.
- Do not exceed the maximum weight capacity of 110 lbs.
7. Warranty and Support
For warranty information, technical support, or replacement parts, please contact JOYRACER customer service. Refer to your purchase documentation for specific contact details.
